P1/X1 Low Profile Exhaust system for 4inch tubing

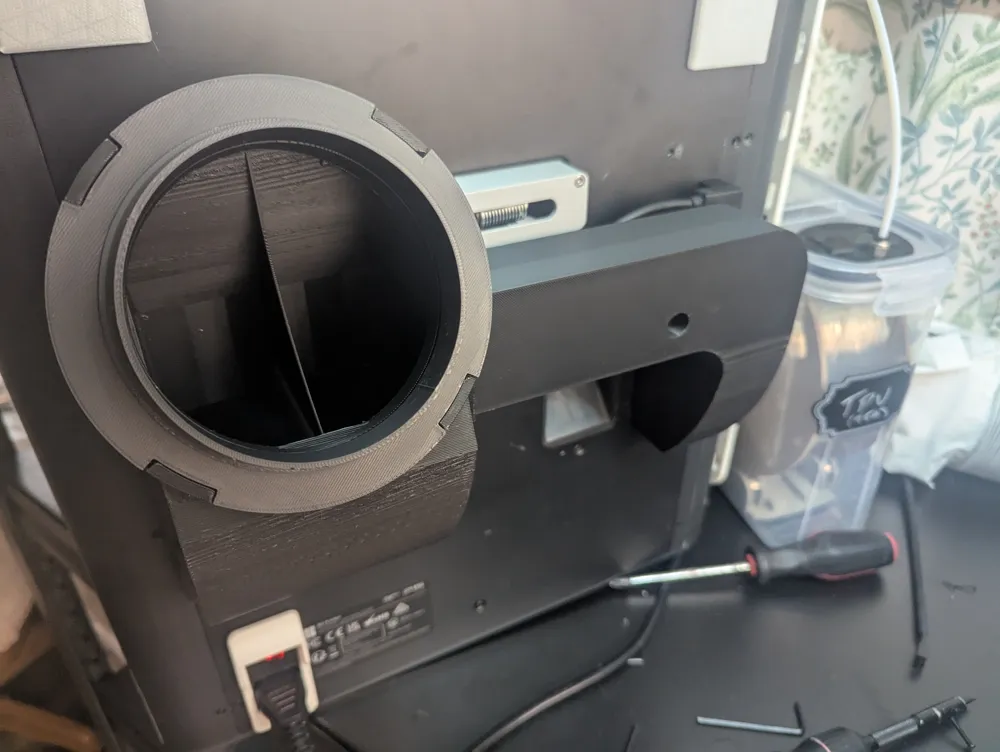

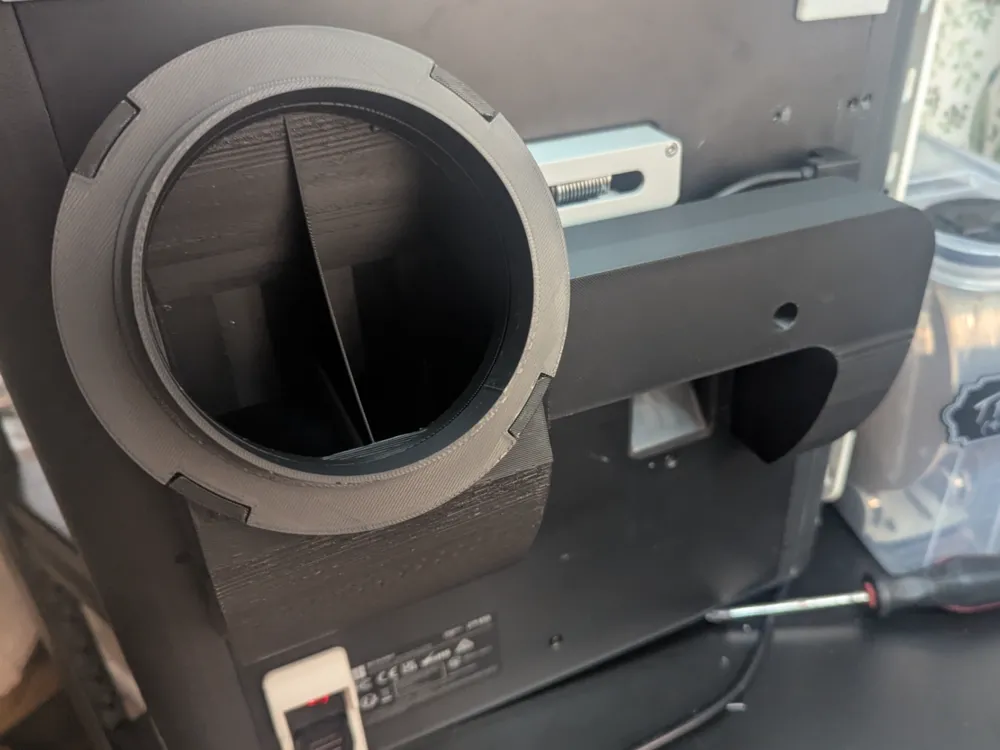

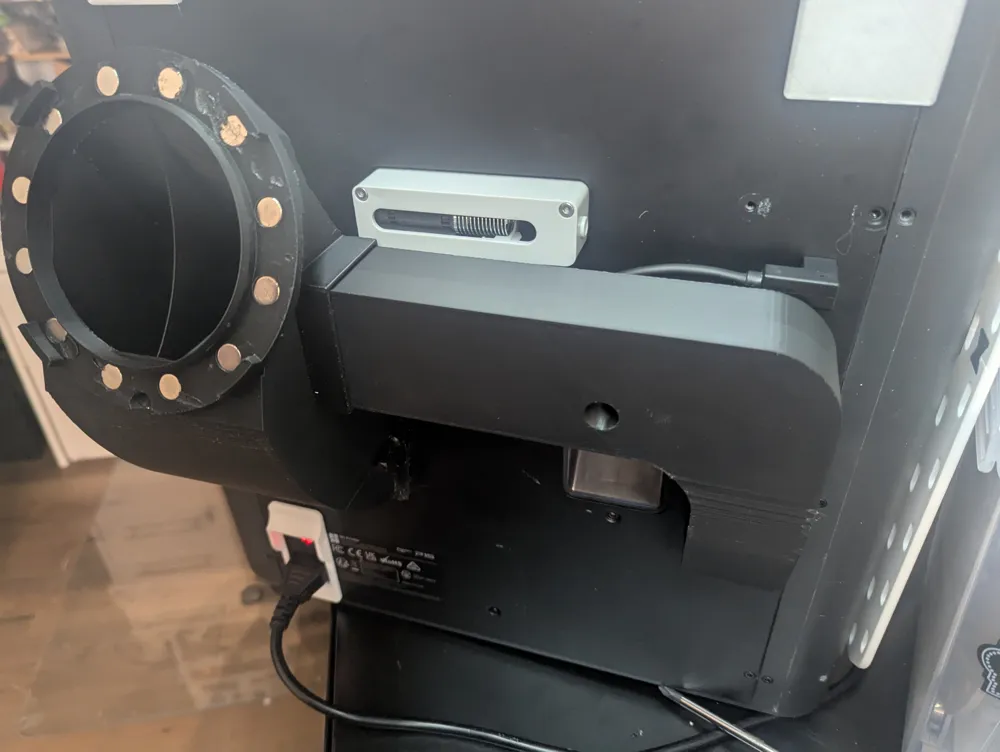

This is an exhaust system that covers both the main and the system board exhaust that still works with an AMS buffer and poop chute.

You don't see a lot of exhaust adapters that also covers the system board exhaust, even though its open inside to all the stuff you are trying to pump out through the other exhaust. For a long while I used MasterBuilder's method here: https://makerworld.com/en/models/141766-x1-p1s-exhaust-system-with-4-twist-connector#profileId-154321. While it functions as I wanted, it did not easily account for a poop chute and was very boxy and large for what it was.

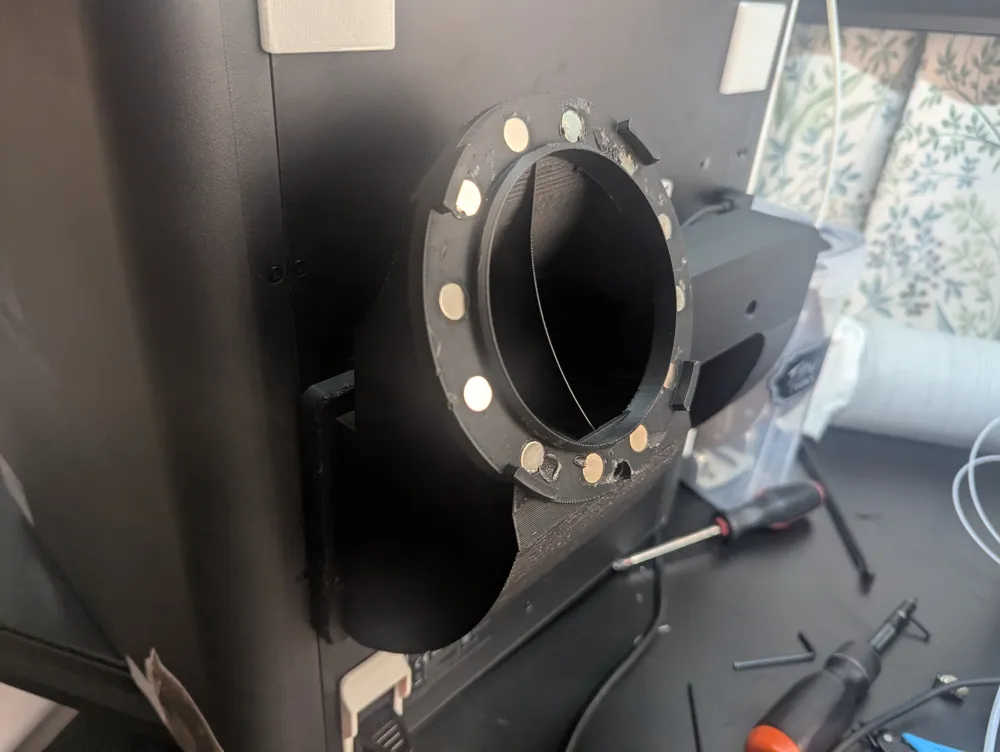

I recently redid my printing area and wanted to accommodate an undershelf poop chute, but needed to fix the above problem so I decided to design a lower profile version and incorporated RandomKhaos' magnetic connector (hence the remix).

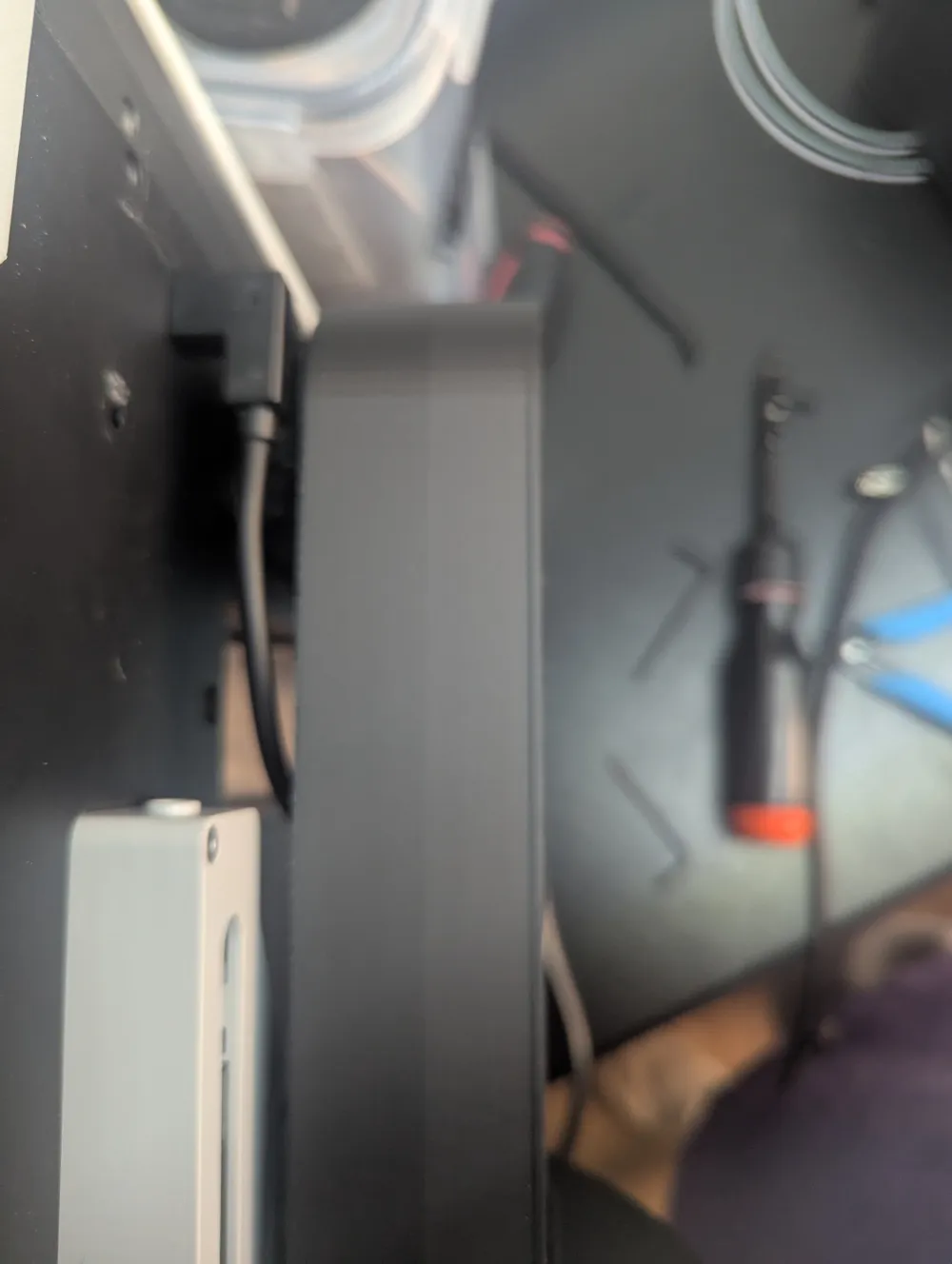

Whole system stays suspended with 3 screws (either side of main exhaust, and right of system board exhaust), but there are spots for two more to attach. The top screw will require a very long and thin screwdriver though.

There are two options for the long system exhaust side, one enclosed requiring supports and another with the top removed requiring glue/filament soldering. The enclosed version is a bit of a pain to remove the supports.


This is confirmed to work with both the AMS buffer and AMS hub.

I printed this in PLA since its not supporting anything and the air isn't too hot running through it. ASA or ABS could work even better, but maybe that's why you are looking at this exhaust system haha.

I designed this system to work with this poop chute, but should be able be used with a lot of models: https://makerworld.com/en/models/830210-x1c-p1s-poop-chute-to-bucket#profileId-774397
