X1P1 Hotend Repair Tool
Print Profile(2)
Description
ABS filament is recommended for printing
Strength parameters are as follows
5 walls, 5 top layers, 5 bottom layers, 45% spiral infill
Supports are not required
Please provide 4 M3 square nuts and M3 screws longer than 25mm
When using, please tighten the hotend's own screws (fan mounting screws, hotend mounting screws)
After calibration, use the included check brick to verify centering (place it in the heating plate recess; if the hotend is misaligned, insertion and removal will be difficult.)

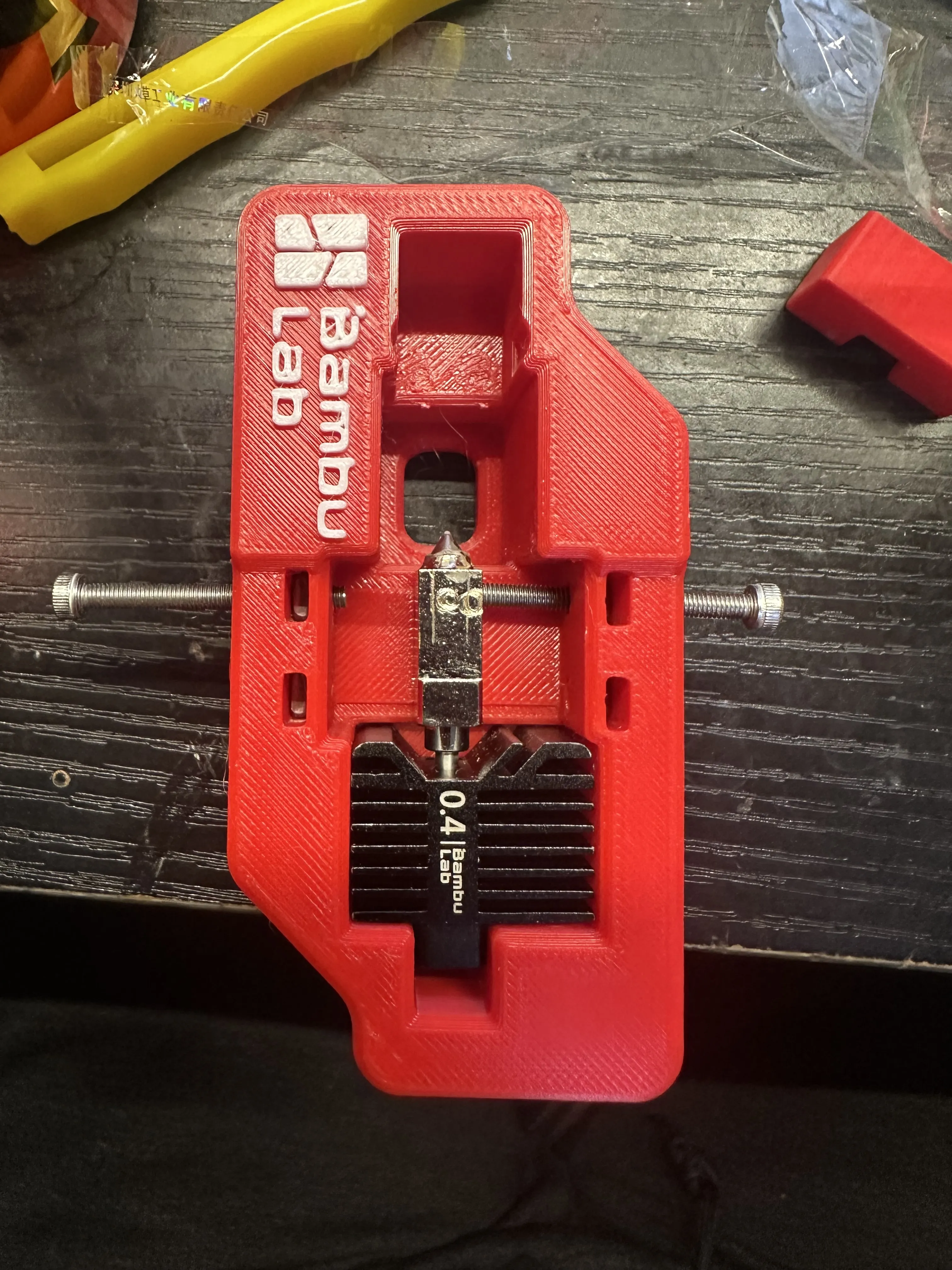

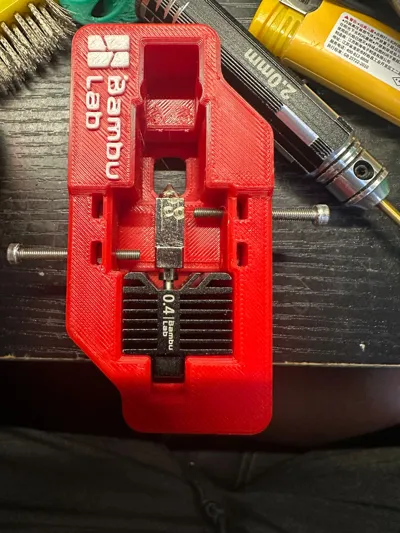

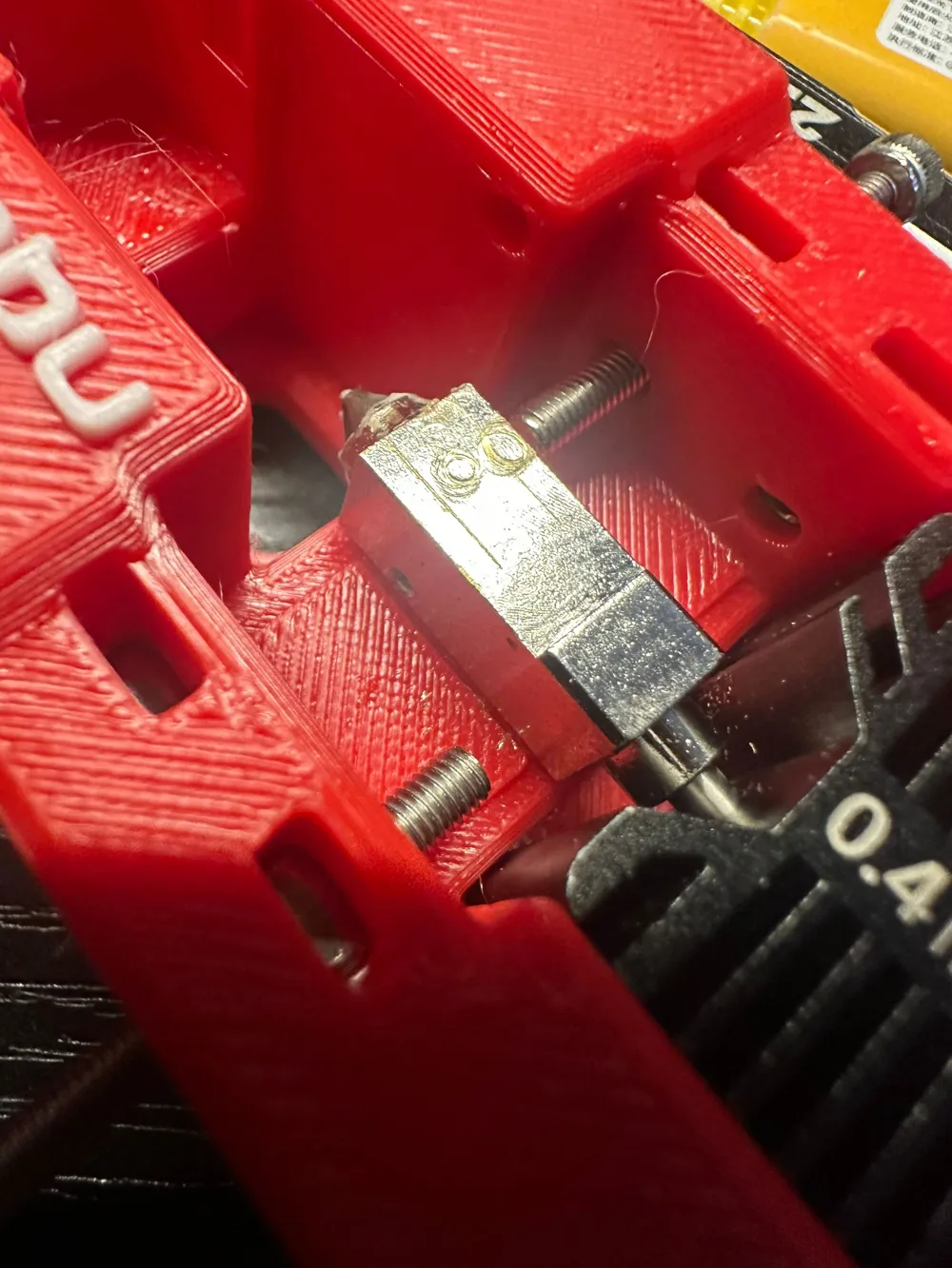

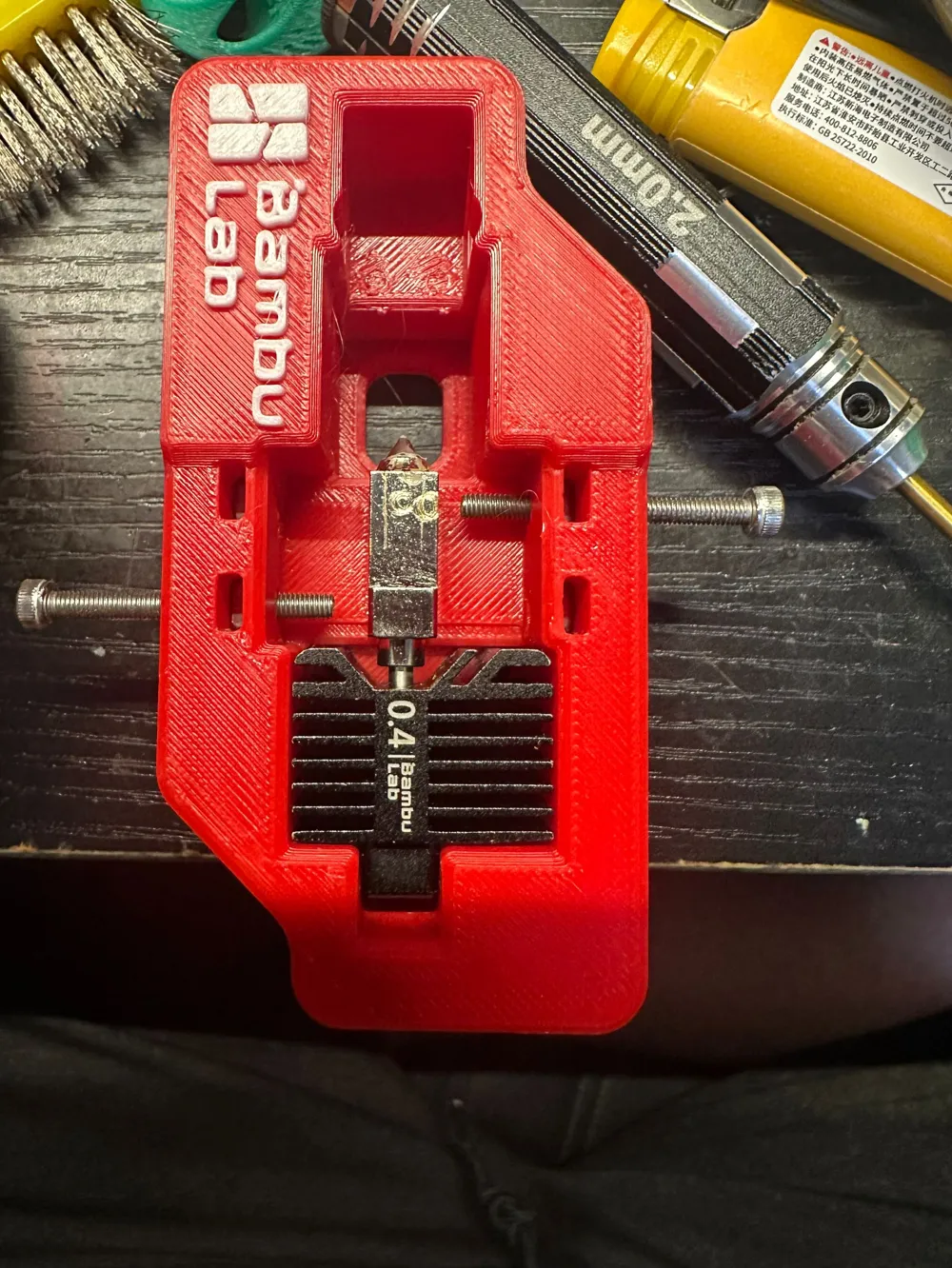

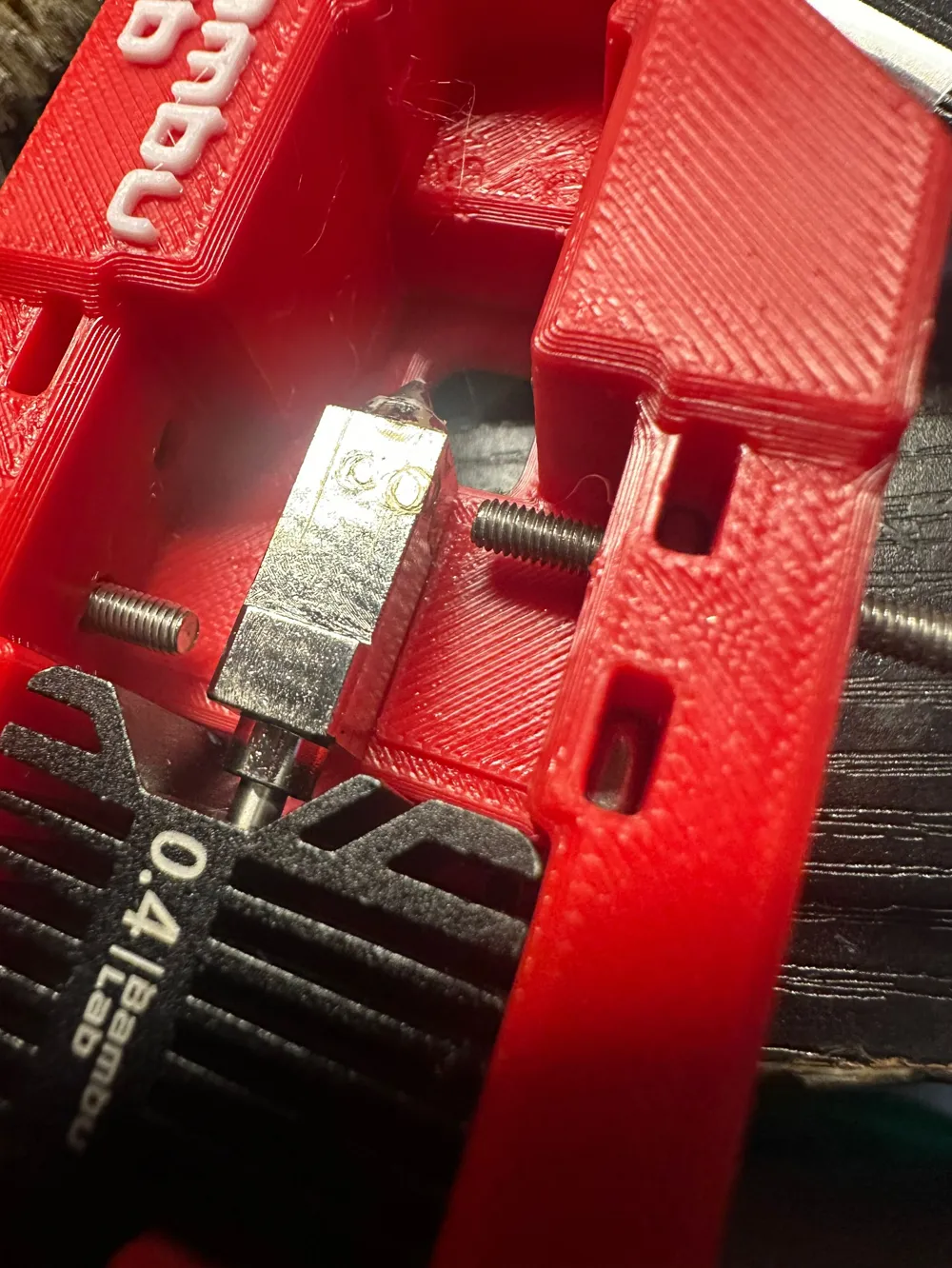

When calibrating the front, please use the positions of these two nuts:

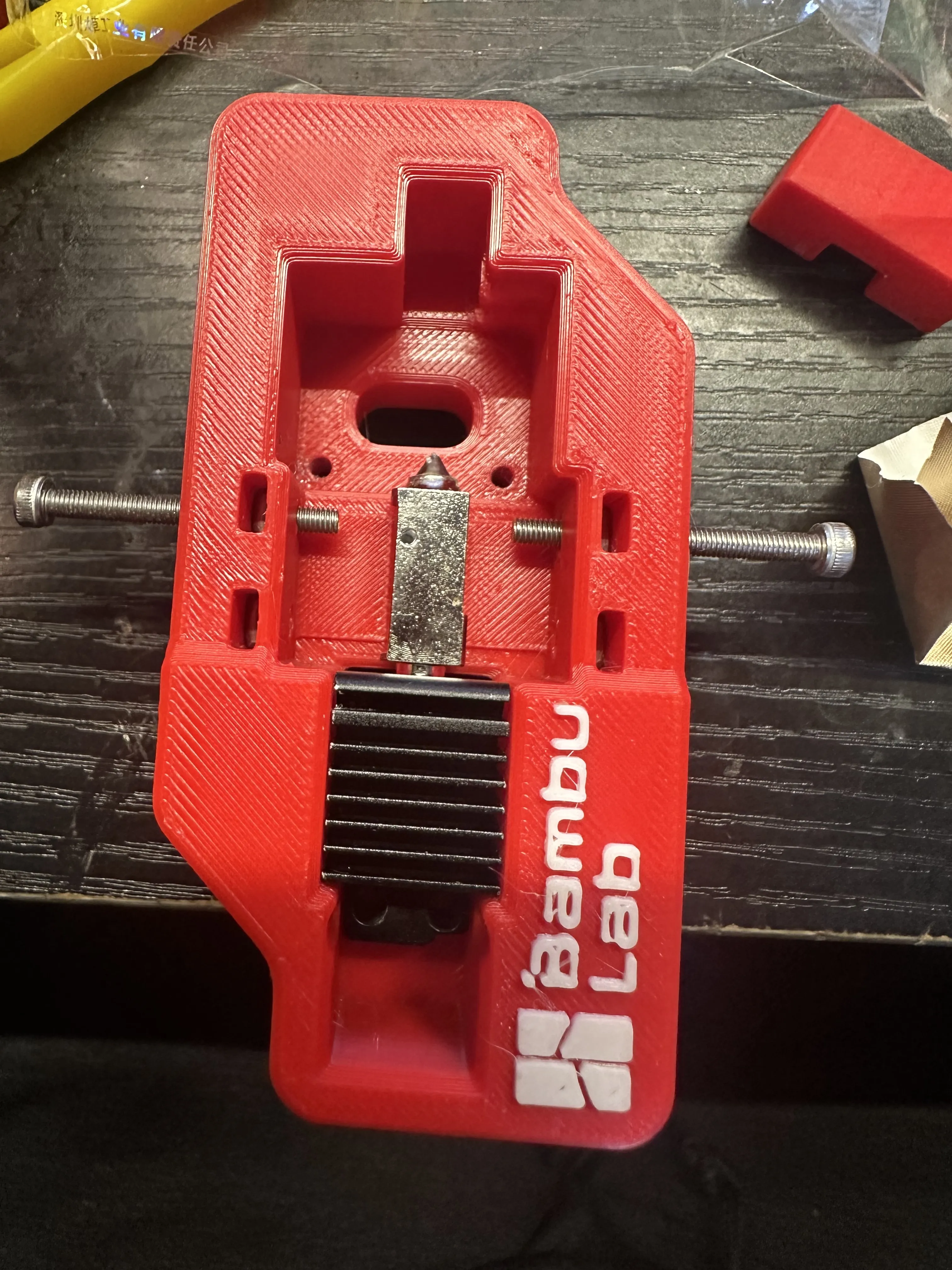

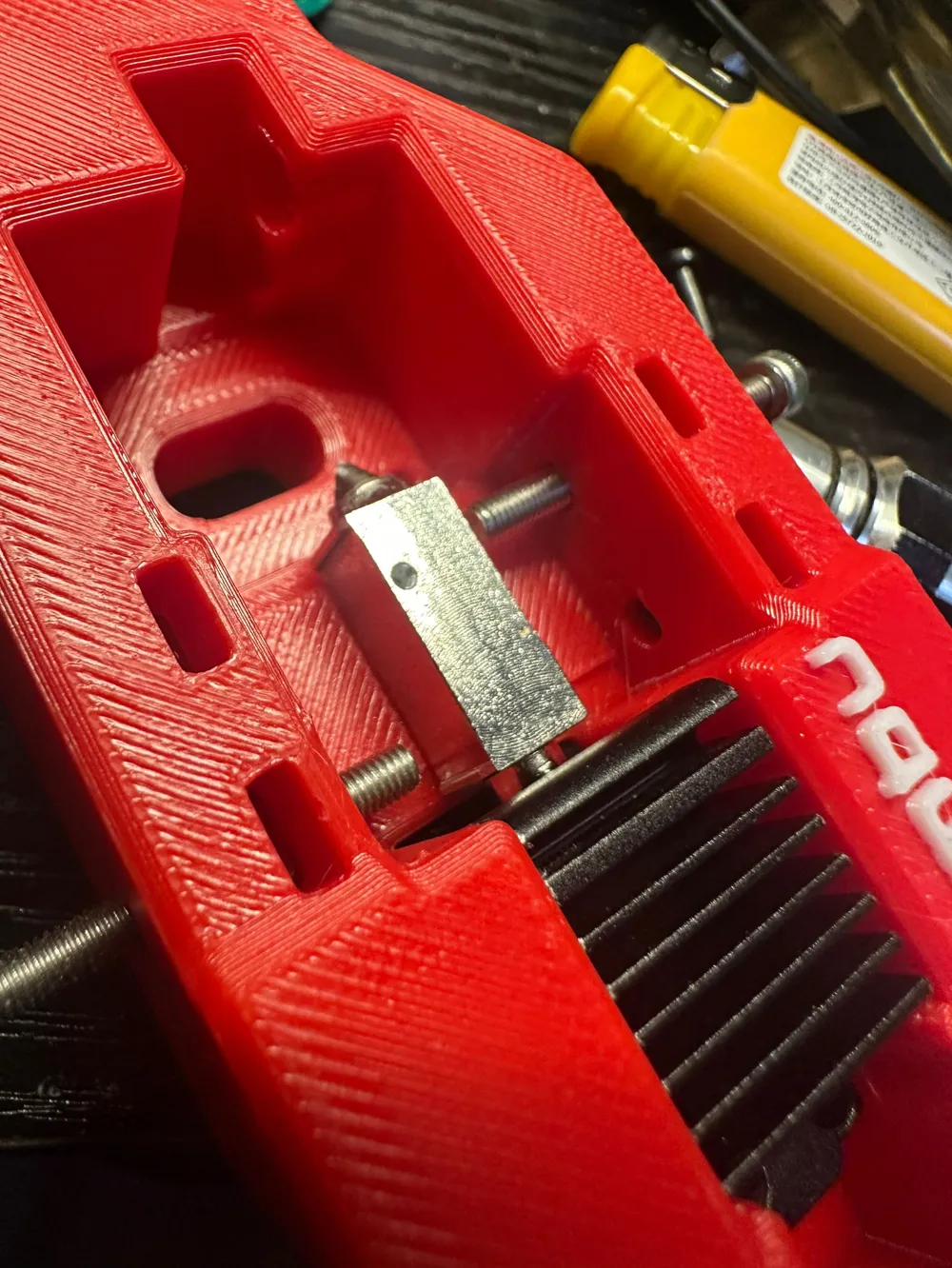

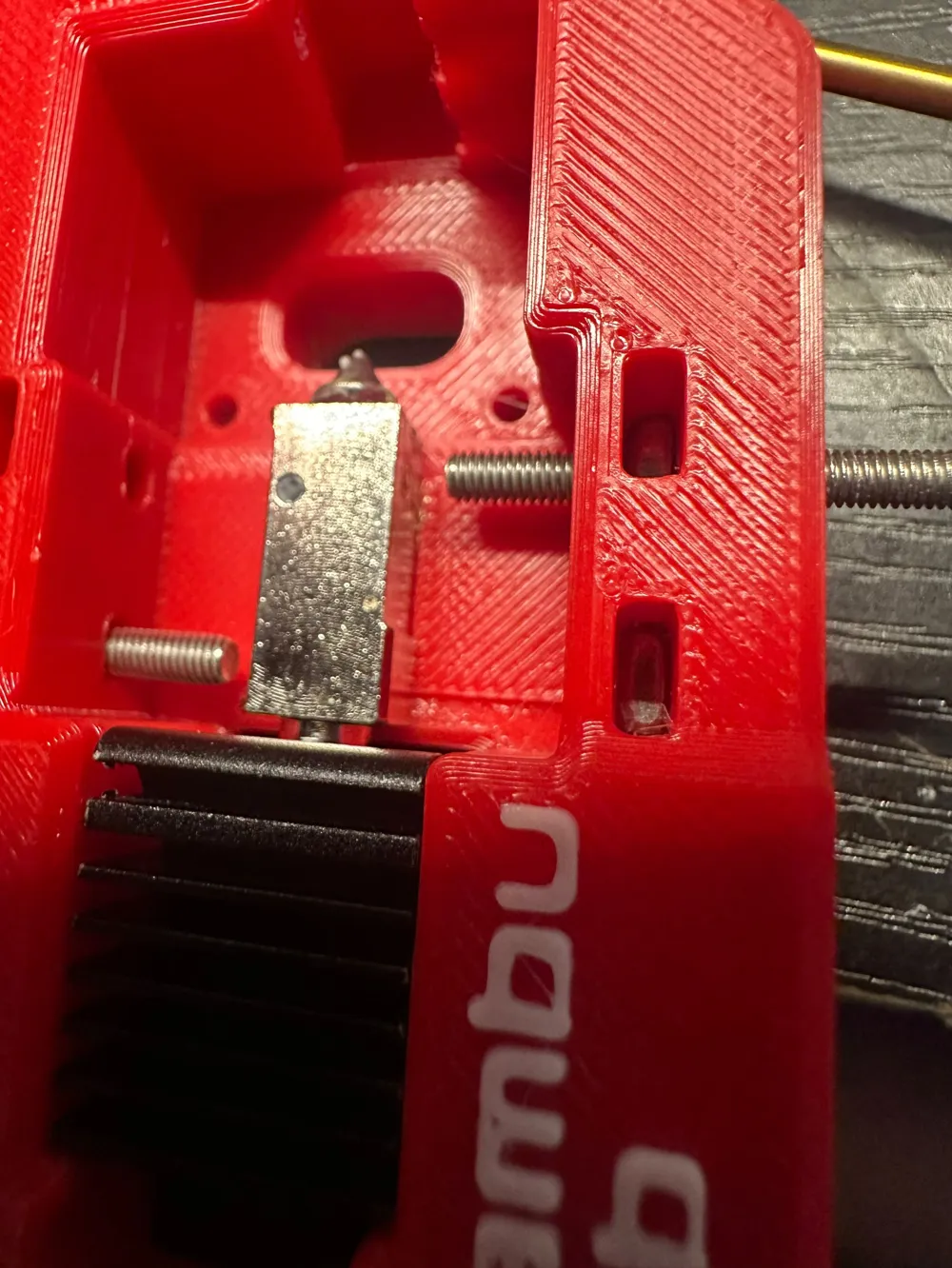

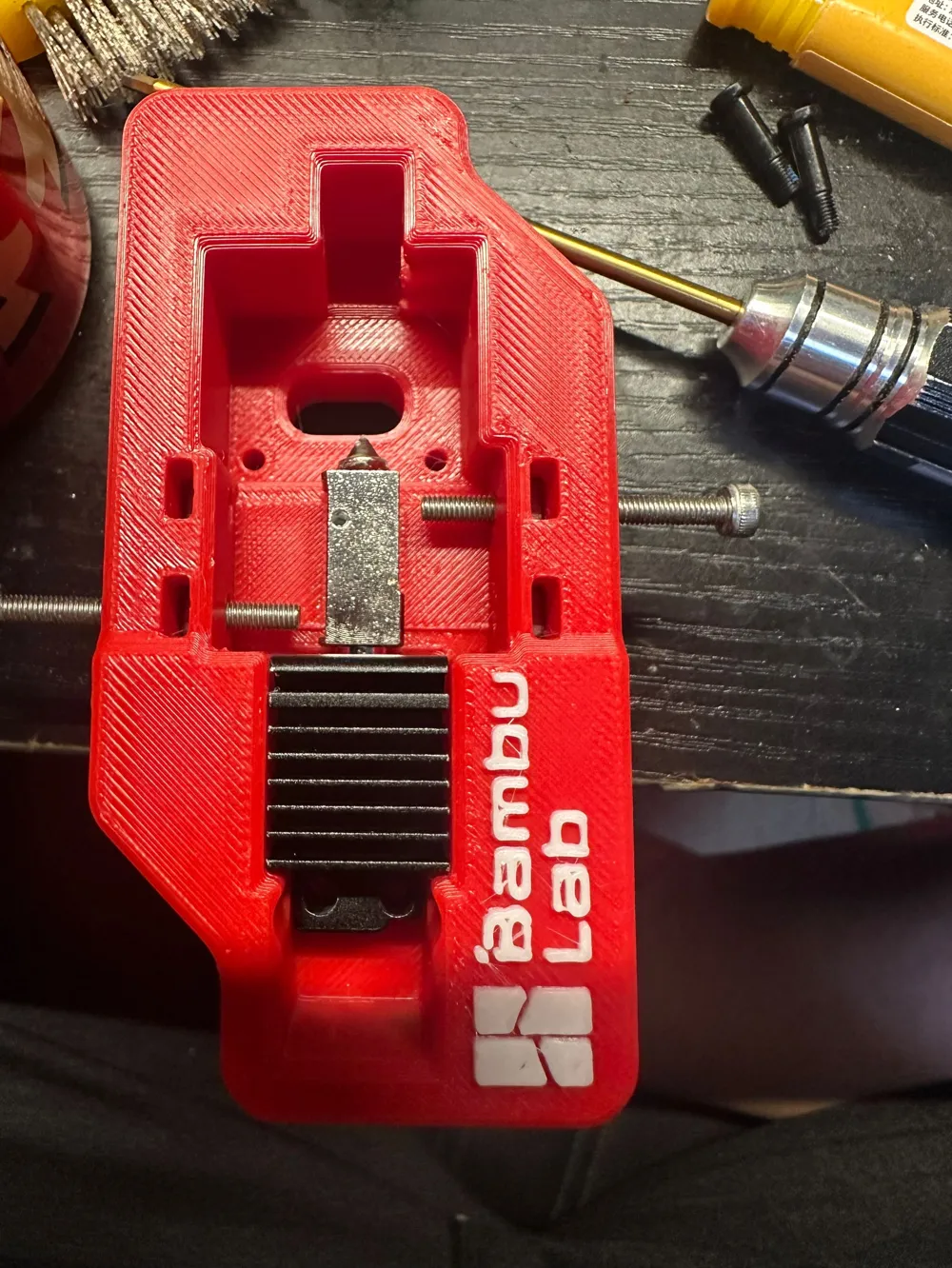

When calibrating the side, please use the positions of these two nuts:
