Makita dbo180 Random Orbital Sander
Print Profile(4)
Bill of Materials
- M3 Zylinderschraube / Senkkopf gewindeschraube 16mm lang x 2: Amazon / Baumarkt
- M3 Muttern / Selbstsichernde Muttern x 2: Amazon / Baumarkt
Description

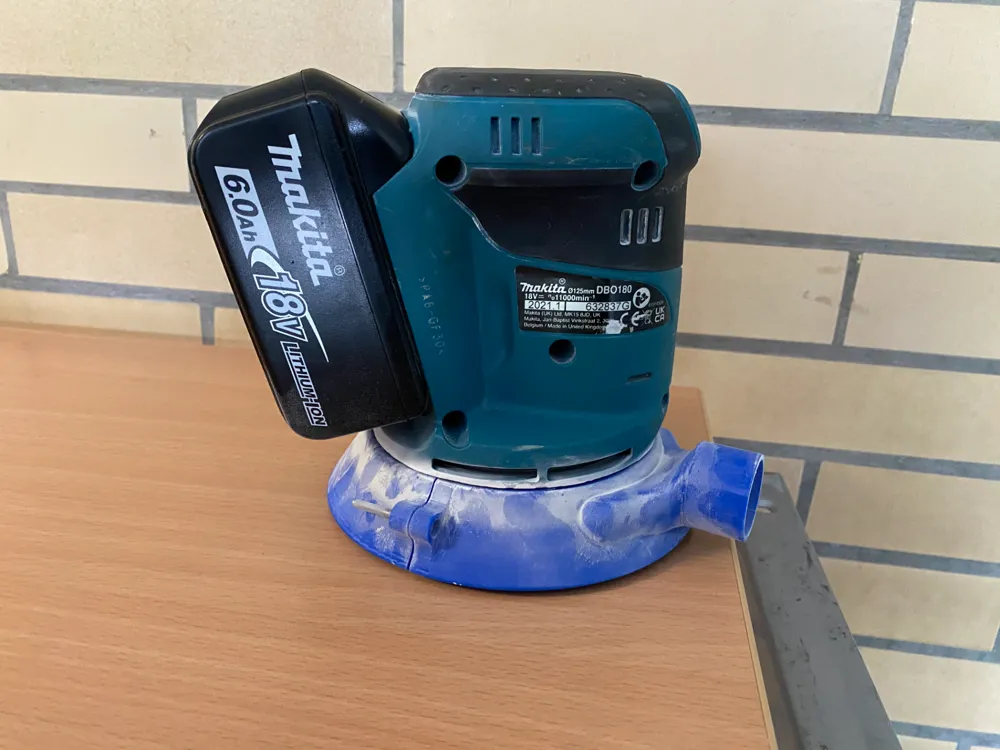

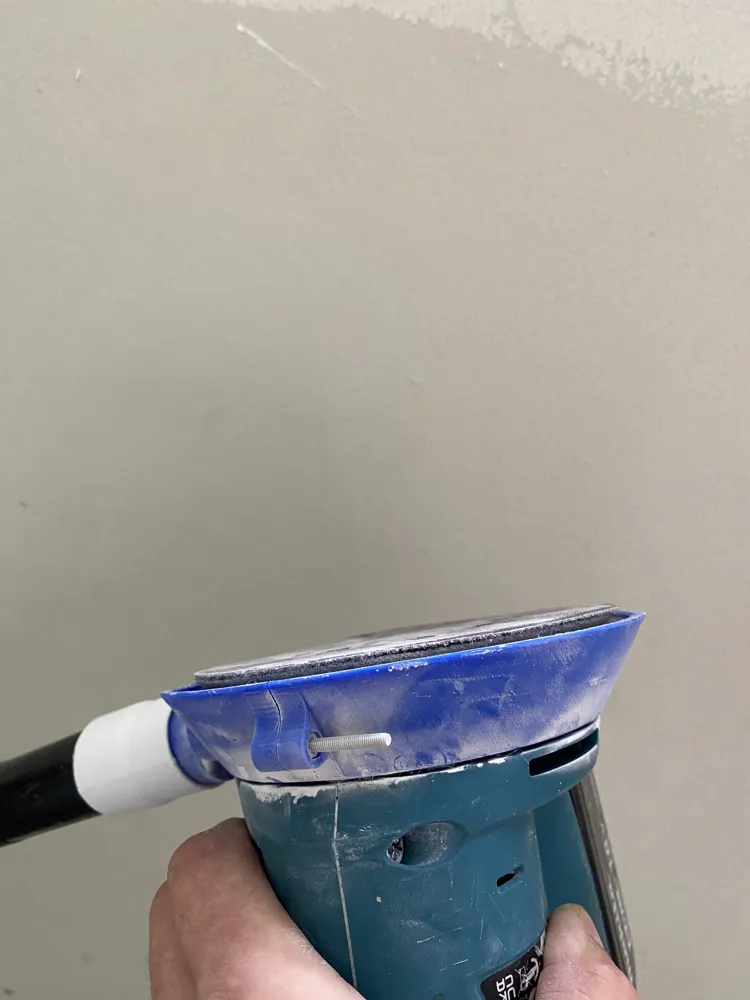

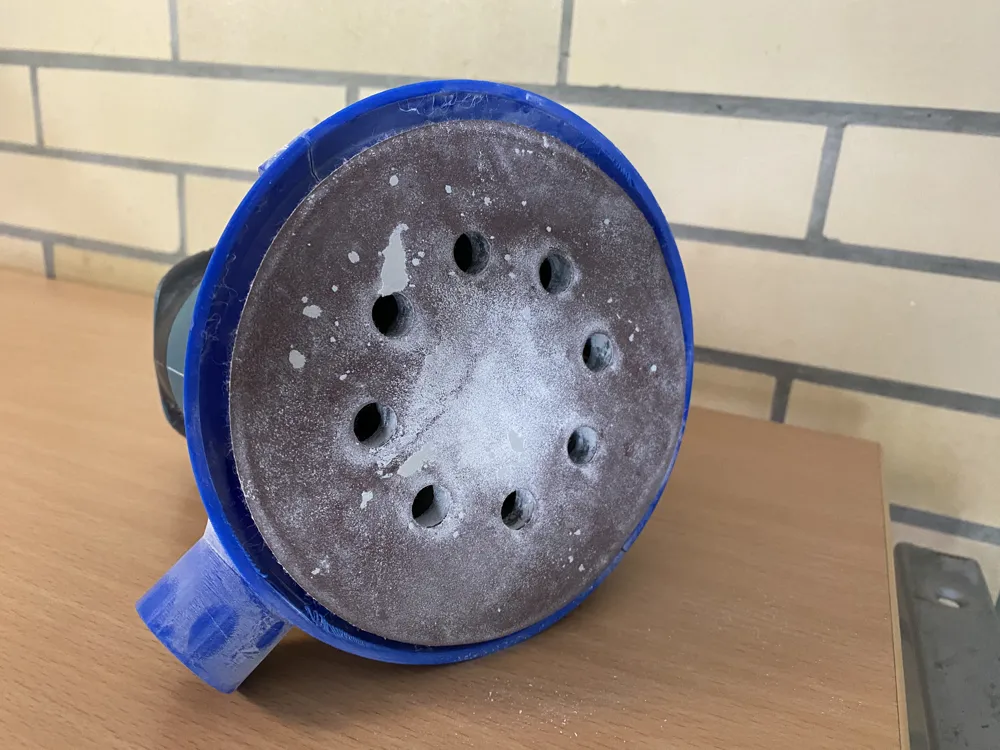

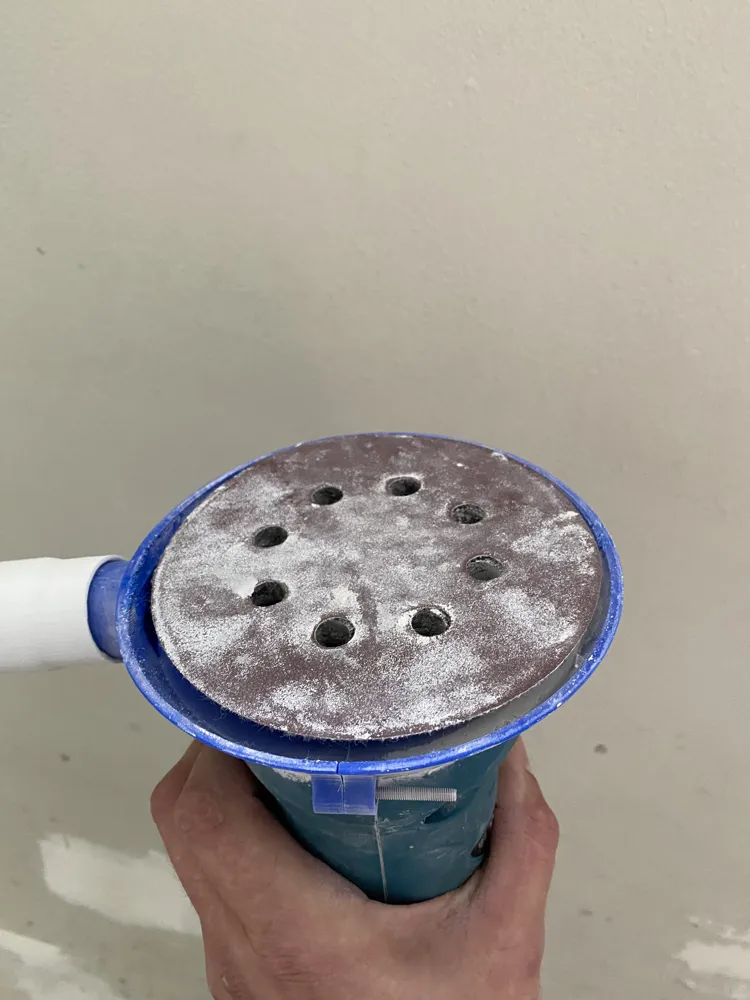

A vacuum attachment for the Makita dbo180. I was personally dissatisfied with the original; it seemed to only collect 30% of the dust, scattering the remaining 70% into the air. I am very pleased with this attachment. Top result for my needs.
Consists of two parts that are screwed together.
Recommendation: use 2 pcs M3 screws, 16mm long, and 2 pcs nuts (self-locking nuts) as the vibration can cause the screws to loosen.
Printed with PLA Basic.
Standard settings.
With support structures!
Feel free to let me know what hose adapters you need, and I will expand the model so that a suitable adapter is available for everyone.
I am happy to receive feedback, suggestions, or criticism.
Happy printing!
