RAKwireless RAK10706 Signal Meter
Print Profile(2)
Bill of Materials
- RAK19026 WisBlock Base Board with RAK4630 x 1: https://store.rakwireless.com/products/wismesh-baseboard-rak19026?index=6&intsource=rak_store&intmedium=organic&intcampaign=meshtastic_collection_page&intterm=meshtastic_starter_kits_and_baseboards&intcontent=product_image
Description
Checkout my enclosure and accessory collection for RAKwireless WisBlock, WisMesh Meshtastic and MeshCore devices ==> RAKwireless Origins.
All my models come with STEP files and Fusion 360 project files for customization.
-------------------------------------------------------------------------------------------------------------------------------

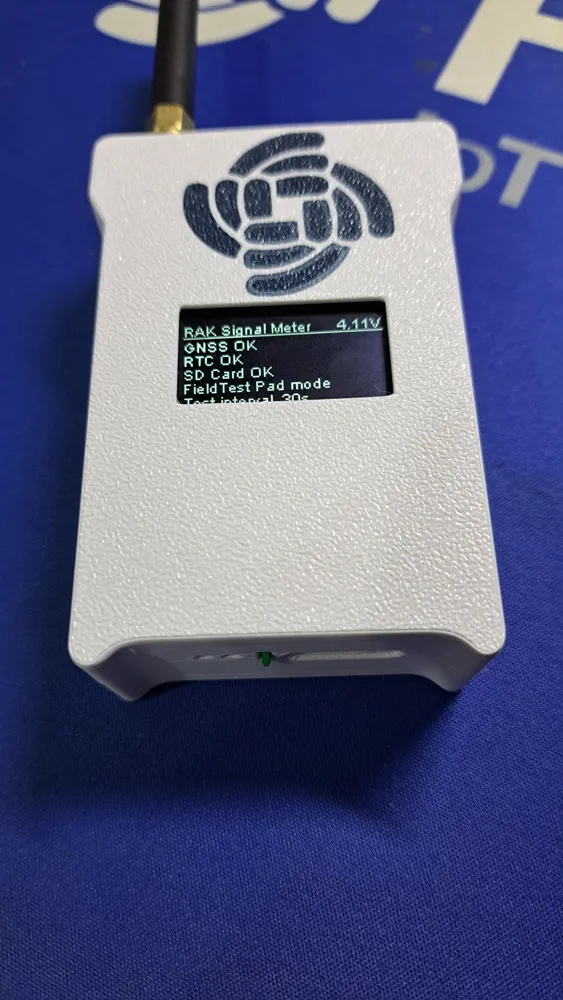

RAK10706 Signal Meter

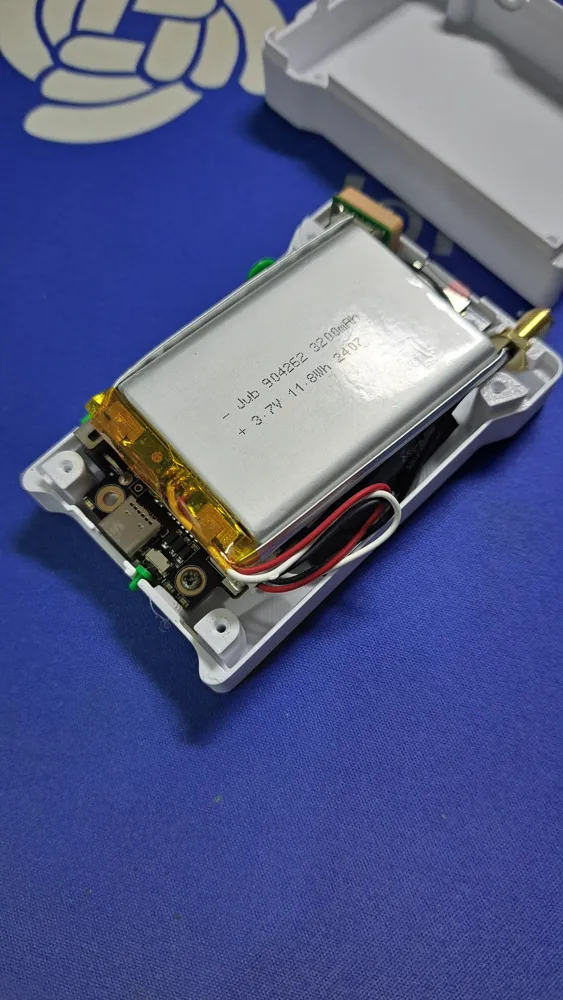

The RAK10706 Signal Meter for LoRa is a basic signal meter. It works in both LoRa P2P and LoRaWAN mode. It uses an OLED display and a single-button controlled UI for settings changes. In addition, it can use an SD card to log the test results in CSV files. It is powered by a rechargeable battery and can be charged via USB Type-C interface.
It uses an OLED display and a one-button controlled UI for settings changes. In addition, it can use an SD card to save the test results in .CSV files.
All settings can be done as well over USB with RUI3 AT commands.
It is a very easy to use device that can help to check LoRa and LoRaWAN coverage. It does not claim to be a super precise instrument, it is just an affordable small instrument to check signal coverage.
Electronics:

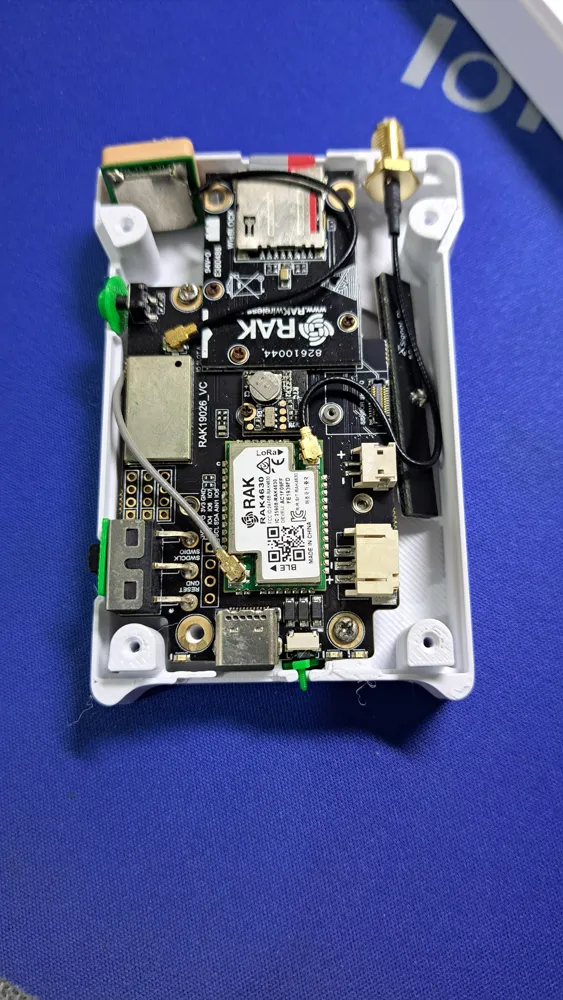

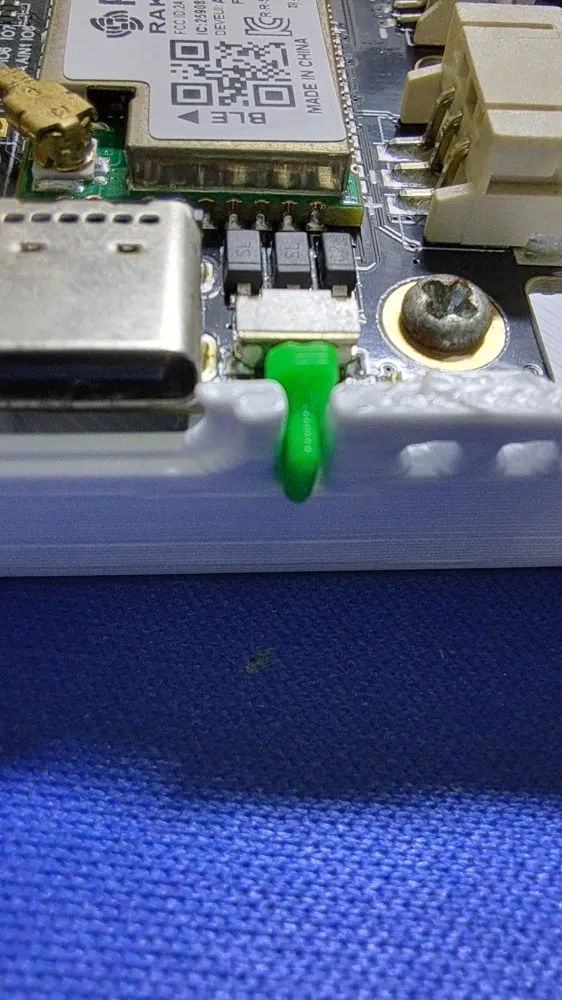

RAK19026 WisBlock Base Board with RAK4630 WisDuo LoRa module
Application code:
-------------------------------------------------------------------------------------------------------------------------------
Need a customization of one of my designs or have an idea for an enclosure, but cannot find something matching? Contact me.
