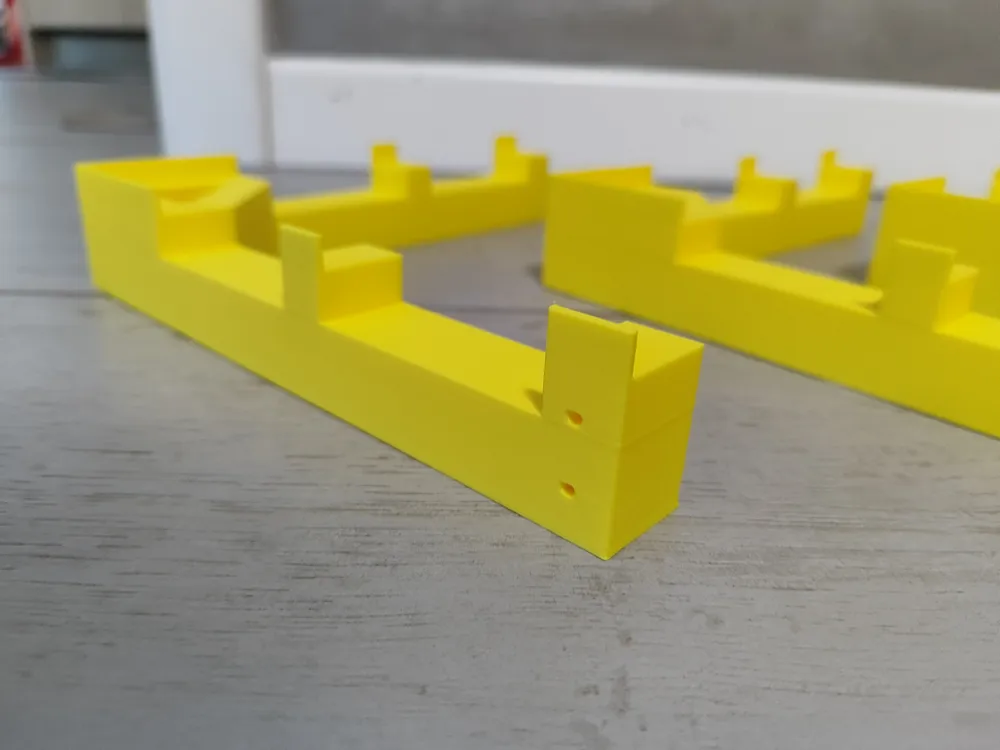

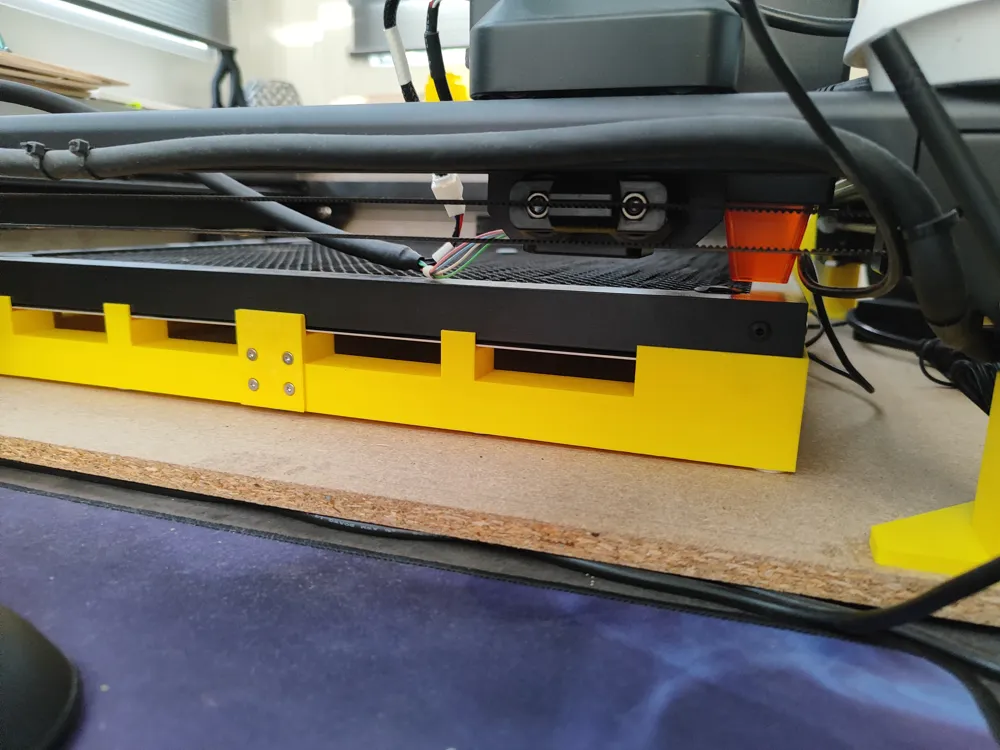

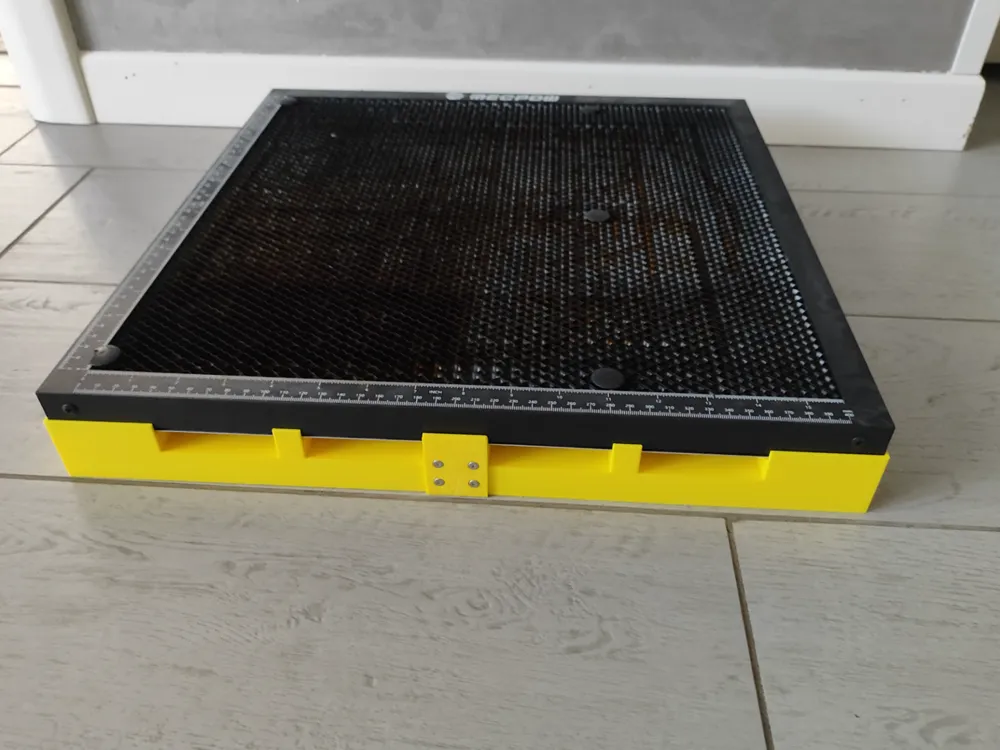

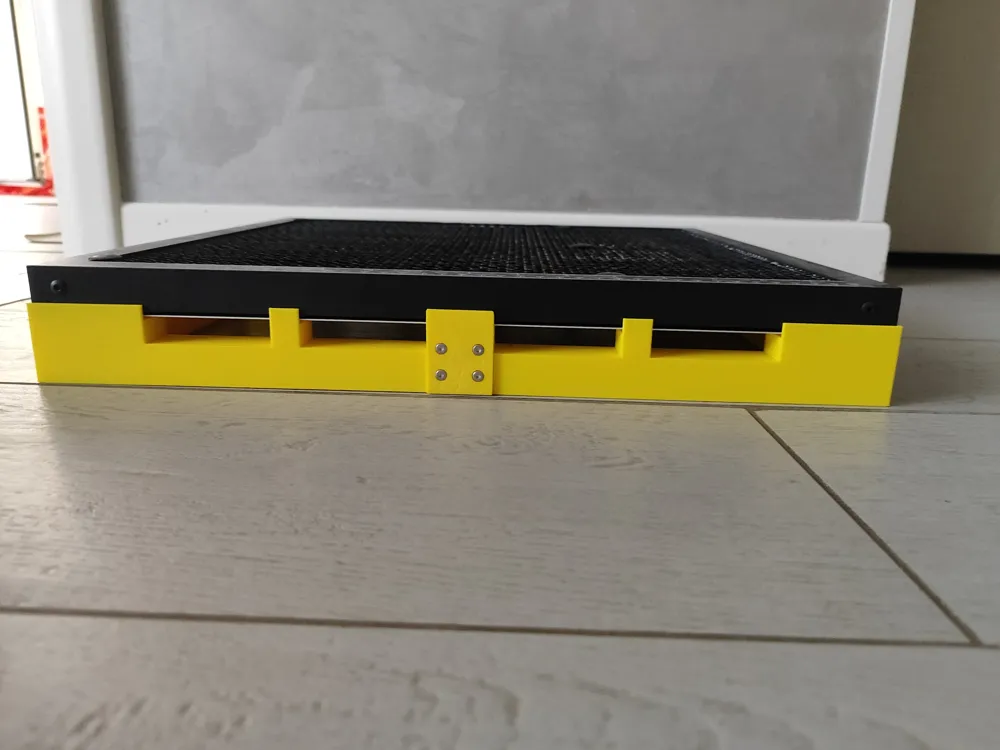

Honeycomb plate riser support for MECPOW laser engraver and cutter (size with frame 44x44cm, usable honeycomb 40x40cm) to be printed in PLA or PETG.
(the uploaded model is designed for PLA printing)

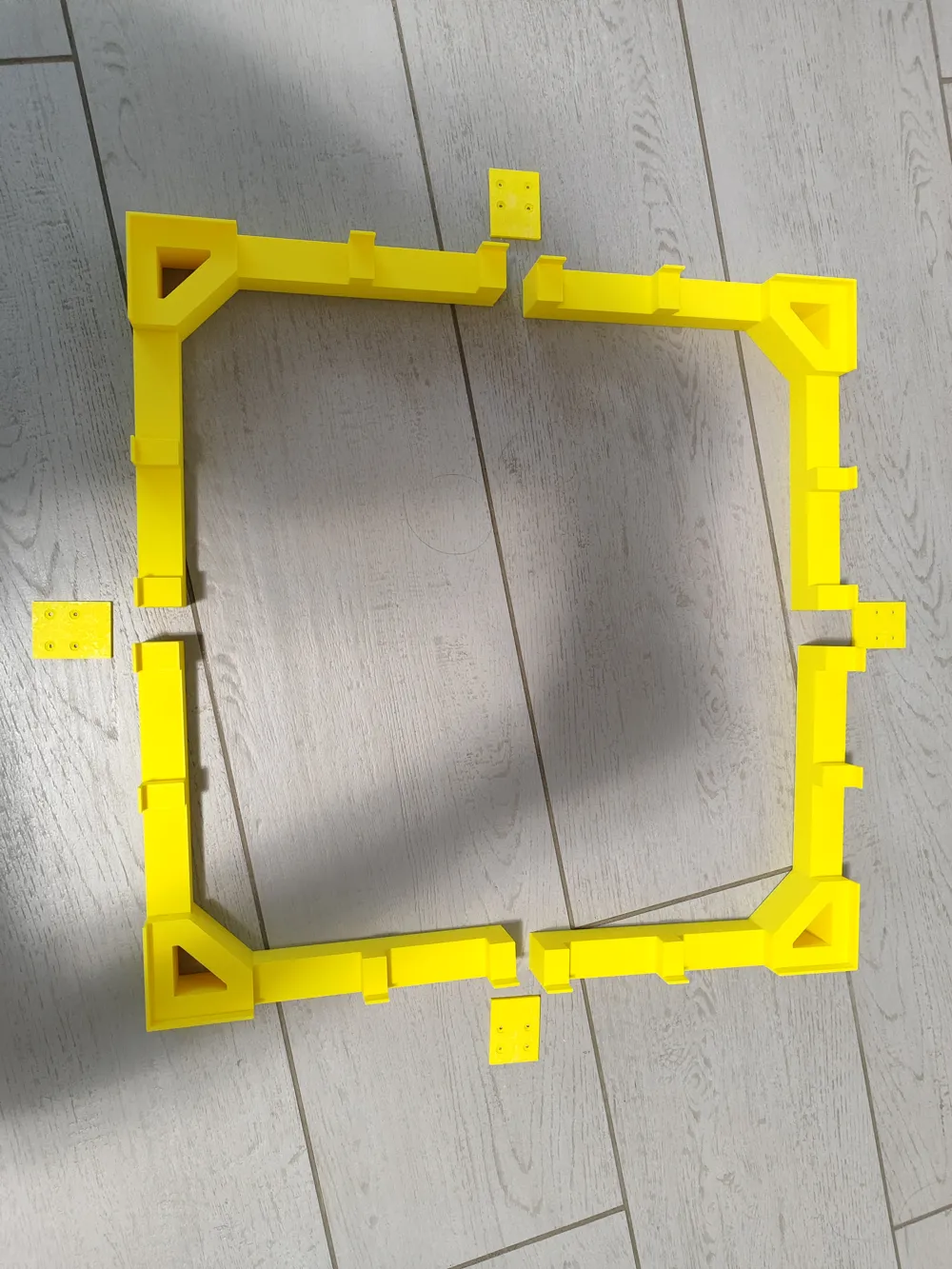

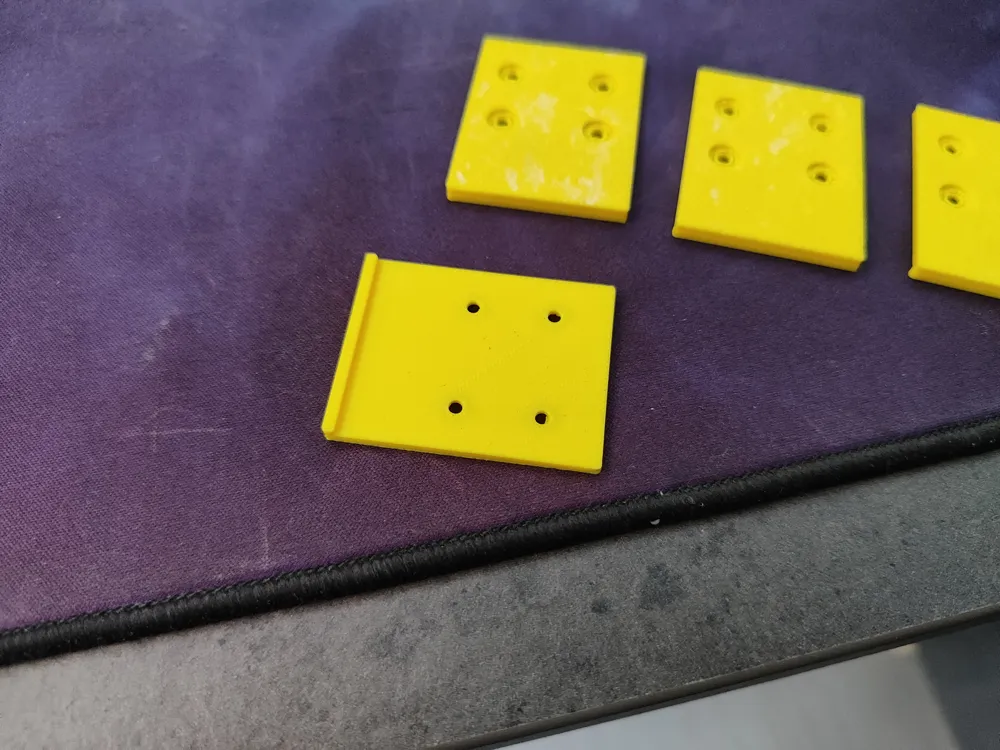

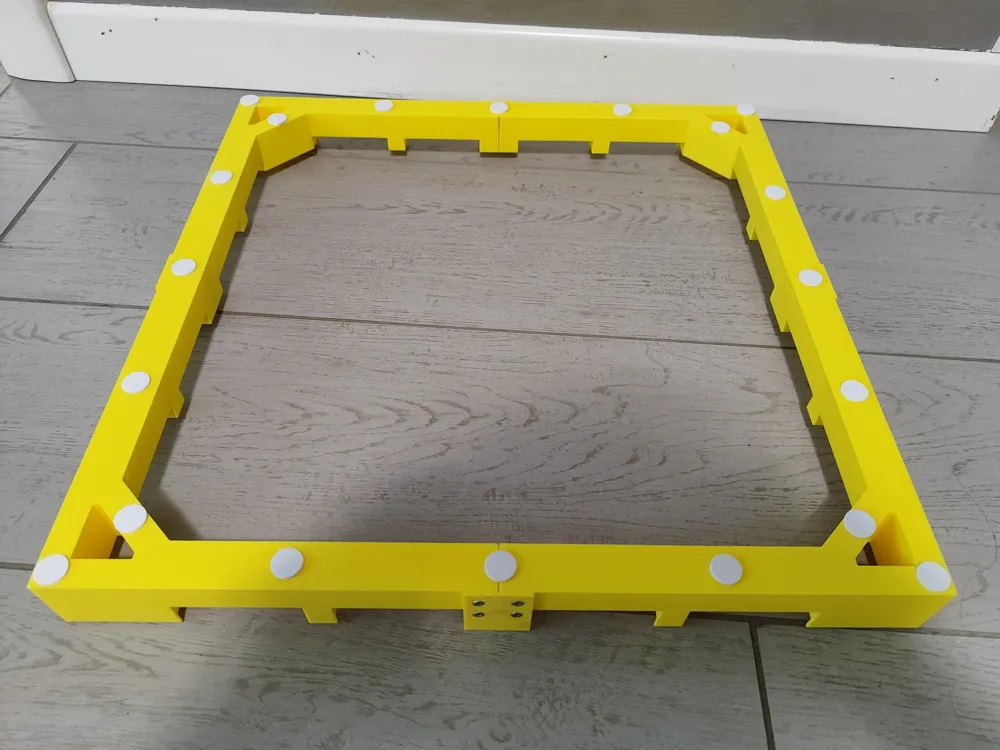

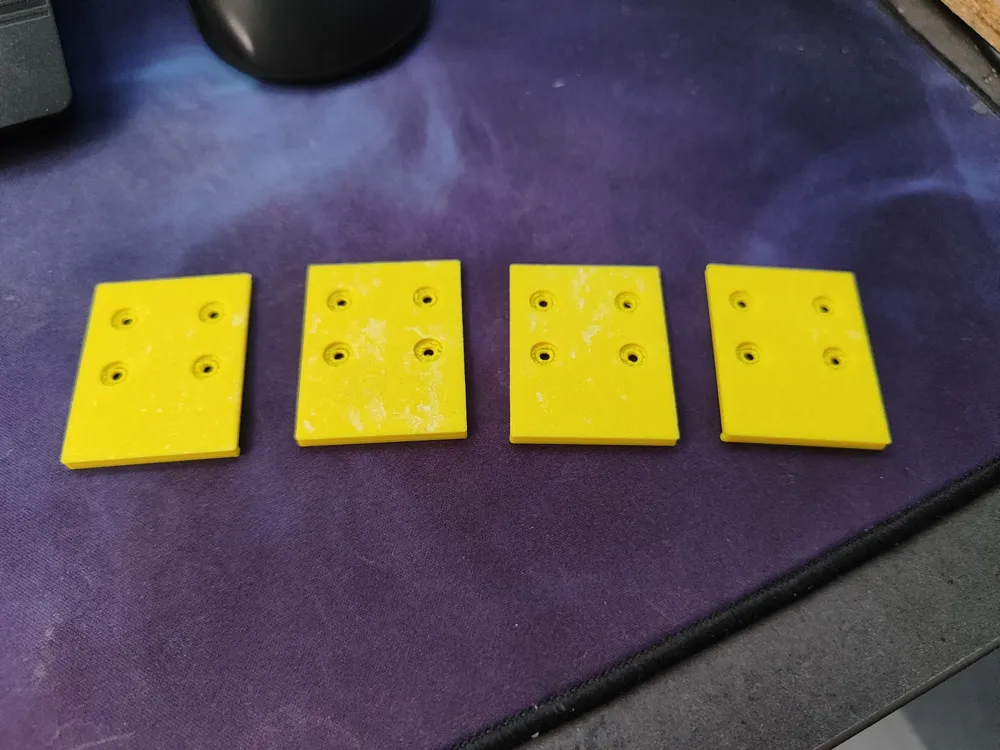

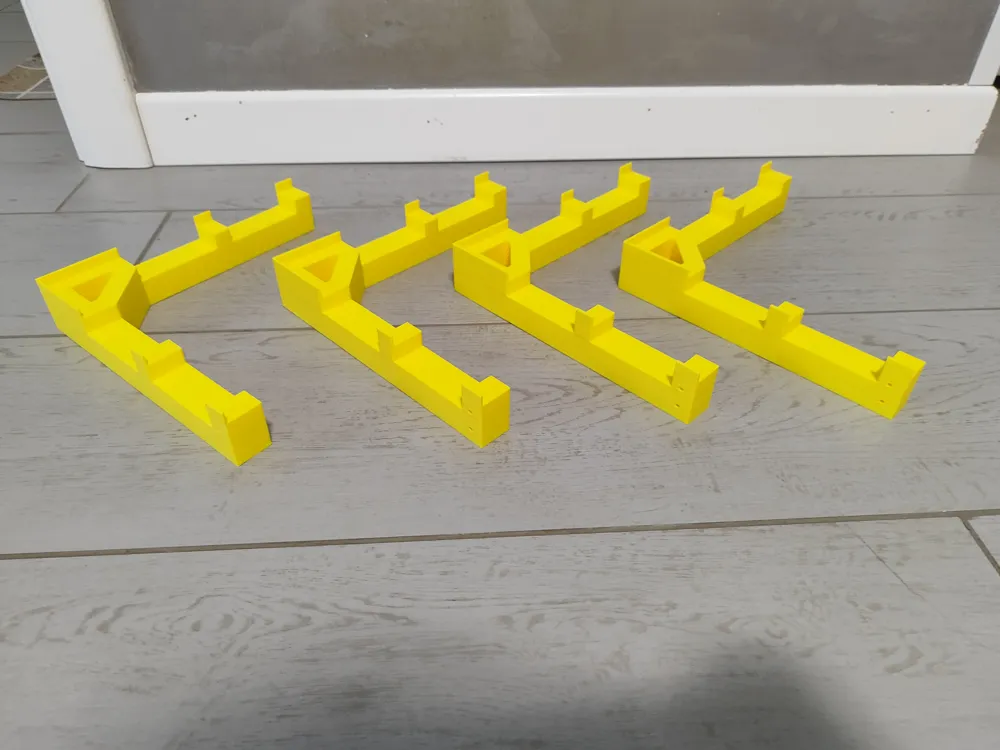

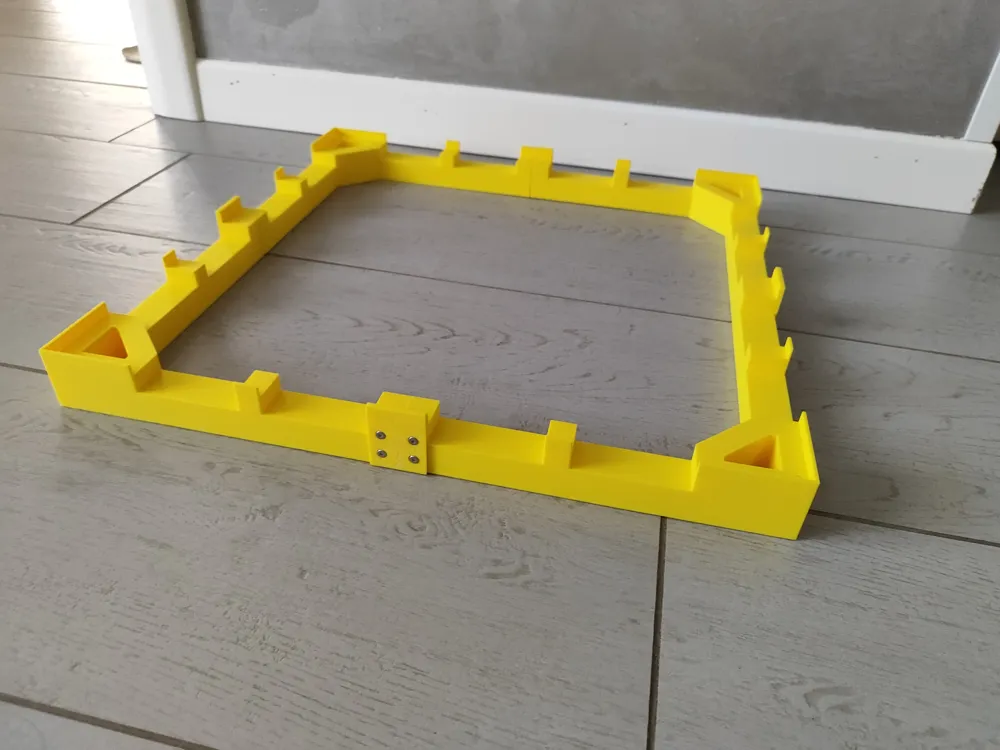

Print 4 times and then assemble with the relative plates and a total of 16 M3x12mm flat head screws
Support height from the plane 34mm.
The following parameters were used to create it:
- Infill density: 15%
- Wall loops: 2
- Supports enabled (tree type)
