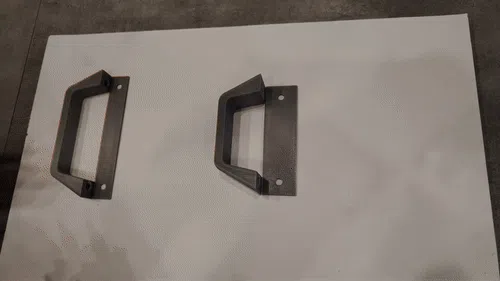

This universal handle is designed as a fully parametric model that you can easily customize to fit your needs. The default dimensions are 147 × 22 mm, but both the length and width can be adjusted. The minimum length is limited to 100 mm to ensure secure mounting.
The handle length is measured from edge to edge (total outer length).

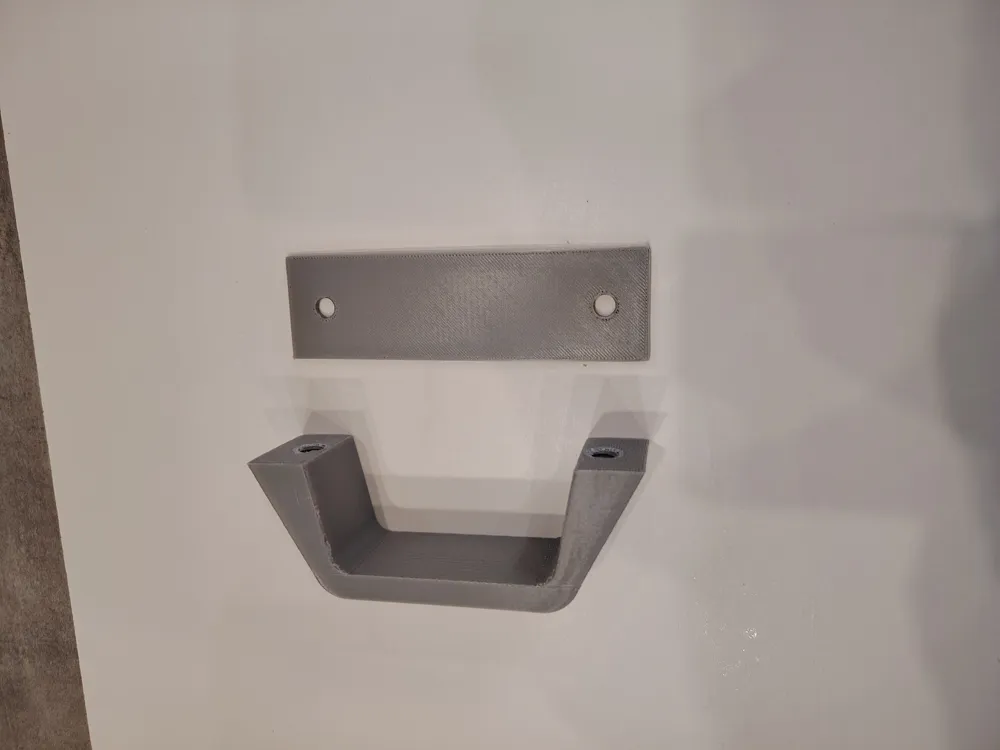

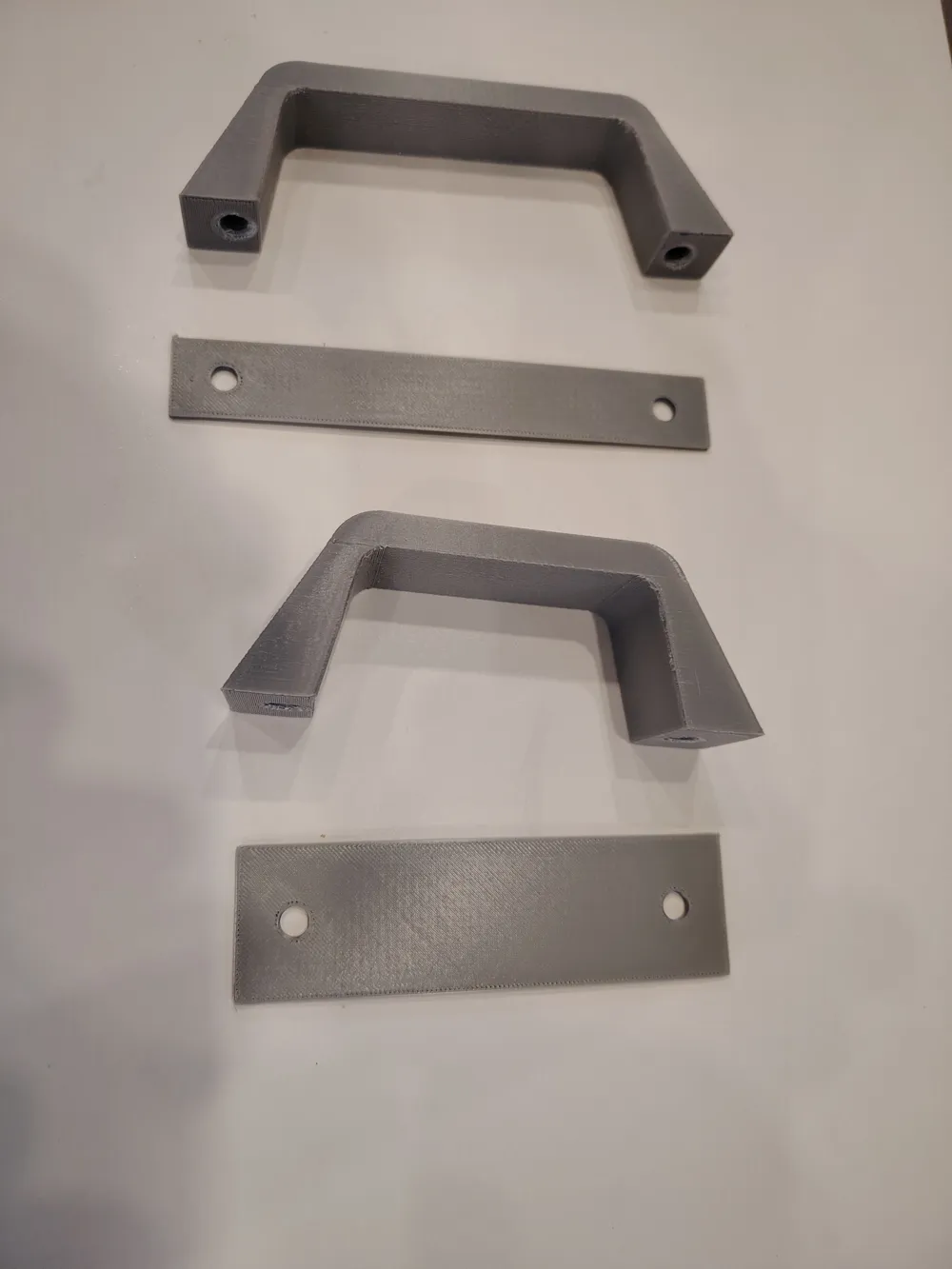

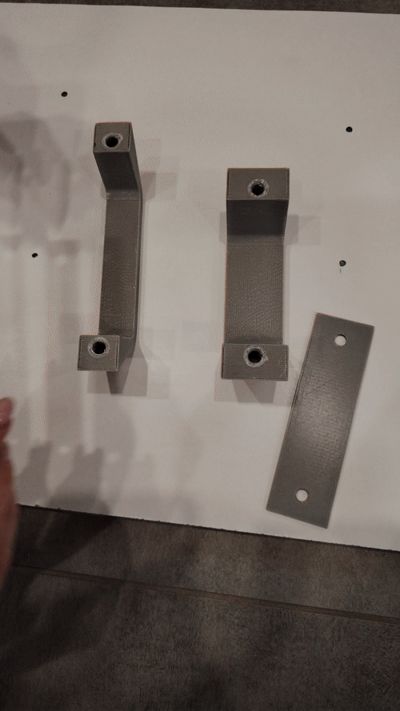

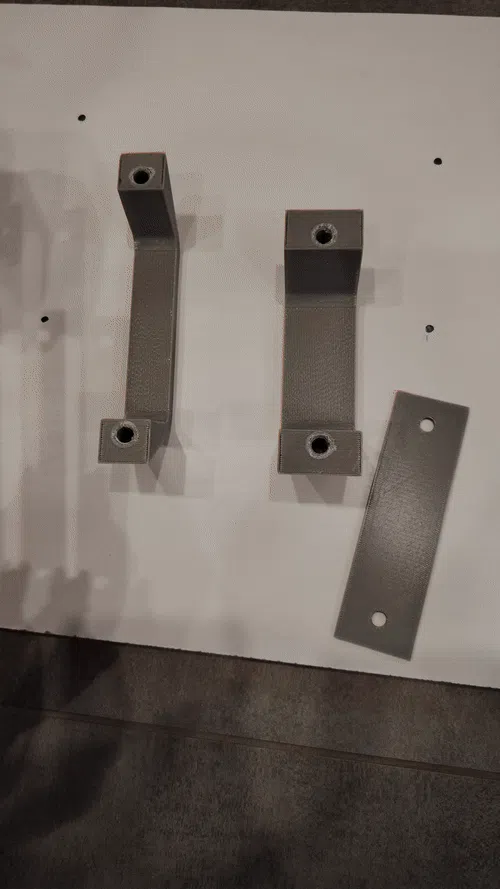

The model includes mounting holes for M8 screws, which automatically reposition based on the selected handle length. Additionally, there's an adjustable mounting template that adapts to the handle size, allowing you to easily mark and drill precise holes without complicated measuring. This makes installation fast and accurate.
When slicing, it's recommended to use tree supports, but make sure to avoid placing supports directly inside the screw threads.
Perfect for workshops, home use, or professional projects.
I'm planning to release many more smart, customizable, and useful models – follow me so you don’t miss any updates!
