Fiber Optic FC Adapter Holder/Mount
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
38 min
1 plate
Open in Bambu Studio
Boost
2
13
0
0
14
3
Released
Description

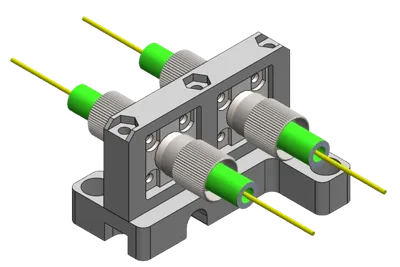

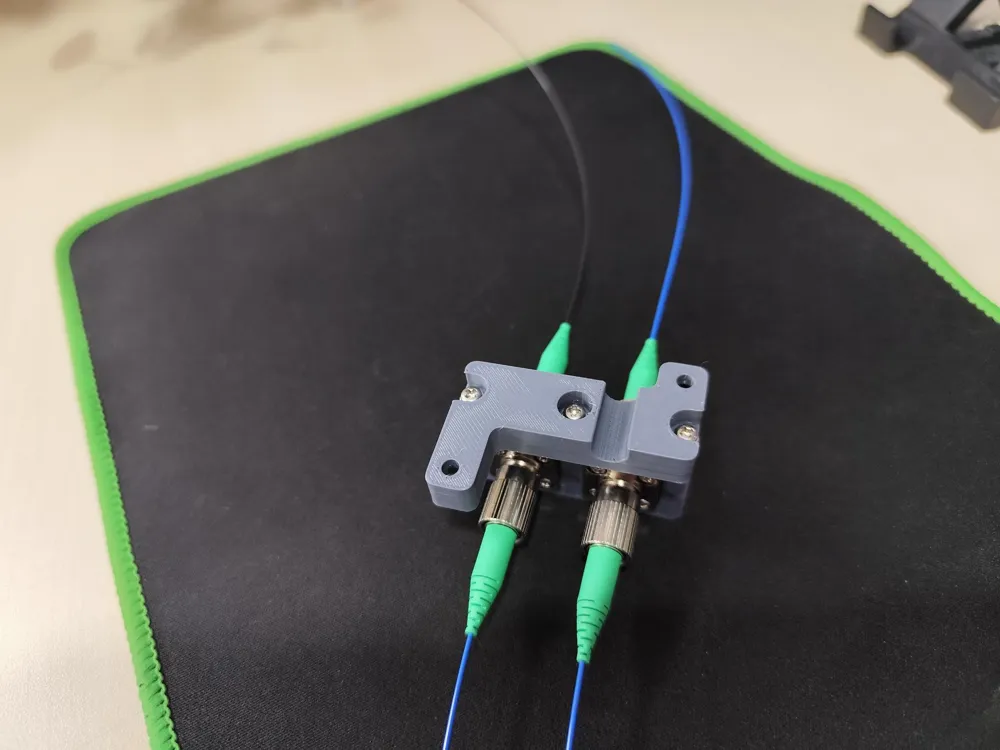

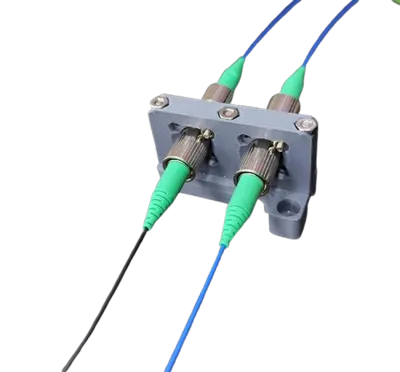

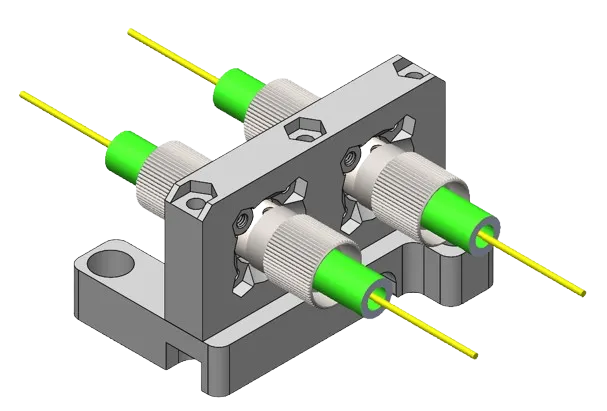

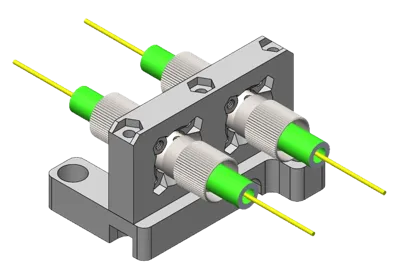

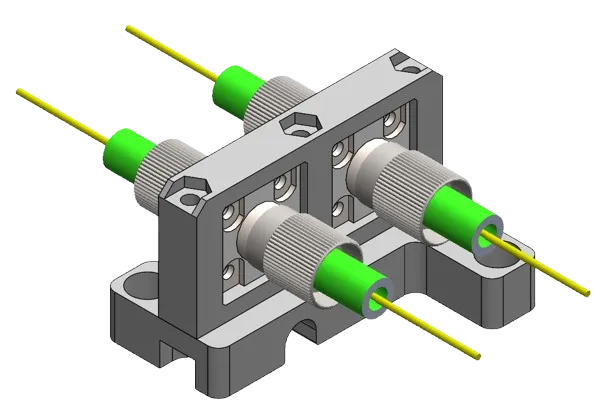

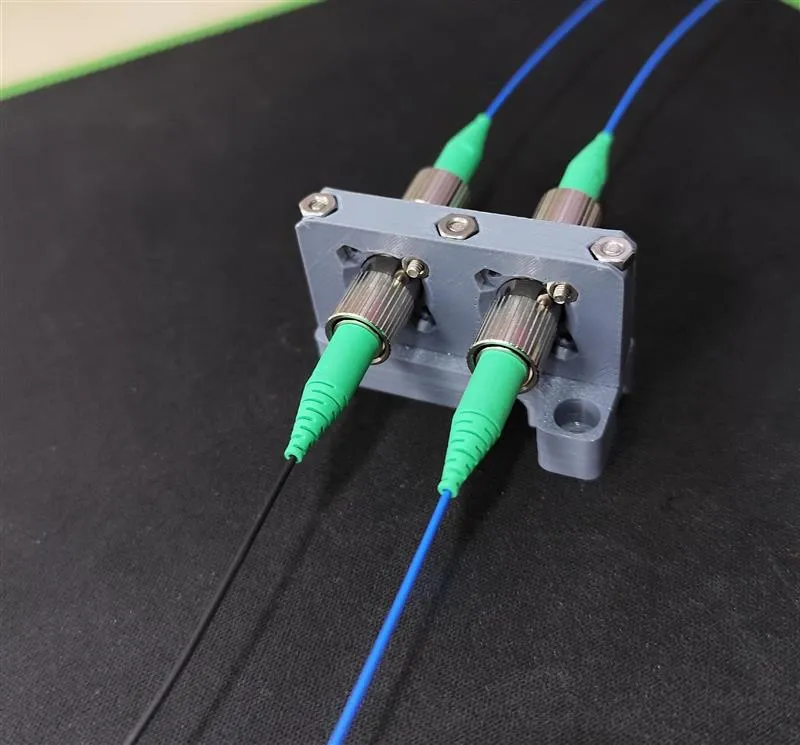

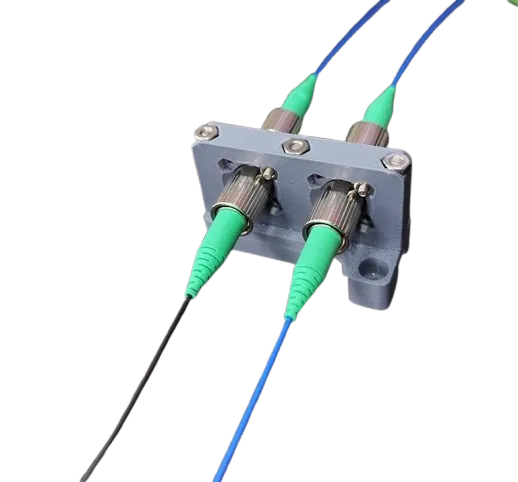

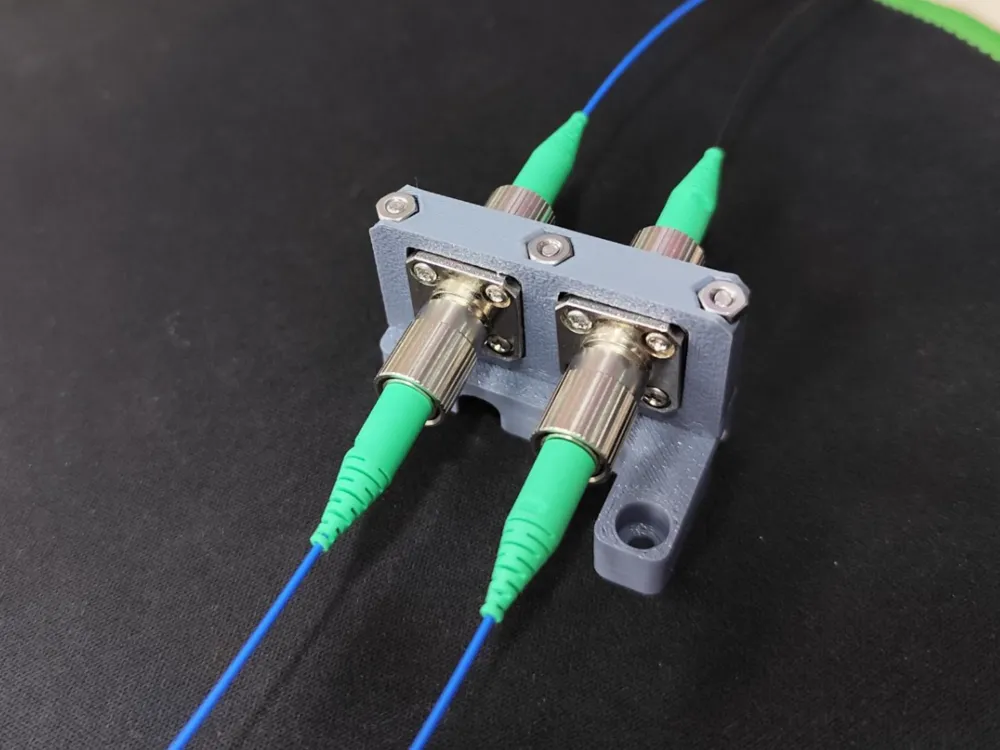

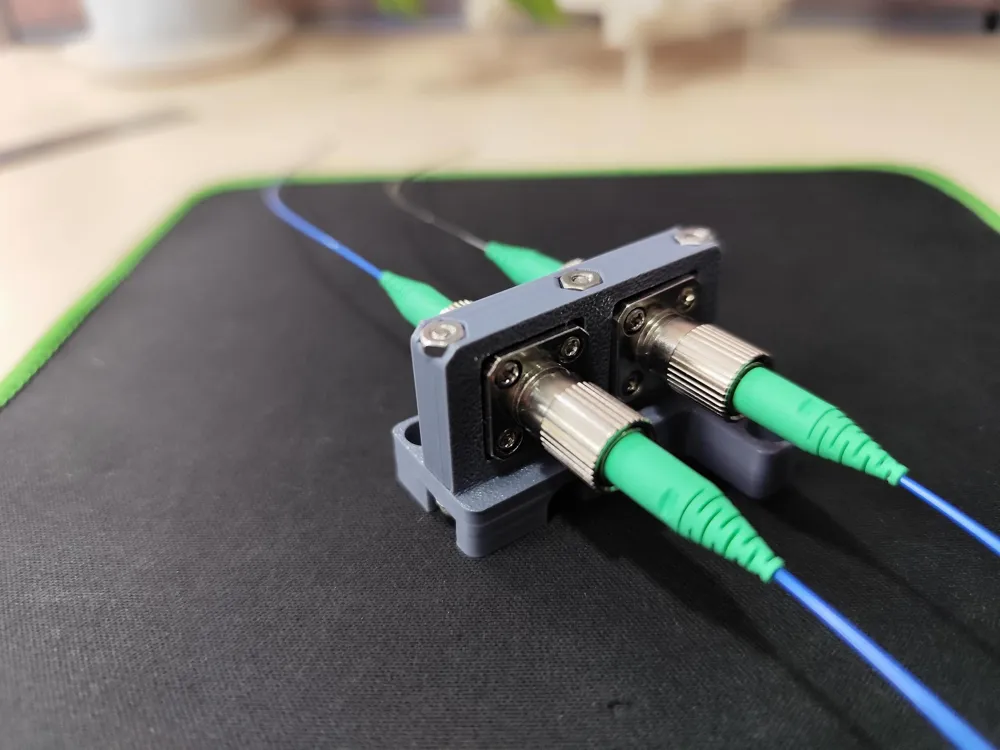

This is a custom-designed FC/PC duplex adapter mounting bracket with PLA/PLA+ /PETG for securely holding two FC connectors. The mounting hole pitch has been customized as per my application requirements.
- Unit Assembly: The two parts of the unit are fastened together using M2.5 pan head screws from the bottom and M2.5 nuts from the top.
- Adapter Mounting: FC/PC adapters are fixed using M2 pan head screws, with M2 nuts inserted into dedicated nut pockets for proper retention.
- Bracket Mounting: The assembled unit can be mounted to a base using either M2.5 or M3 pan head screws, depending on the application.
This bracket provides a compact, stable, and easy-to-assemble solution for fiber optic adapter mounting in enclosures or test setups.
