IV Line Organizer - Hang on Bed Rails!

The effectiveness of this product has not been verified by FDA-approved studies and is not approved in any way, shape, or form by the FDA or other governmental agencies. This product is not designed to diagnose, treat, cure, or prevent any disease. This product is in no way medically sterilized or intended to be medically sterilized. Asepsis will HEAVILY depend on the environment the product is in and the material used to print it. Individual results on the efficacy of this product WILL vary.

Hi everyone! At the request of a community member, I have modeled out this very basic IV line organizer! Featuring five slots for IV lines, call light cords, charging cables, and more, this is sure to make your shift simpler! Note that this model is a work in progress - I have not had the time to test it with typical stryker hospital bed rails, but will soon.

I have drawn very basic supports on the underside to reduce the chance of stringing. I recommend using PETG for added durability, but TPU or flexible PLA would be great to allow for more flexibility with hospital bed rails.

This model will be updated over time as I receive more feedback and as I test the product. If you have any questions, concerns, or feedback, please feel free to reach out or post a comment below! I especially would like feedback on the attachment to bedrails and ability to put different lines and tubes in the slots! NOTE THAT THIS MODEL IS NOT FINALIZED - I WILL PROVIDE UPDATES AS I MAKE THEM.

As with most of my other models, I allow commercial use of this product and adaptation! Feel free to sell to hospitals, clinics, or the nurses in your life!

This model is available in a medical collection! See it here!

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

07/20/2025:

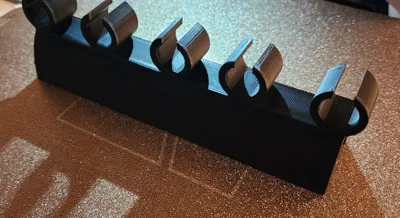

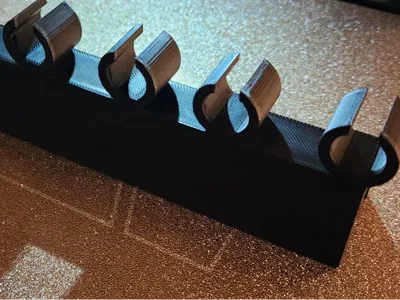

Original model created. Original model is pictured. I have since created an updated model (see Update 1 on the print page) with thicker outer walls and an updated setup for the cable holes. Highly recommend only printing Update 1 for now.

Update 1 pictures provided.

07/21/2025:

Update 2 created, and a wider, longer model as well. Update 2 simply makes the legs longer, while the second model added has a wider base.

Additionally, optimized support painting to reduce overhang stringing.

07/24/2025:

Update 2 wider version is now optimized to fit Stryker bed rails. This is for models that are NOT printed with TPU or a flexible material. I was able to measure the diameter of the Stryker bed rails and they are 4.2 cm, so I have made the sides of the model 42 mm apart, and then tapered it up to 41 mm to hopefully provide a solid grip on the rail.

07/25/2025: I have tested the Update 2 wider version and have confirmed it fits perfectly on a Stryker bed rail. In fact, it is pretty tight, and slides right on for a good hold! Update 2 wider version should be used for solid materials like PLA and PETG - otherwise, I recommend using the regular Update 2 for TPU or PLA flex.
