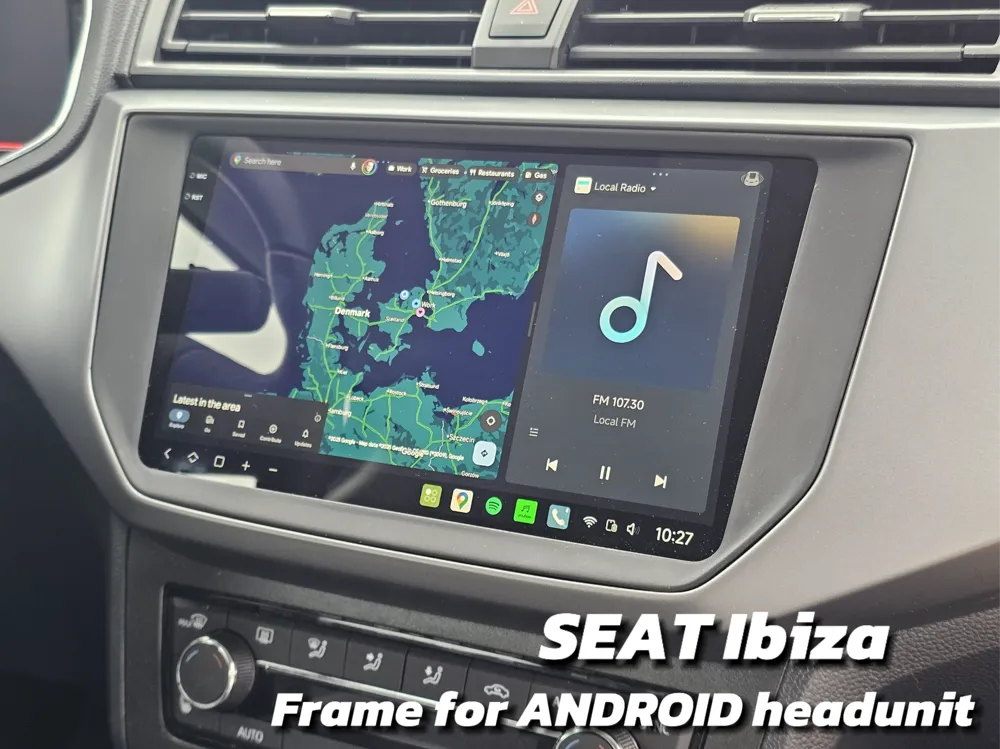

This is a frame for a 9,5" ANDROID headunit/radio, made to fit the SEAT Ibiza.
The frame will fit a Android radio like THIS
(Does not have to be the one in the link, just one that has the same size and look)
I recently bought such radio, and the provided frame did not look very good.
So i made my own.

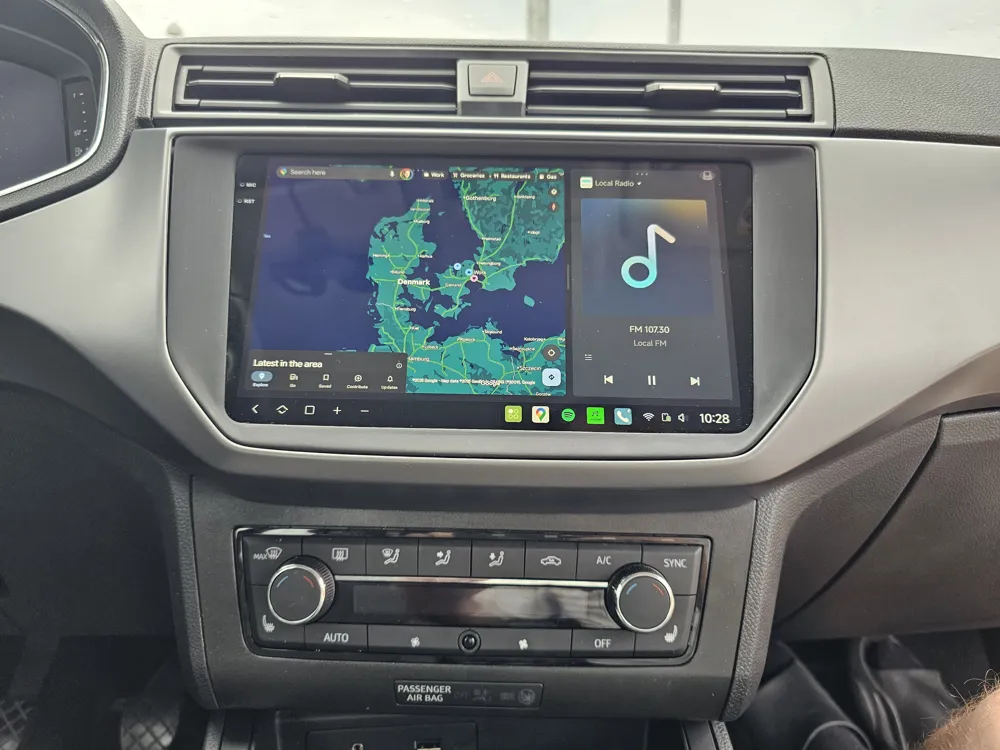

This frame gives a really nice OEM feeling.

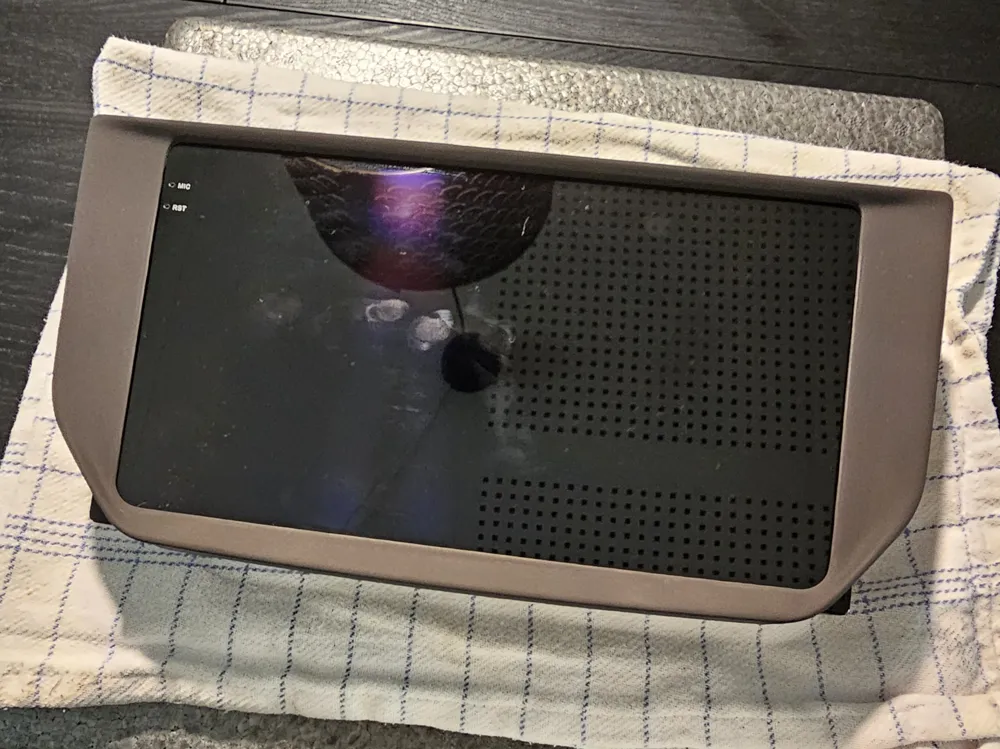

I have sanded painted the front of my frame.

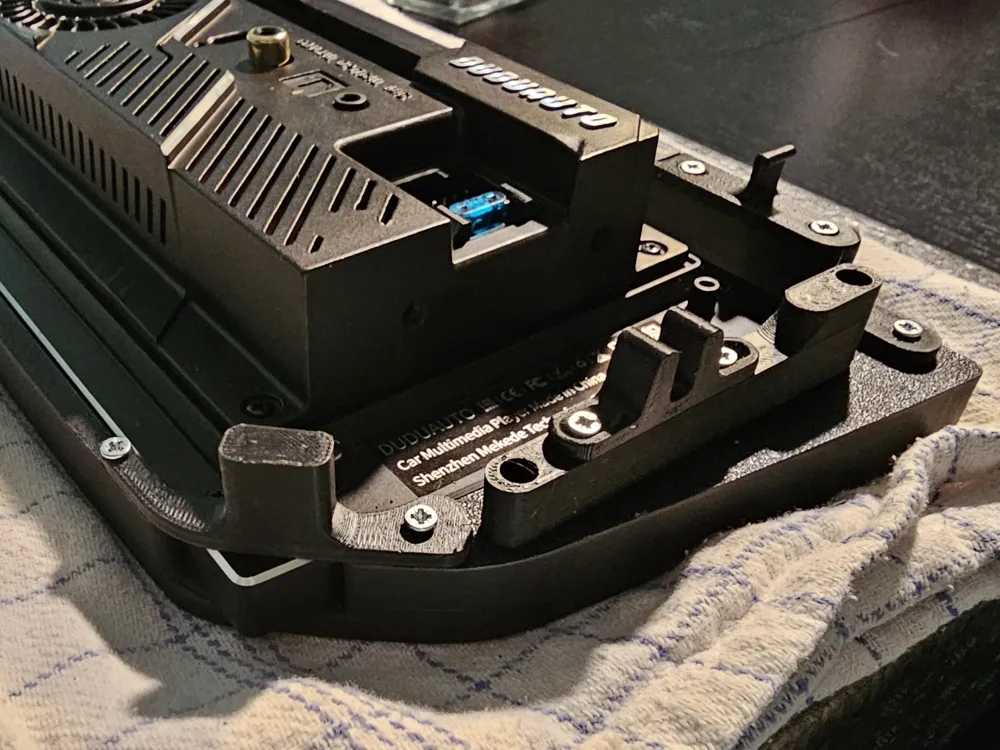

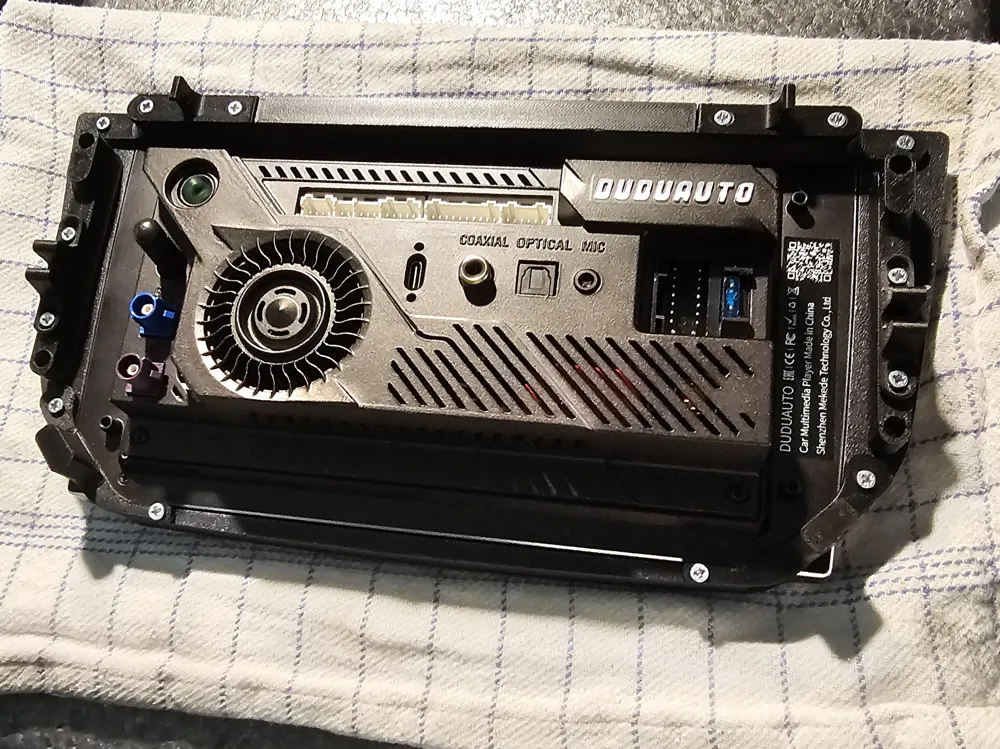

You will need 18 pcs. of 2,5x10mm screws
Due to the size of the frame, only H2D or atleast a 300x300mm printer will fit the frame.
It is possible to turn the frame upright, cornor to corner on a A1/X1, but the corner pieces will be more fragile.
I have not test printet that, so therefore no profile for A1/X1
It is NOT recommended to use PLA, as the car can get hot in the summer and warp the print.

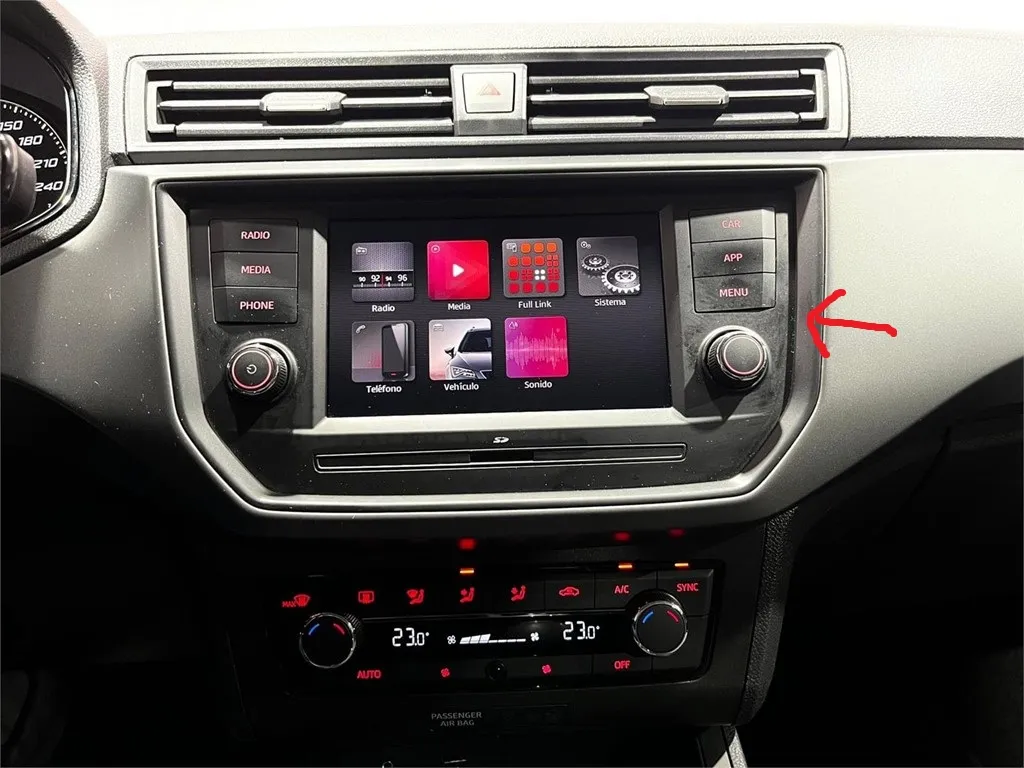

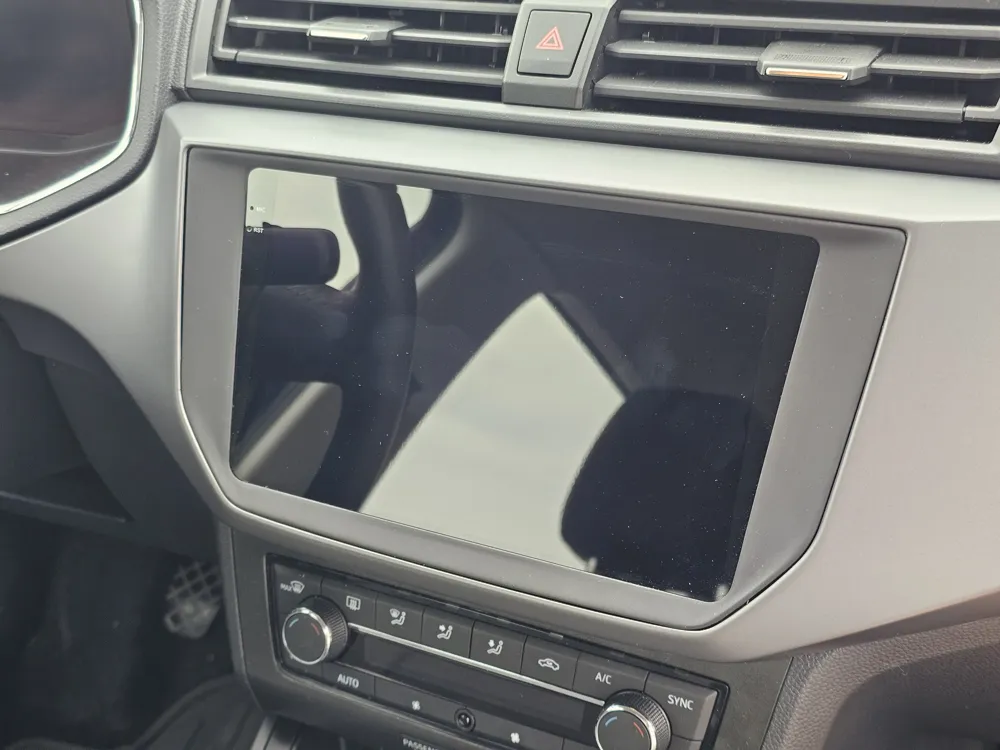

For this frame to fit, you will have to remove the edgeframe from the center panel.
This can be done from the back, when you have removed the center panel.
