A Chance Encounter at Broken Bridge (Miniature Articulated Scene, with a Little Easter Egg!)

Model Description:

• The theme is inspired by the scene where Bai Suzhen and Xu Xian meet in the Legend of the White Snake
• The scene incorporates iconic locations such as the Broken Bridge, Three Pools Mirroring the Moon, and the Jixian Hall
• A hidden Easter egg is nestled beneath the lotus leaves—you can place Bai Suzhen’s cinnabar sword and Xiaoqing’s Qinghong sword within the concealment
• One of the Three Pools Mirroring the Moon serves as a mechanism to activate the boat’s movement
• I lacked pink filament, so I substituted red

Printing Instructions:

• Plate 1 (Base): Consider using lake blue or similar colors to represent the lake
• Plate 2 (Gear): The gears can be printed using PETG, with the color being of your choice
• Plate 3 (Bridge): The base can utilize sandy yellow or similar tones to depict land, while the bridge itself can employ marble, white, or matte gray
• Plates 4 and 9 (Tree): Use green and pink to represent trees and peach blossoms—feel free to express your creativity
• Plate 5 (Lotus): Use pink to represent lotus flowers
• Plate 6 (Lotus leaf): Leaf textures are mouse-drawn, for greater refinement, create your own
• Plate 7 (Gazebo): Customize the color scheme as desired
• Plate 8 (Transparent!!!!!!): To simulate water, select a transparent filament; PLA or PETG are both suitable, textured printing ensures high transparency
• Plate 10 (Three Pools Mirroring the Moon): Choose marble, white, or matte gray; one piece with a cross-axis is the mechanism knob
• Plate 11 (Ship): Coffee or wood tones are both appropriate for a wooden boat
• Plate 12 (Performer): Bai Suzhen, Xiaoqing, and Xu Xian—it is recommended to print the white model using a 0.2 nozzle and hand-paint them
• Plate 13 (Treasure-Sword): Bai Suzhen and Xiaoqing’s treasures; they concealed their weapons in West Lake when they transformed into human form. It is recommended to print the white model using a 0.2 nozzle and hand-paint them

Assembly Instructions:

• Assembly requires two 4x2mm magnets, one each in the magnet base and the boat

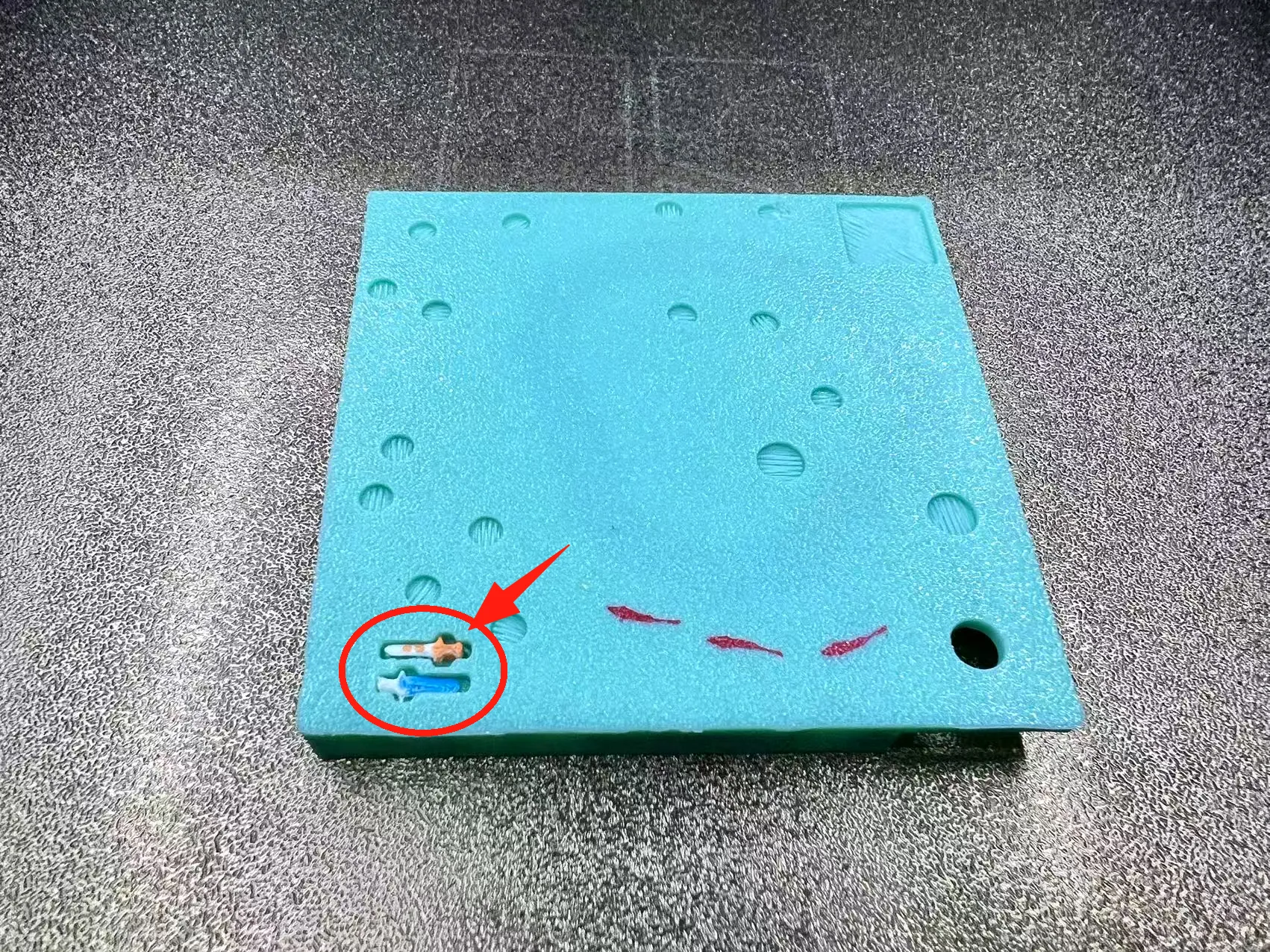

• It is recommended to place the Treasure within the housing during initial assembly, as it will subsequently be covered and irretrievable



• Note the hole locations, ensuring complete alignment before securing with adhesive

• Refer to the following for specific placement:
