Description

Bring that retro feel back to gaming!

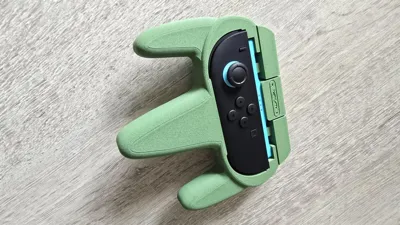

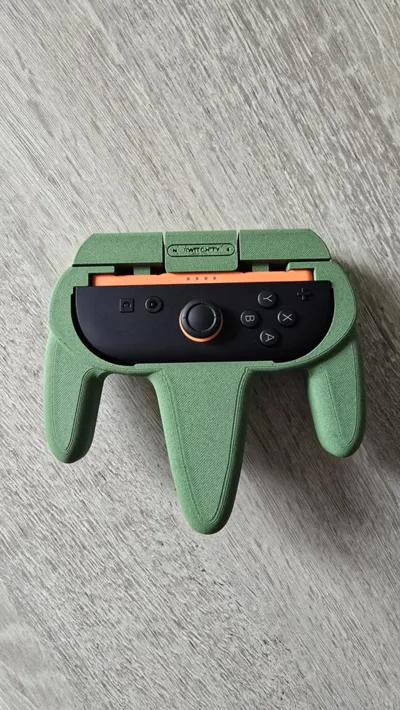

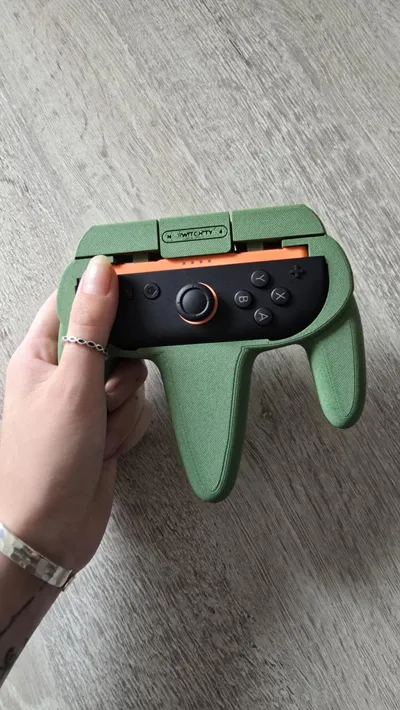

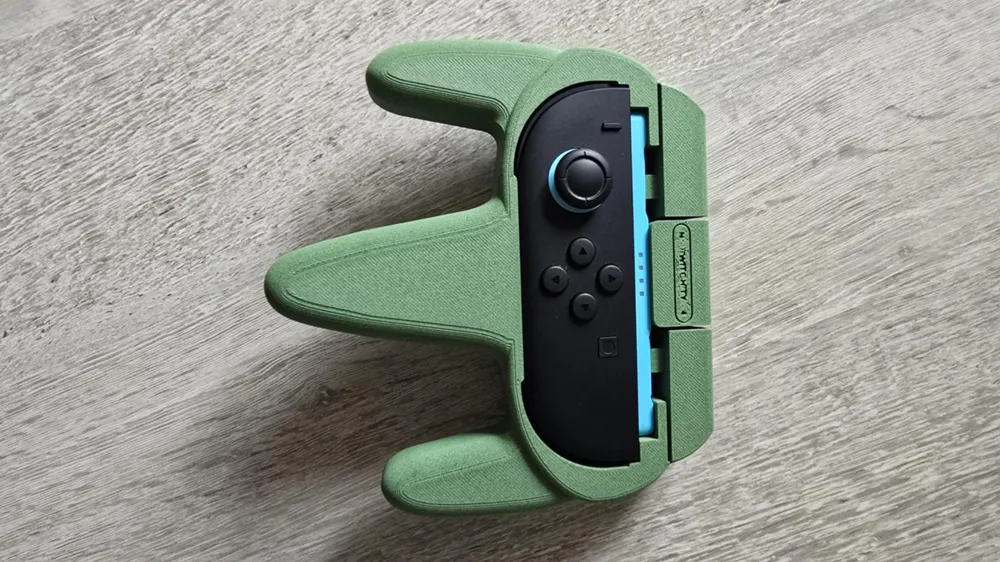

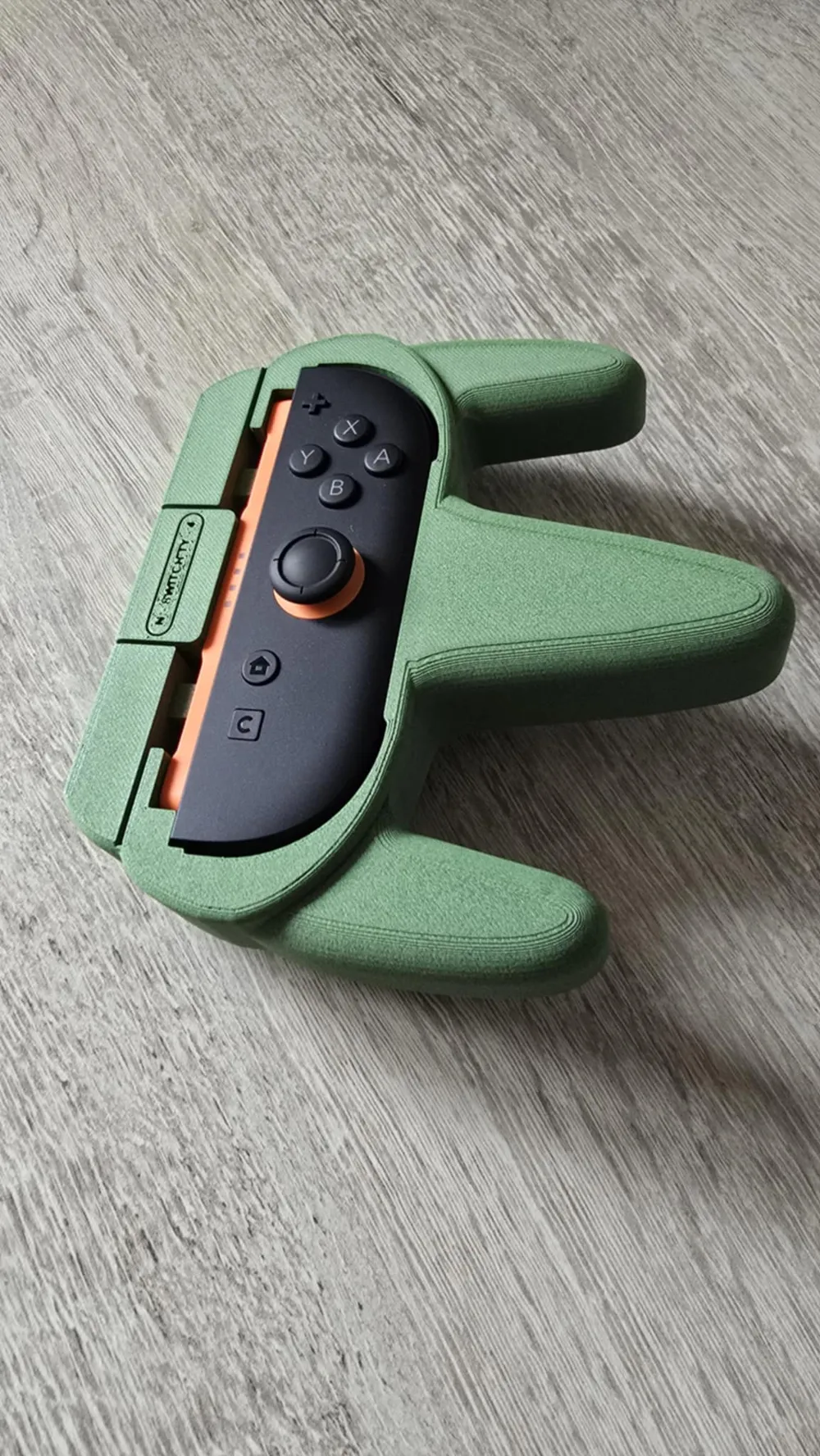

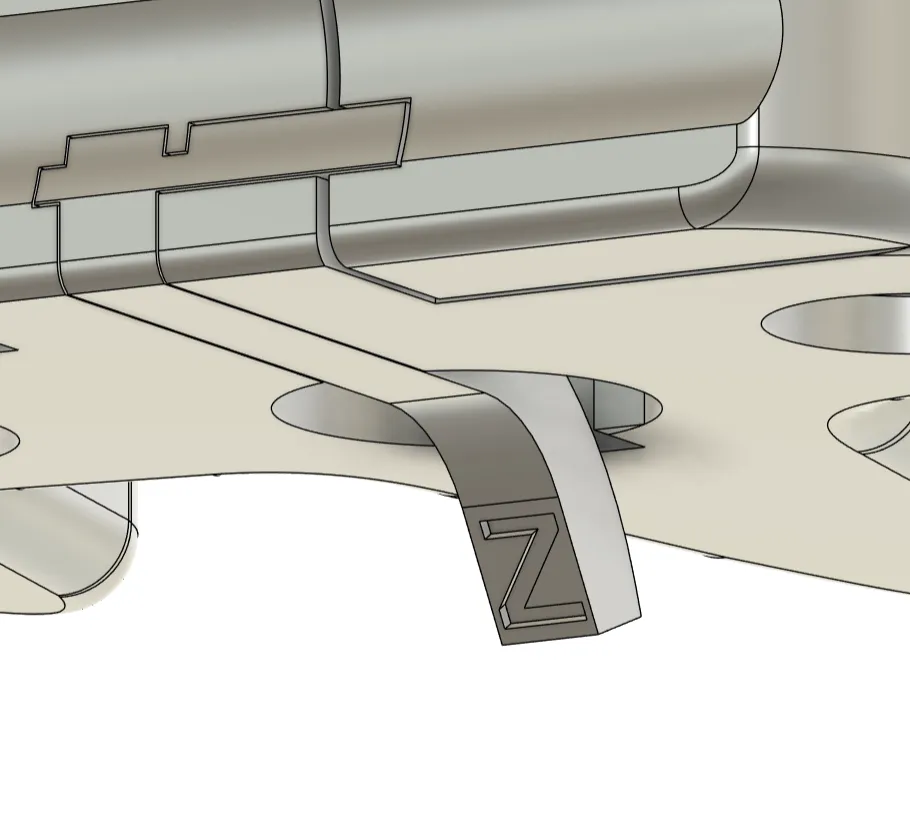

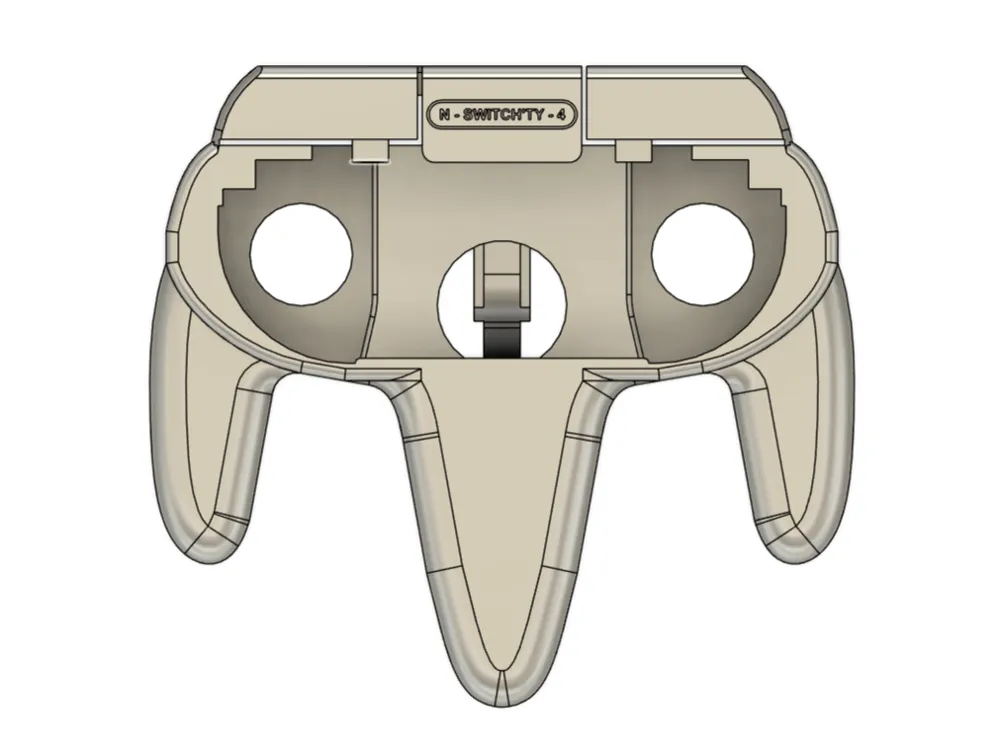

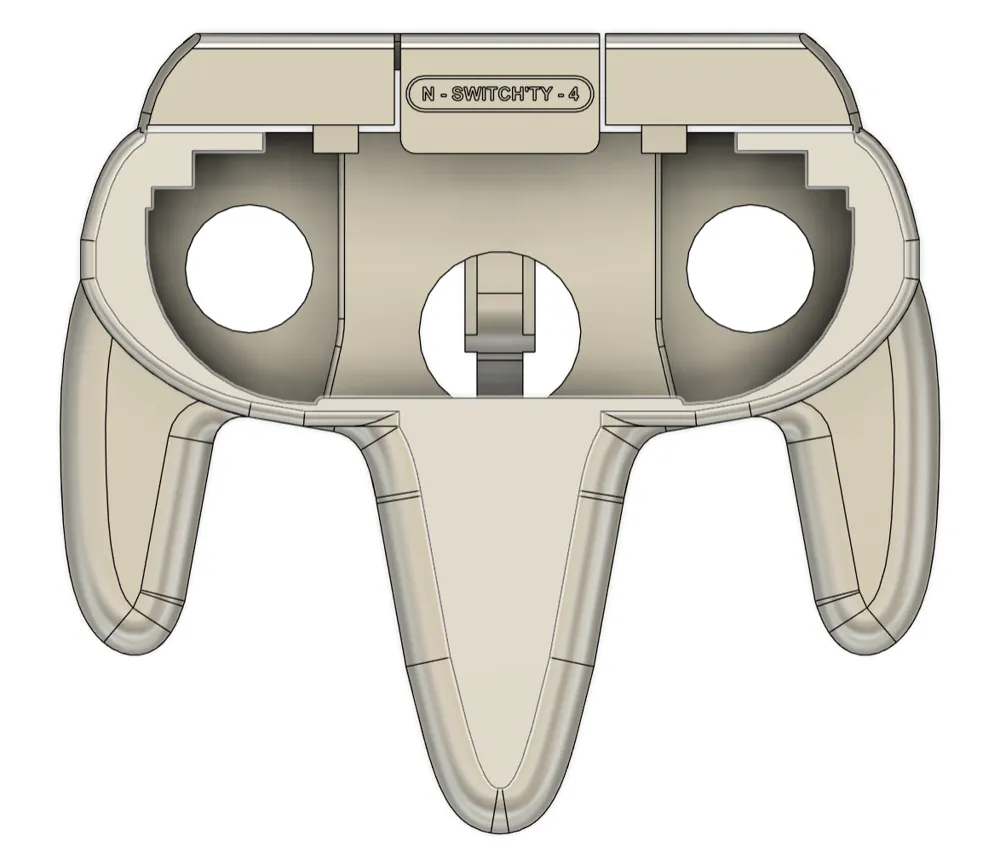

with the Switch 2, Joycon 2 controller housing that has been heavily inspired by the N64 controller, i have designed this with holes in the bottom for easier removal and the Z button (trigger) actual works when using the center and right handle.



both left and right joycon 2 controllers can be used with this housing!!

Nintendo
Nintendo Switch
switch 2
controller
joycon2
n64
switch2
nintendo switch controller
switch2controller
nintendo 64
retro

Comment & Rating (41)

(0/1000)
@soonic_ze_hedge
could you make one for switch 1
The designer has replied
6
Reply
@user_1494022034
I dont have a switch one to do the measurements but I will try my best and upload, once completed I will add another comment and let you know 😊
4
Reply
@soonic_ze_hedge
Replying to @user_1494022034 :
okay thanks!
1
Reply
@soonic_ze_hedge
Replying to @user_1494022034 :
also, is it possible to make it fit on the a1 mini
1
Reply
@rellber
I'd like to understand why it came out like this? What did I do wrong? The back turned out really bad and was even worse, I even had to sand it to improve it, but it still didn't look good. 🤔
Show original
1
Reply
@yepcoast
Your filaments are surely too humid or old and therefore brittle this therefore makes bad prints
Show original
0
Reply
@Super3DPrinter
Replying to @yepcoast :
the age old reply "dry your filament". It's a very steep overhang and we are all likely to get poor corners.
0
Reply
@Mrnathguy
Boosted
Great work thanks! mine messed up the Nintendo sign and left a rough patch on the L button so I printed these bits to stick over them.
(Edited)
The designer has replied
0
Reply
@user_1494022034
ohh wow, this is awesome 👌 great job there! I love the addition of the colour bumpers and the logo looks amazing as well!
0
Reply
@Stc737
ahh yes nintondo my favorite company lol
0
Reply
@lermergerd
how do I insert the Z button arm? seems the opening is too small to fully insert the piece, but maybe I am missing something?
(Edited)
The designer has replied
1
Reply
@user_1494022034
it takes a little squeeze to get past the nub that holds it in once inserted, you are doing it correctly!
0
Reply
@RH_3DARTs
Print Profile
0.2mm layer, 5 walls, 50% infill
Print very good, but not yet tried
Show original
0
Reply
@DKsquared
It doesn't fit my switch 2 joycons... I'd basically have to cram them in and they started to get scuffed up just trying. Any suggestions? I printed the designer profile and they don't fit. 😔
The designer has replied
0
Reply
@user_1494022034
very odd, it seem to fit all of mine perfectly (with some tolerance as well) it could be filiment conditions causing shrinkage or possible printer calibration issues. you could try and run some calibrations on your end or if you have access to CAD software then you should be able to increase the tolerance. could you send some pics over and I may be able to assist further
0
Reply
@DKsquared
sure! maybe hard to see in the pics but I’ve tried several different angles to insert and no luck. the width of the model where the colored portion of the Joycon inserts is right at 102mm. send you a pic of that too
0
Reply
@DKsquared
here’s that measurement
0
Reply
@wabdo111
Print Profile
0.2mm layer, 5 walls, 50% infill
printed th designers profile. on comment was that the text on top is not legible.
0
Reply
@fabriciofercher
please bro, for nintendo switch 1
0
Reply
@Sammybolony
S tier name
0
Reply
@Tissy77
Print Profile
0.2mm layer, 5 walls, 50% infill
The look itself is great, but I have the problem that the knobs jam a bit during use, otherwise I'm totally thrilled
Show original
0
Reply
