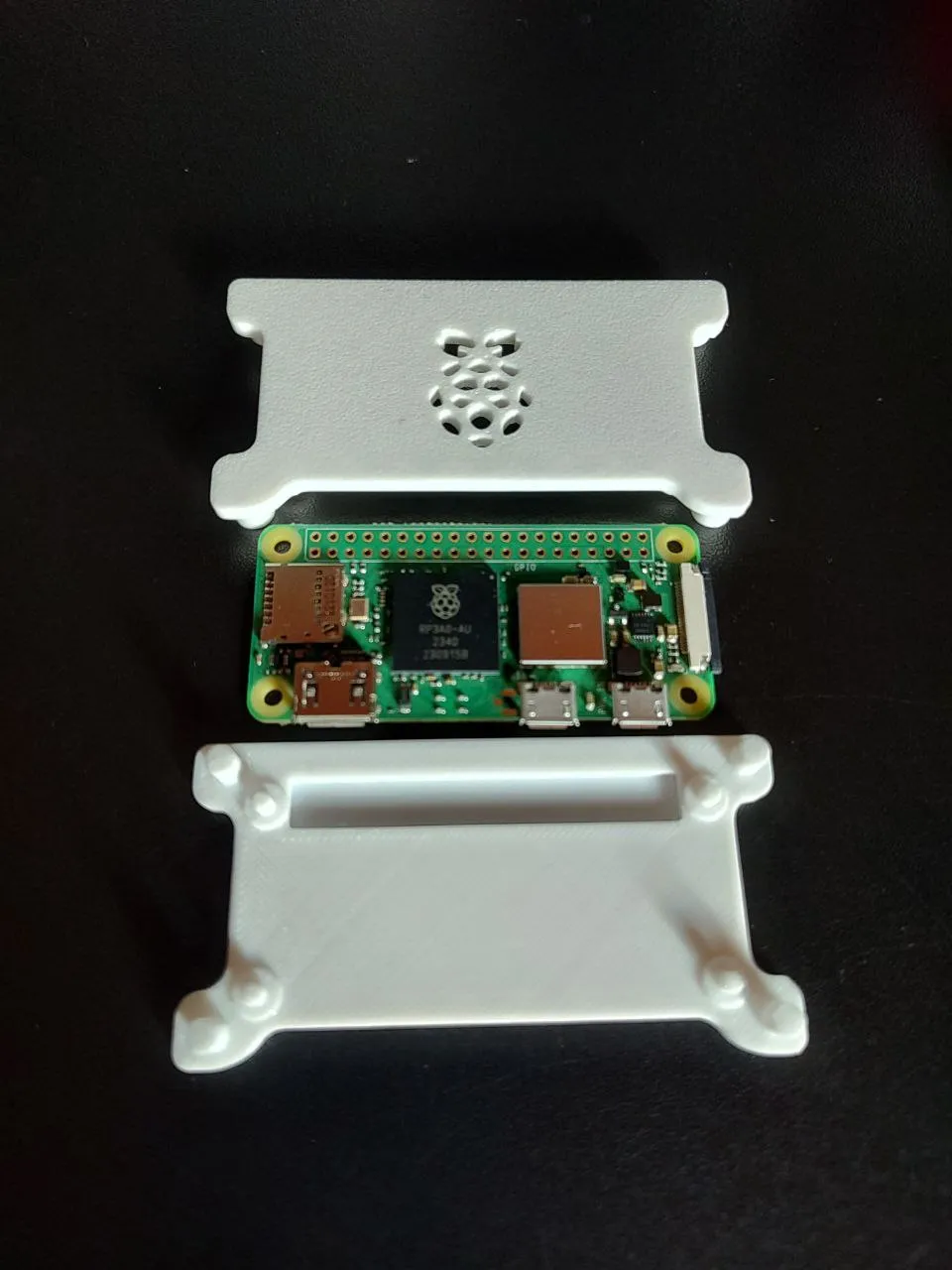

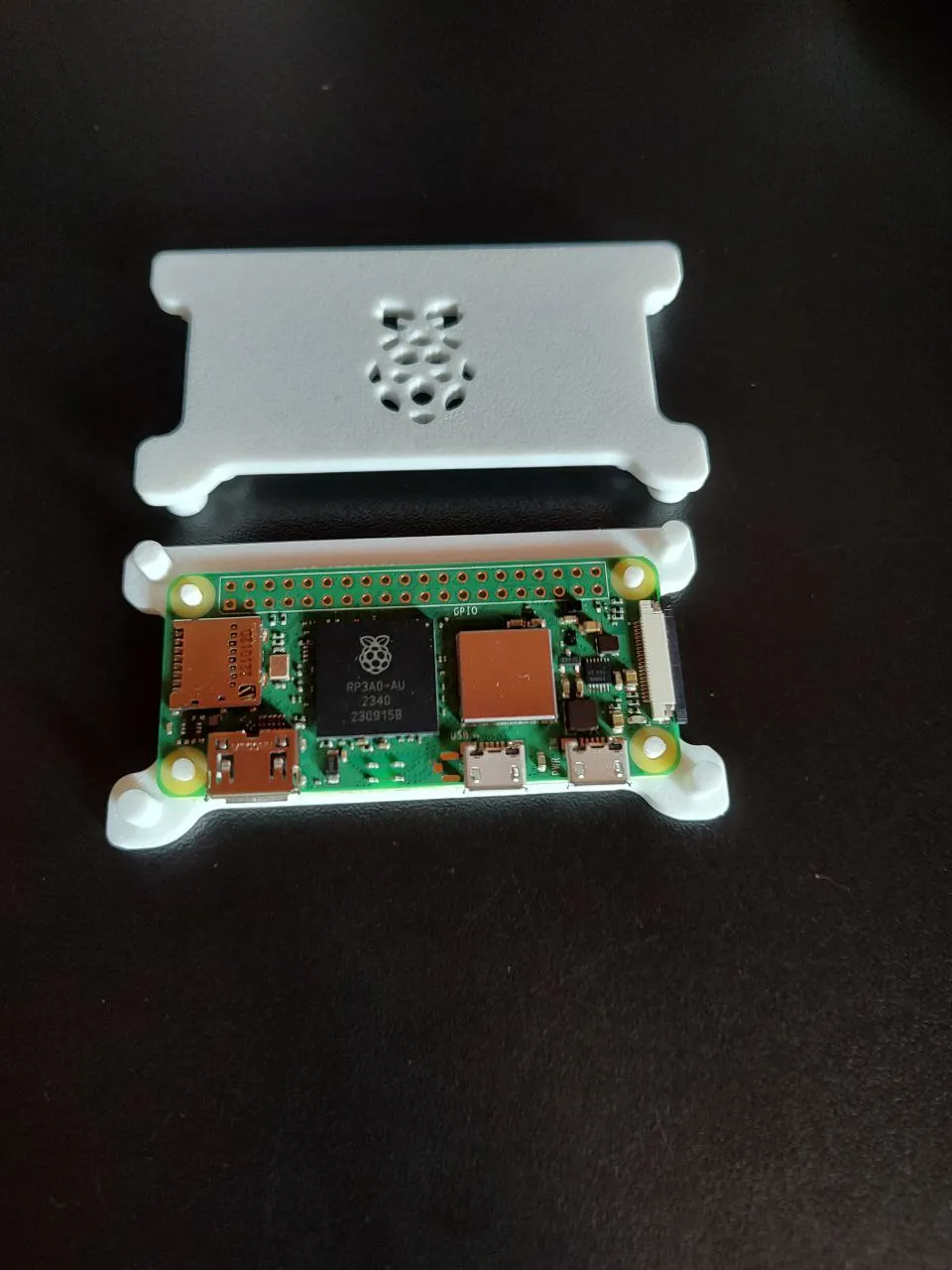

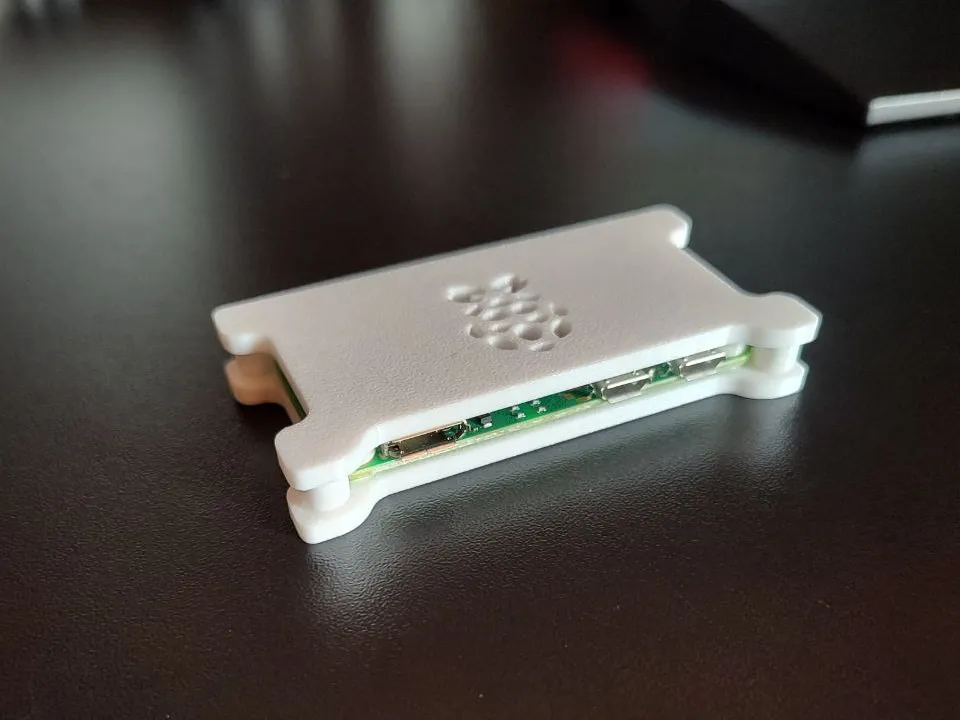

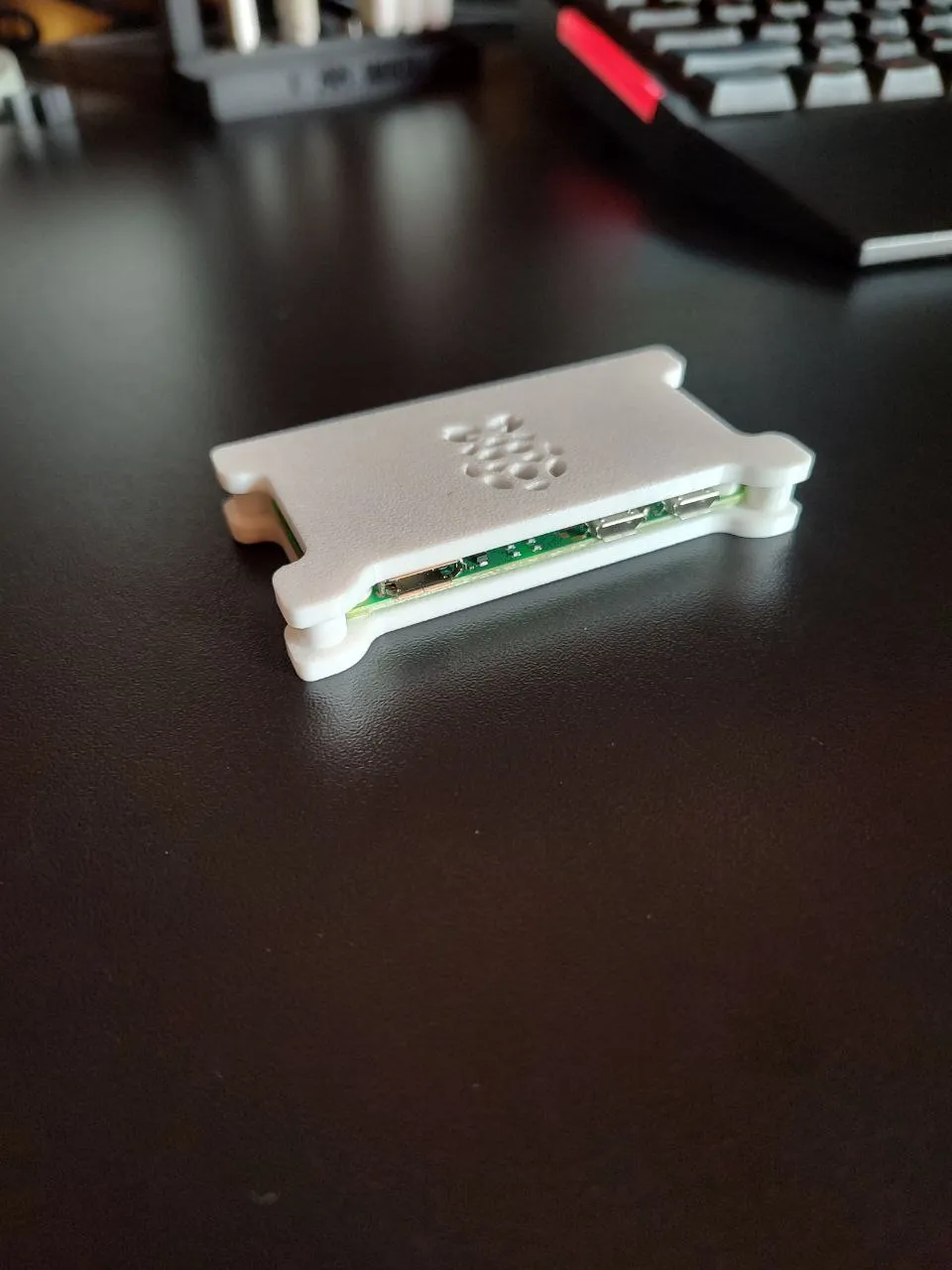

Raspberry Pi Zero 2w Slim Case

A versatile and sleek Raspberry Pi Zero 2 W case designed for both protection and functionality. This case is available in multiple versions to suit different needs:

🔹 GPIO Cutout + Small Raspberry Logo
🔹 GPIO Cutout + Heatsink Opening
🔹 Heatsink Cutout Only
🔹 Raspberry Logo Cutout

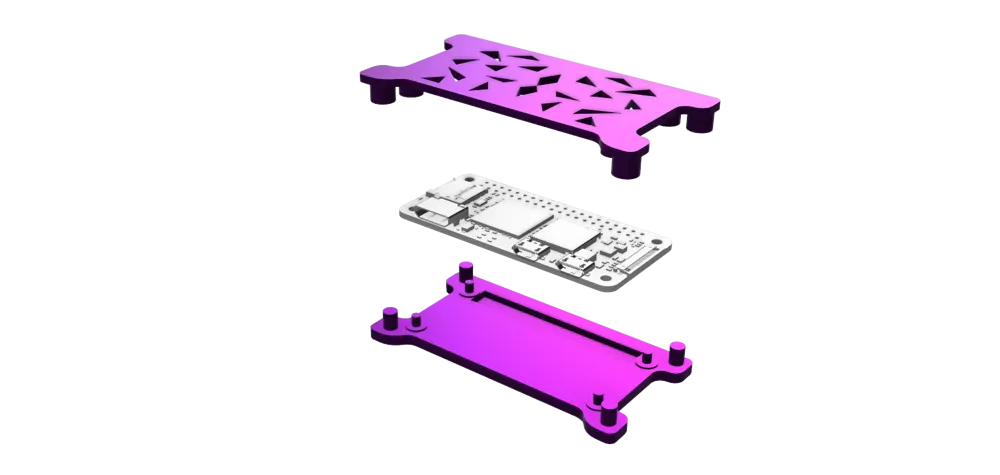

🔹 Triangle Pattern

The heatsink cutout measures 16mm x 18mm

This case snaps shut with a light press-fit, secure enough to withstand drops without popping open, yet easy to open when needed. Tested personally for durability!

Material Used

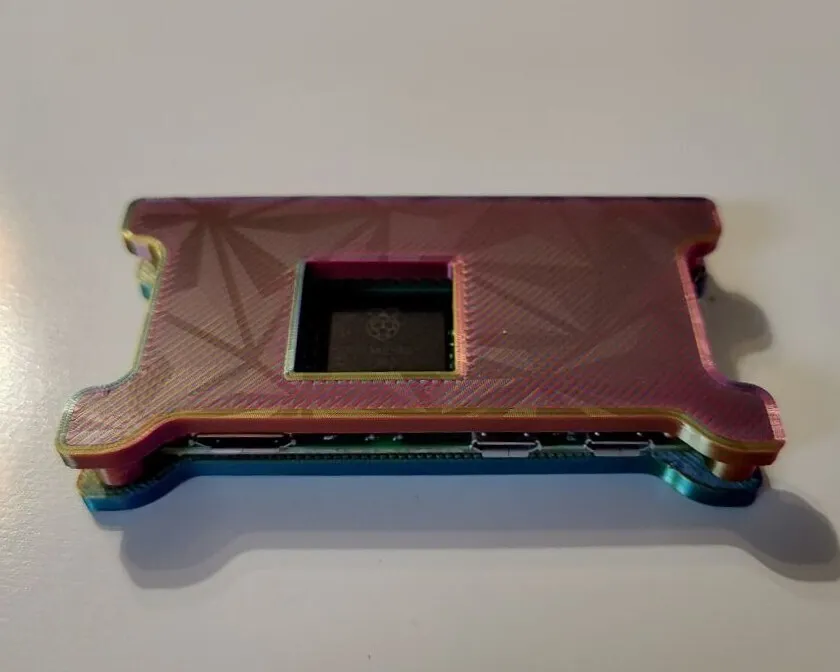

🔹PLA - Cheap CC3D Tri Color Silk - Printed on Creality K1 on build plate with hologram

• https://www.amazon.com/CC3D-Tricolor-Filament-Coextrusion-Metallic/dp/B0CMH8G86G

🔹PETG - ROSA Standard HS White - Printed on Bambu Lab P1S

• https://www.rosa3d.pl/filament-3d-pet-g-standard-hs-white-2

3D printing settings

PLA or PETG – Both materials work well for this case
🔹 Nozzle 0.4 mm
🔹 Layer Height: 0.2 mm
🔹 First Layer Speed: 50 mm/s
🔹 Reduce speed on first 4 layers for better raspberry cutout on Creality Printers
🔹 Infill: 15%
🔹 Cooling: Enabled (especially for PLA)
🔹 Supports: Not required

You can reduce speed even more for better quailty
