Ball joint adapter, improves 1/10 DKS chassis steering

👉 Based on the fantastic original design by DukeDoks. Thank you for that amazing chassis! 🙌

This design includes minor yet helpful modifications for anyone assembling the model and encountering fine-tuning issues with steering or ball joint compatibility. I made these designs or modifications based on my own challenges; I hope you find them useful. These improvements can be applied complementarily—either both or just one, depending on your needs.

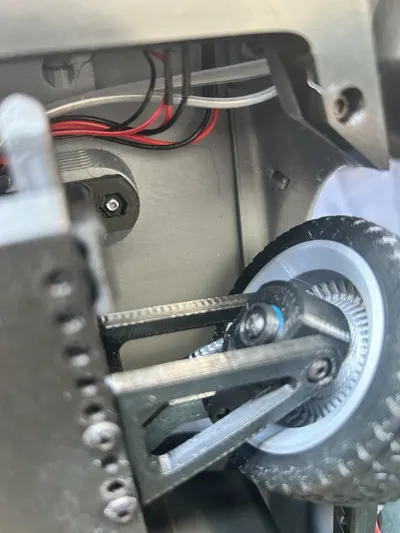

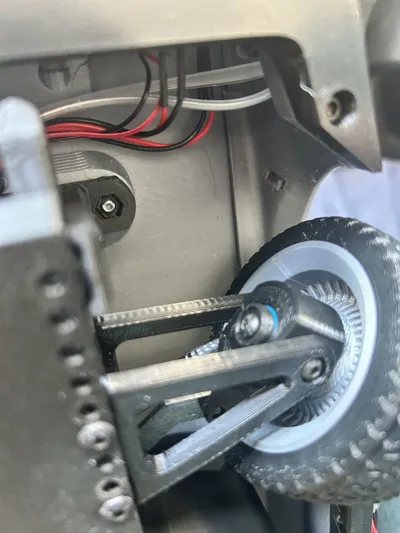

1. Adjusting steering ball joints to bearings from aliexpress (https://es.aliexpress.com/item/1005004127498790.html?spm=a2g0o.order_list.order_list_main.278.1311194dt0jYmM&gatewayAdapt=glo2esp)
   • In the original design, the ball joints were somewhat loose.
   • This version adjusts tolerances for a more precise fit and ensures stable steering axis, preventing wheel movement.
2. Modification of parts for steering with Servo B (large)
   • I wasn't entirely satisfied with the original version of the large servo mount (it felt like one wheel turned more due to geometry).

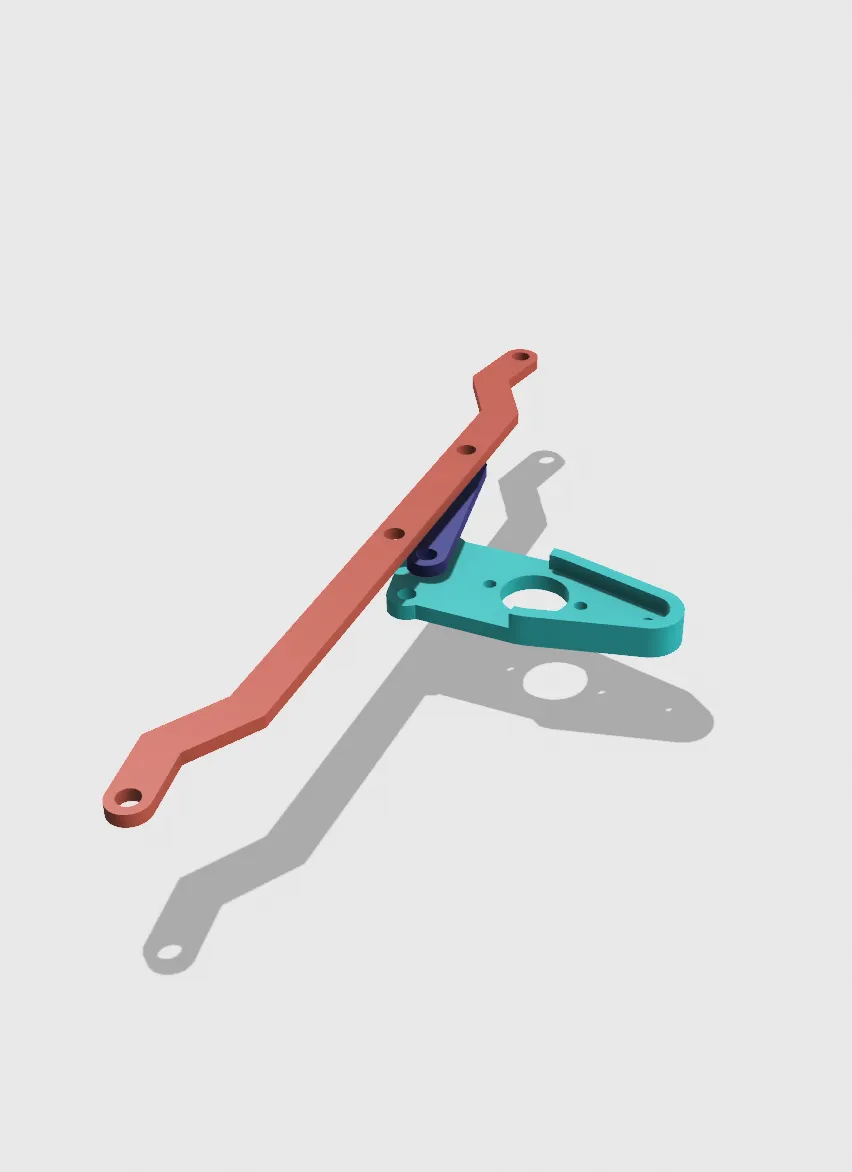

   • I have redesigned two steering parts and added an extra part to improve symmetrical turning performance and ease of assembly.

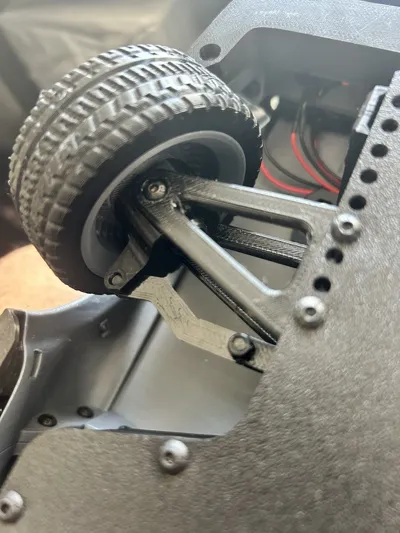

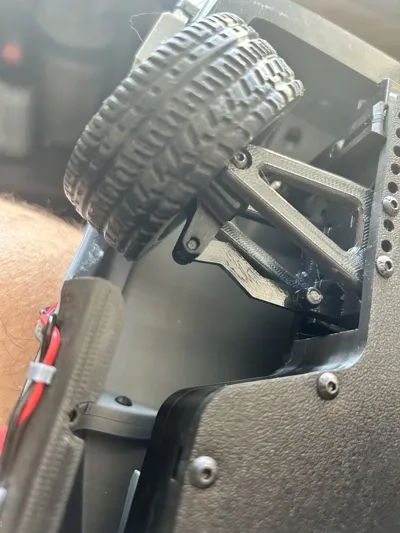

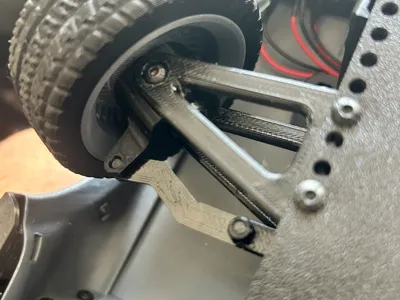

I have this assembled on my Delorean version, and it's perfect.
It helped me improve steering stability and precision from the first test.
