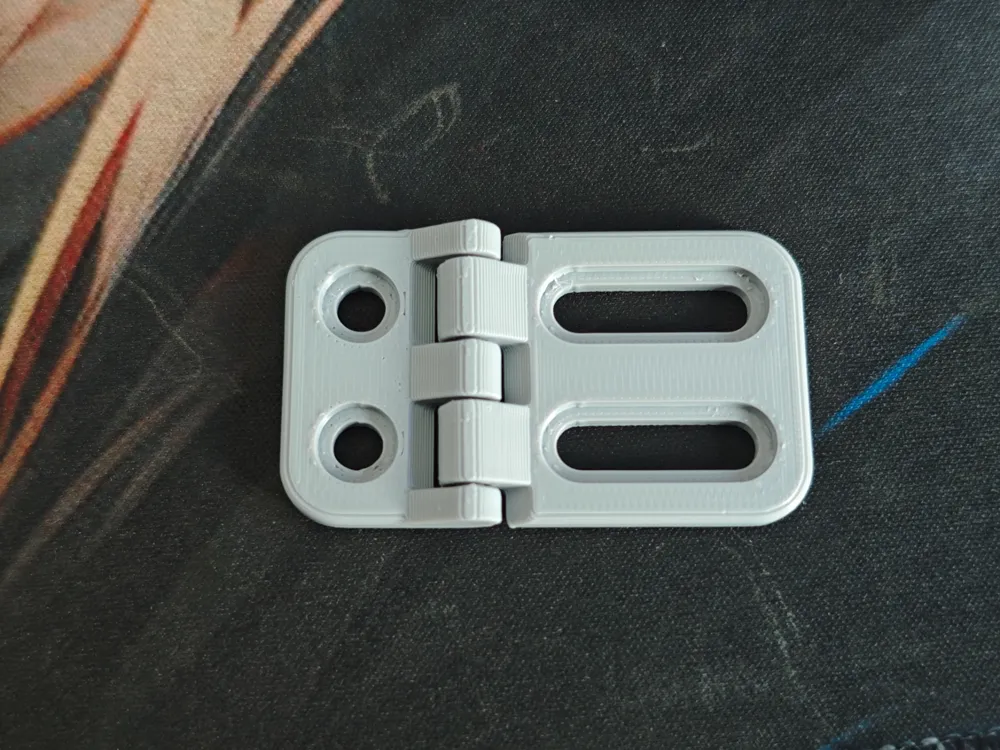

I found that everyone really liked the hinges I shared before, so I created several Print in Place hinge models. The modeling method used results in a higher printing success rate, smoother movement, and rest assured, it's very strong and not easily broken.

Dimensions are:

Width: 30mm

Length: 52mm

Hole spacing: minimum 20mm, maximum 35mm adjustable

Hole diameter: 5mm

If you have other needs or require different sizes, please leave a message to contact me, thank you for your support!

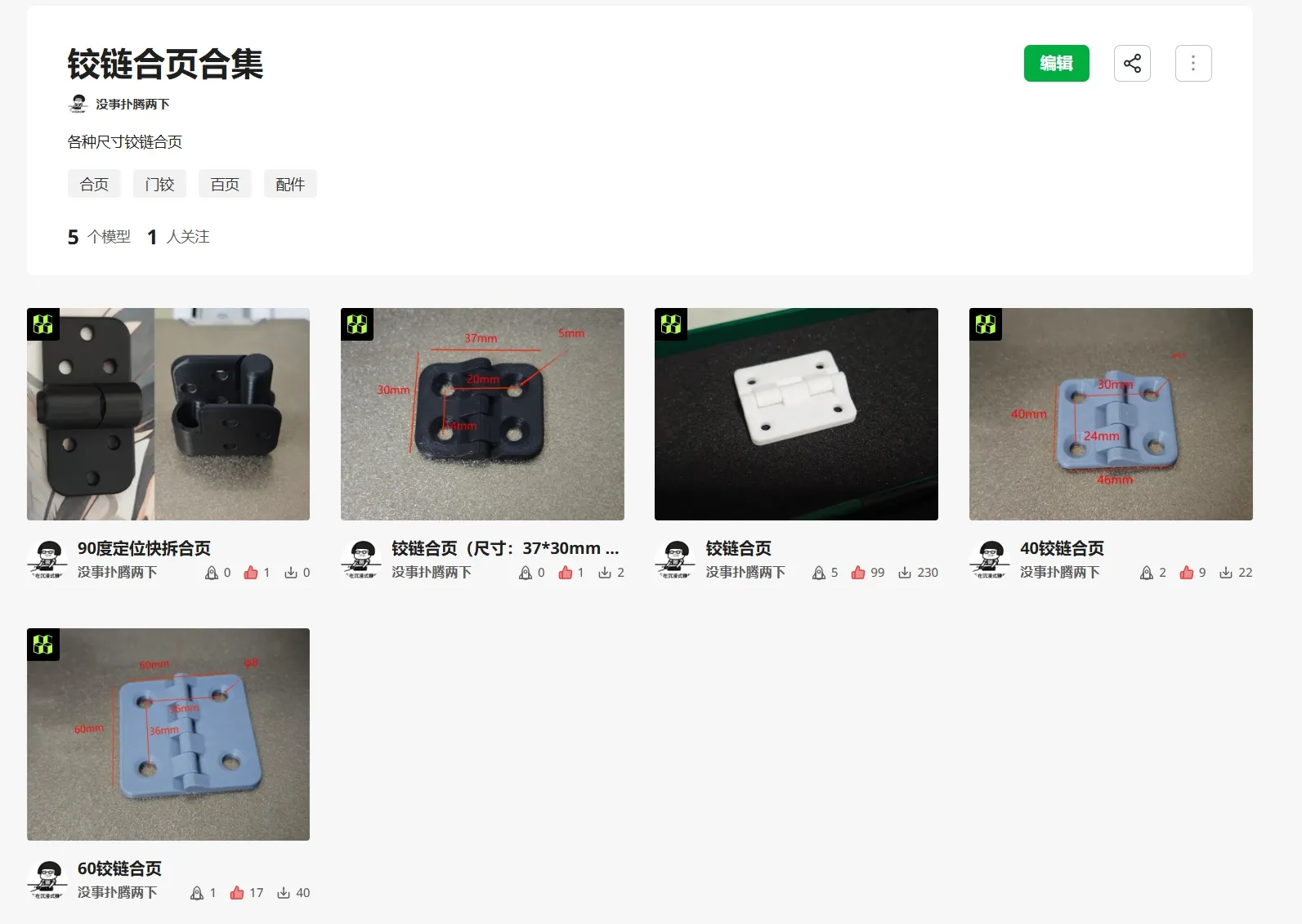

For more hinges, please follow my collection: https://makerworld.com.cn/@user_456788246/collections/322042
