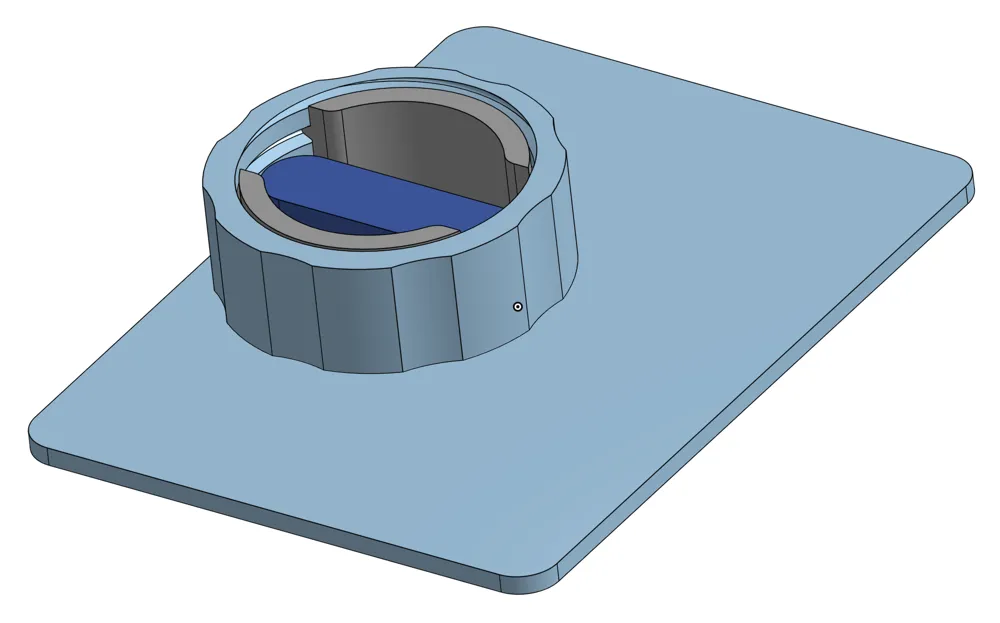

<ul><li>4x Plissee Mounting Plates and Rings separated on two plates</li><li>0.16mm layer, 2 walls, 15% infill</li></ul>

4x Mounting Plates and Rings separated - 0.16mm layer

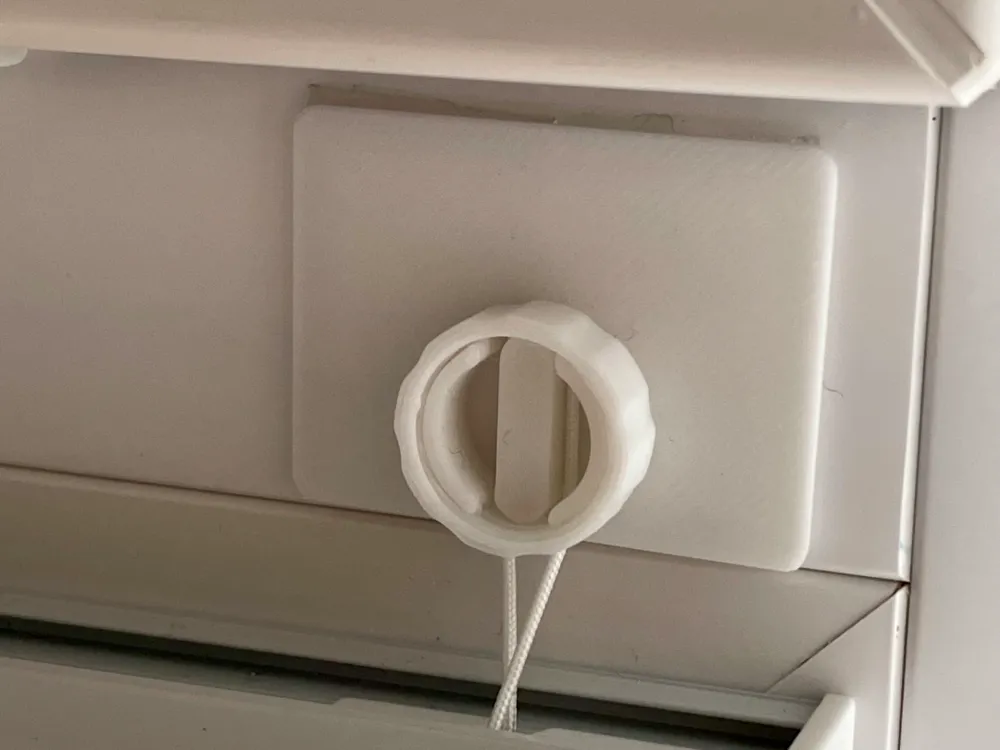

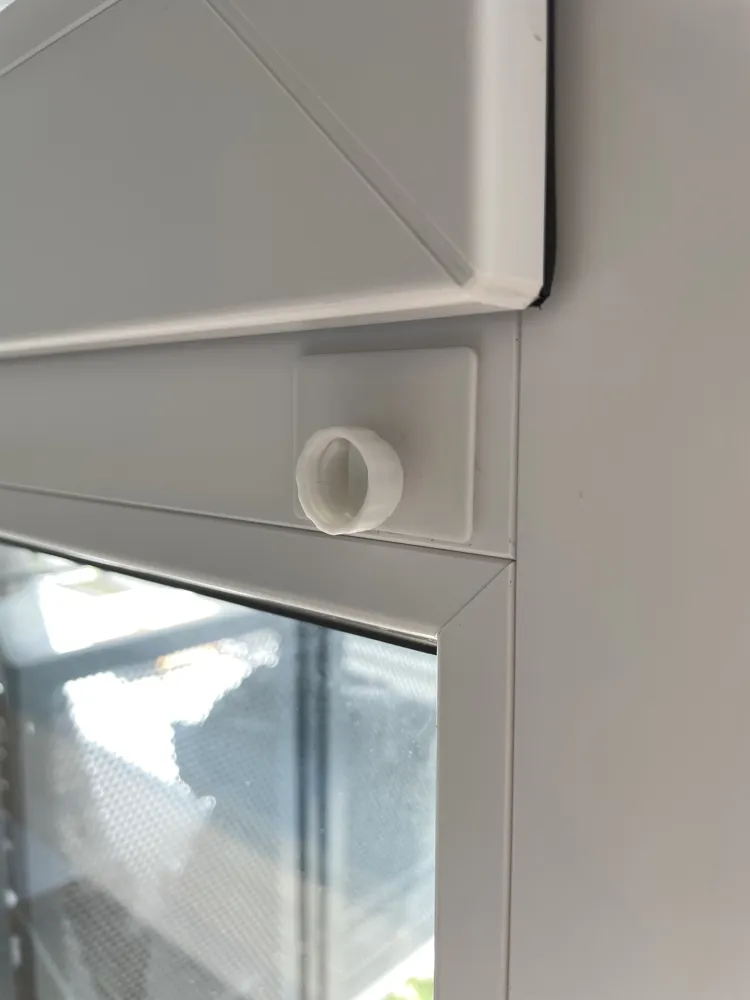

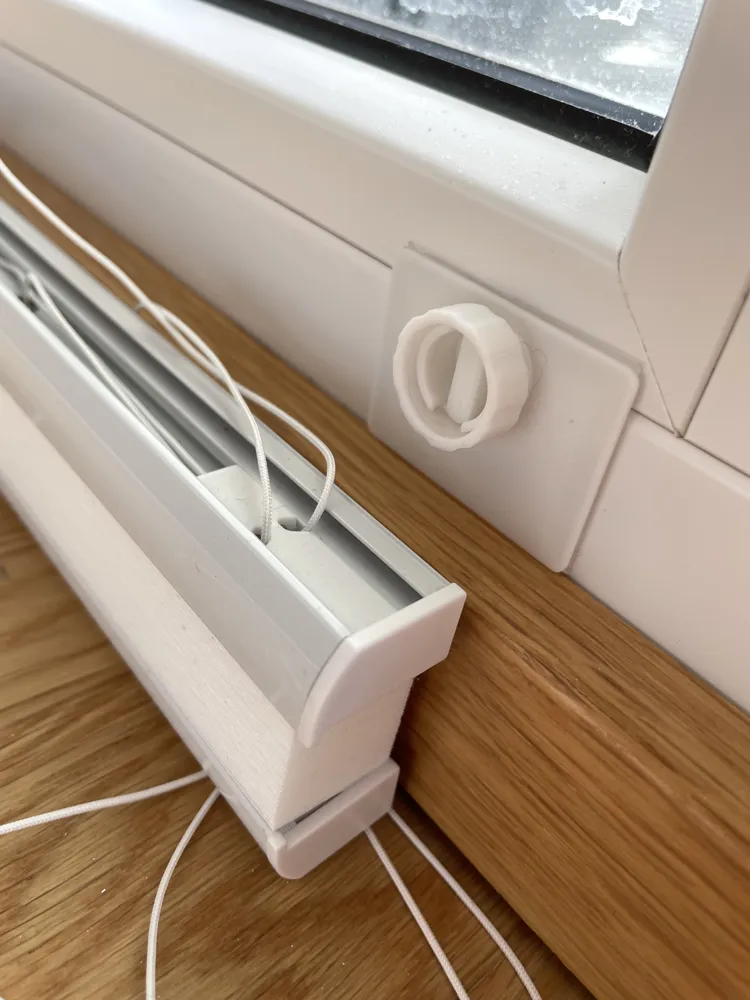

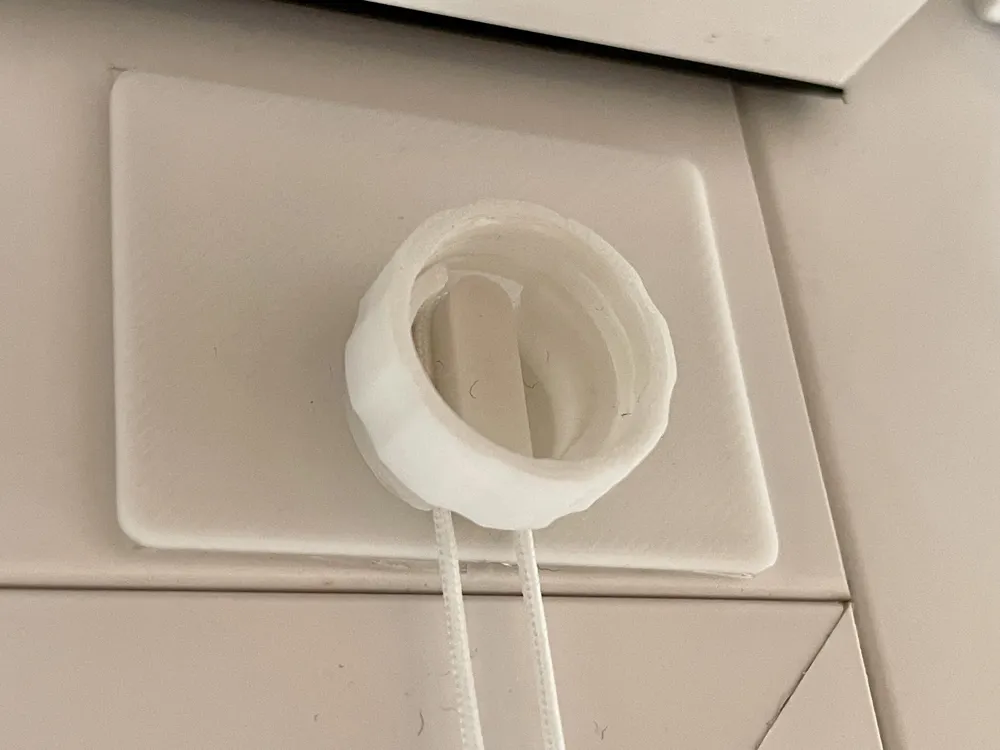

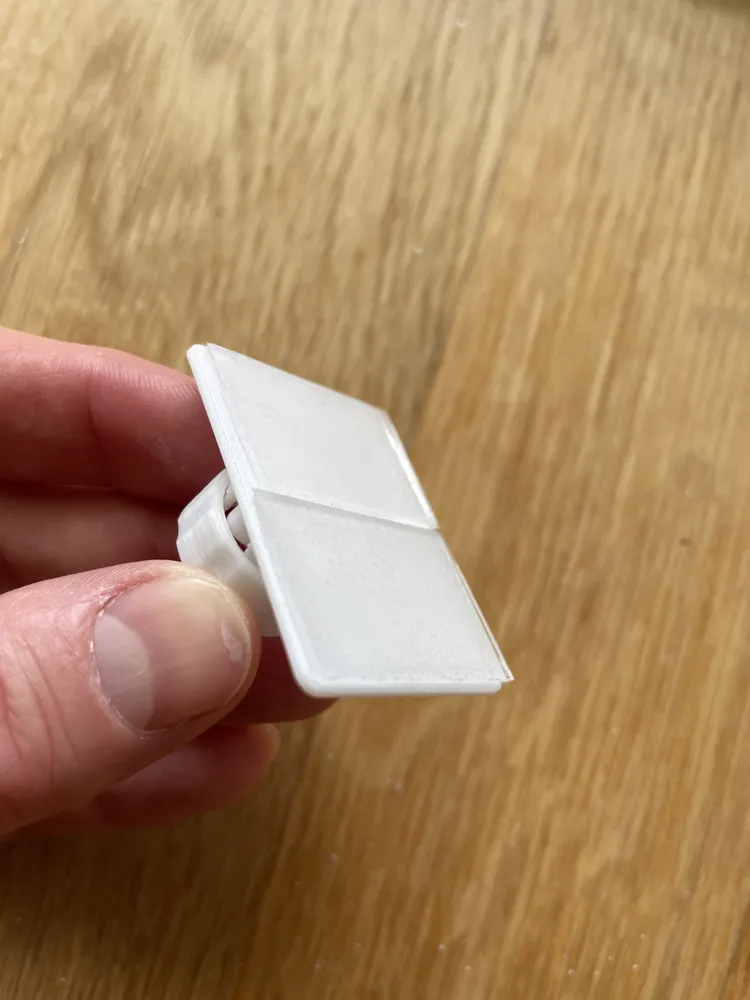

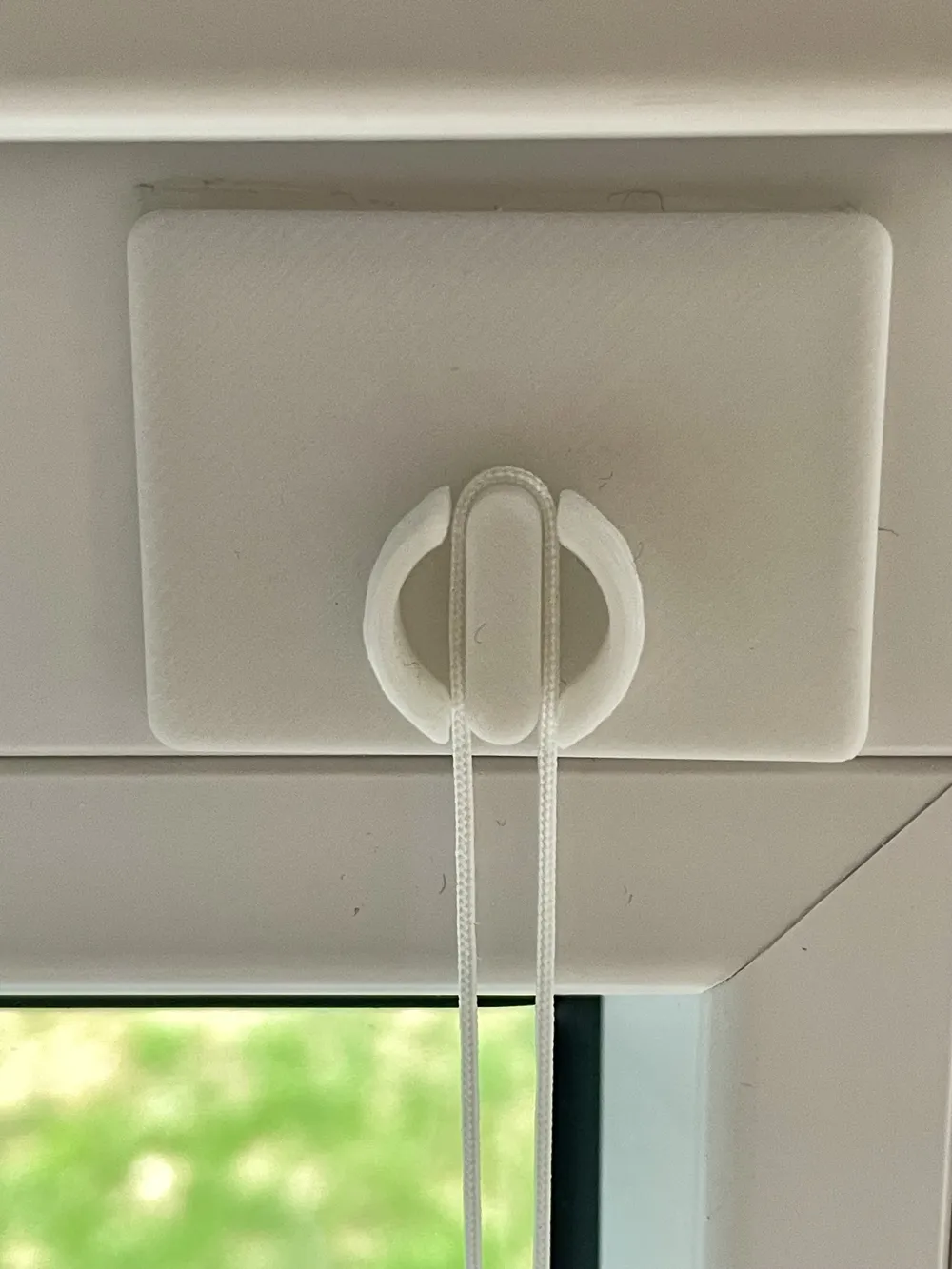

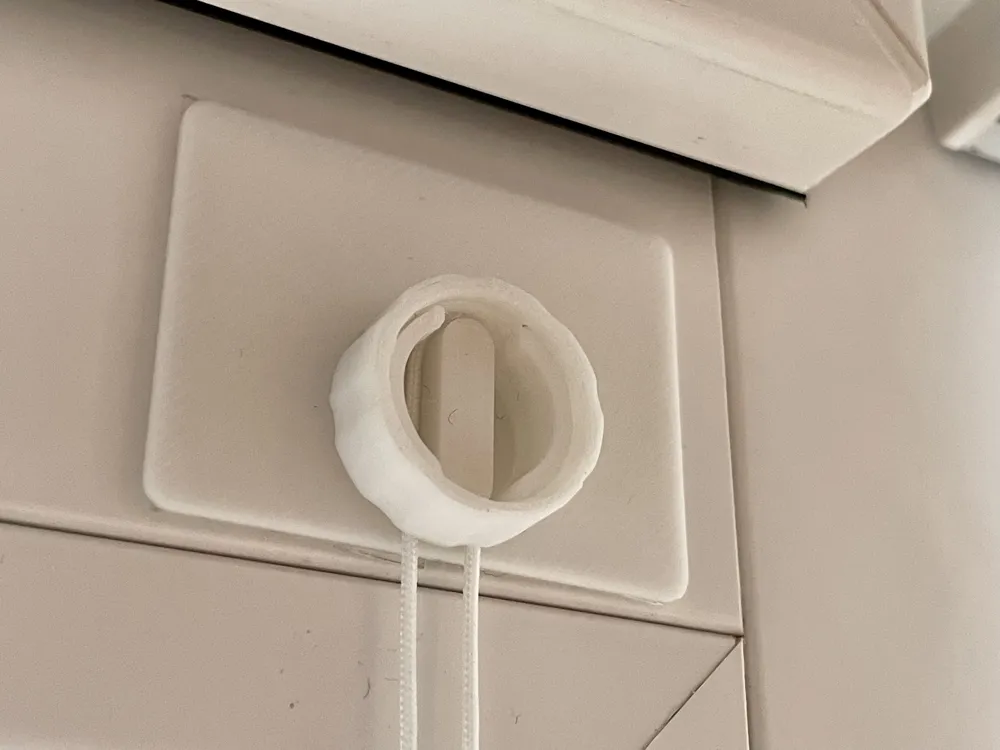

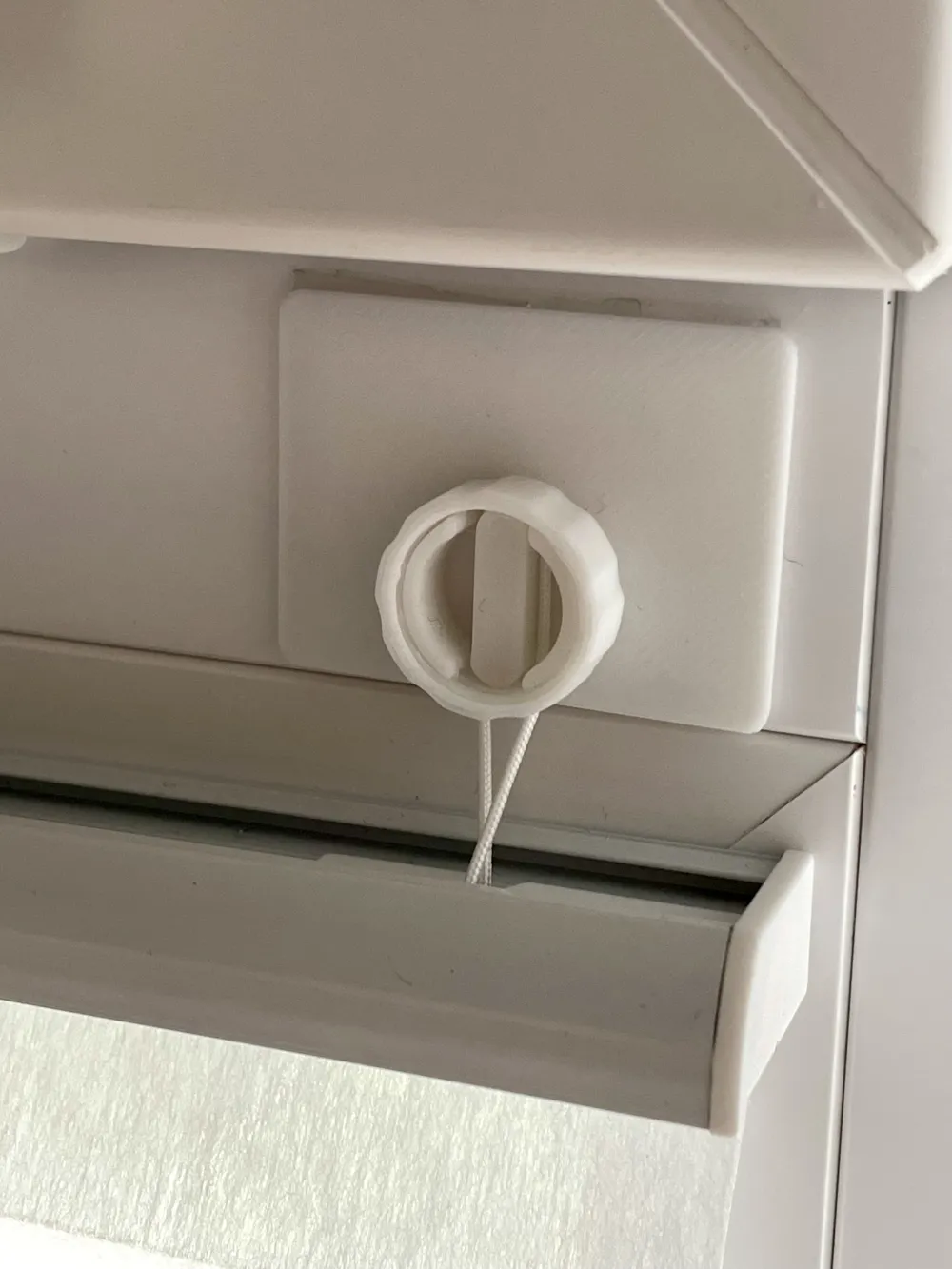

(Deutsch unten)&nbsp;Simple attachment of a pleated blind directly to the window frame. This method of fixing allows a pleated blind to be attached directly to a window that cannot be opened or if it is not possible to drill into the wall.&nbsp;Instructions<ol><li>Clean the window frame with alcohol</li><li>Apply double-sided adhesive tape to the back</li><li>Align the top and bottom in the middle of the cord - the side with the ring towards to the window!</li><li>Guide the cord around the inner bar - other end with knot to the outside!</li><li>Turn the ring on, done!</li></ol>&nbsp;&nbsp;Einfache Befestigung eines Plissees direkt am Fensterrahmen. Diese Methode der Befestigung erlaubt es ein Plissee direkt an ein Fenster anzubringen, welches sich nicht öffnen lässt, oder wenn man nicht in die Wand bohren kann.&nbsp;Anleitung<ol><li>Fensterrahmen mit Alkohol reinigen</li><li>Rückseite mit doppelseitigen Klebestreifen versehen</li><li>Oben und Unten mittig ausrichten zur Schnurr – die Seite mit dem Ring zum Fenster hin!</li><li>Schnurr um den inneren Steg führen – anderes Ende mit Knoten nach außen!</li><li>Ring rauf drehen, fertig!</li></ol>&nbsp;

(English below)&nbsp;Simple attachment of a pleated blind directly to the window frame. This mounting method allows a pleated blind to be attached directly to a non-opening window or where wall drilling is impossible.&nbsp;Instructions<ol><li>Clean the window frame with alcohol</li><li>Apply double-sided adhesive tape to the back</li><li>Align top and bottom centrally with the cord - the side with the ring facing the window!</li><li>Guide the cord around the inner bar - the other end with knot to the outside!</li><li>Turn the ring on, done!</li></ol>&nbsp;&nbsp;Simple attachment of a pleated blind directly to the window frame. This mounting method enables attaching a pleated blind directly to a non-opening window or when wall drilling is not feasible.&nbsp;Instructions<ol><li>Clean the window frame with alcohol</li><li>Apply double-sided adhesive tape to the reverse side</li><li>Align top and bottom centrally to the cord - the side with the ring towards the window!</li><li>Guide the cord around the inner rail - the other end with knot facing outwards!</li><li>Turn the ring upwards, finished!</li></ol>&nbsp;

Pleated Blind Mounting Plate
