Dreame A1 & Mova 1000 blade disc v2 reinforced
Print Profile(1)
Bill of Materials
- Threaded M4 inserts x 6: Link in description
- Roboticlawn mover blades (35mm) x 6: Link in description
Description

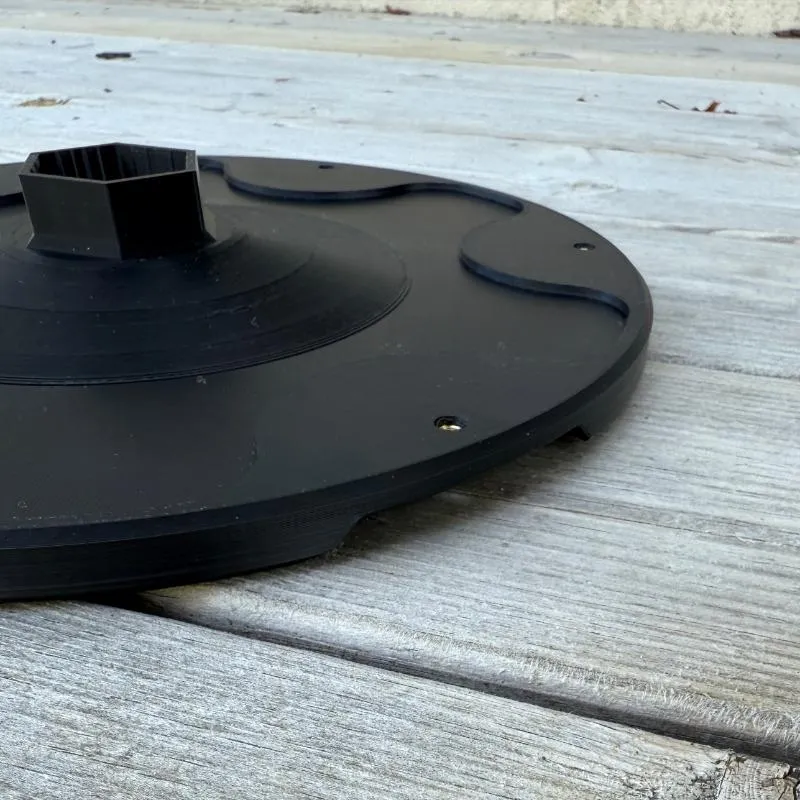

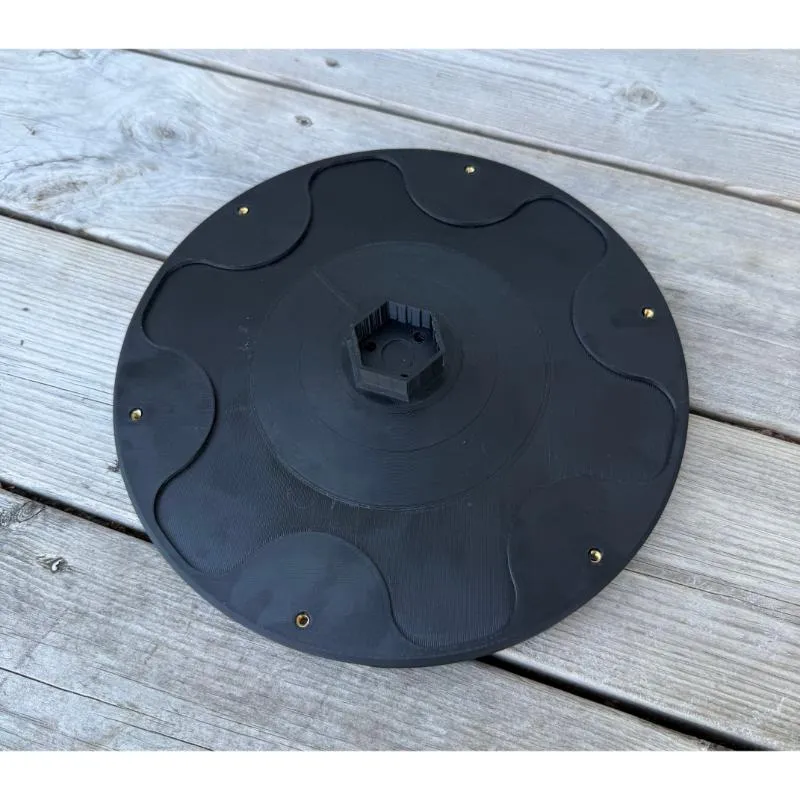

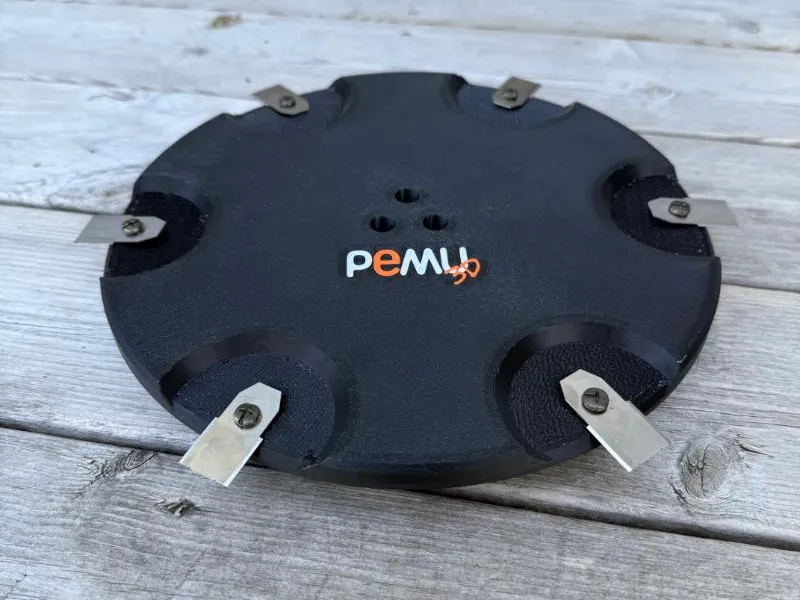

A maximized blade disc size for your Dreame A1 or Mova 1000 lawn mower. Including blades, this disc provides a full 26.5 cm cutting width and comes with 6 blades! Skip the original blades and replace them with better alternatives.

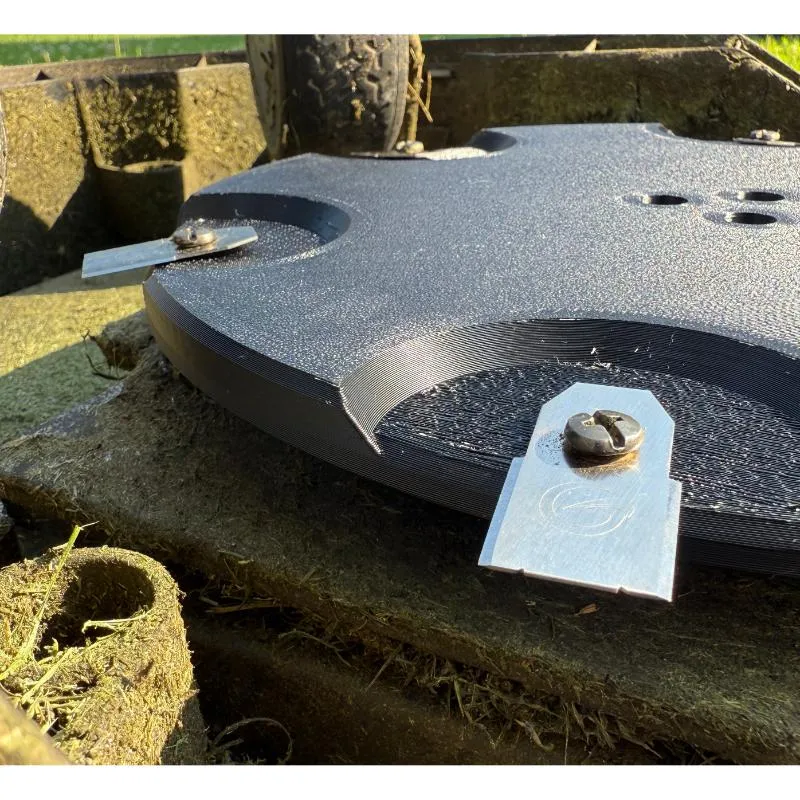

The advantage of this new v2 is that it has recessed knife slots, which reduces the risk of screw heads hitting anything. It also features a solid skeletal structure that enhances its durability in case of an accident!
The increased width of the knife disc allows you to get even closer to the edges and ensures that no strands of grass are left uncut.

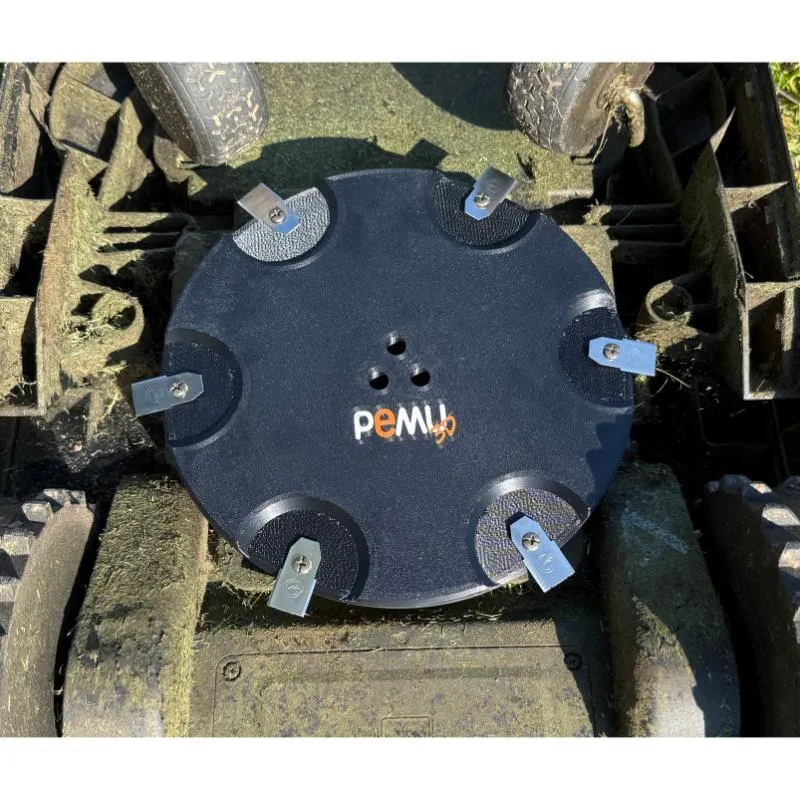

You simply replace the one that is already on your machine with this one and use the screws that are already on your machine. No adjustments need to be made to your machine, so if you wish to restore it afterwards, this is no problem. Note that for this blade disc, the shield must be dismantled or alternatively replaced with the new version of the shield that you find here
Mounted blades: https://pemu3d.se/en/pemu3d/grimsholm-automover-gardena-mfl-36-pack/
Threaded inserts: https://www.amazon.se/dp/B0D477DN3M?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Support is needed in the screwholes and at the blade positions.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
