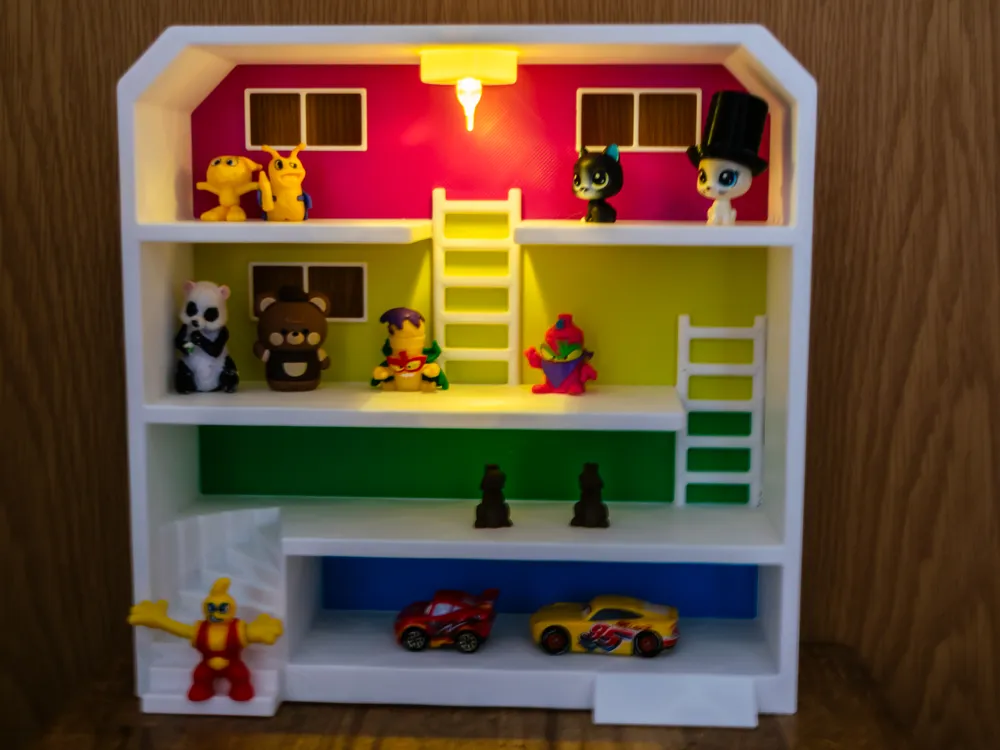

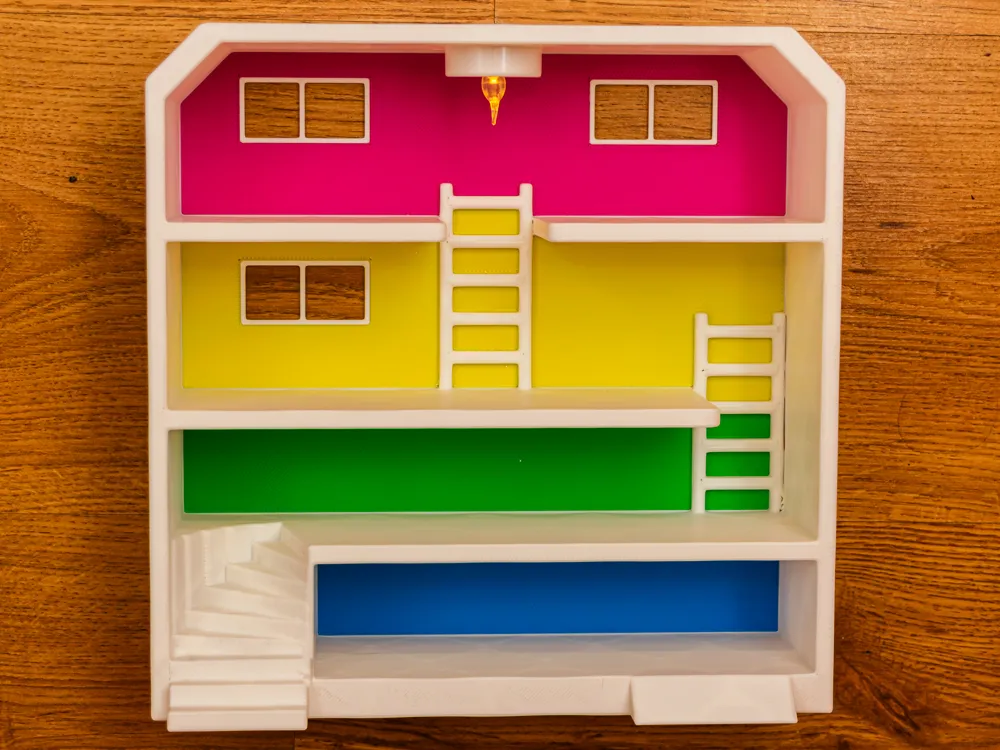

3‑Story Dollhouse with Garage & LED Ceiling Light

Bring playtime to life with this kid-friendly dollhouse. Designed as a one-piece "open front" model, it's perfect for small hands and big imaginations - just print, drop in an LED Tea Light Candle, and start playing!

• Large 25 cm x 25 cm (width and height) x 7 cm (depth) dollhouse
• Three stories plus drive-in garage (height: 42 mm, 42 mm, 60 mm, 63 mm)
• Integrated spiral staircase and two ladders
• Three windows in the back wall

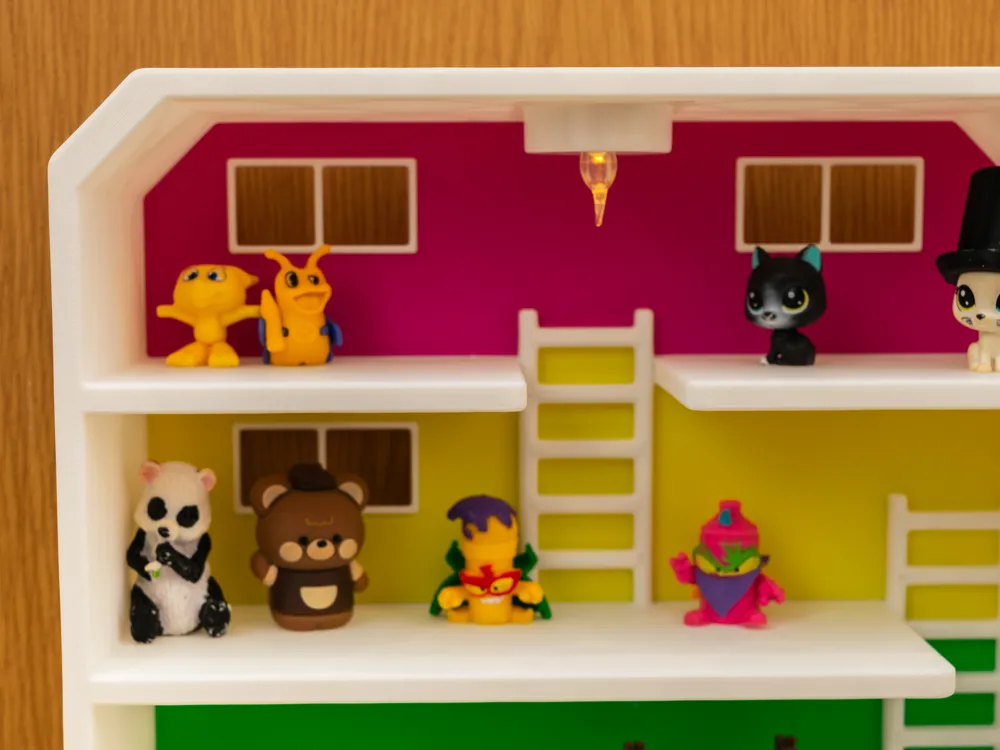

• Ceiling light - pre-modeled hole accepts a standard LED Tea Light Candle

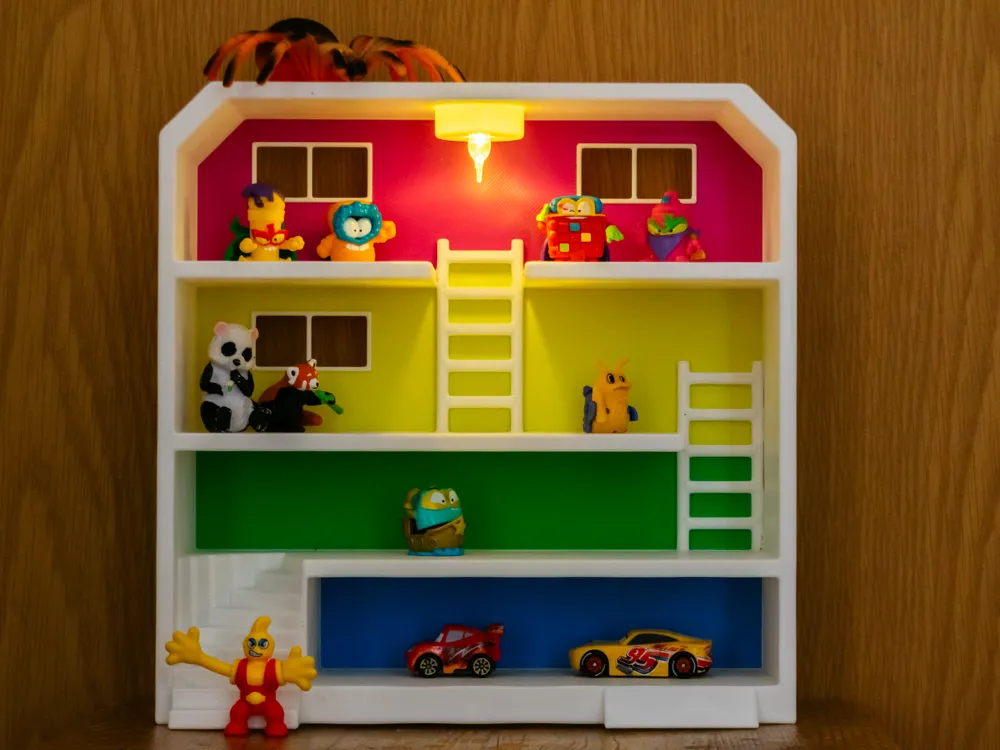

• The dollhouse can also be used as a storage/demo shelf for various toy minifigures

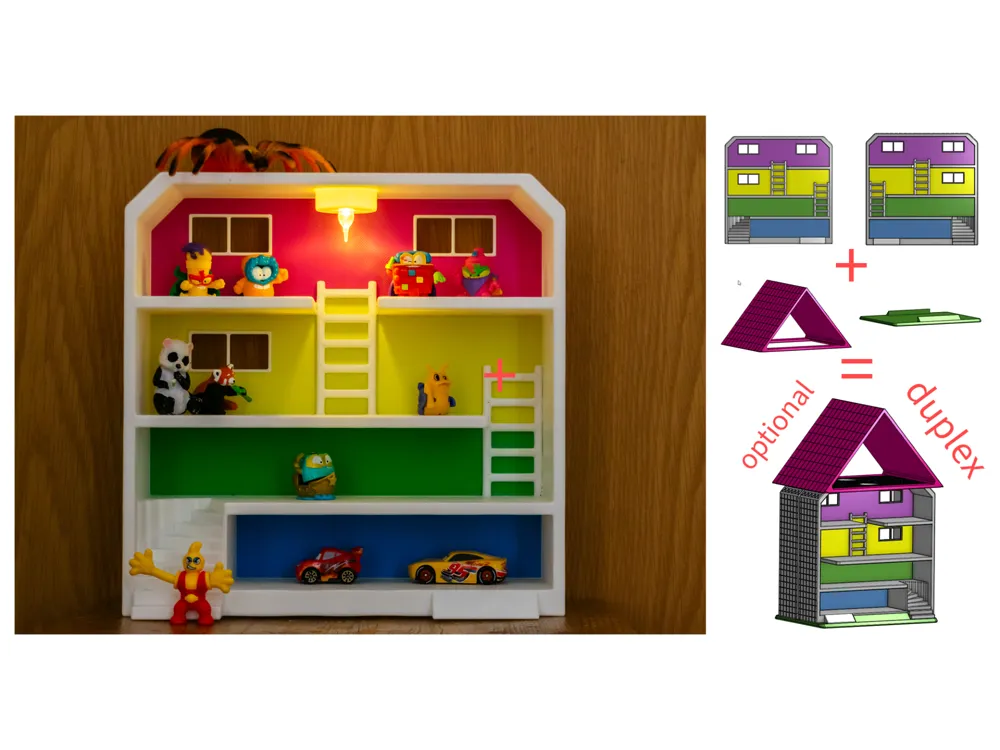

  DUPLEX (optional)

  Make the game with the dollhouse even more exciting (especially for 2 kids playing together) - print 2 houses (with left entrance and with right entrance, common base and roof to merge the house into a duplex





Print it now, and watch kids turn it into their dream home!

 Just 300g of filament: main color - 270g (white), other colors - 6-9g (each). Almost no waste - only 8 filament changes.

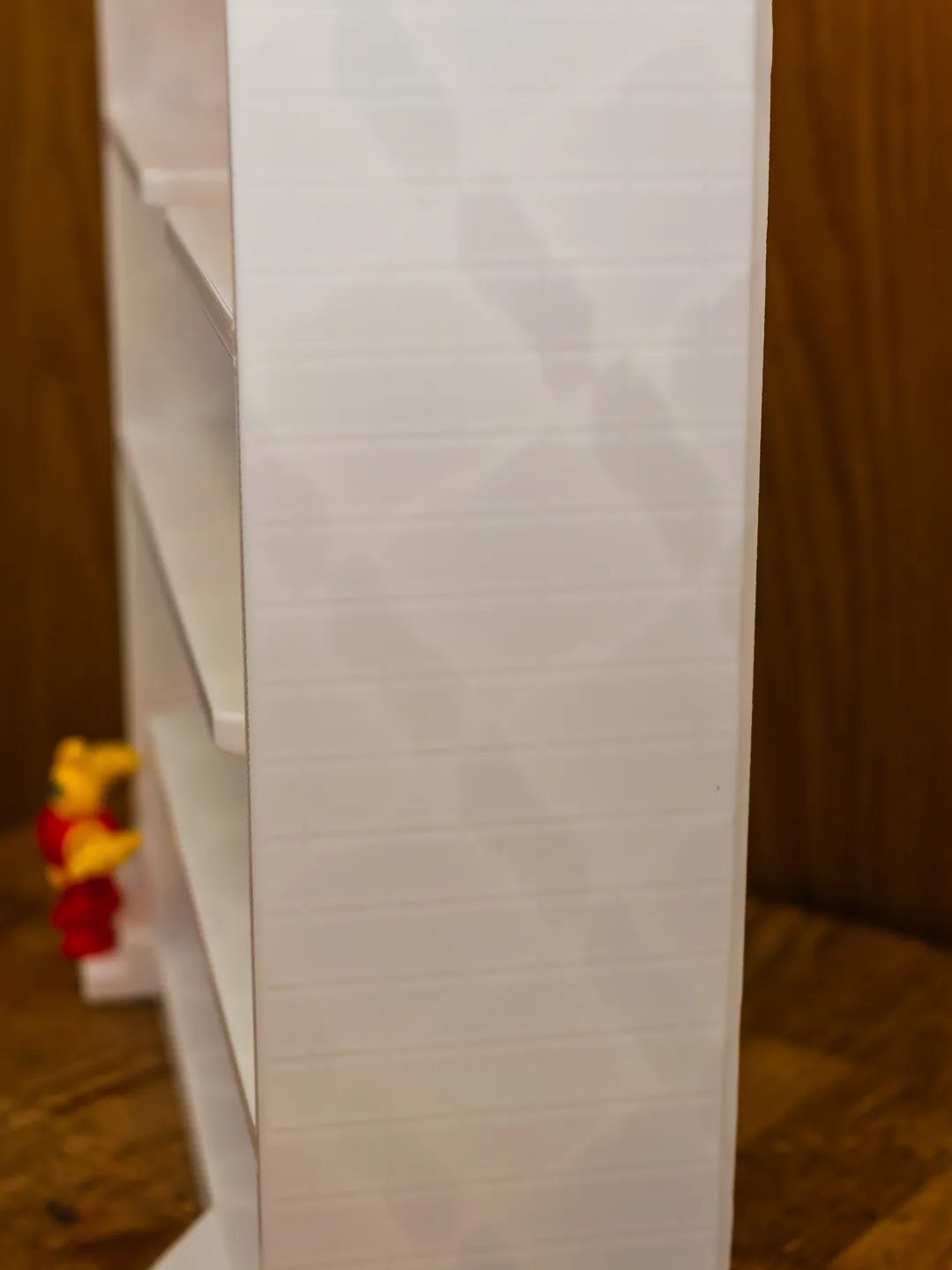

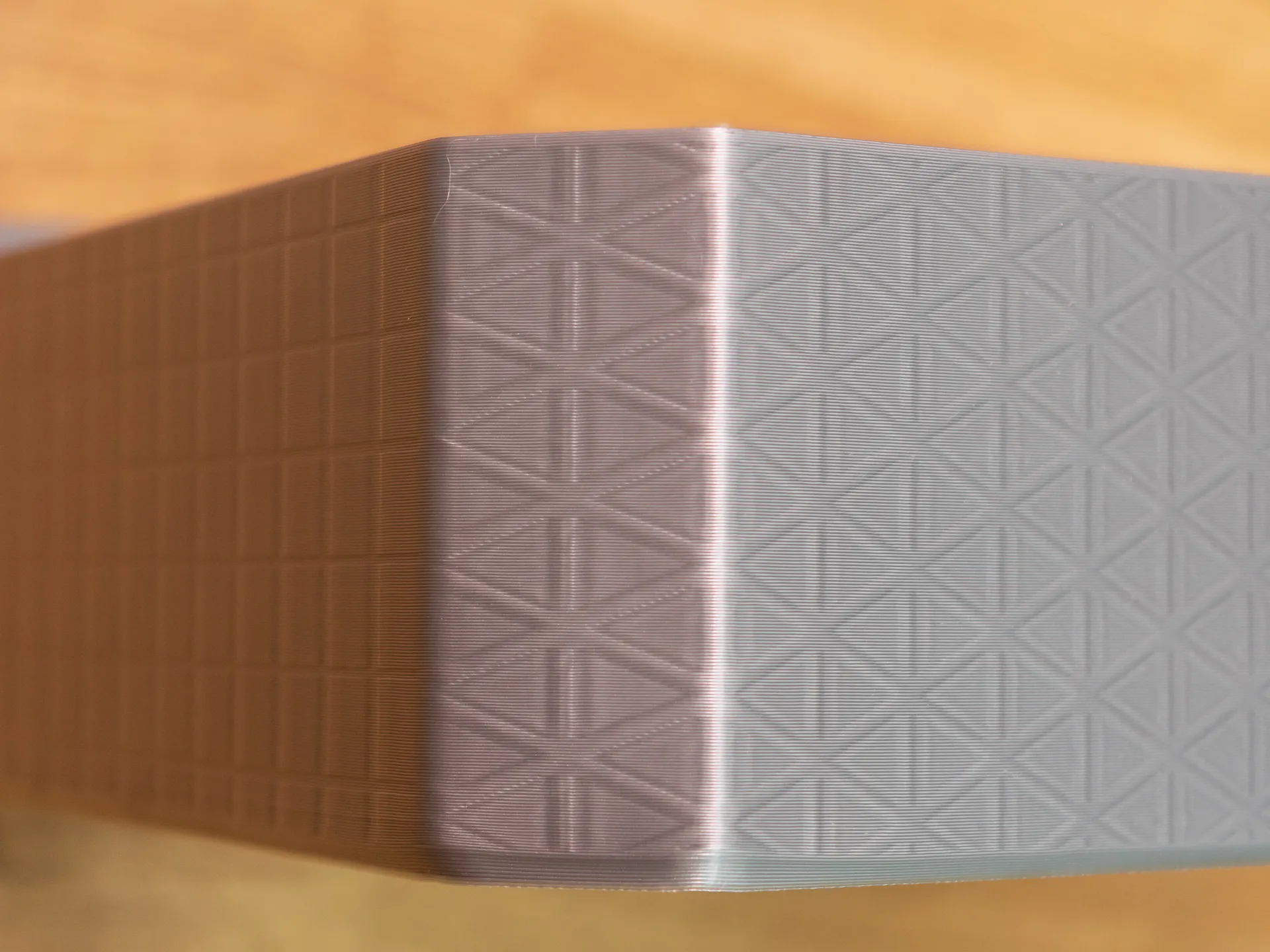

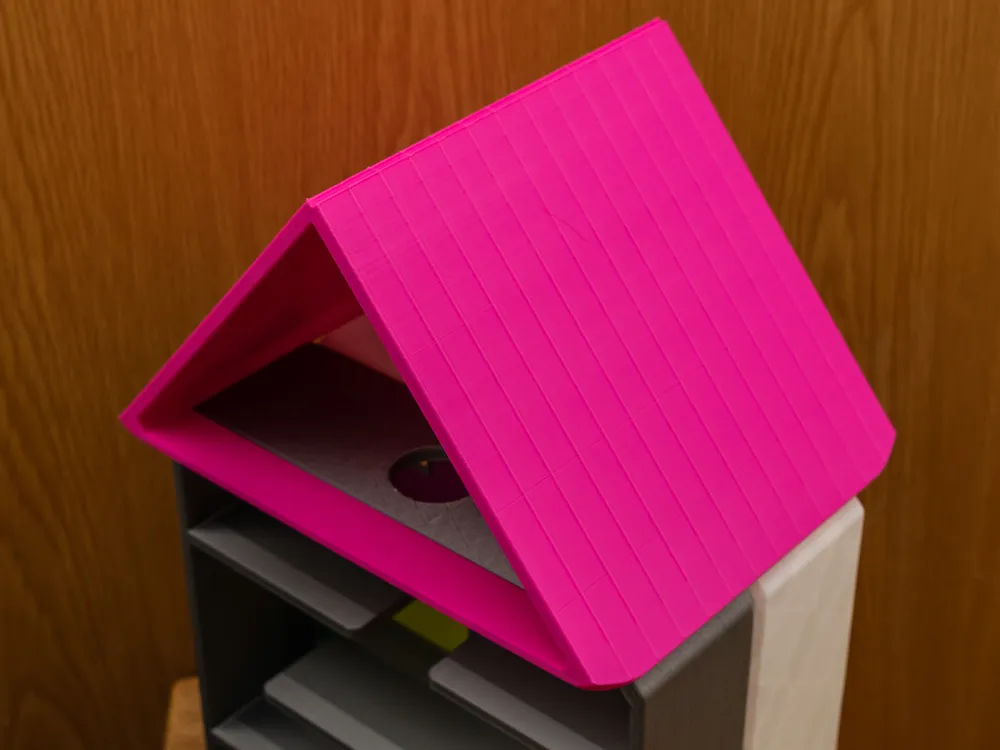

❗Texture on the sides and top of the house is more visible with slightly darker and less transparent colors:

Instructions

1. Print the model (a house with left entrance, or a house with right entrance). It's juts one plate and one object.







2. Remove the support, clean the hole using a knife if required.







3. Insert a LED Tea Light candle into the hole.

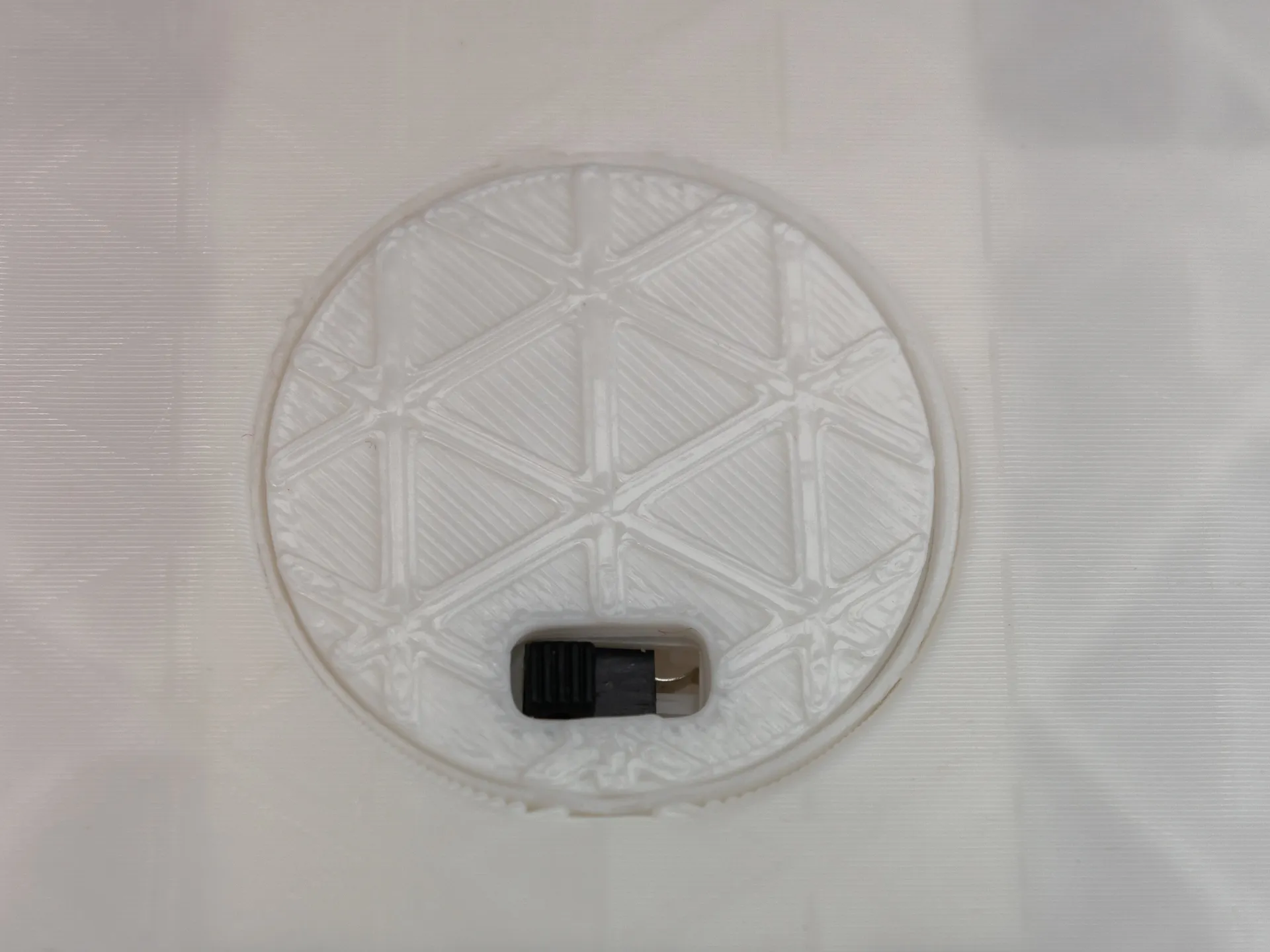

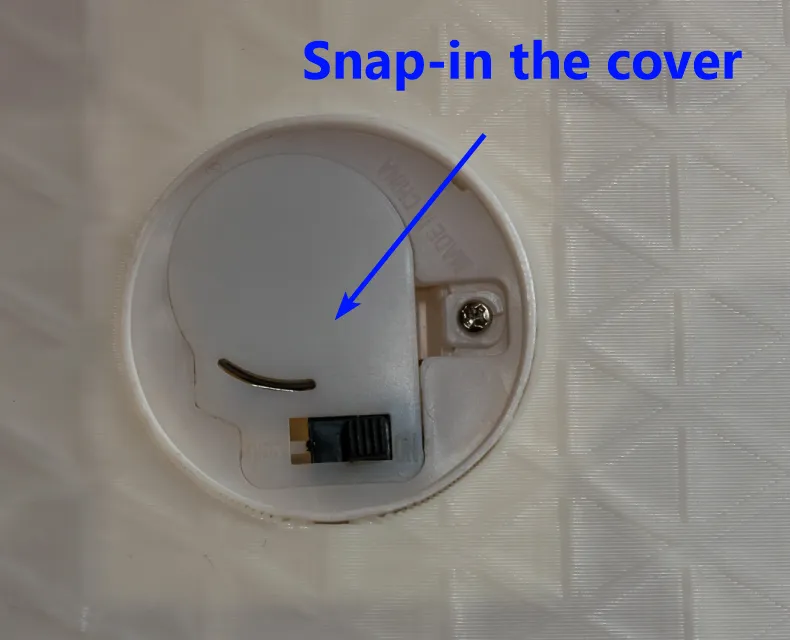

4. Optional: print plate 2 and snap-in the cover into the back of the LED candle.





LED Tea Light Candle:

• use one from Maker's Beginner Kit
• or get D37.2x36.6mm LED Flame Tea Light Candle Set (12pcs).

No LED light? No problem; you can add it later or leave the house as is.

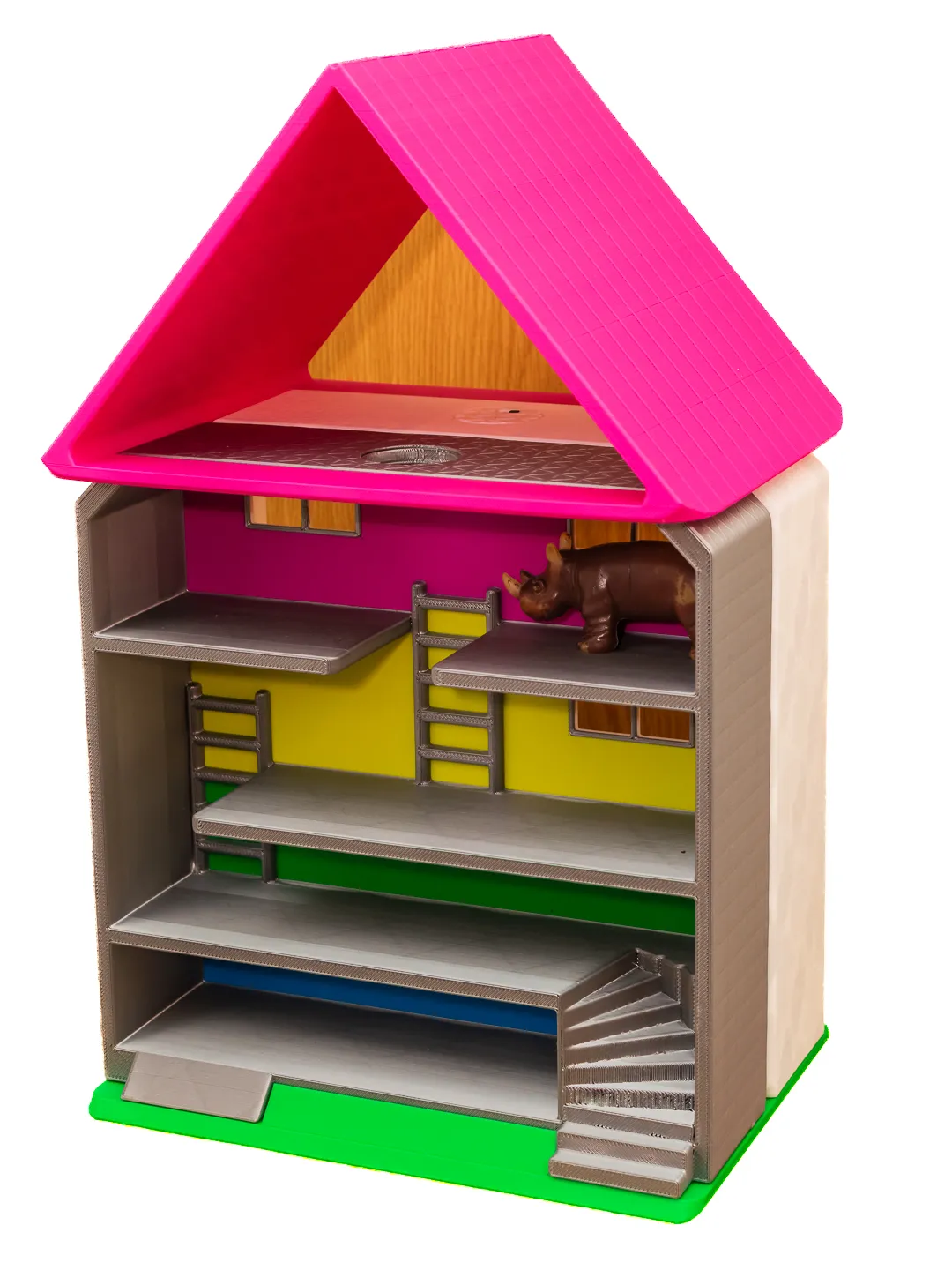

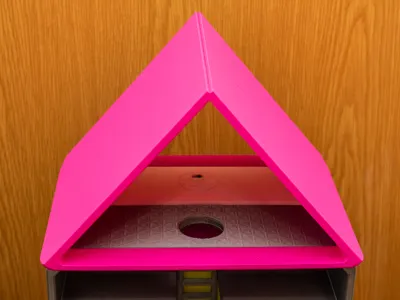

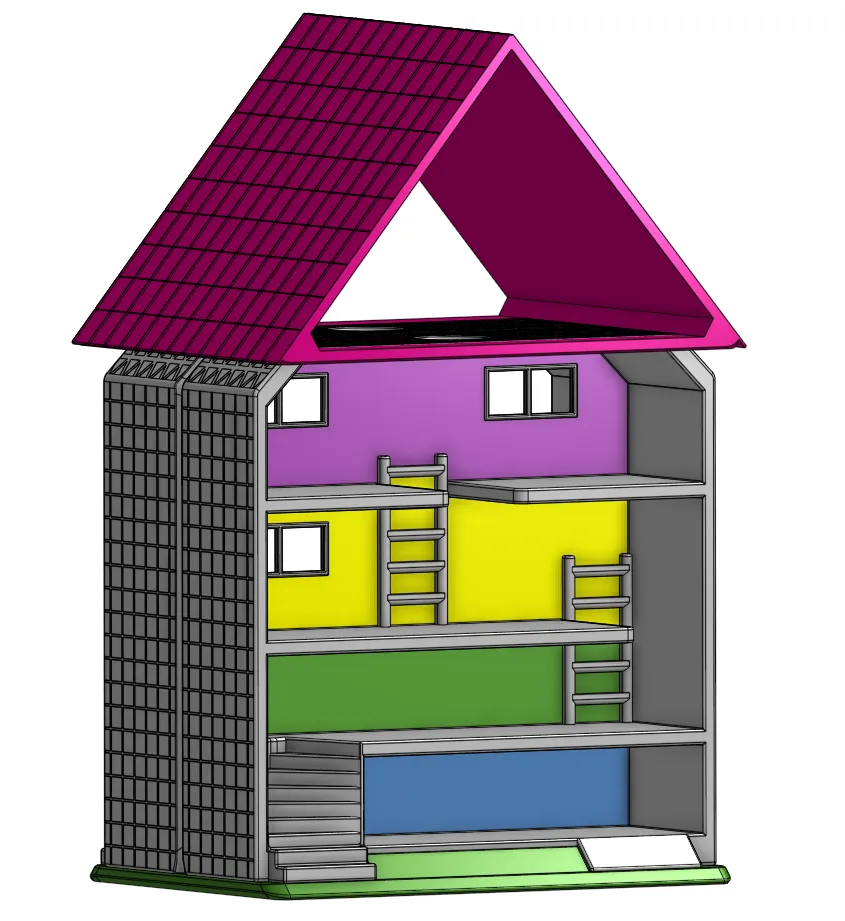

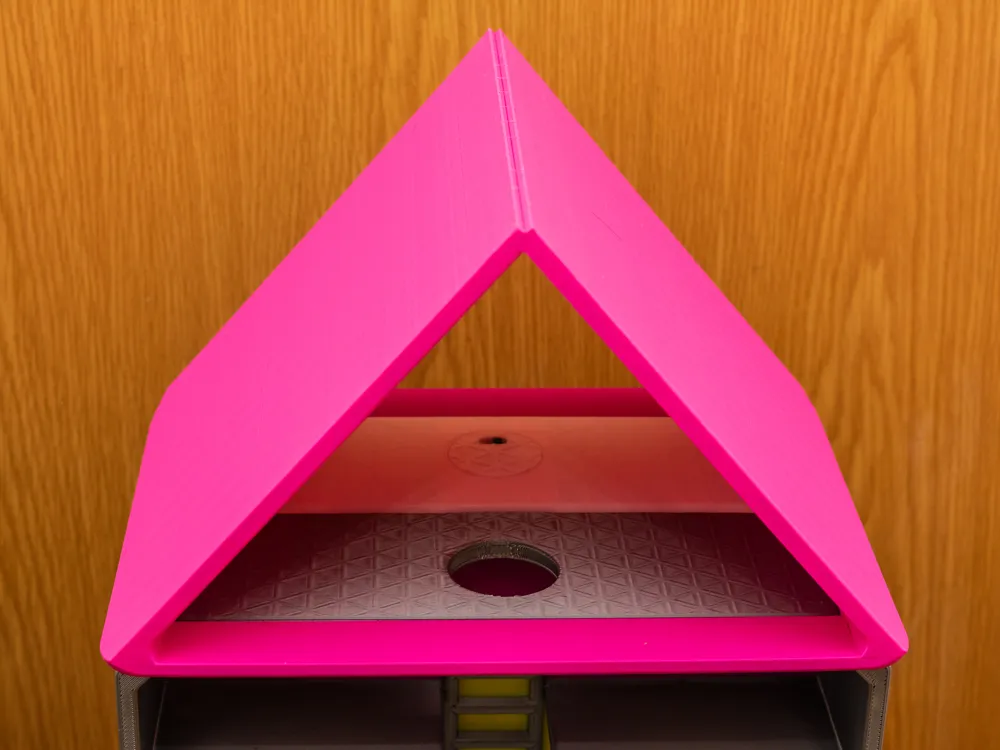

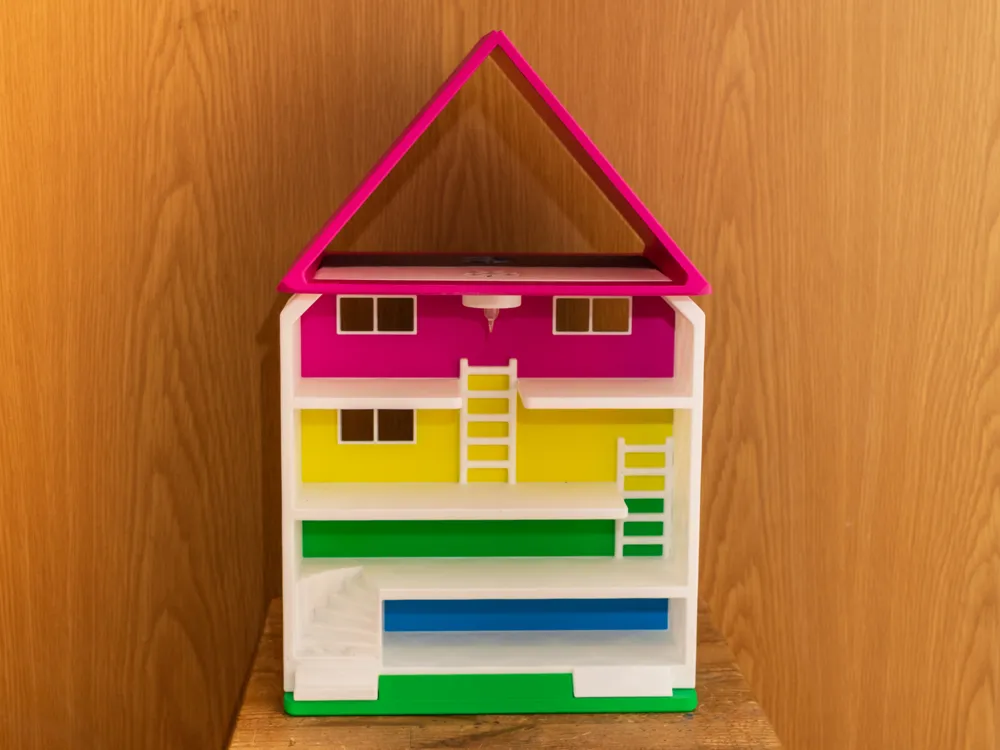

Optional: Duplex (two houses under the same roof)

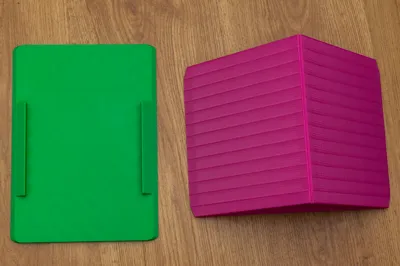

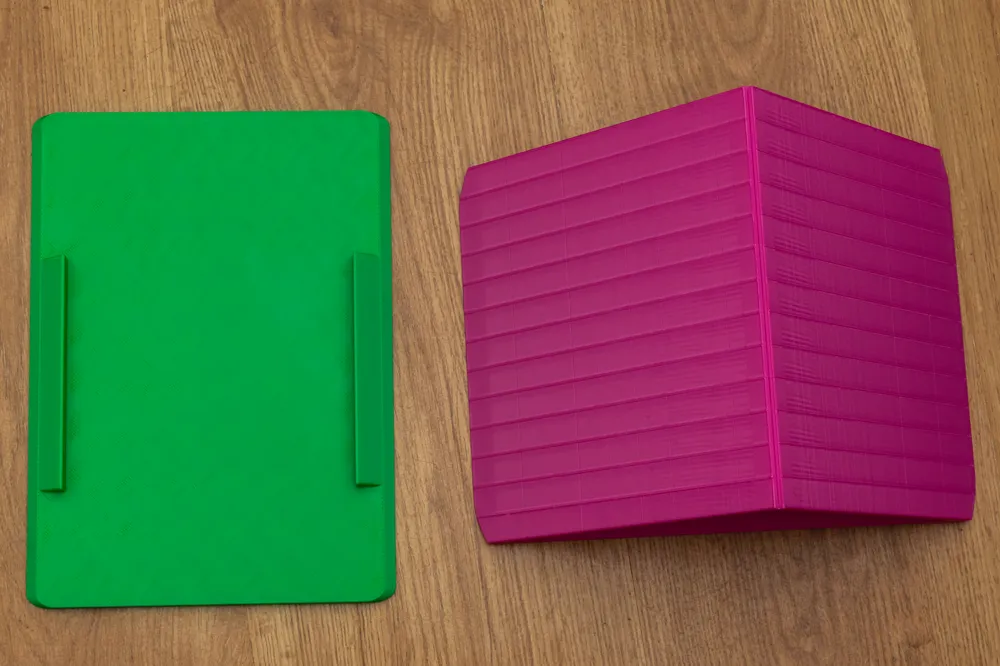

1. Print 2 houses (a house with left entrance, and a house with right entrance), a base and a roof.
2. Play with the houses separately or build a duplex:
   ➡️

Recommendations

0.6 mm nozzle recommended for strength and speed.

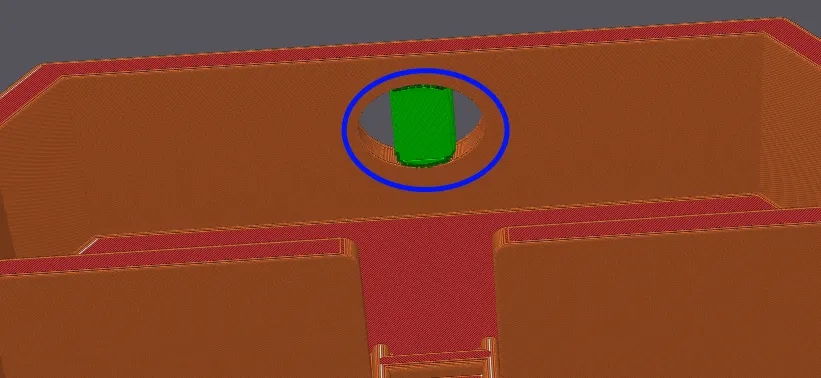

Modifiers are used to increase strength and quality of the LED light hole and the staircase.

The model was designed to reduce potential warping, but if you have experienced significant warping with your filament in the past, see Printed Model Warping: Causes and Solutions before printing the model.

Wash the build plate. The model covers almost the entire 256x256 mm build plate, and the back wall is only three layers thick. The quality of the first layer is important. Verify the model right after the first layer is printed and stop printing if the first layer looks bad. For me, just washing the textured PEI plate with water and some liquid soap ensures a perfect first layer.

The house can be printed in one color without AMS or in multiple colors with AMS.

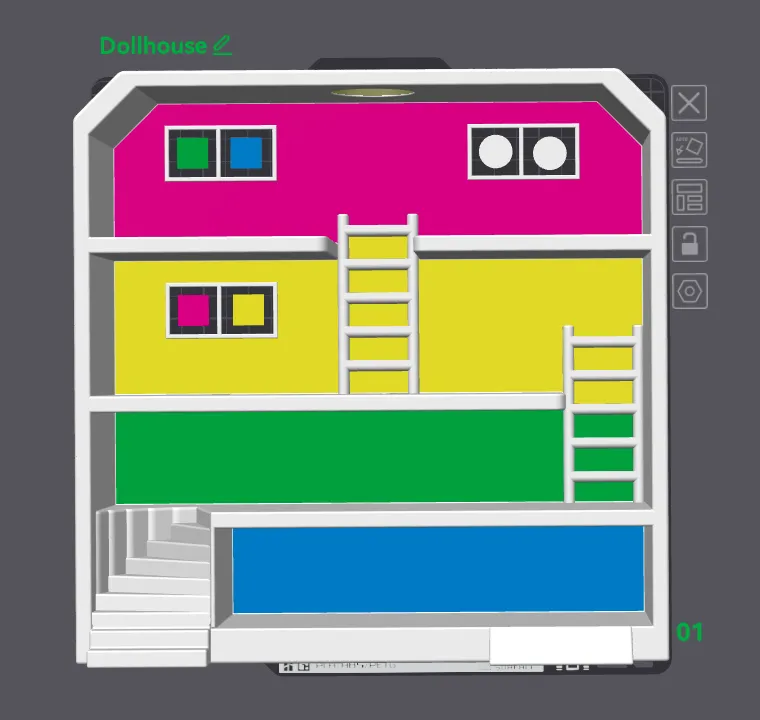

The prime tower is disabled, but four small squares and two small circles will be printed inside the windows instead.

―――

I printed the house in 5 colors on A1 without AMS. See Multi-color without AMS for the instructions and g-code for A1.
