P1S / X1C exhaust duct magnetic mount, adaptable for high-speed fan installation
Print Profile(2)
Description

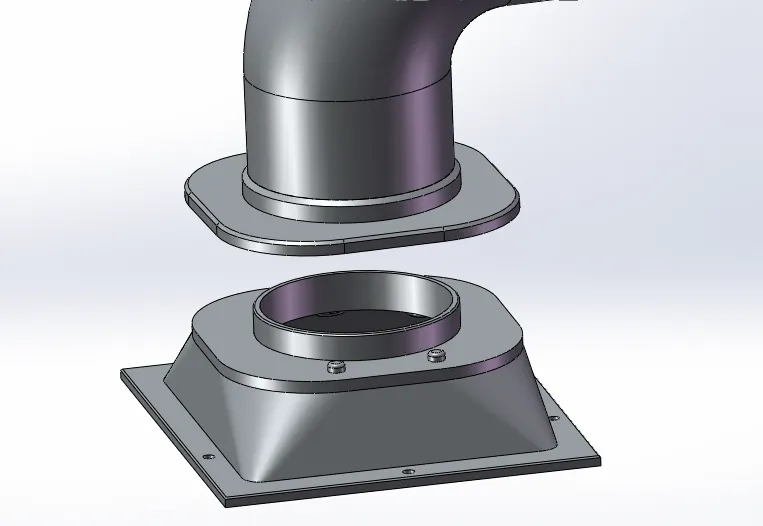

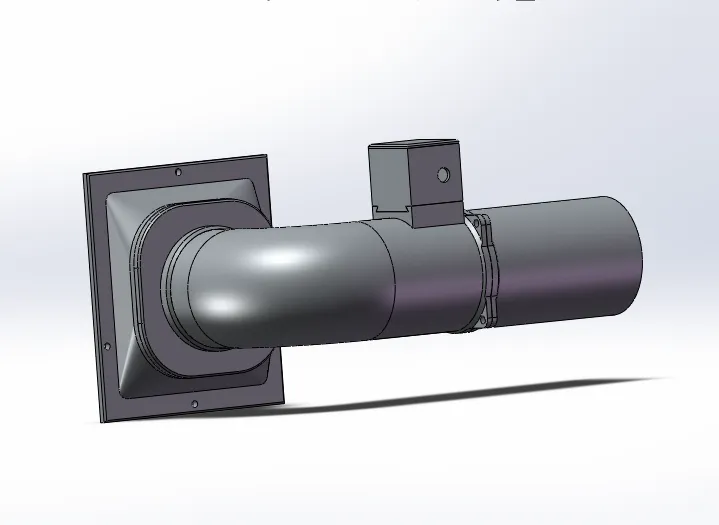

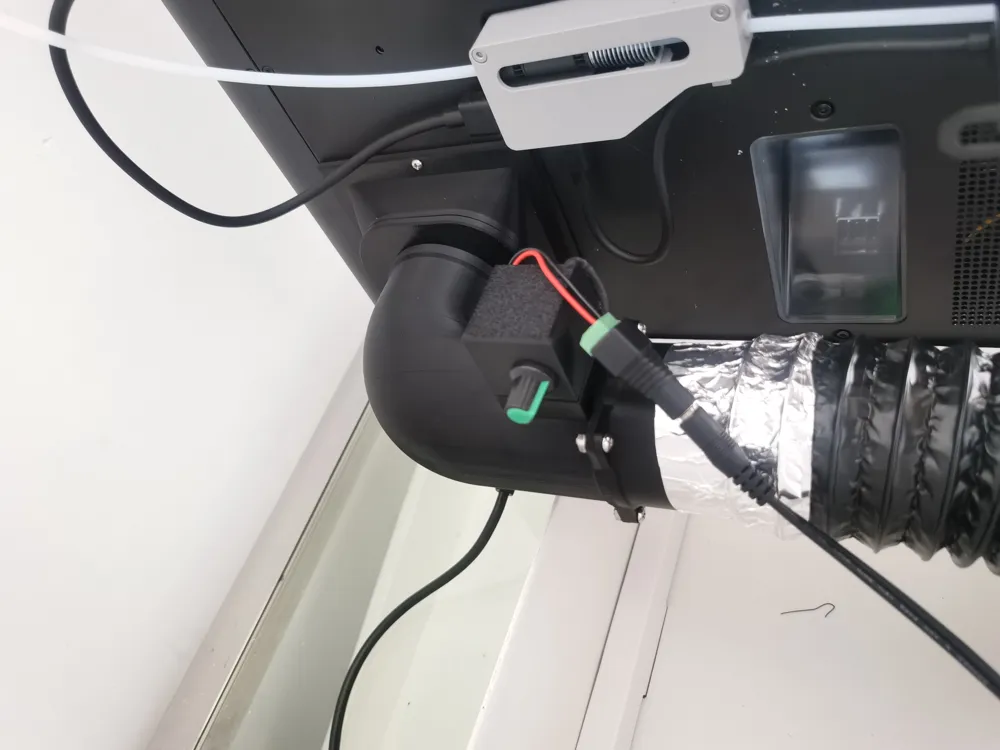

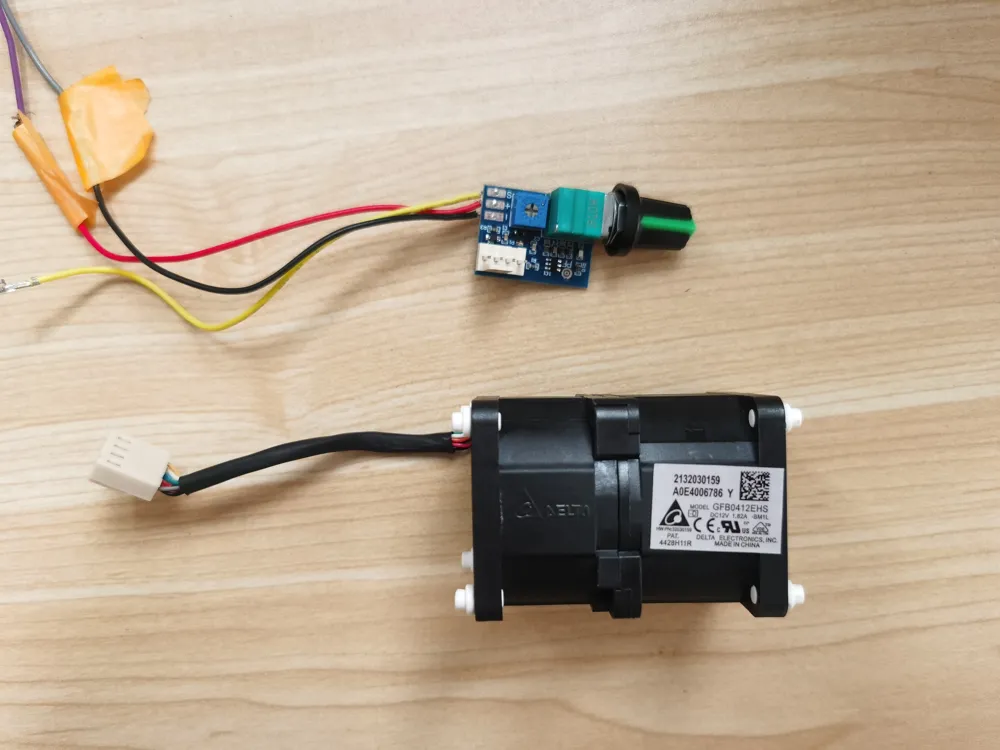

This model uses a magnetic mount (the exhaust duct base and printer require screw fastening), allowing for easy removal or 45° rotation. A high-speed fan and speed controller can be installed (see the image above for fan and controller models), the exhaust pipe is 60mm in outer diameter (due to material shrinkage, the actual outer diameter is not 60mm).

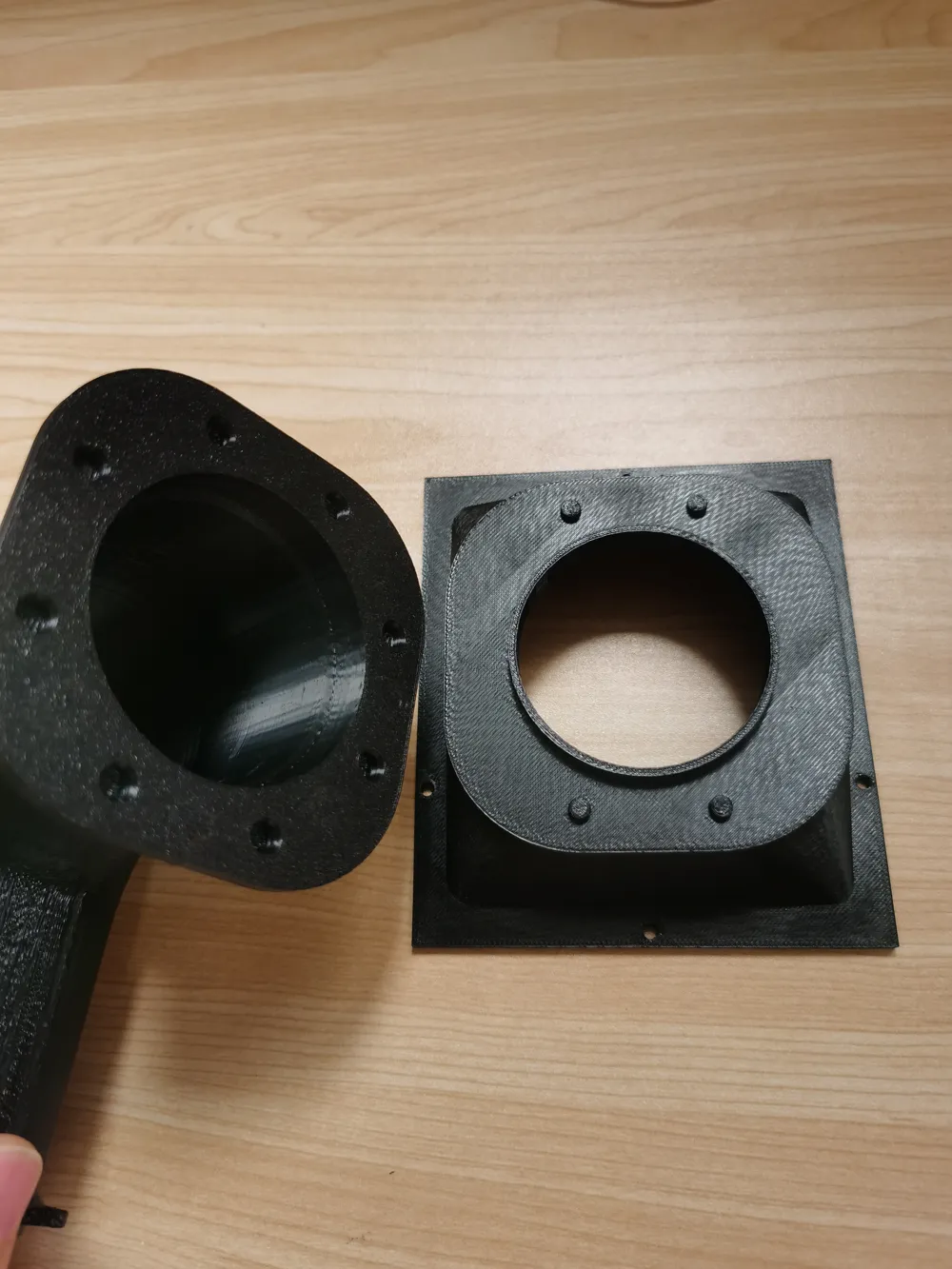

Magnets are embedded (pay attention to the positive and negative poles when adding magnets), requiring magnet addition during the pause layer. Magnet size: 10⁕2.5mm (16 pcs) (use 2mm if 2.5mm is unavailable; I only had 10⁕1.3mm, so I used 2 per hole), 5⁕3mm (4 pcs) (for securing the speed controller box).
The fan mounting section requires M3 screws and nuts (M4 screws are also usable, slightly tighter).
