Description

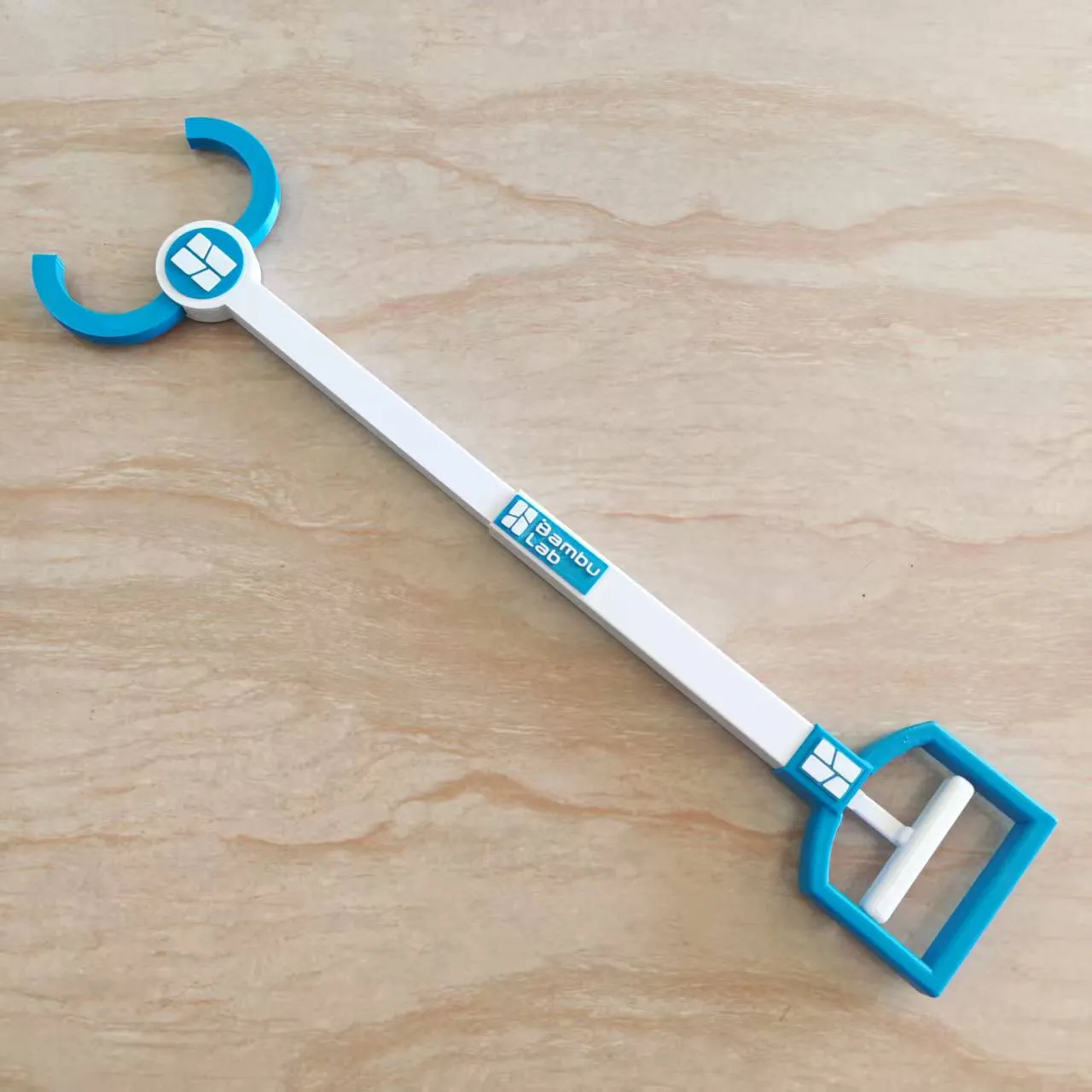

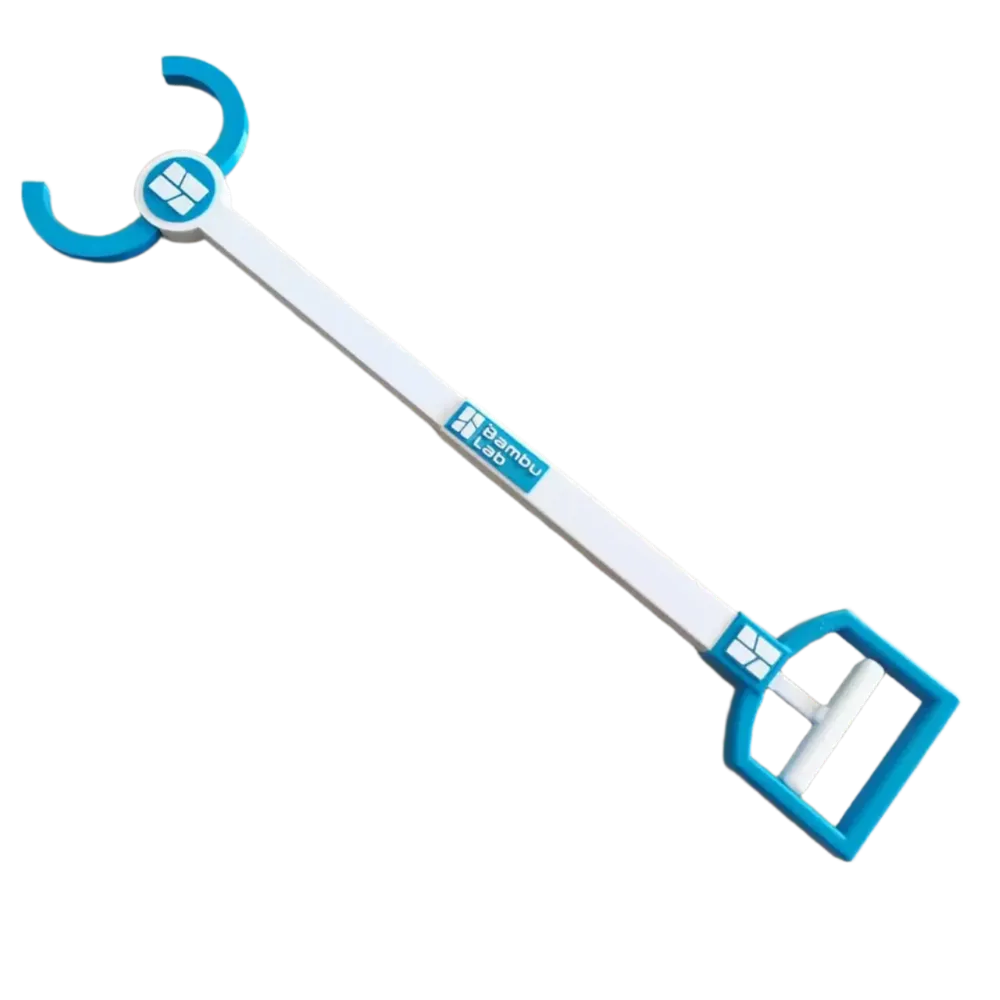

The finished product measures 57 centimeters in length and requires no hardware or glue, only a single rubber band. Printing is swift, taking just over four hours.

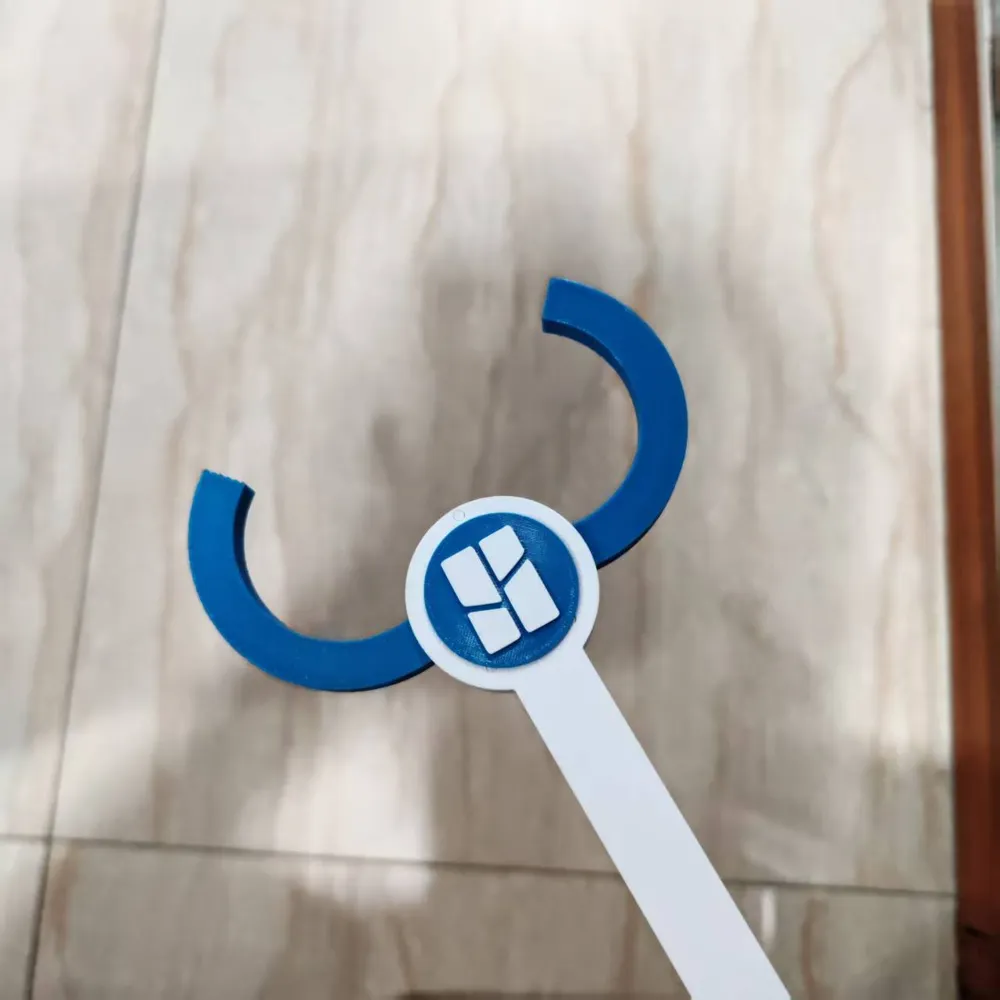

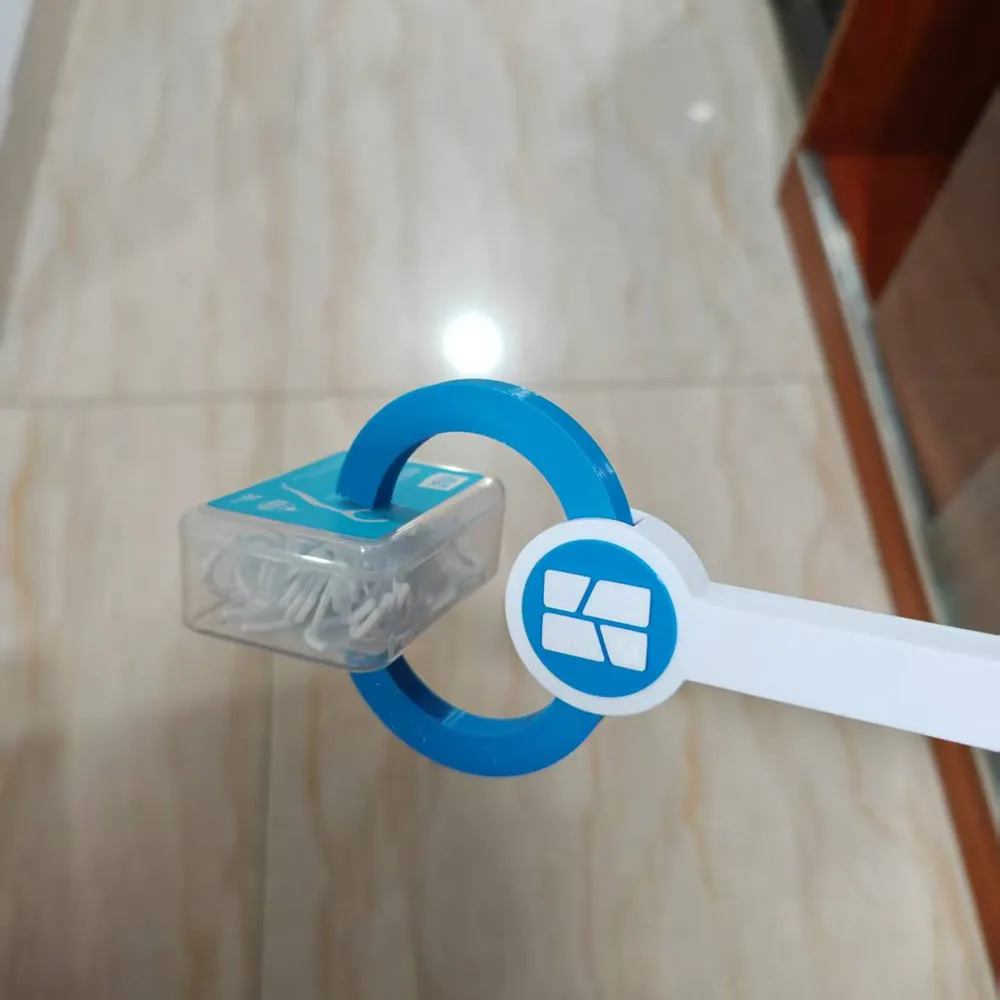

The claws feature a satisfying spring-loaded action, and the grippers' wave pattern readily secures various small items.
A must-have for home, travel, and litter cleanup, it also makes a fun toy for children!
The third-plate decorative stickers are optional.

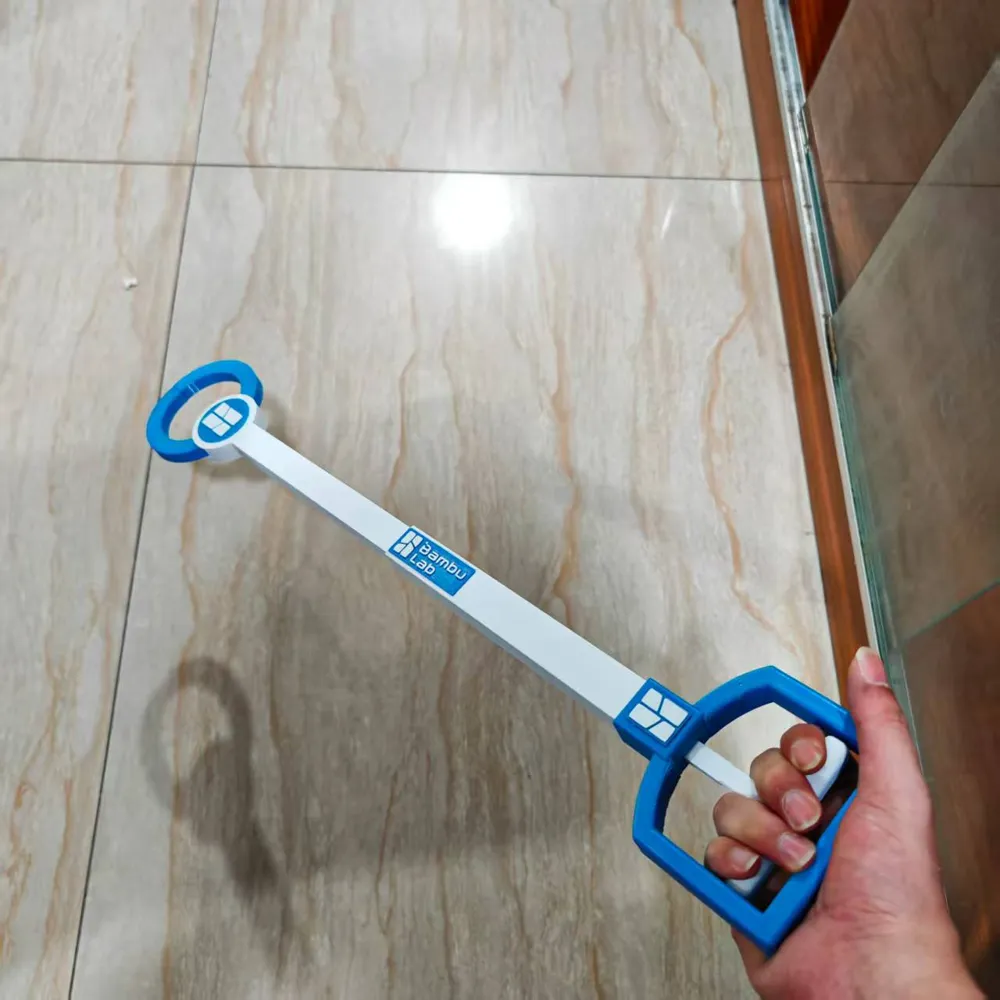

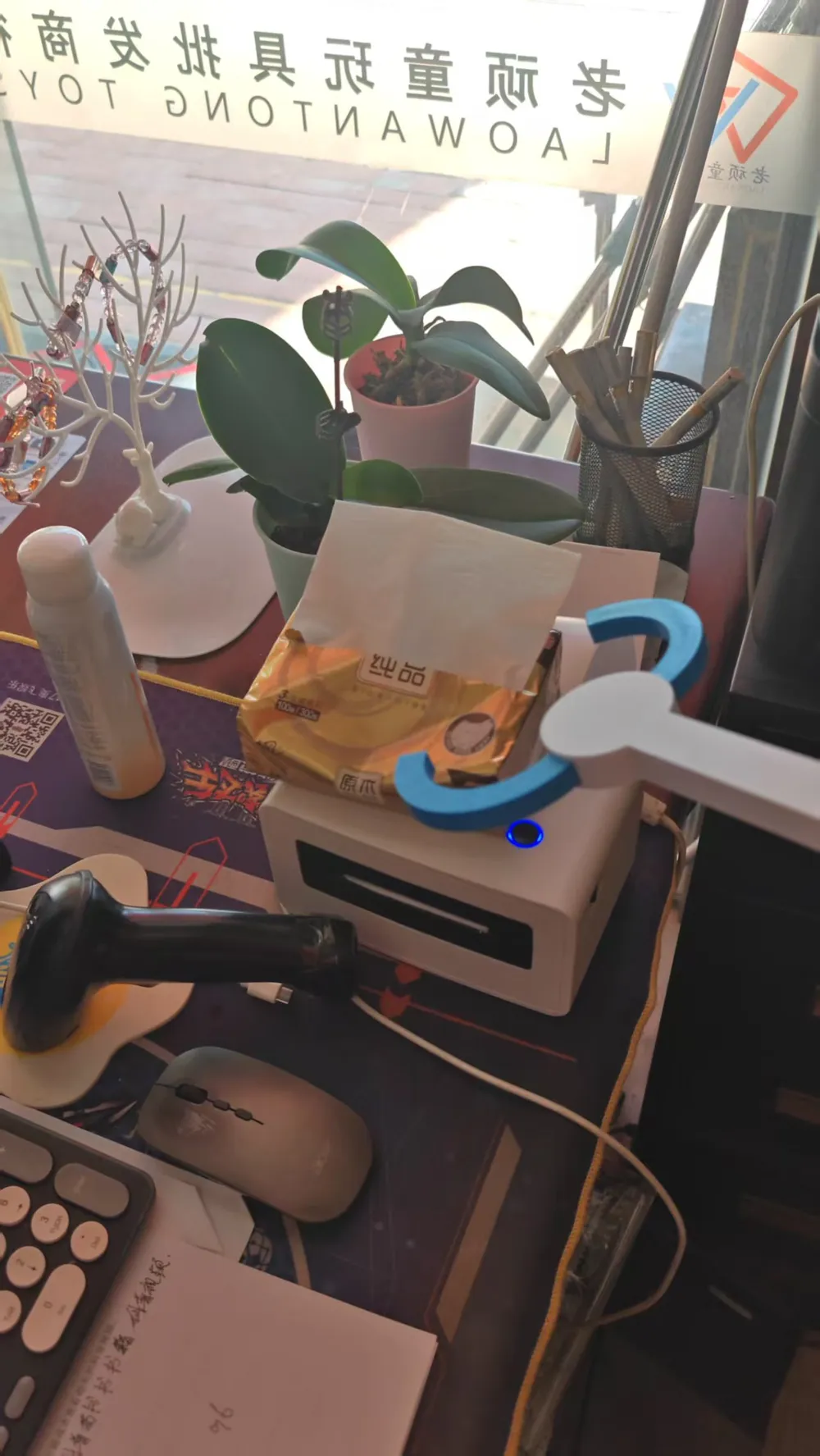

Demonstration:
Assembly Instructions:

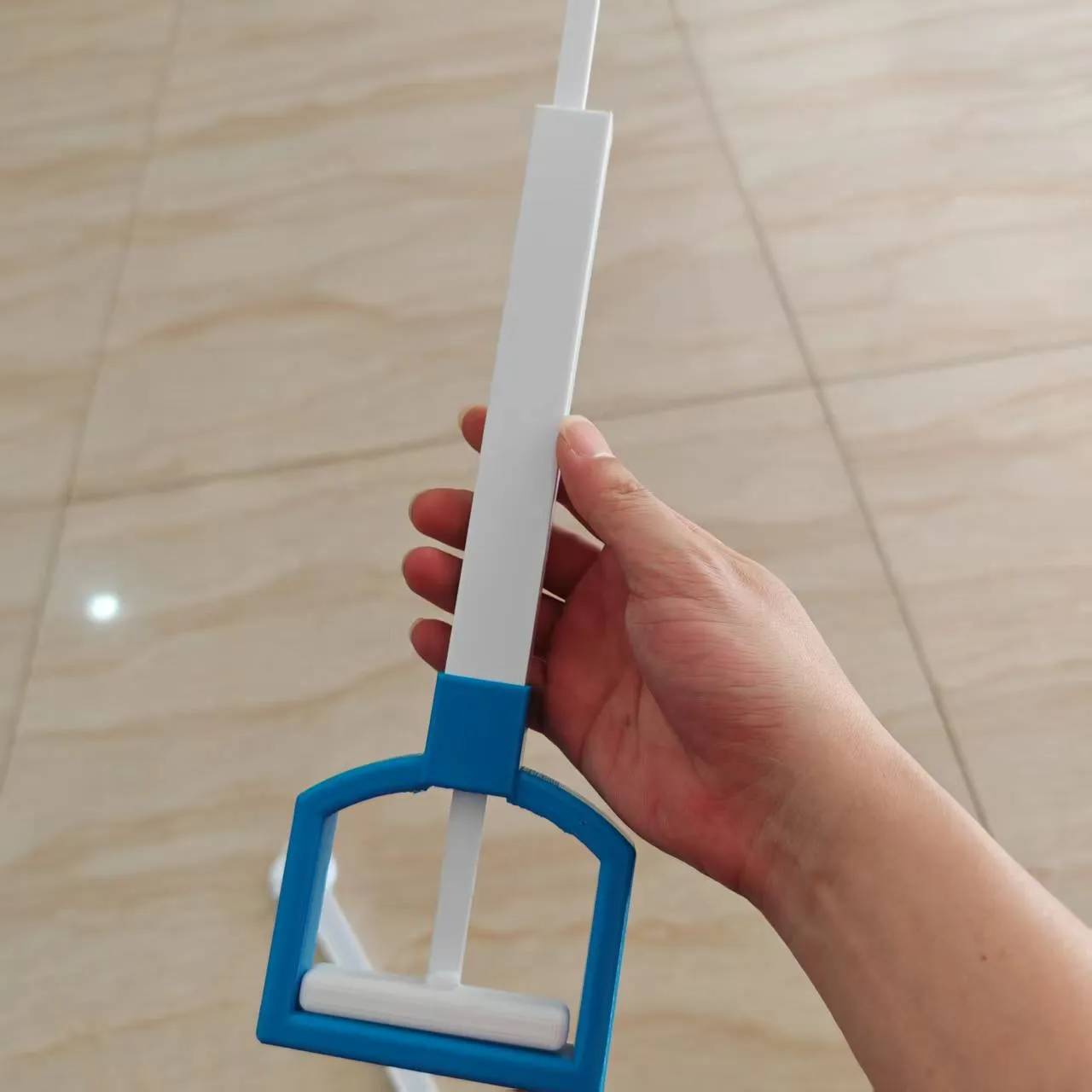

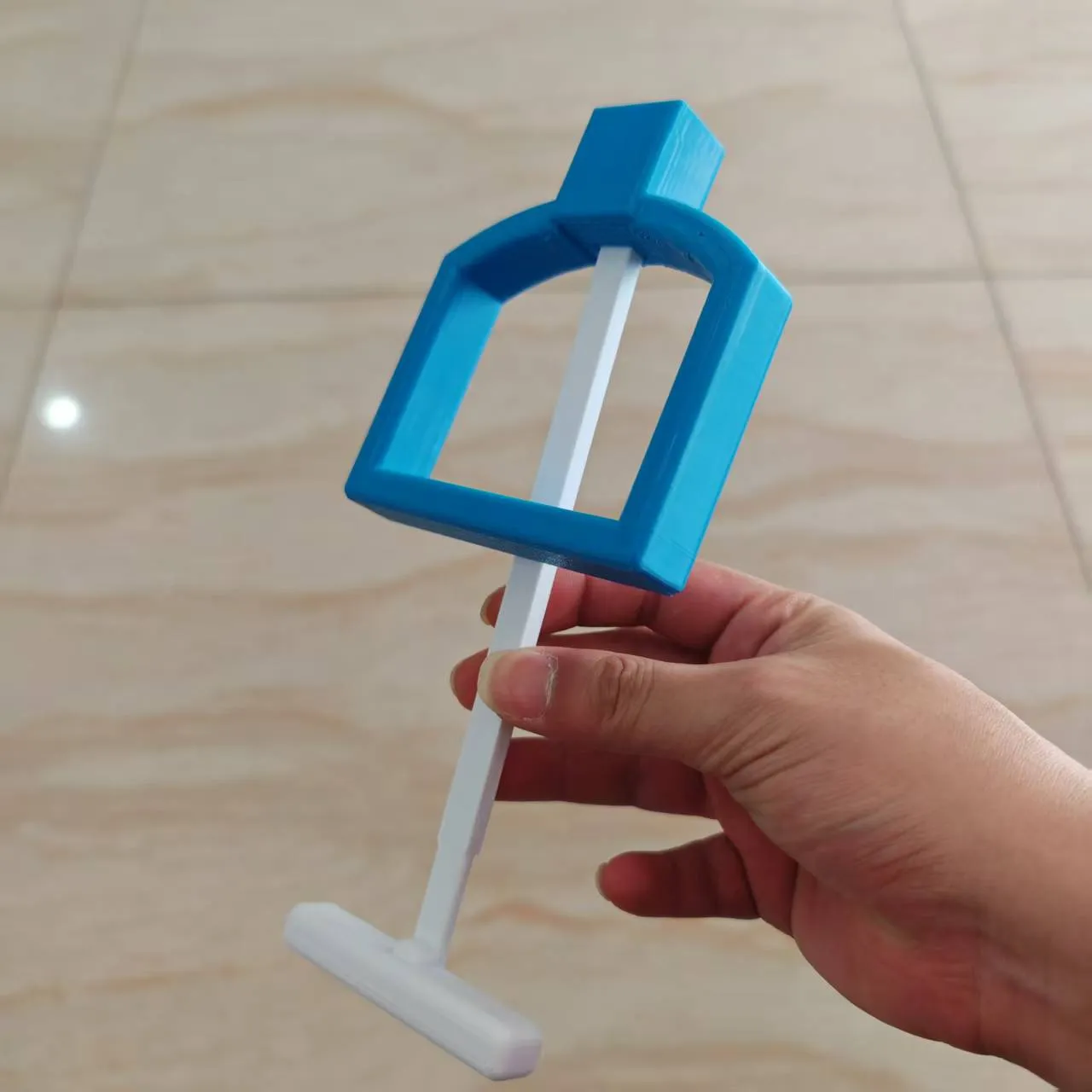

Insert the pull rod through the handle as shown, taking care to maintain the correct angle and applying gentle pressure.

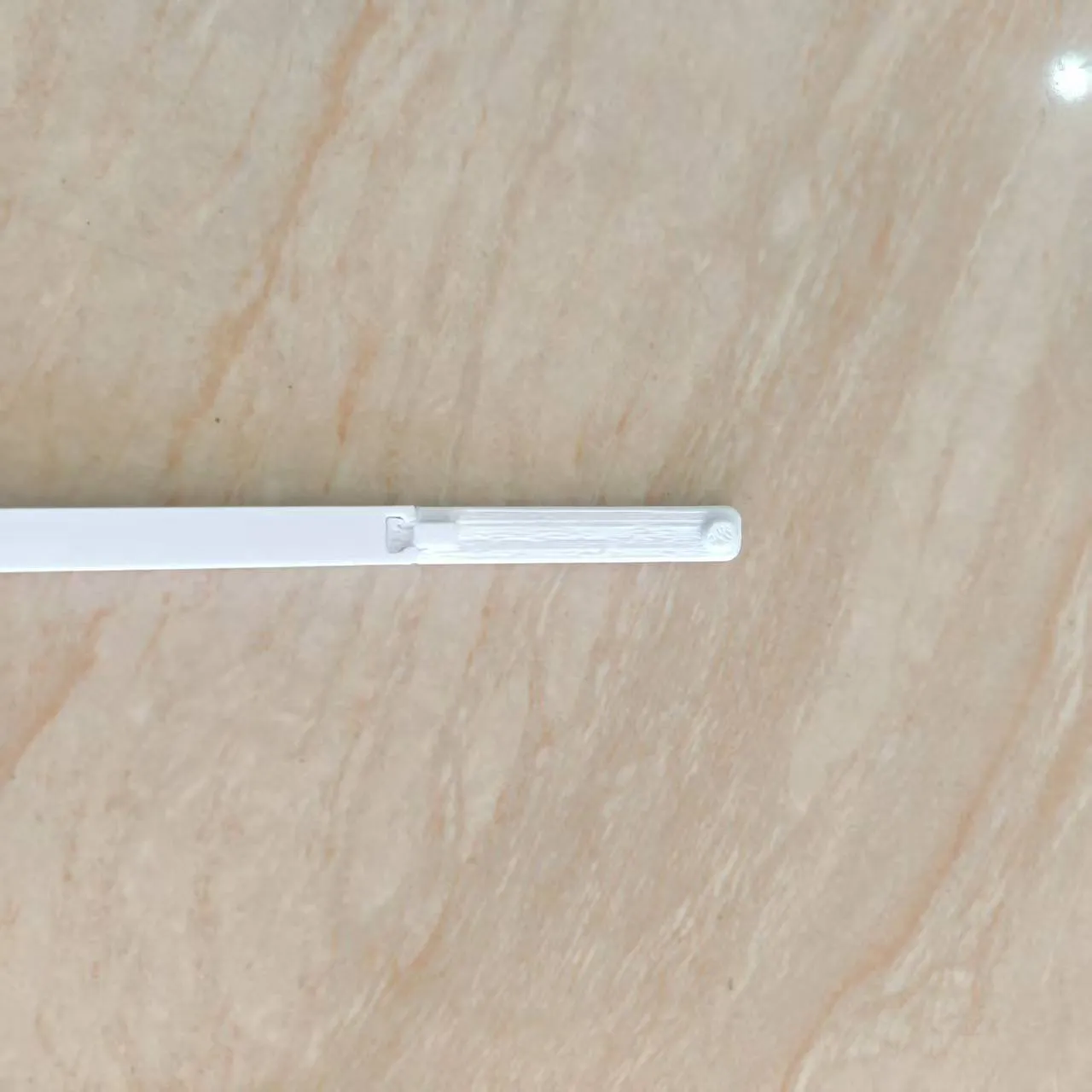

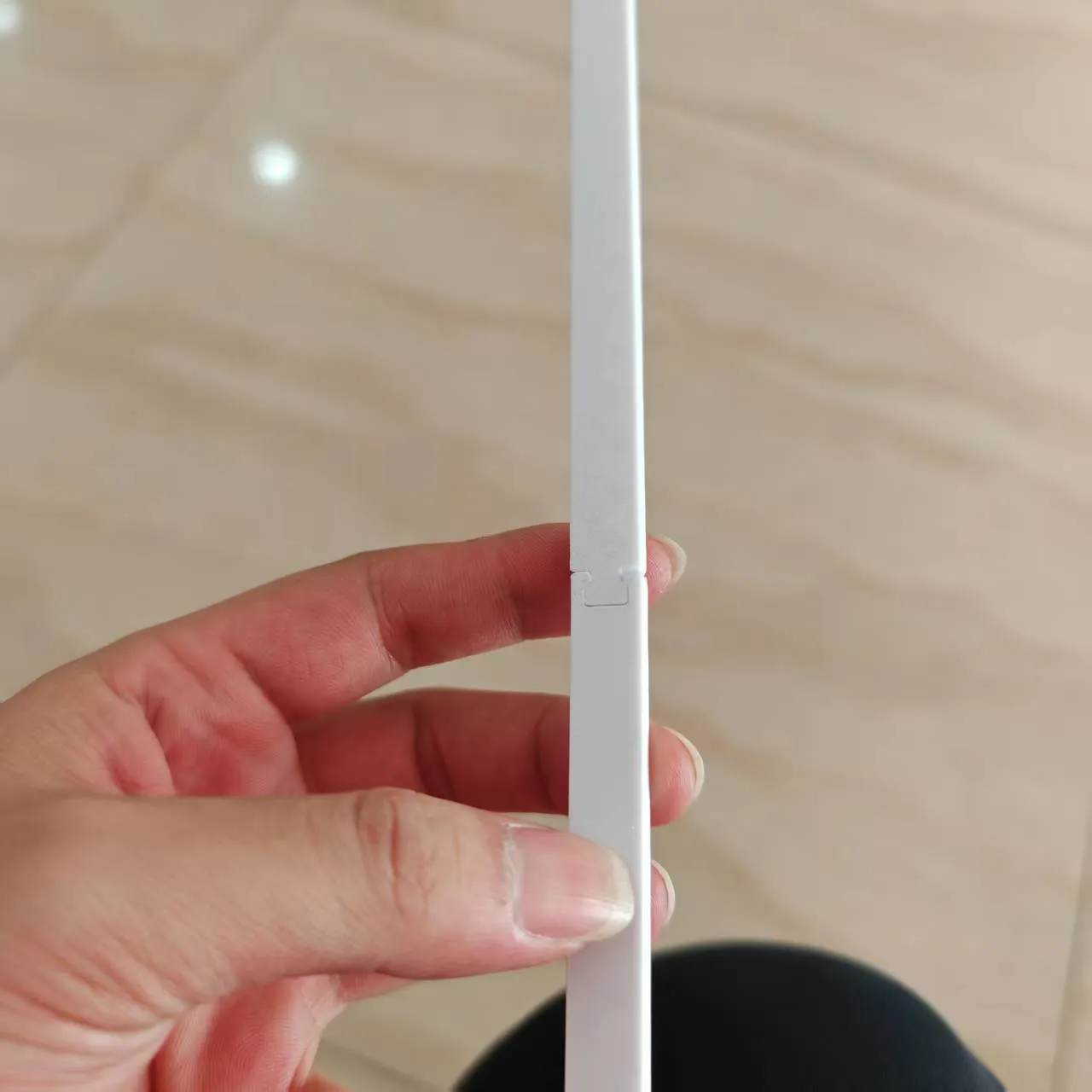

Insert the pull rod into the mortise and tenon joint to complete the connection. Use clear tape to secure the joint and prevent detachment.

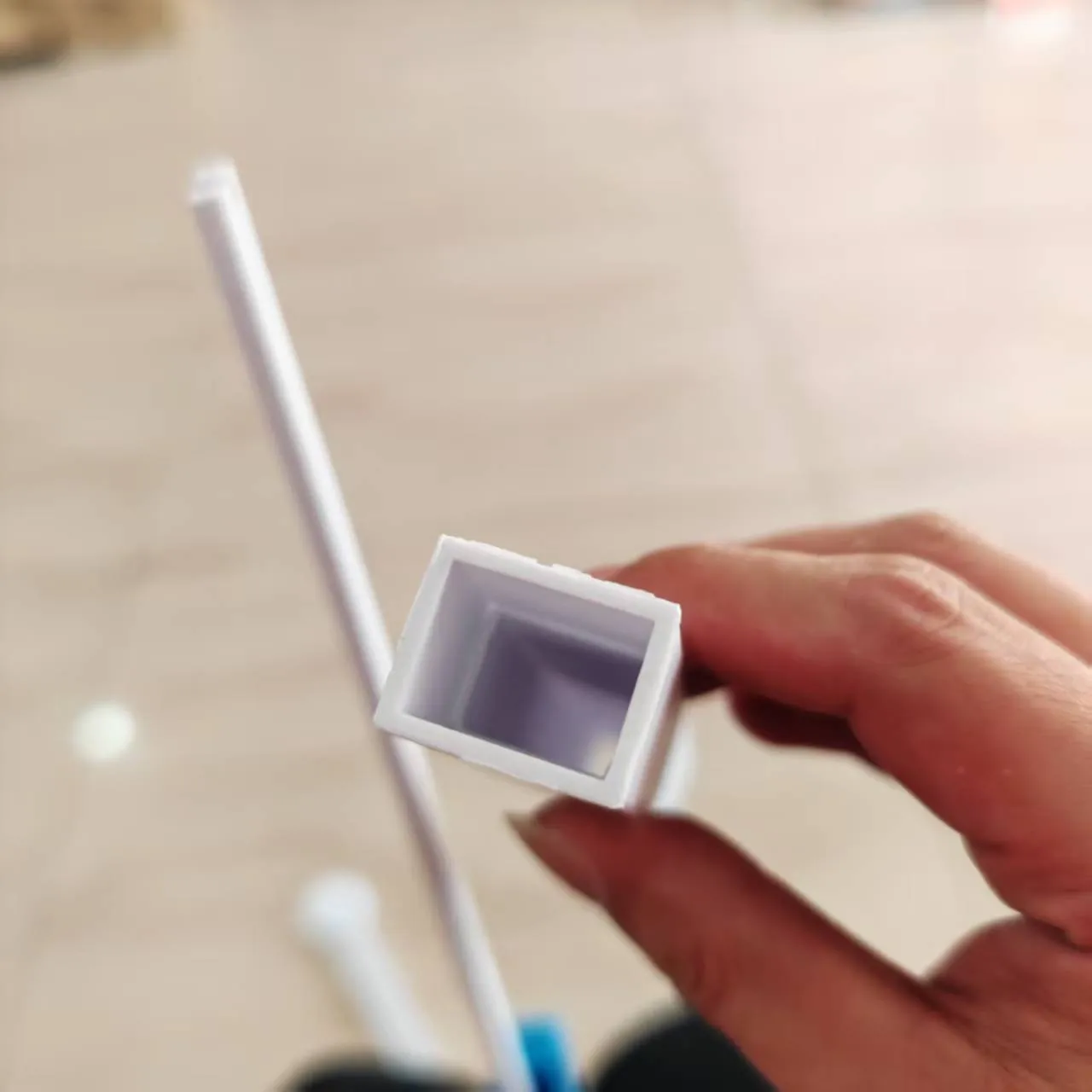

Insert the connecting tube with the protrusion facing outward into the handle.

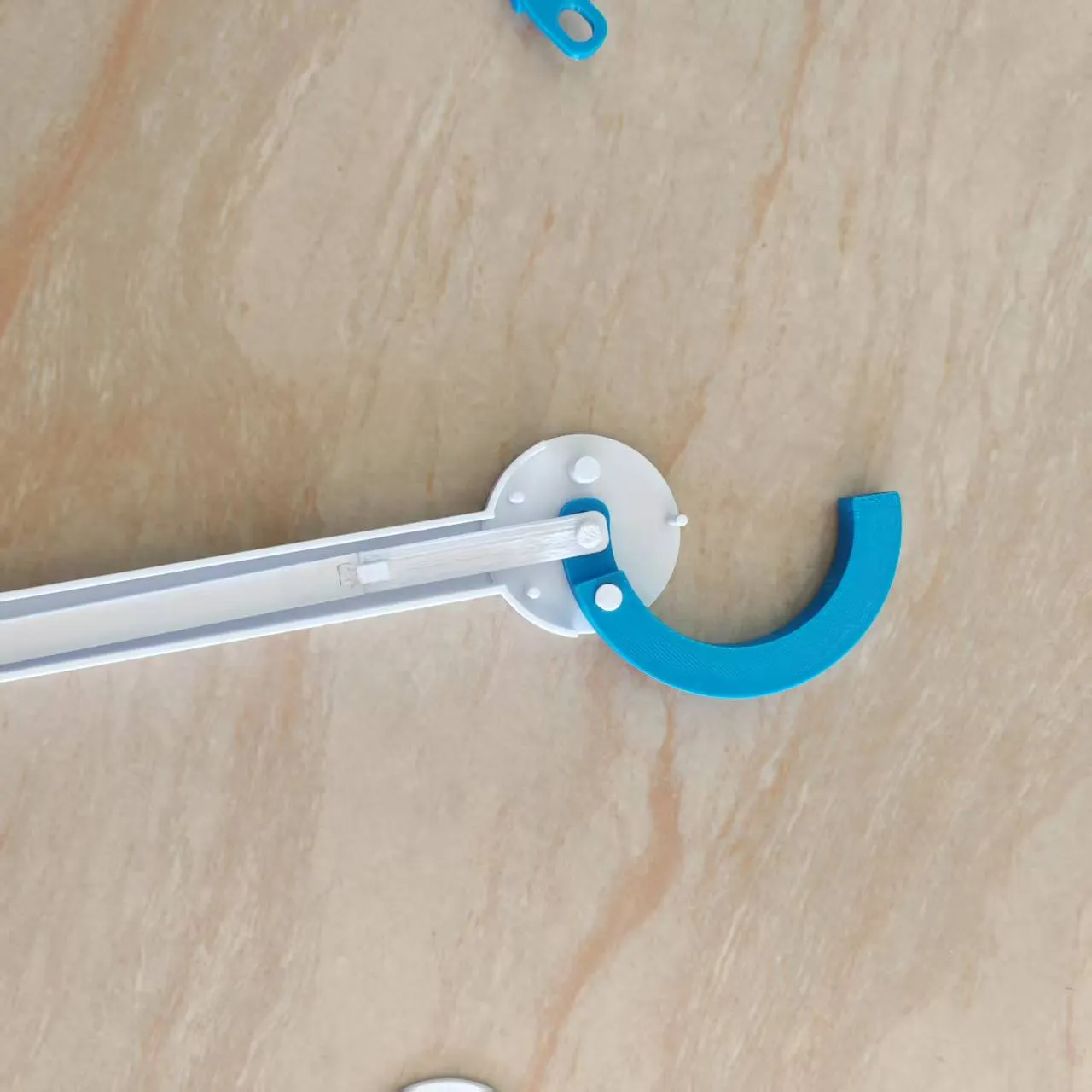

Connect the pull rod as shown in the previous step.

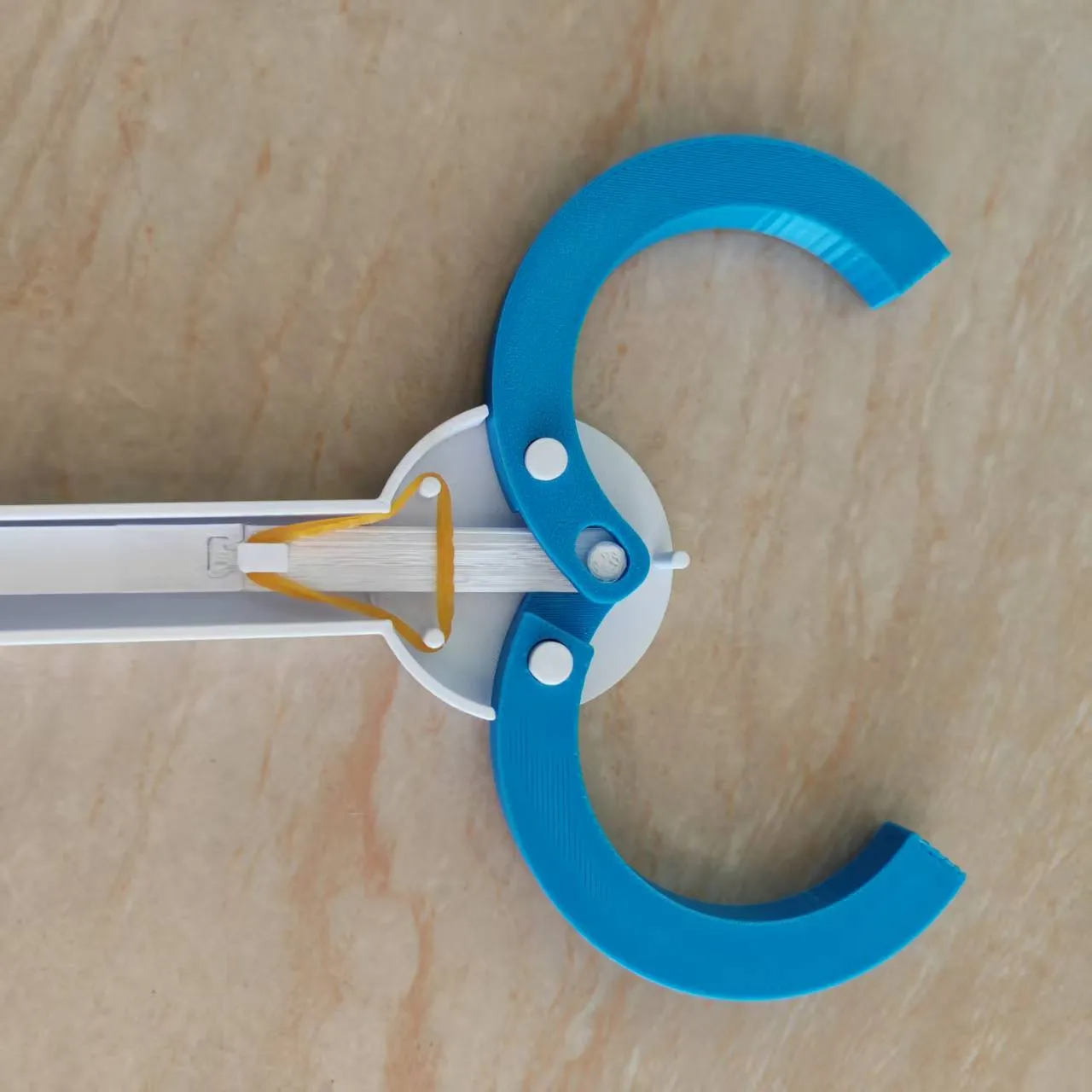

Attach the rubber band as illustrated.

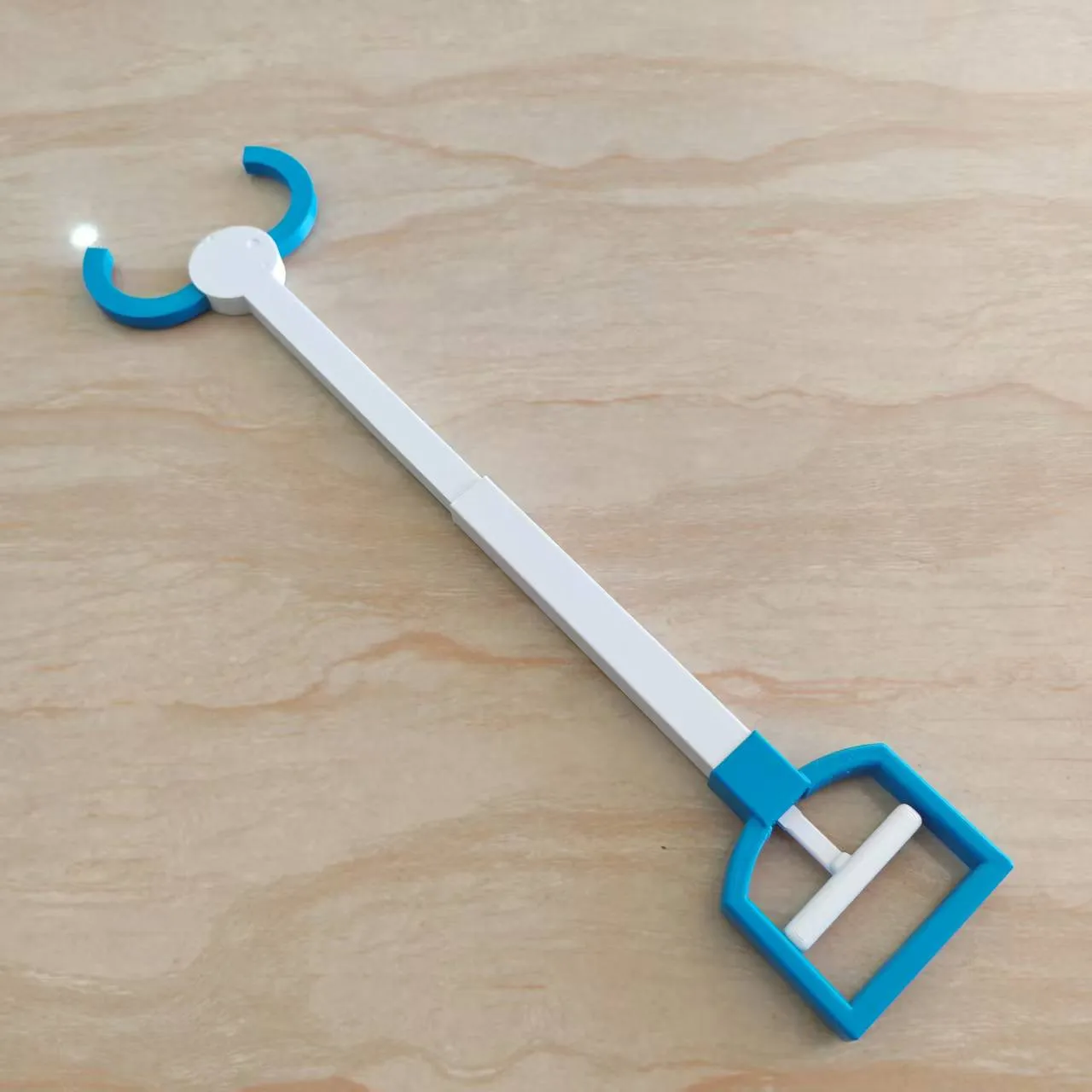

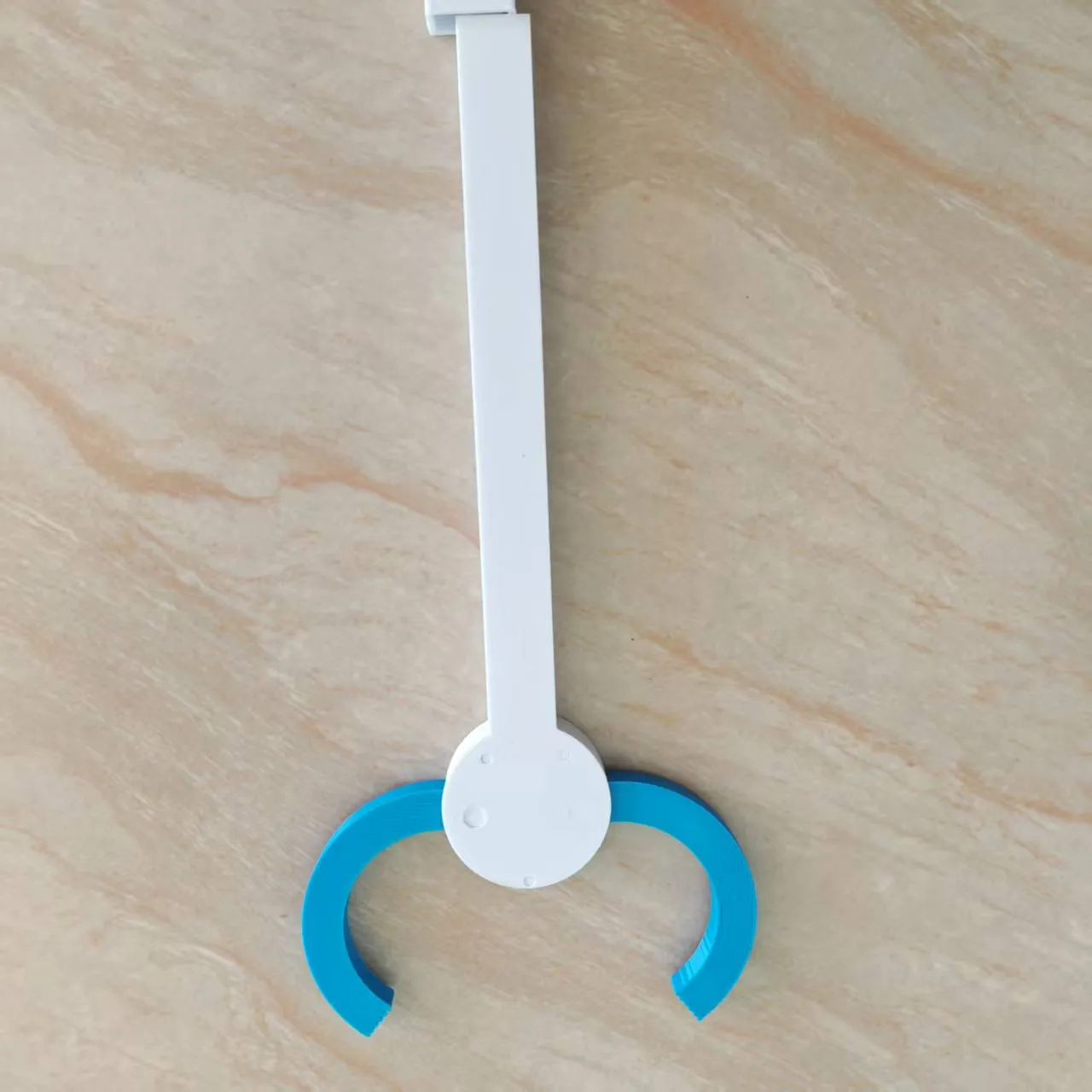

Finally, attach the top cover, pressing it firmly into the tube to complete the assembly.
For an enhanced aesthetic, apply the optional decorative stickers.
