Description

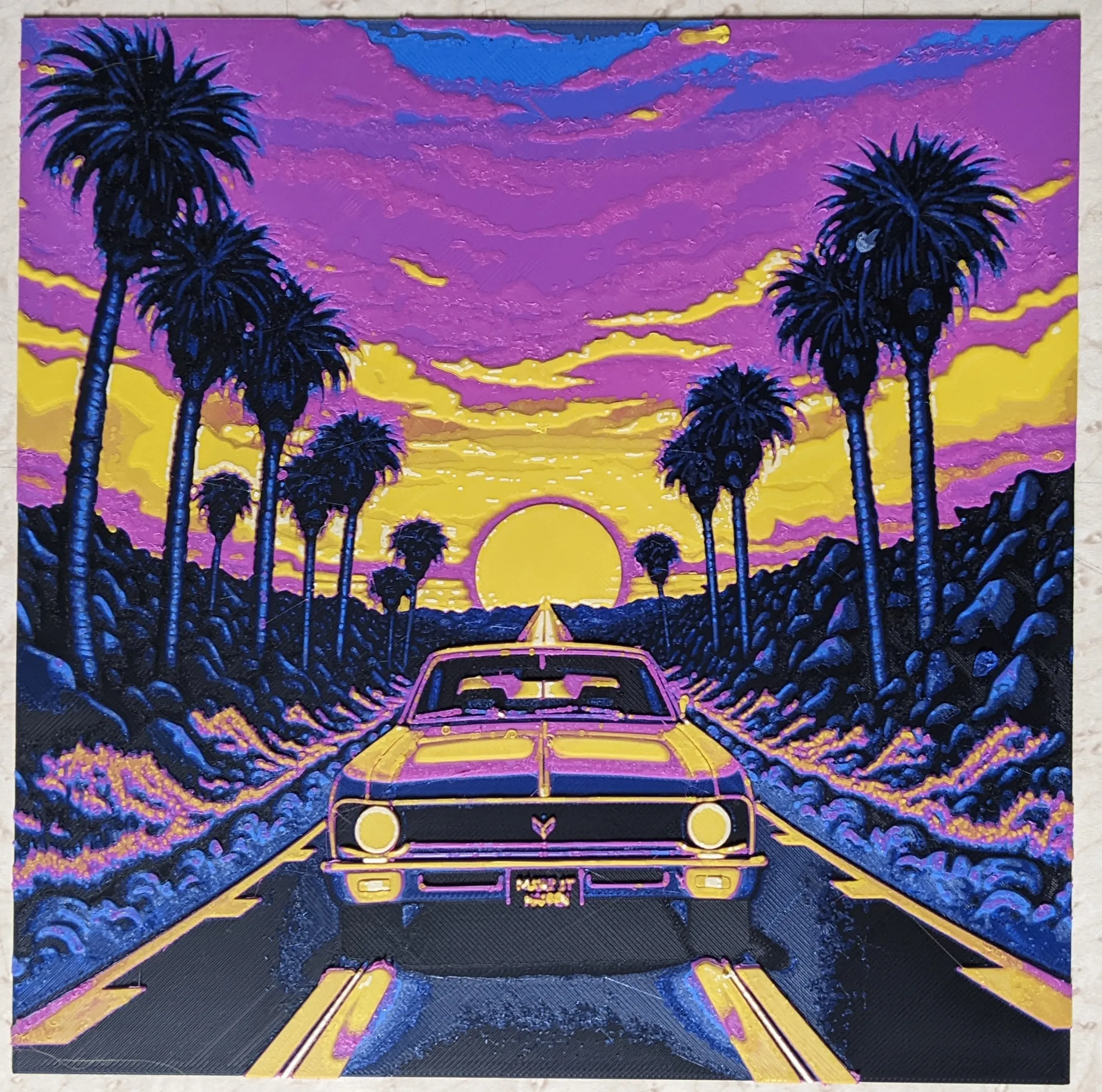

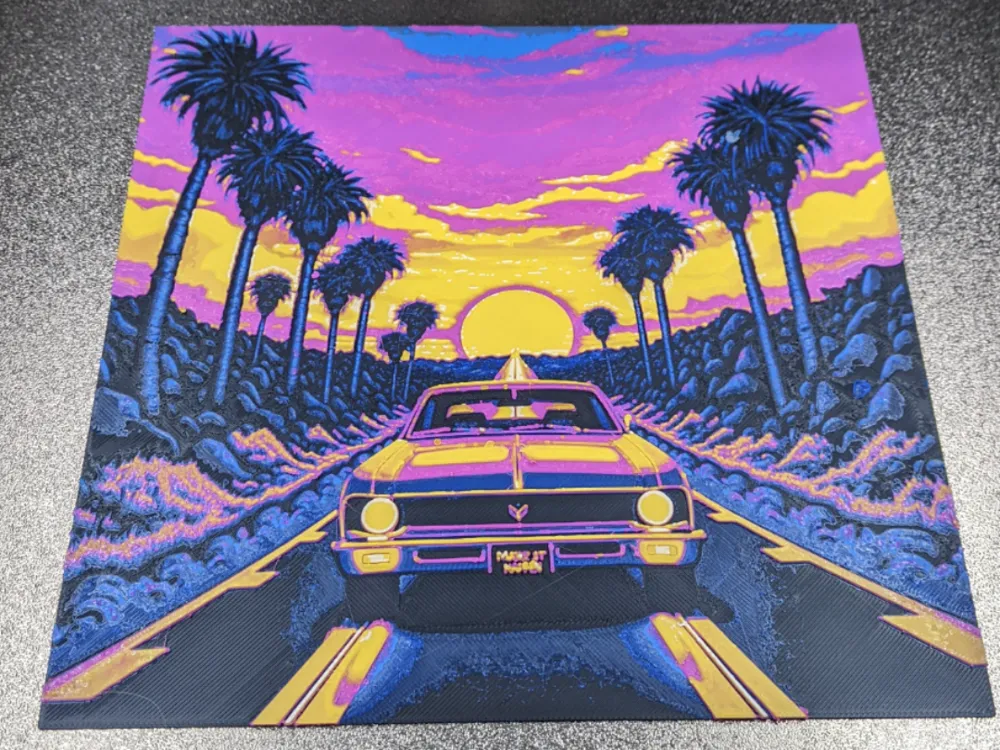

This is definately a flashback to all of the blacklight posters I had as a teenager (long time ago……)

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 200x200mm in size
You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 2.24mm and the Actual Thickness is 2mm

Filaments Used:
    #000000 PLA BambuLab Basic Black Transmission Distance: 0.6
    #00358e PLA BambuLab Basic Blue Transmission Distance: 4
    #4c5f71 PLA BambuLab Basic Blue Gray Transmission Distance: 3
    #0078bf PLA BambuLab Matte Marine Blue Transmission Distance: 0.5
    #da0083 PLA BambuLab Basic Magenta Transmission Distance: 3
    #fec600 PLA BambuLab Basic Sunflower Yellow Transmission Distance: 4.4
    #ffffff PLA BambuLab Basic Jade White Transmission Distance: 5
This print uses 7 unique filaments

Swap Instructions:
    Start with Black
    At layer #6 (0.56mm) swap to Blue
    At layer #8 (0.72mm) swap to Blue Gray
    At layer #10 (0.88mm) swap to Marine Blue
    At layer #11 (0.96mm) swap to Magenta
    At layer #16 (1.36mm) swap to Sunflower Yellow
    At layer #21 (1.76mm) swap to Jade White for the rest.
