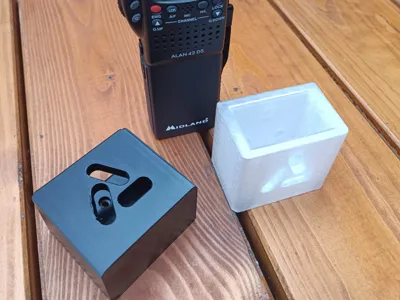

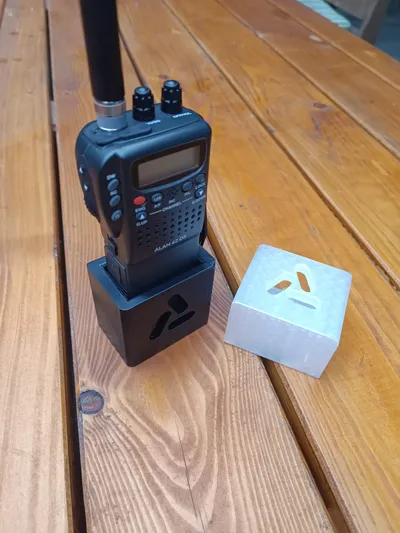

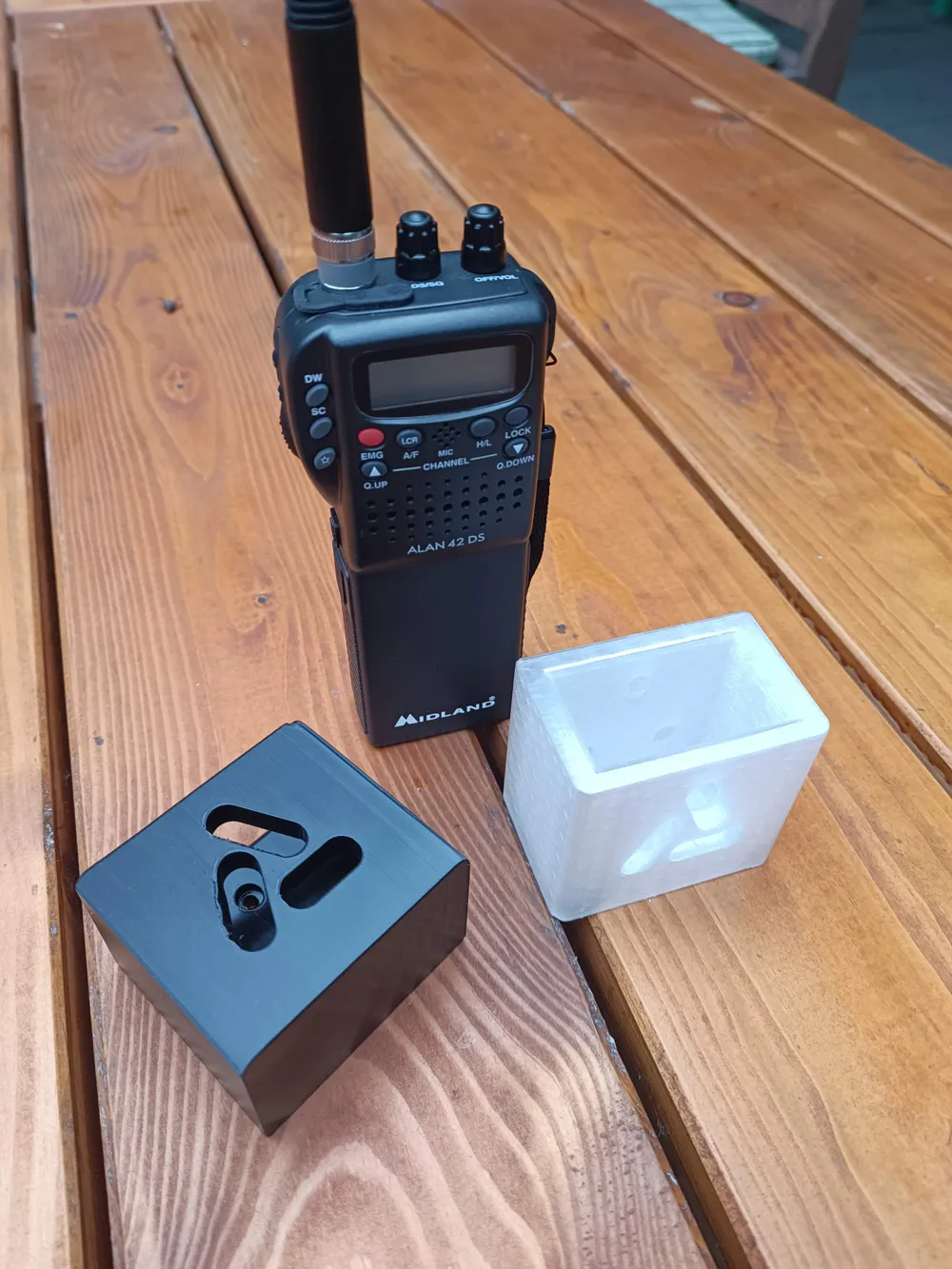

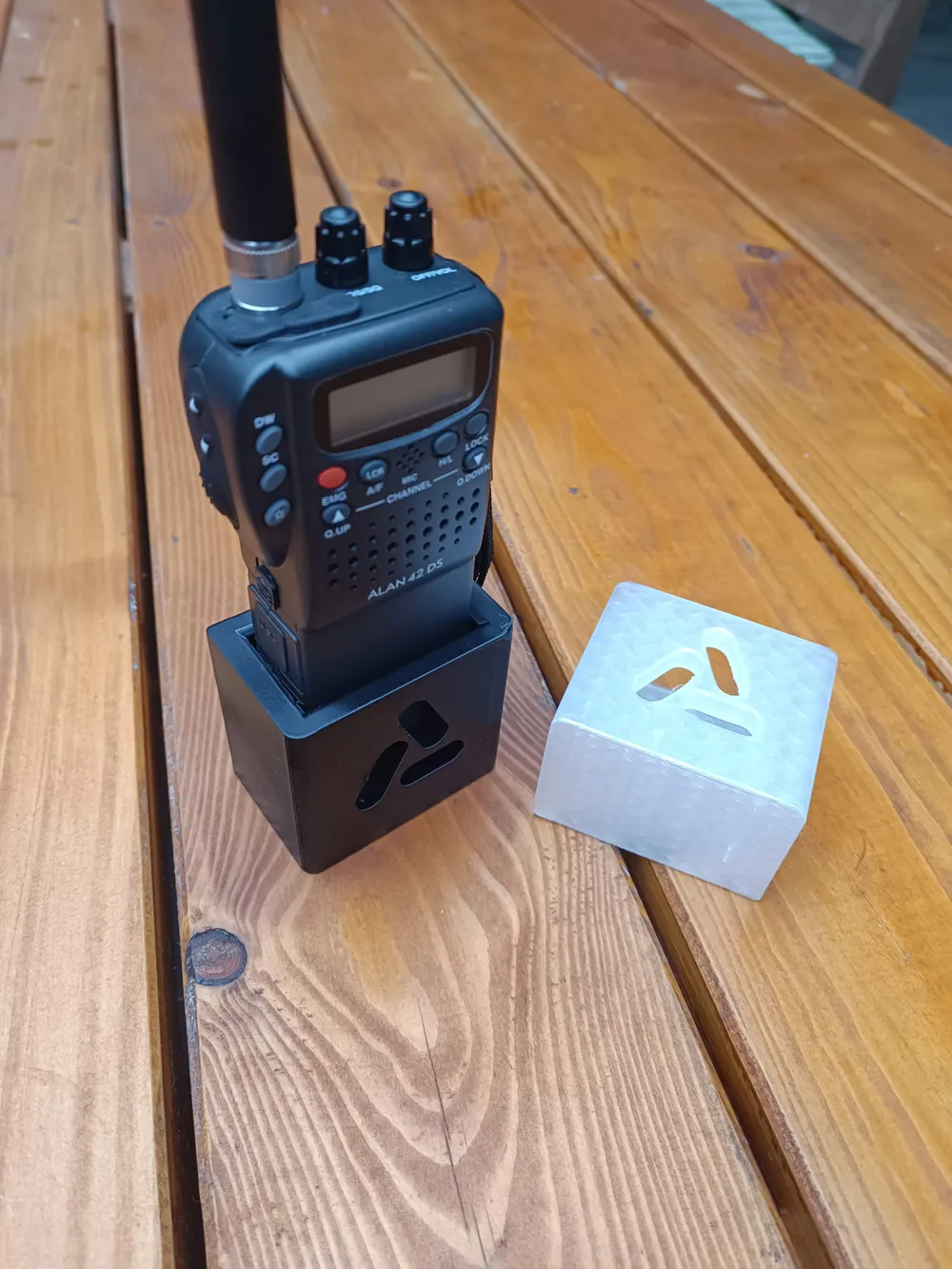

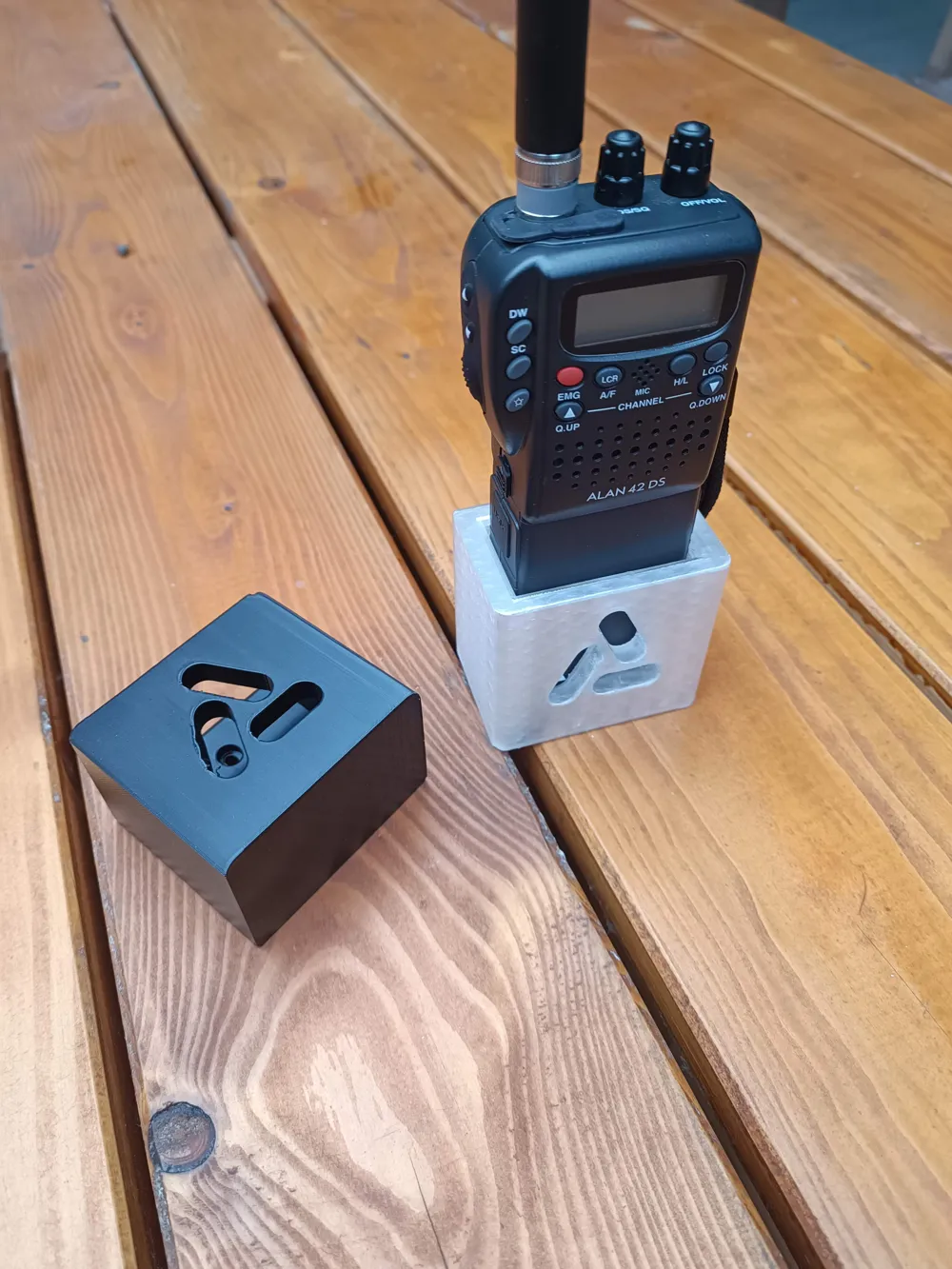

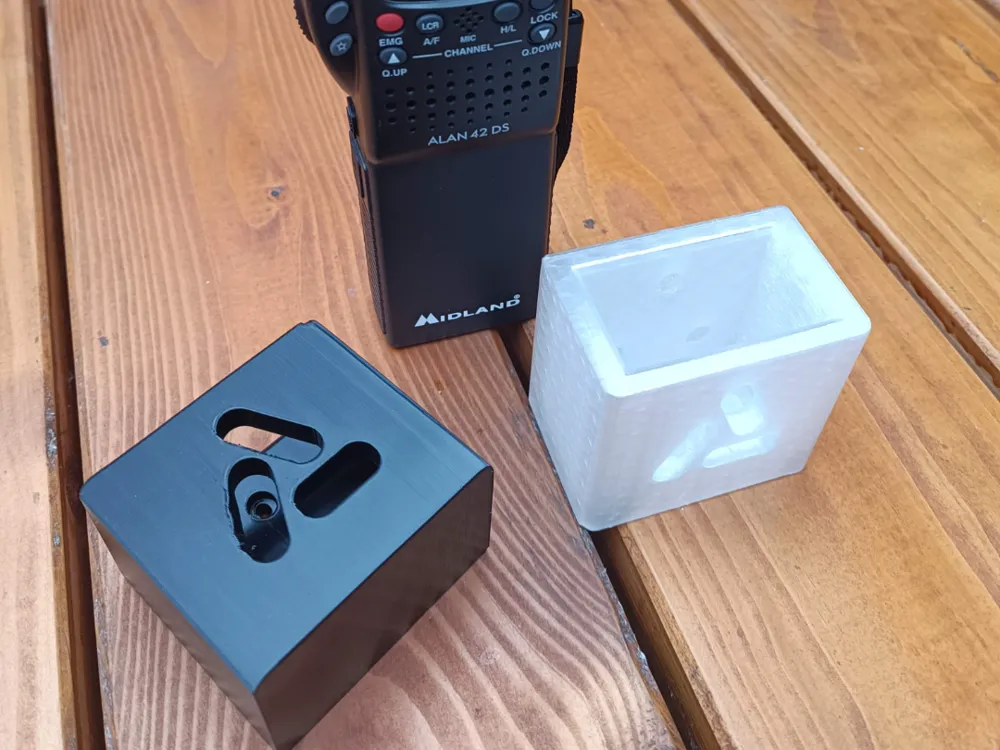

This robust holder was specifically designed for the radio Midland Alan 42 DS and offers secure and readily accessible storage – whether on a table, in the workshop, or securely screwed into a vehicle.

Technical Data:

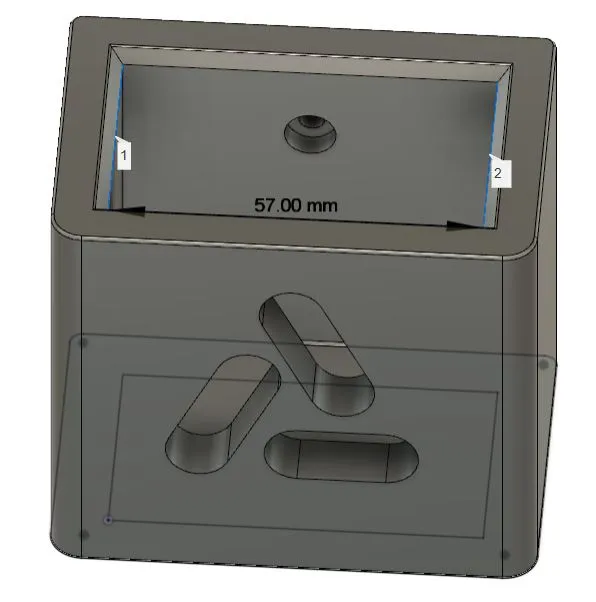

• Inner width: 57 mm

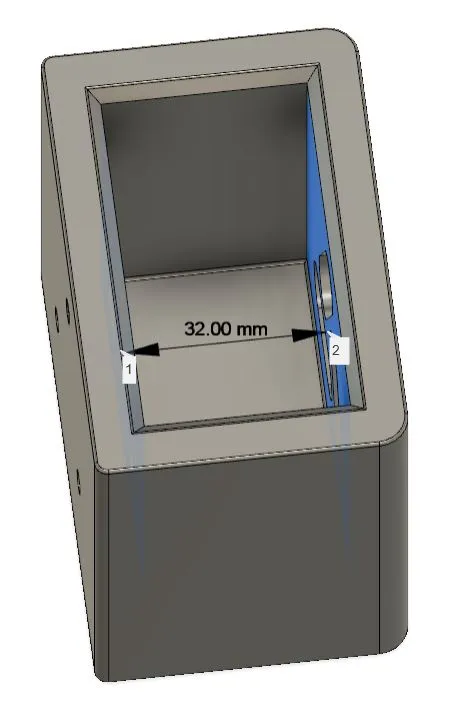

• Inner depth: 32 mm
• Insertion depth (height): 56.5 mm

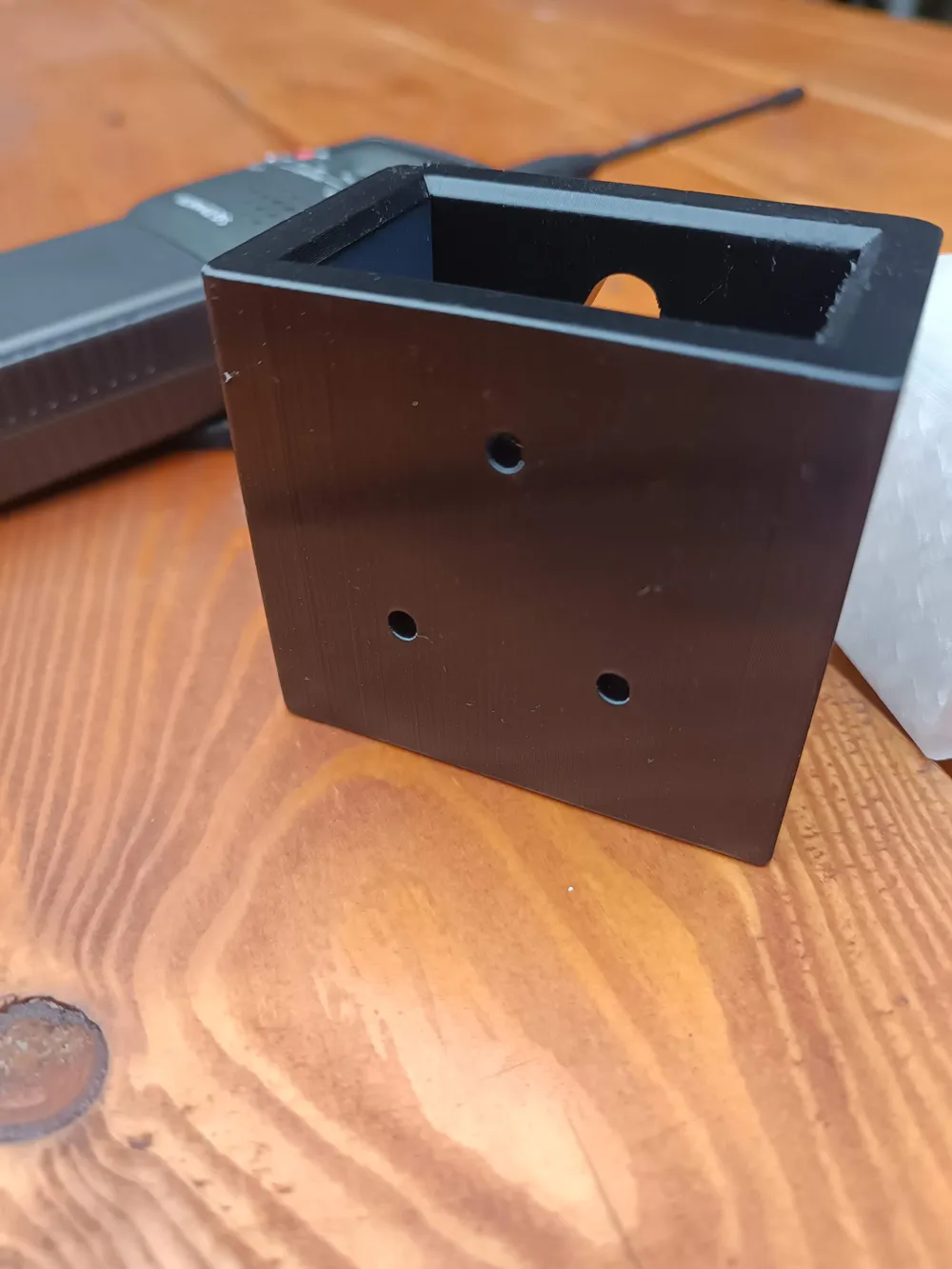

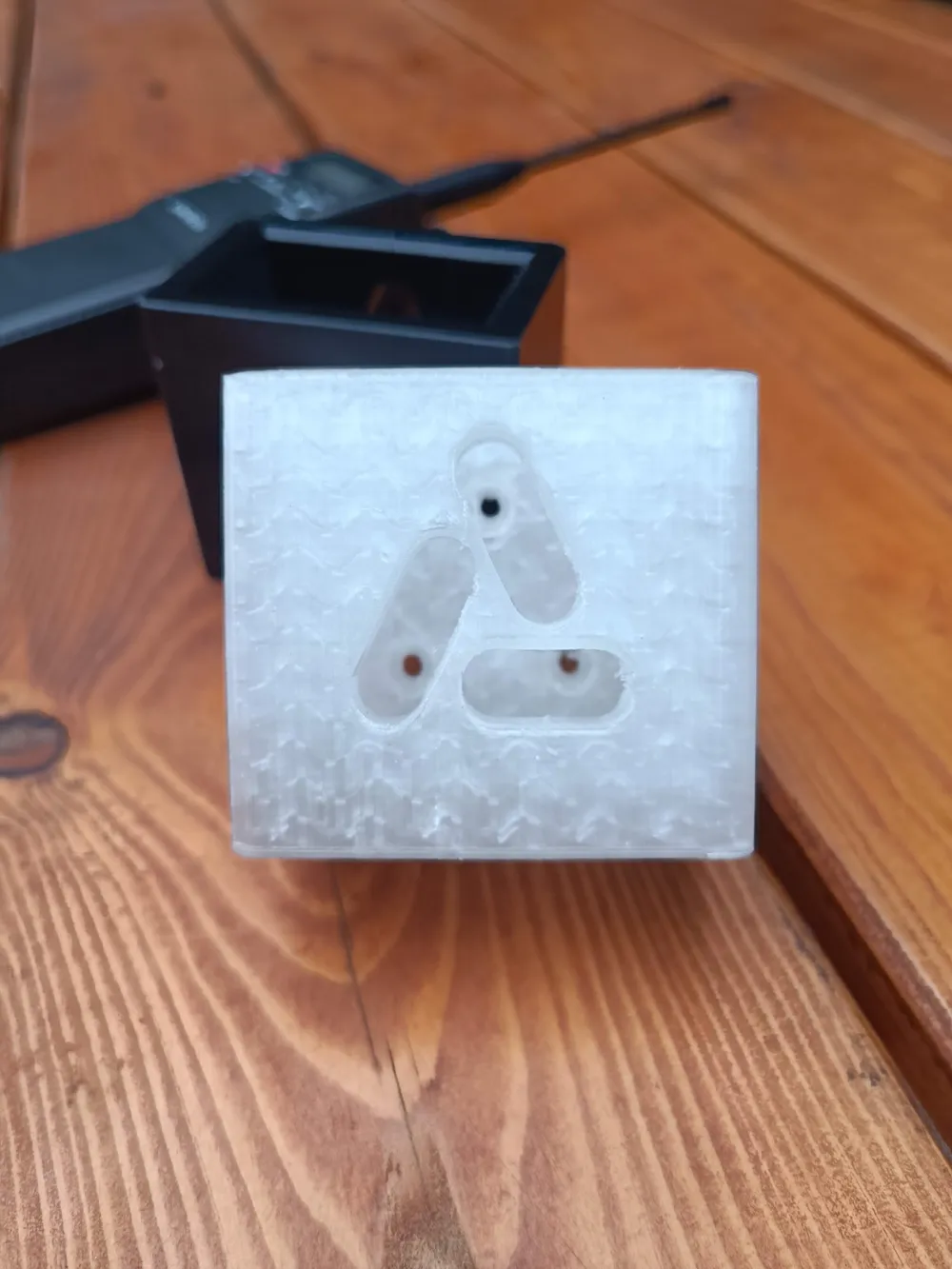

• 3 rear screw holes for secure wall or dashboard mounting
• Design openings serve as screw mounting, ventilation or acoustic opening

Suitable materials:

• PLA: Easy to print, ideal for indoor use

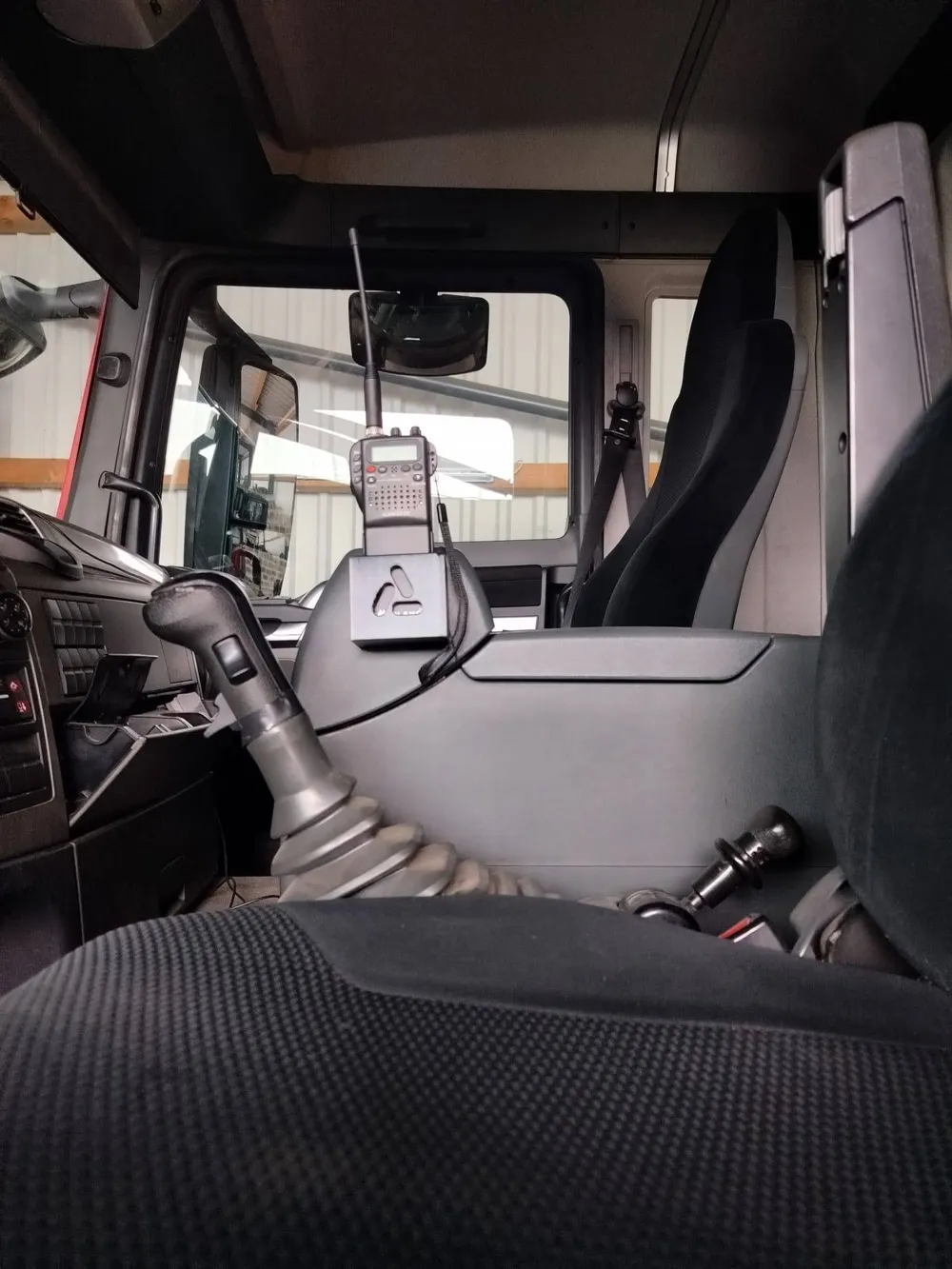

• PETG: More robust, temperature resistant (up to ~80 °C), good for vehicles
• TPU (flexible):
  • For applications where the radio should sit gently cushioned, non-slip or shock-protected in the holder
  • Ideal for vibration-intensive environments (e.g. off-road, motorcycle, workshop)

Compatible radios (example sizes)

The holder is ideal for devices with the following dimensions:

Max. width: 57 mm
Max. depth: 32 mm
Insertion depth (height): 56.5 mm

Tested or expected to fit:

• Midland Alan 42 DS
• Midland G9 Pro, G11, G13
• Team TS series (TS-11/12/13)
• Albrecht AE 2990 AFS
• CRT FP-00
• Yaesu FT-4XE, FT-65
• Baofeng UV-5R / UV-82 (with some play or adapter)
• Motorola T82 Extreme (depending on battery pack shape)
