Roller shutter stop with M5 nut + protective disc

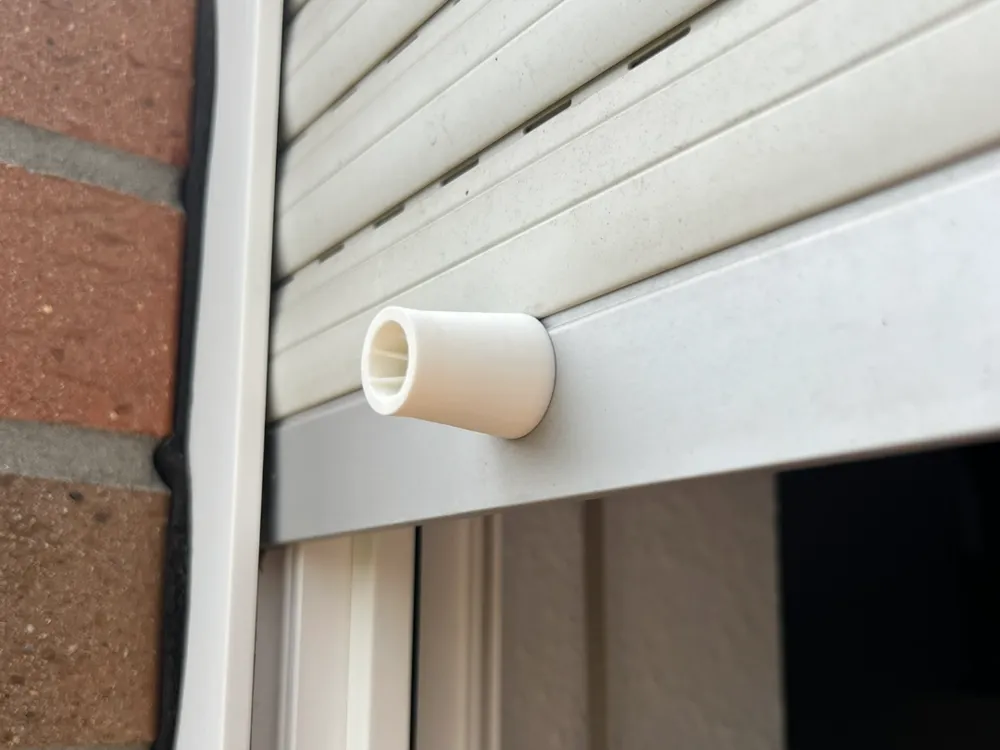

🛠️ M5 roller shutter stop with protective disc – 28 mm height

🛑 Printing note:

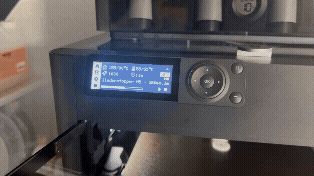

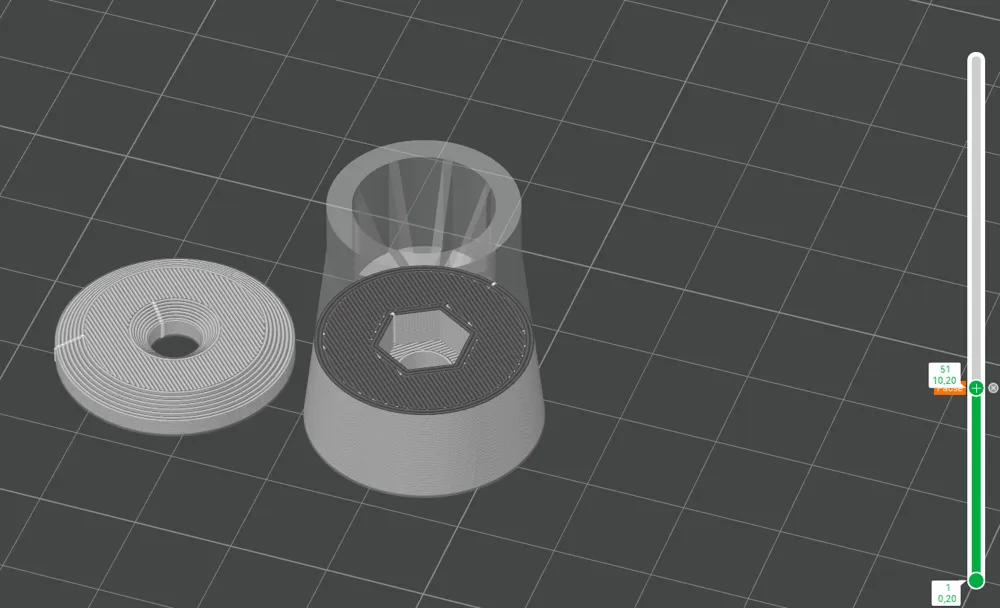

A pause is automatically inserted at layer 51 to insert the M5 nut.

• Single print: Pause after approx. 15 minutes
• Duo print: Pause after approx. 24 minutes

Please do not wait too long, as this will change the printing temperature – this can lead to poor adhesion or a visible separation line in the print image.
It is best to insert the nut quickly and resume printing immediately.

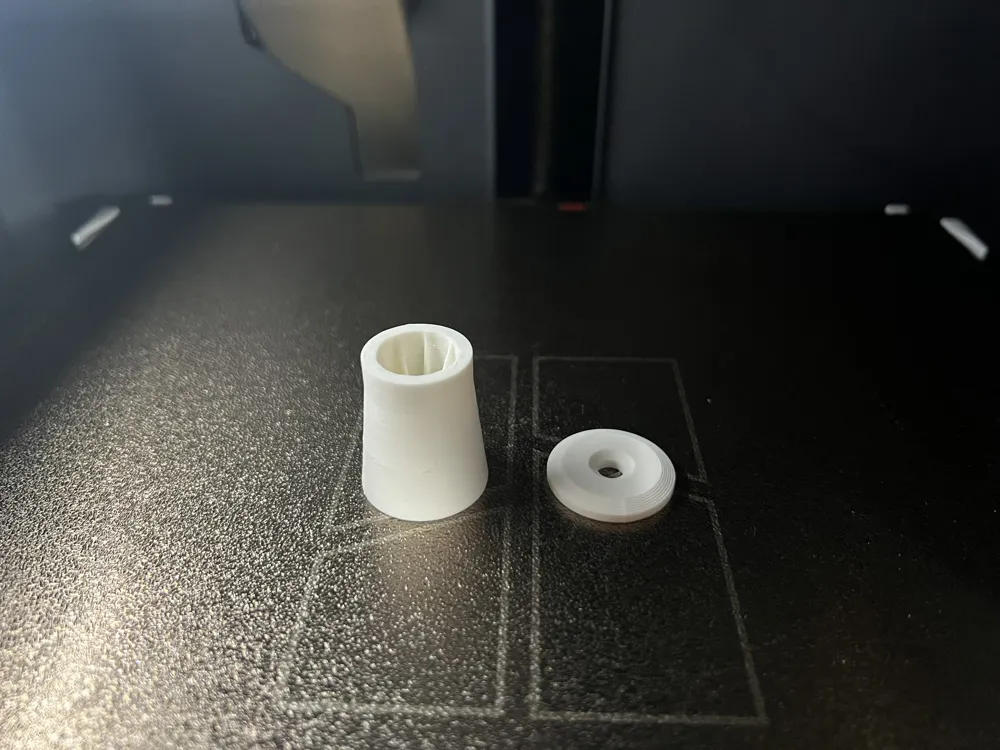

📐 Technical data:

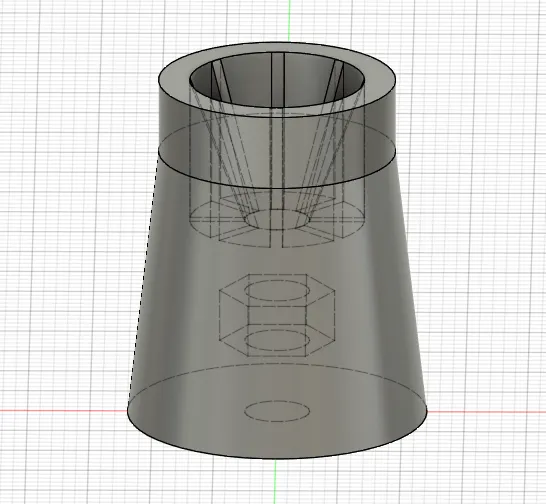

🔩 Stop (main part):

• Total height: 28 mm
• Diameter at the bottom (roller shutter side): 24 mm
• Diameter at the top: 19 mm
• Hole diameter: 5.2 mm
• Nut recess: Ø 9.2 mm (radius 4.6 mm) – suitable for M5 hexagon nuts

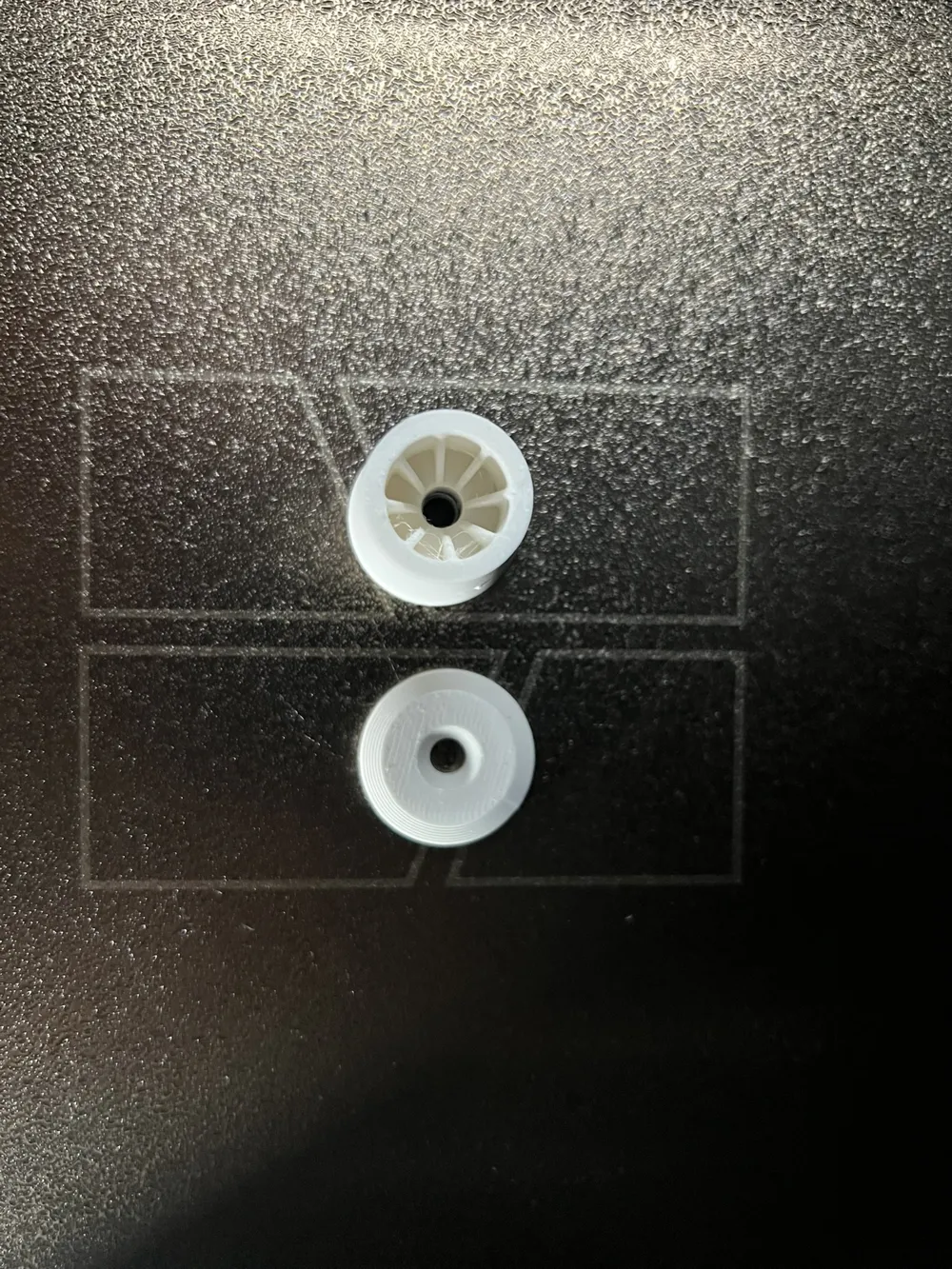

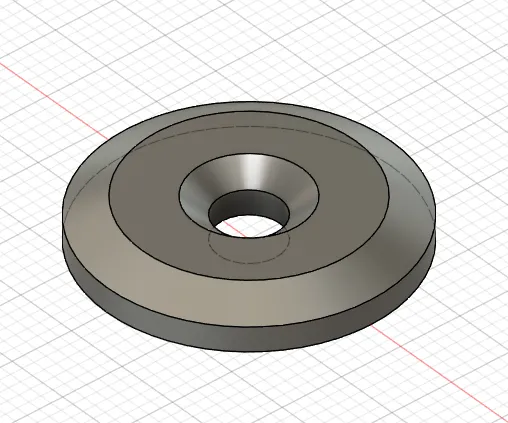

🧷 Disc (print protection plate):

• Diameter: 24 mm
• Height: 3.5 mm
• Hole diameter: 5.2 mm

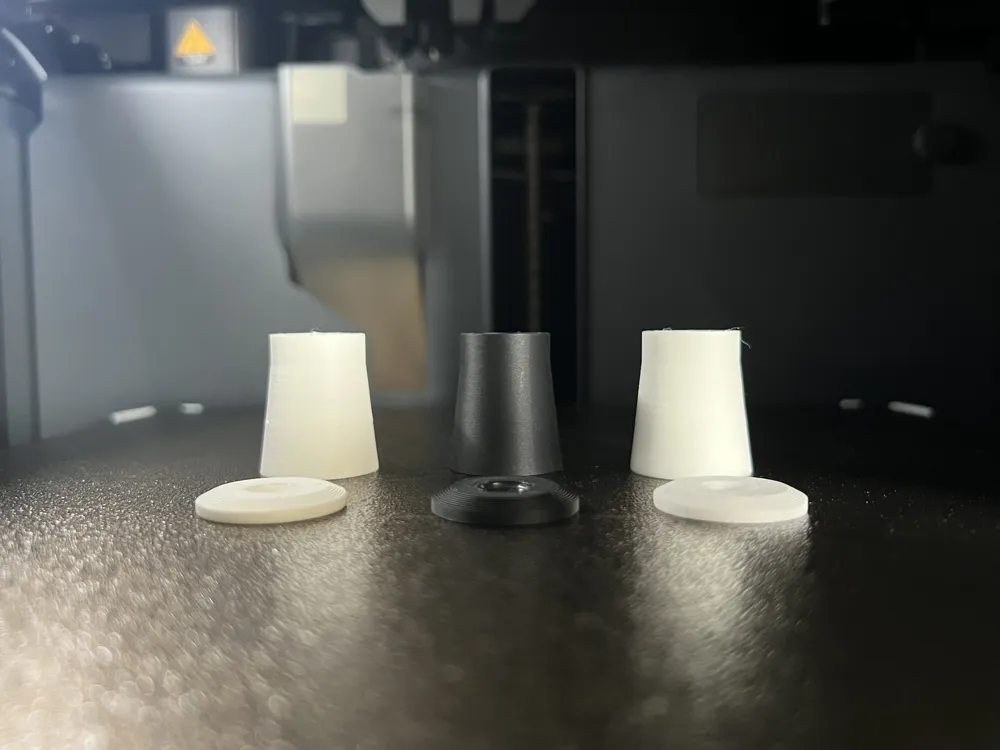

🖨️ Print parameters (Bambu Lab, 100% infill):

• Single part: 11.68 g, 26:32 min
• Two at once: 23.26 g, 44:53 min

💡 Note:

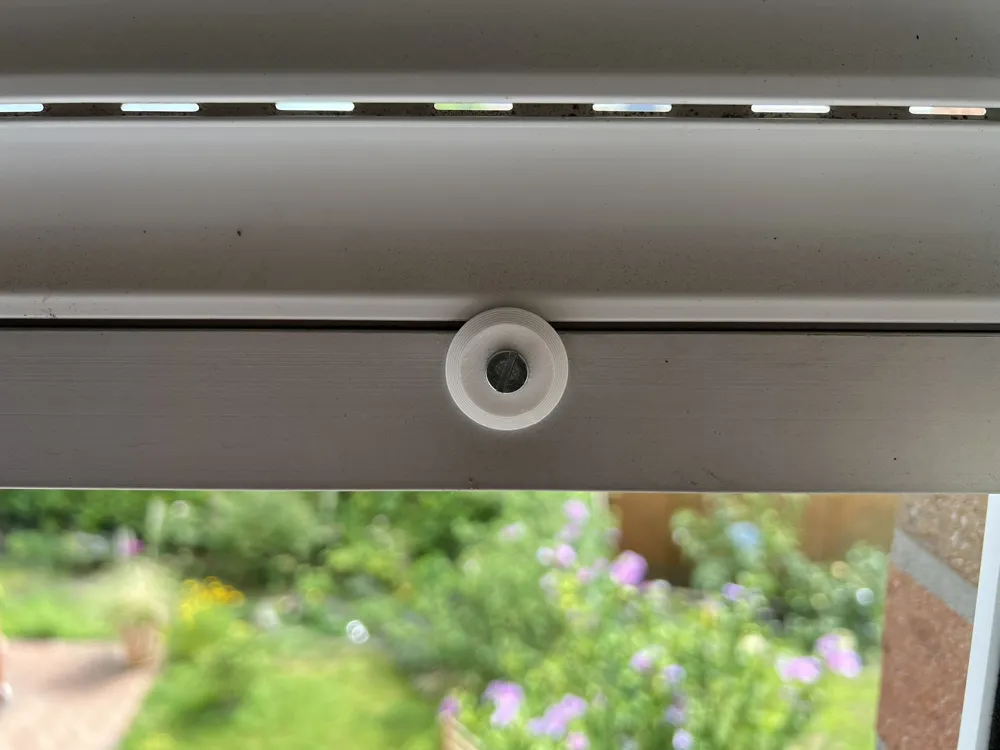

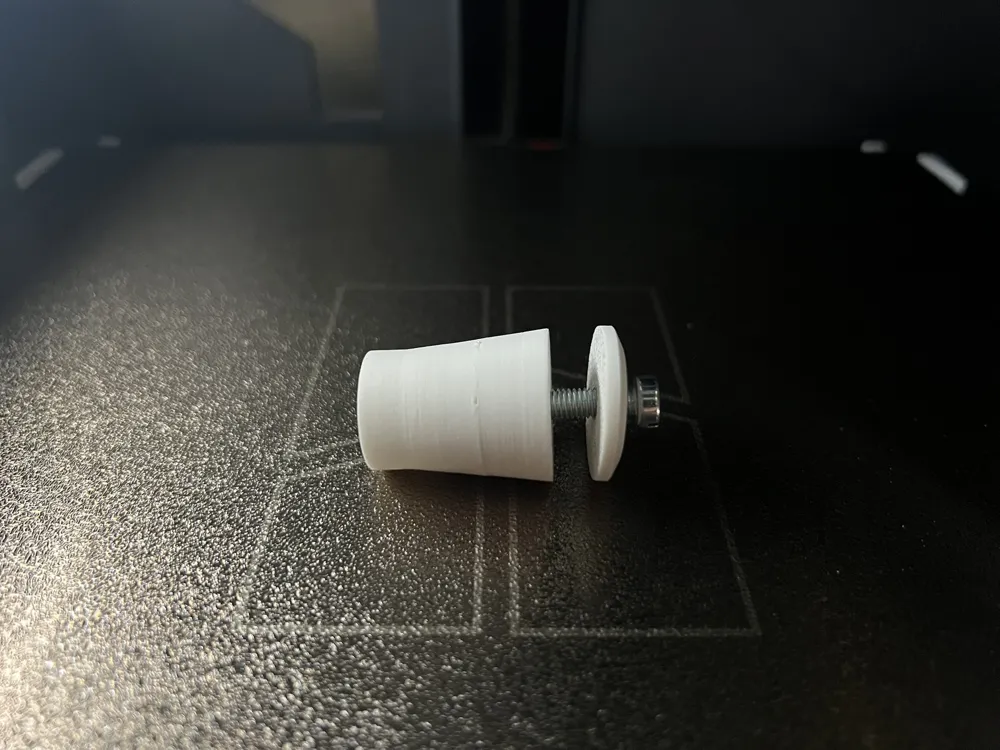

The disc serves as a pressure distributor between the screw head and the roller shutter surface and prevents indentations or damage.
