[5*5 MacroPad] FF Pad

I love gaming, so I made a macro pad with all the keys I need for gaming.
I hand-wired together some spare mechanical keyboard switches I had at home and an RP2024-Zero board to make it.

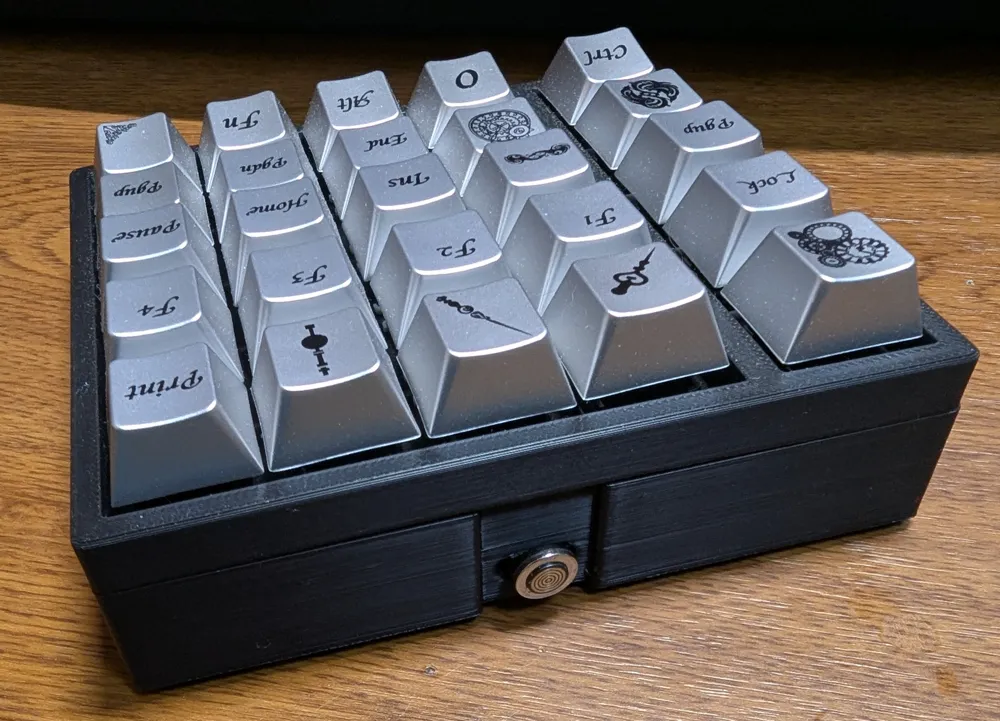

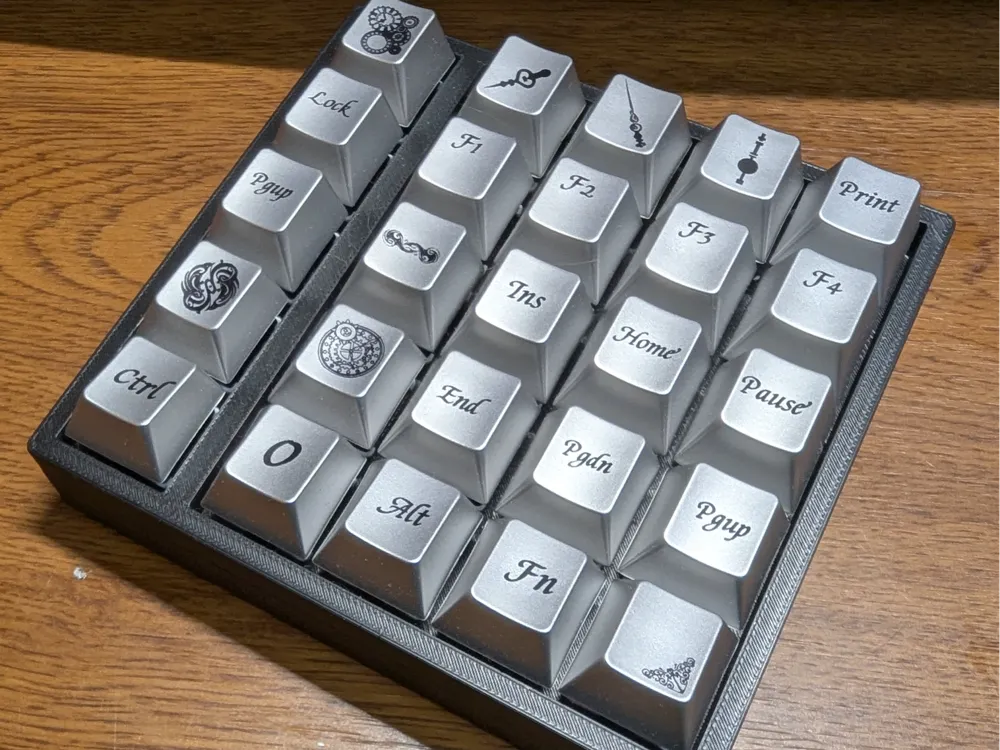

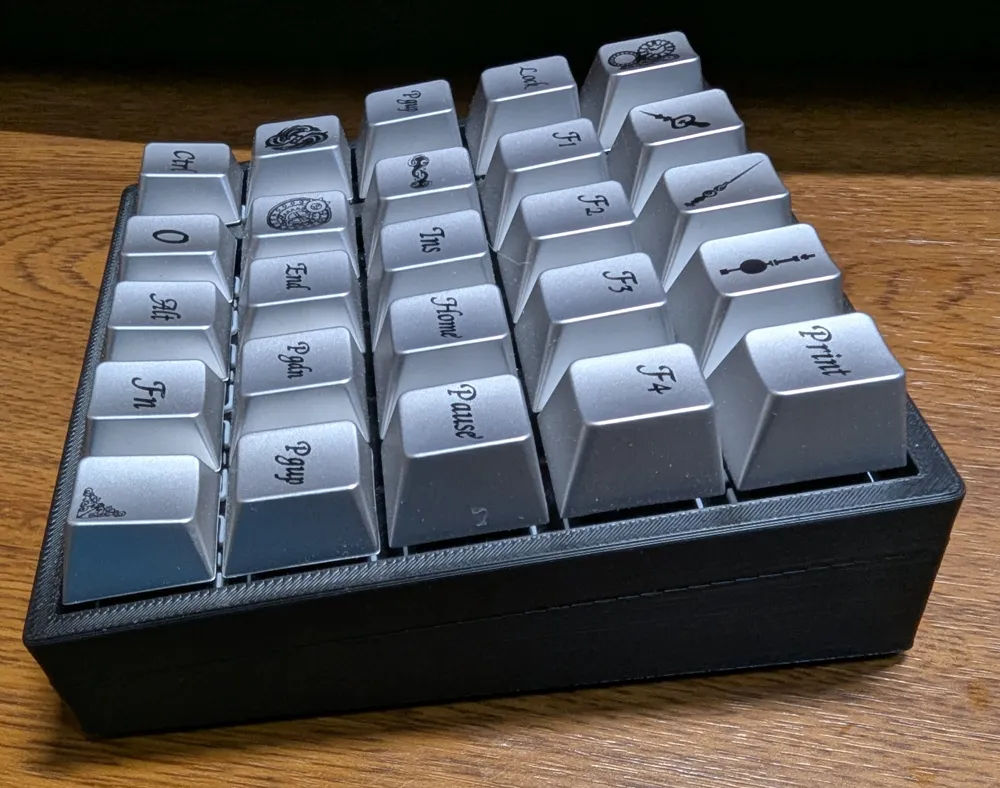

In the photo, the following keycaps are used:
 https://ja.aliexpress.com/item/1005008858878950.html

Bill of materials

• 25 x diodes 1N4148
• 25 x Mechanical switches
• 25 x keycaps of choice
• 1 x RP2024-Zero
• 24 AWG (0.2 mm2) wire
• 4 x M2x3x3.5 OD heat inserts
• 4 x M2x10 Allen head screws
• Enameled wire 0.6mm 50cm

Build guide and firmware
  https://github.com/Tratoken/ffpad
