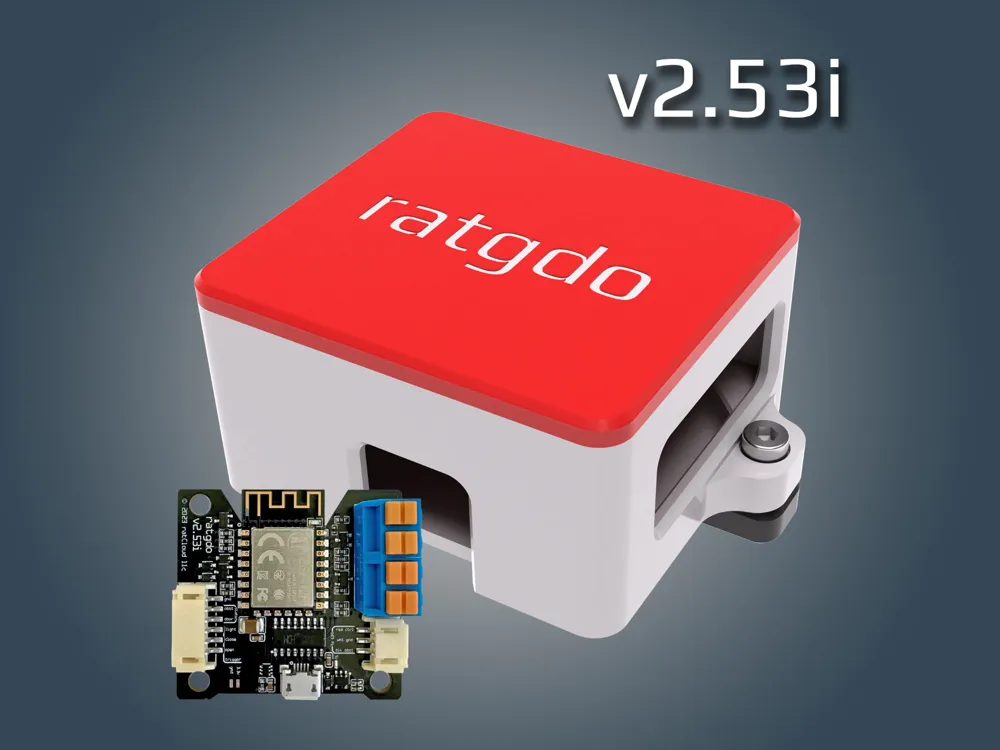

ratgdo v2.53i Case/Enclosure

Since many of the new Chamberlin/LiftMaster garage door openers do not have removable light covers, including mine, I decided to make an enclosure to prevent any shorts and keep the PCB properly protected.

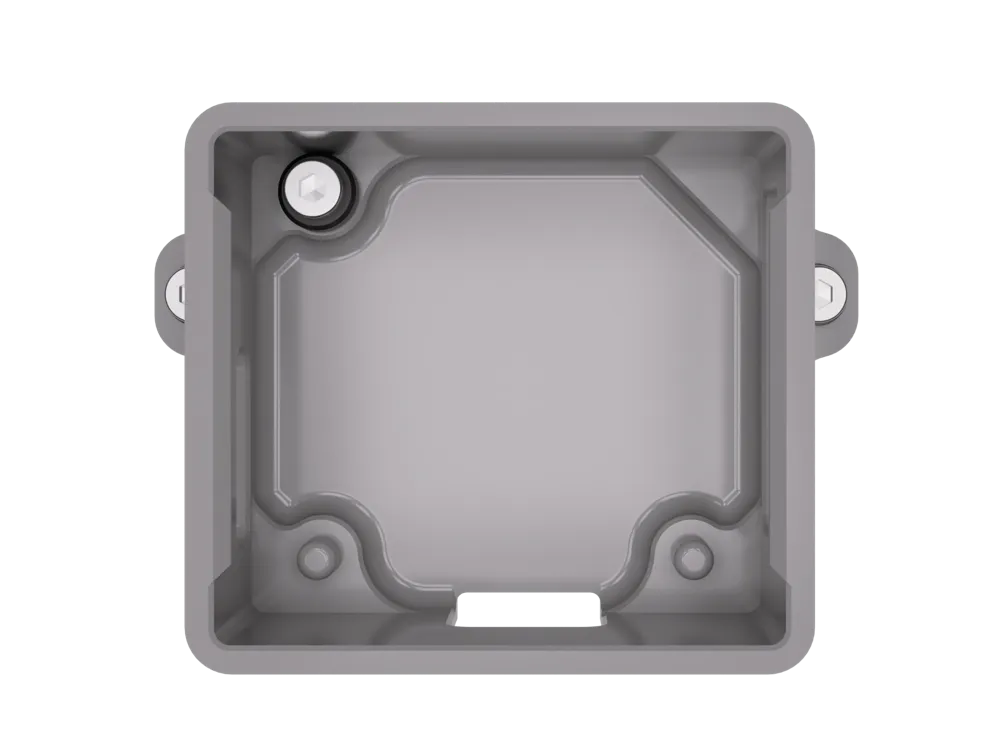

This is an enclosure for the ratgdo v2.x PCB. It features a removable snap fit lid which is also reversible.

There are 2 sets of STL options.

• Heat Insert (Recommended)
• M3 Self Tapping (Screws go directly into the plastic)

Mounting Methods

• Magnets!
• Screw mount with back strap to be able to mount using preexisting punched/slotted angle
• Zip tie

Bill of Materials:

• 2x or 4x - Heat Set Inserts (M3x5x4) (USA Option) (Amazon)
  • Only needed for the heat insert version
  • Heat insert tool (Optional)
  • Kit option (Includes tool and heat inserts)
• 4x - 6mm x 3mm magnets
  • Optional
• 2x - M3 x 8mm SHCS Screws
• 2x - M3 x 14mm SHCS Screws
  • Only used for back strap mounting to preexisting punched/slotted angle
• Zip ties - 2mm wide recommended.
