Saab 9-3 Auxilary/Parking heater electrical box
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
7.7 h
2 plates
Open in Bambu Studio
Boost
4
3
0
0
0
0
Released
Description

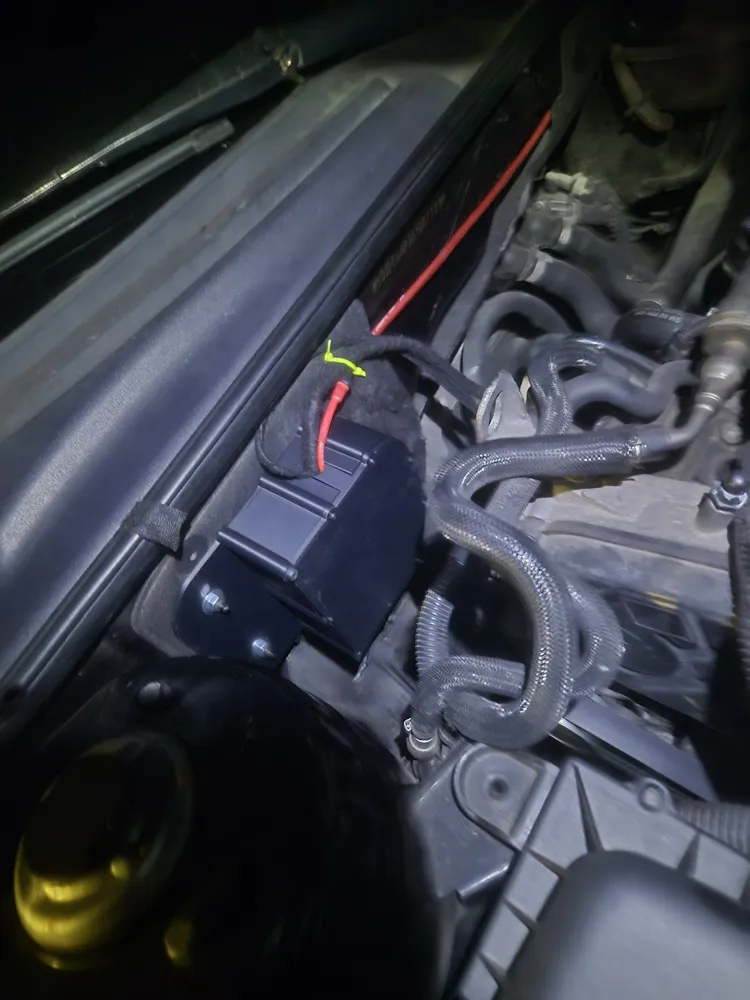

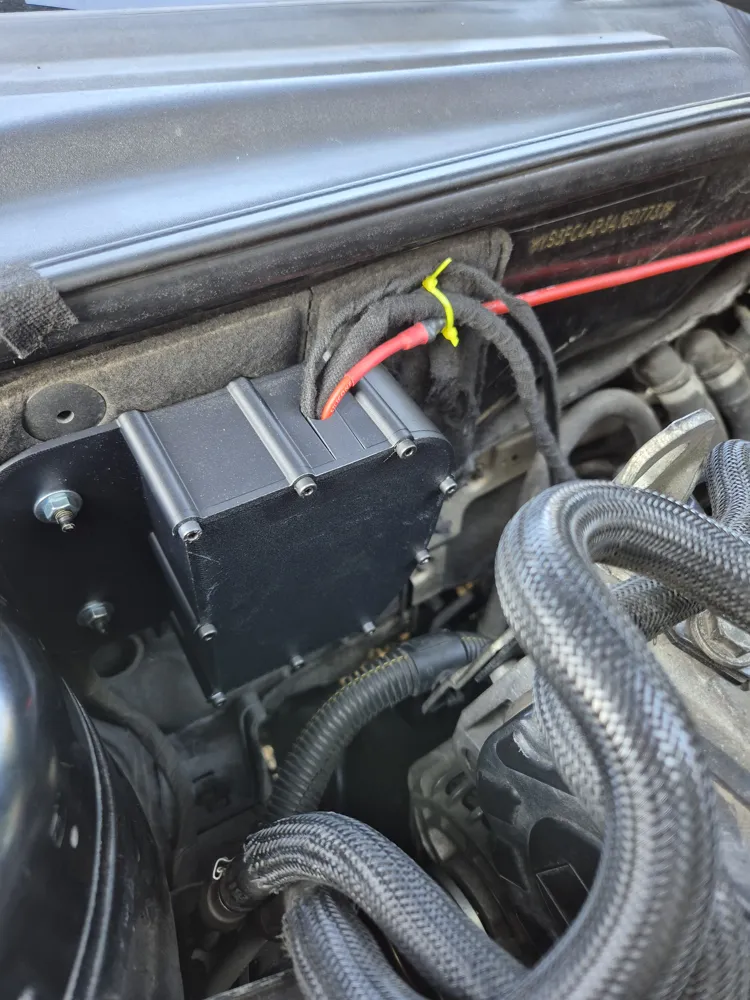

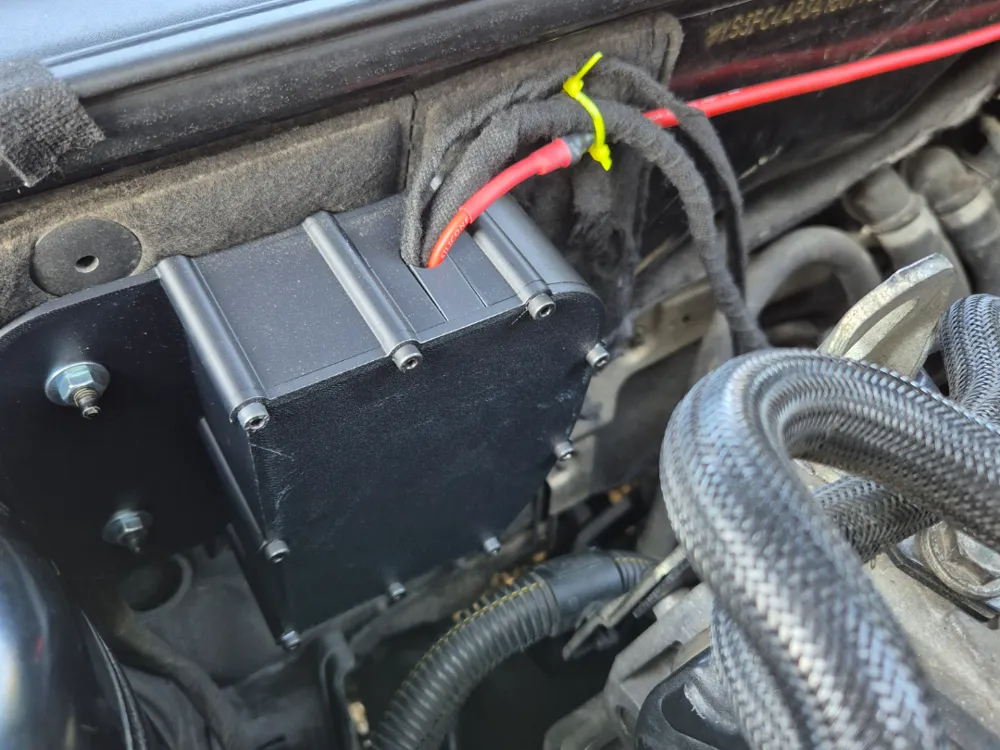

Electrical box you can put in the place of the factory Auxilary/Parking heater's place on diesel models (tid/ttid).
Most models won't come with the heater installed, needed a place where I can mount my extra engine sensor controller boards.
Has screw standoffs for a Wemos D1 mini, a place for a relay and plenty of extra space.
Has cable holes on the top and sides for power and sensor lines.
Attached my CAD file as well as a 3D scan of the standoffs from wich I made the measurements so you can adopt it easily for your needs.
Printed in ASA, scaled to +1.5% because of the shrinkage.
