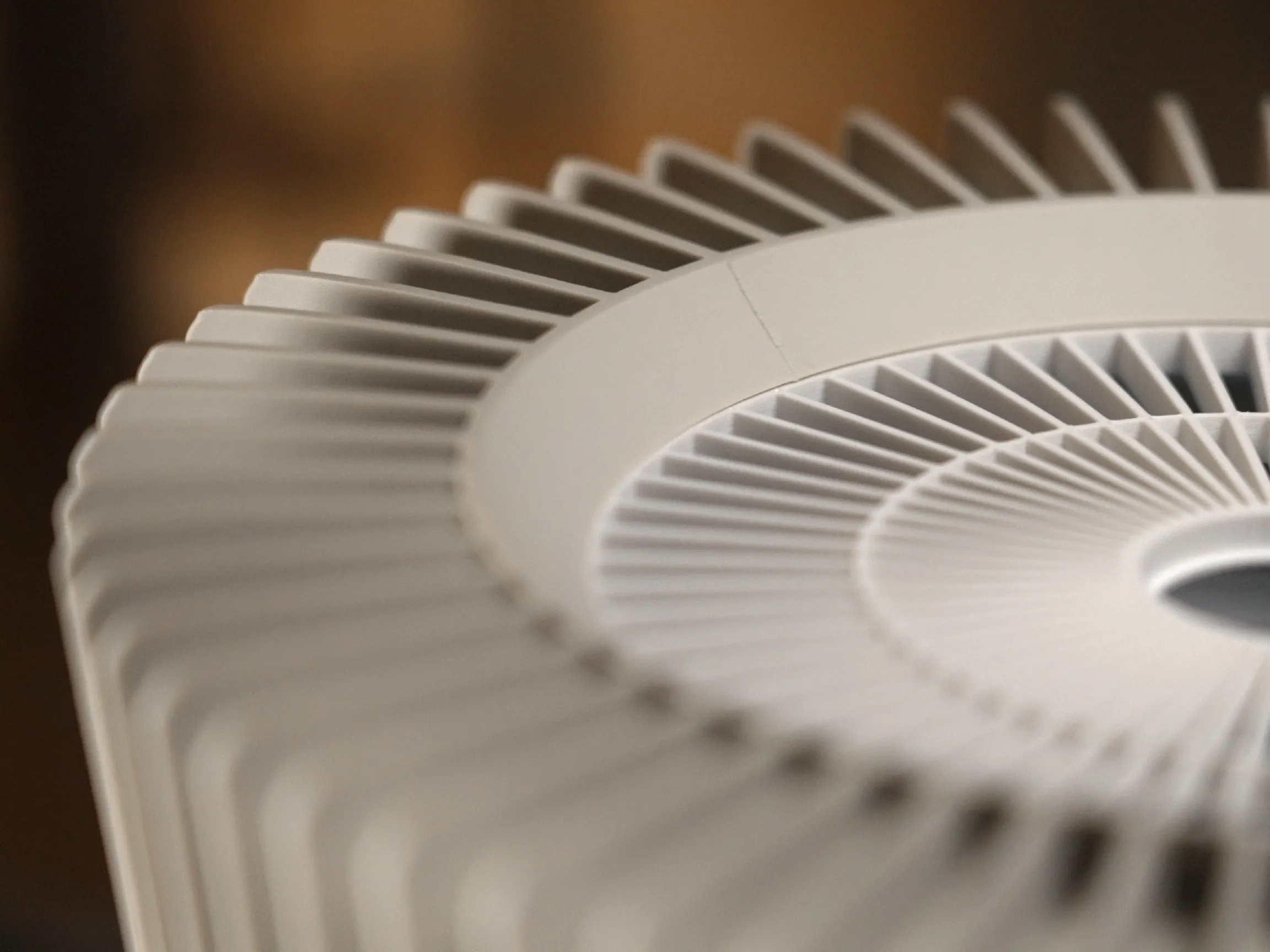

Air Purifier 2nd Generation—Featuring a 14cm Fan and Top Airflow Design (Compatible with Xiaomi Filters)

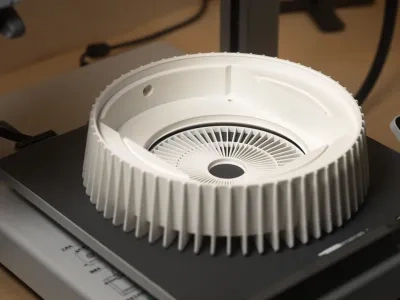

• This easily printable air purifier features all parts printed on a single plate and requires absolutely no supports
• Compatible with a 14cm high-velocity fan, ensuring exceptional purification
• Beyond the printed parts, additional accessories cost only around 30 yuan, offering exceptional value
• Customize your own vent pattern using sparse infill

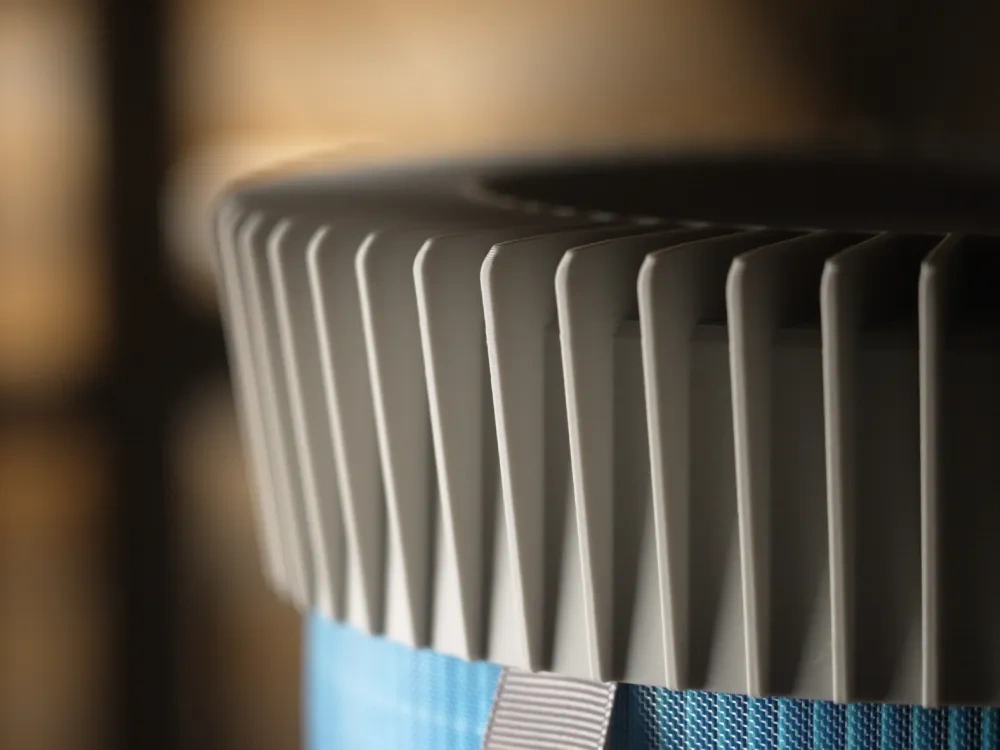

• Easily accommodates readily available Xiaomi filter (20cm diameter)
• Includes a small decorative element for added aesthetic appeal

This is a top-vent version; ensure the fan is installed with the air outlet facing upwards

The video below provides a model introduction and assembly instructions:

Beyond the printed parts, you only need to purchase a power cord and a fan:

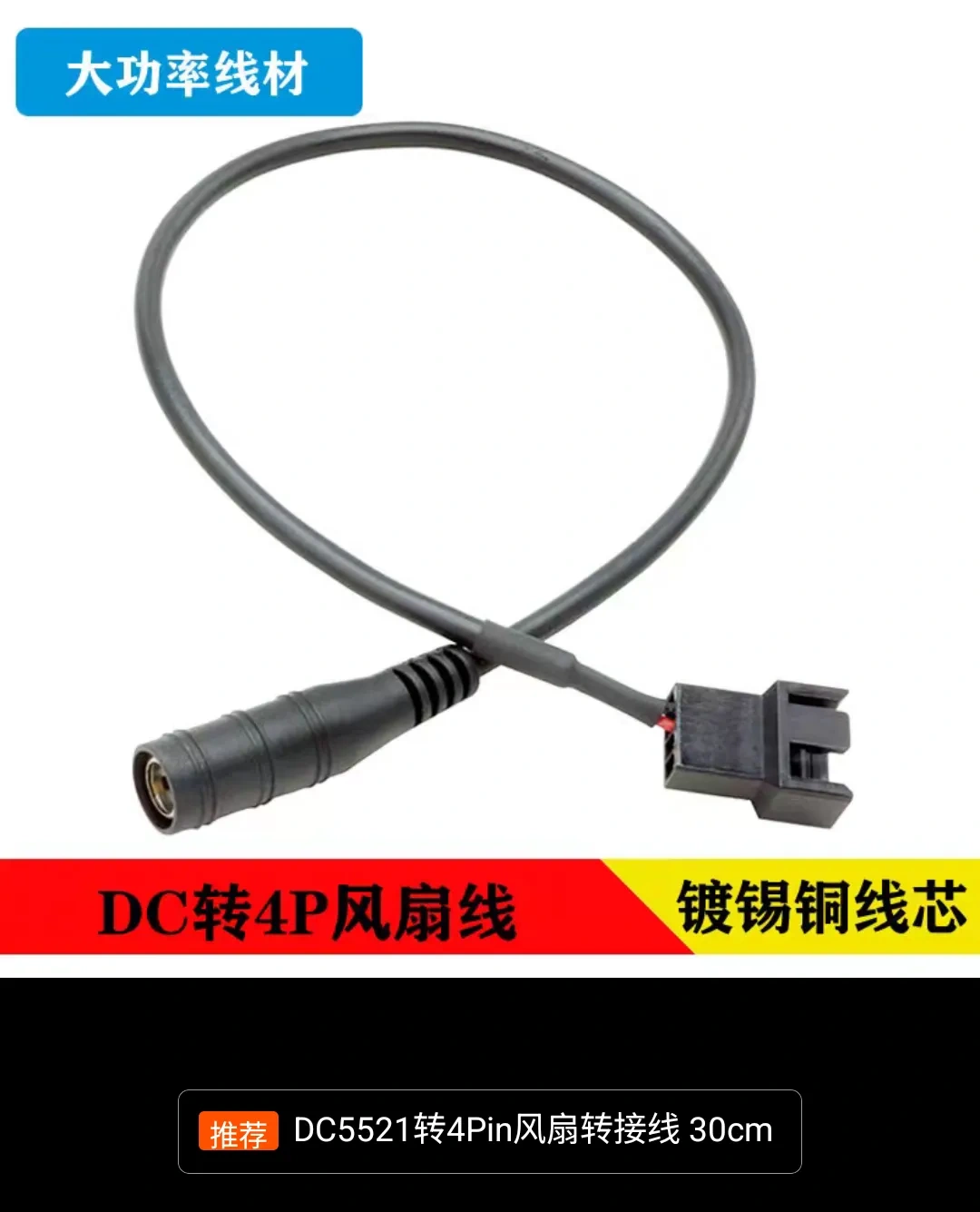

1. 4-pin to DC chassis fan power cord: A shorter cord is recommended (If using a high-performance fan, select a 4-pin or 6-pin connector based on the fan interface)

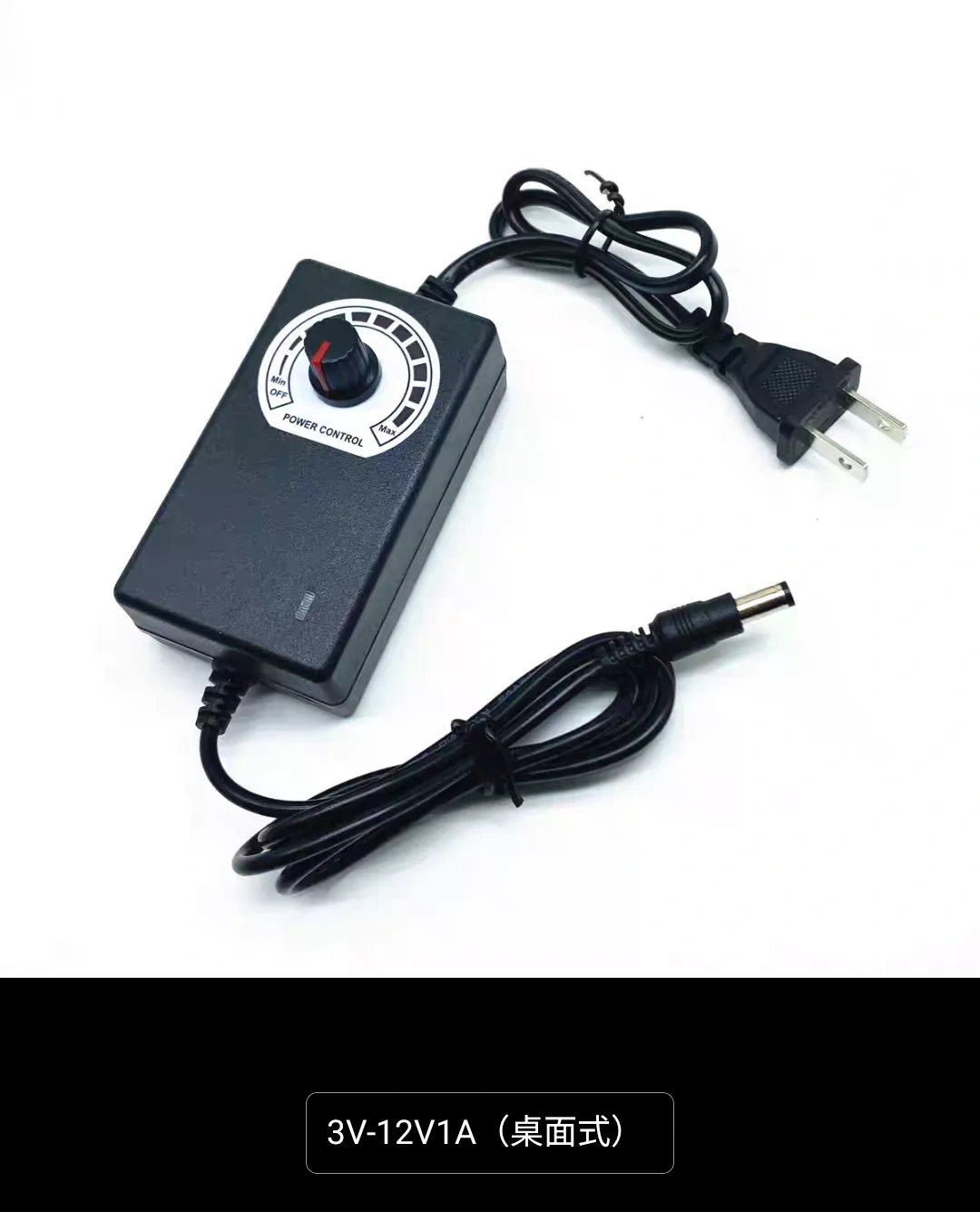

2. Adjustable power adapter: 220V to 12V (If using a high-performance fan, select a suitable power cord based on the fan's power rating)

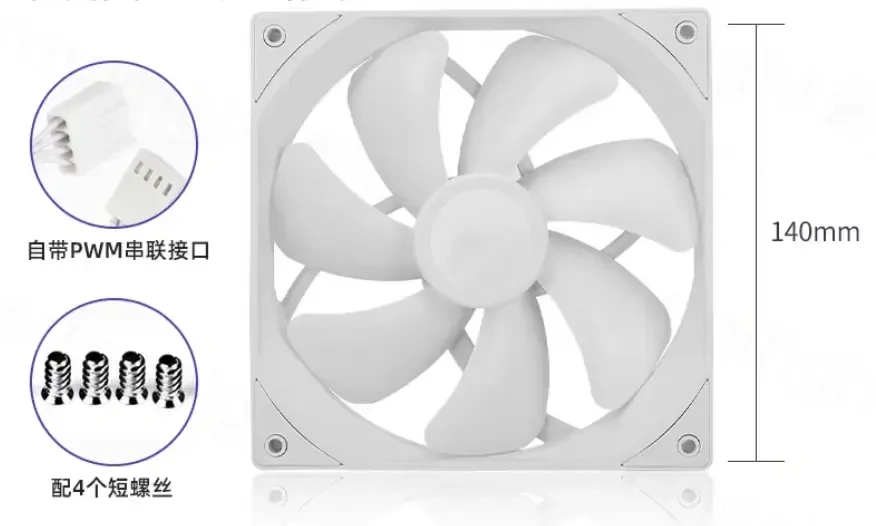

3. Fan: Any 14cm fan is compatible; fan selection is entirely up to you, ranging from inexpensive chassis fans costing tens of yuan to high-end enthusiast options exceeding one hundred yuan, some even opt for high-performance fans, all work well! Feel free to share your choice!


Print Profile Instructions:

1. Compatible with 14025 fans measuring 14cm x 2.5cm [One-Click Print]:
   (Suitable for most fans)
   If, like me, you've opted for a standard 14025 fan, print this profile!

2. Compatible with 14038 fans measuring 14cm x 3.8cm [One-Click Print]:
   (Suitable for most high-performance fans), this print configuration is also compatible with 2.5cm height fans
   If you've purchased a 3.8cm fan, or wish to experiment with both 2.5cm and 3.8cm fans, choose this profile!

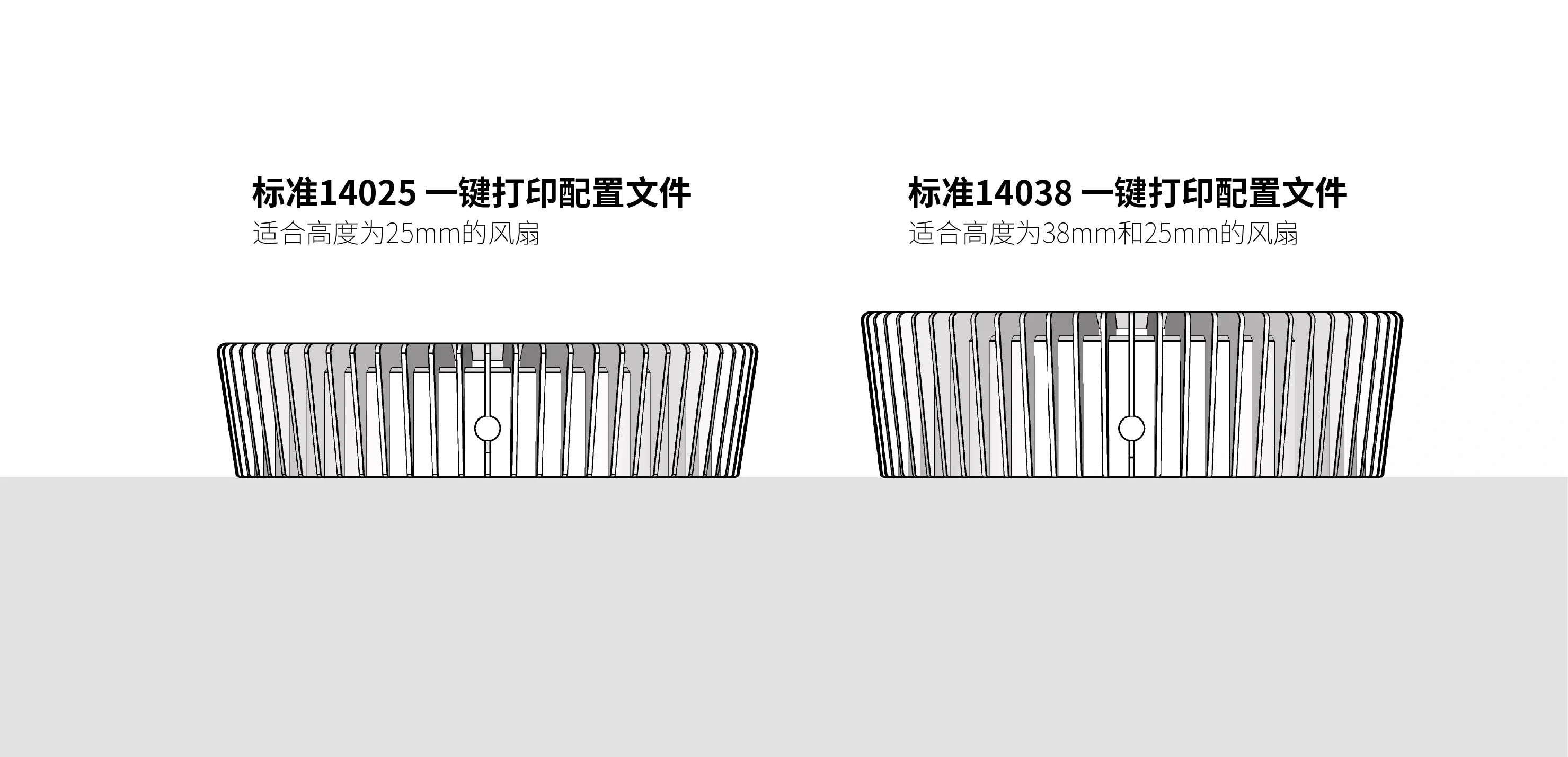

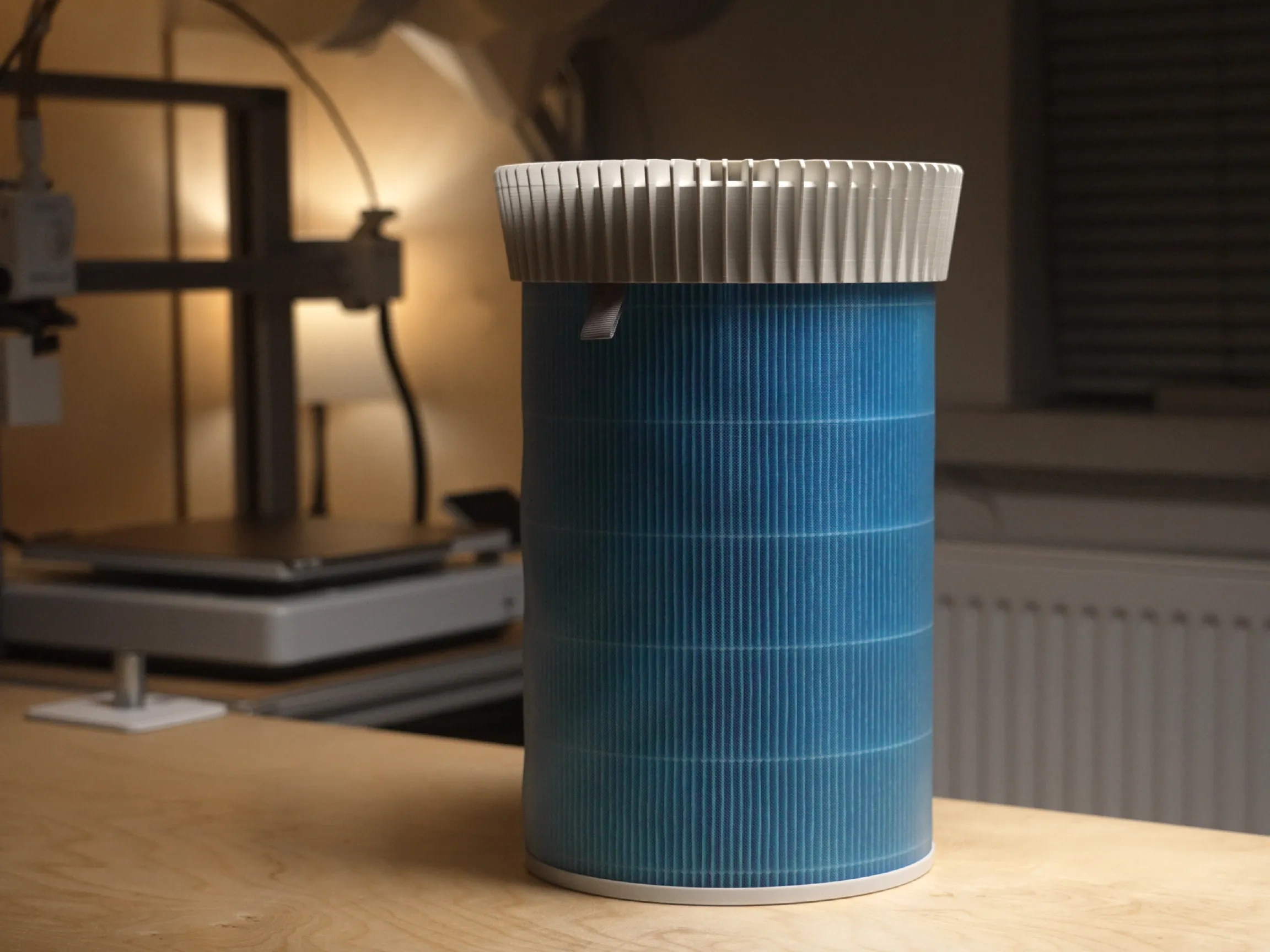

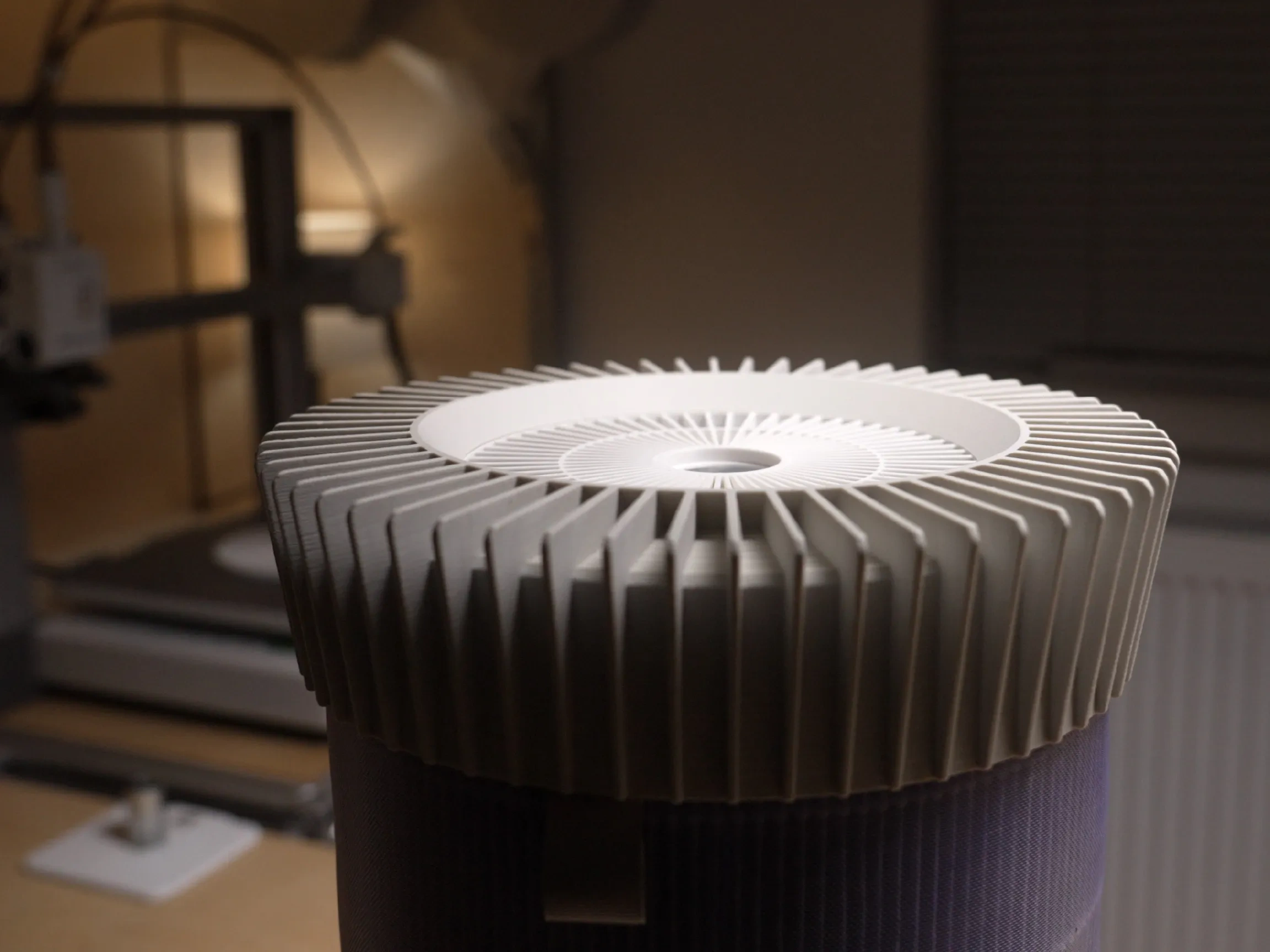

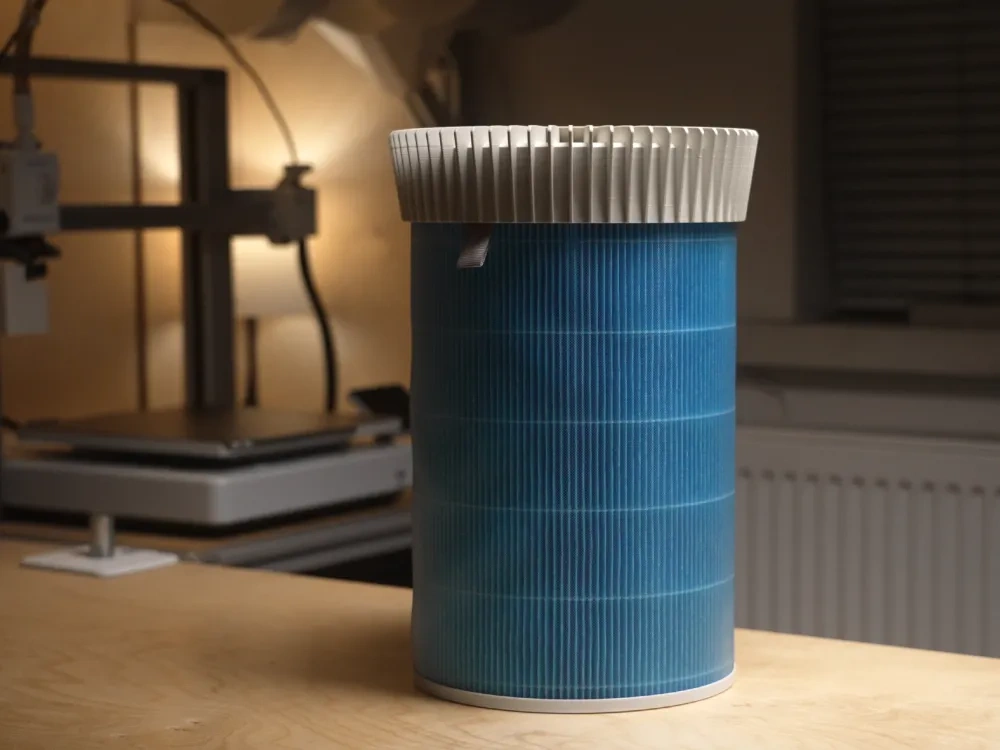

   Below is a comparison of the purifier's appearance with the two profiles (different heights):

3.



Added Fun (Easter Egg):

If you've watched the video above, you'll understand the purpose of the two additional print profiles below.
These profiles aren't strictly necessary, but printing them will add a significant element of fun!

• Custom Air Outlet Pattern Print Profile:

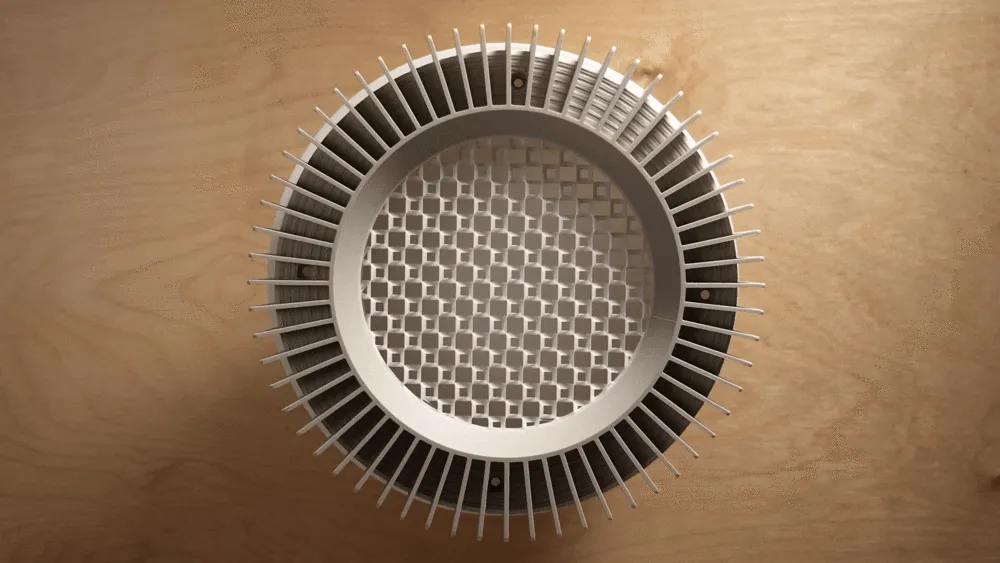

  This profile is a model of the fan's air outlet; after opening, you can adjust the sparse infill pattern and infill density options to design your own outlet patterns! (Specific operations are demonstrated in the video)
  A word of caution: Not all sparse infill patterns are suitable for air outlets, let's see which fool chooses concentric circles…

• Aesthetically Pleasing Small Windmill Print Profile:

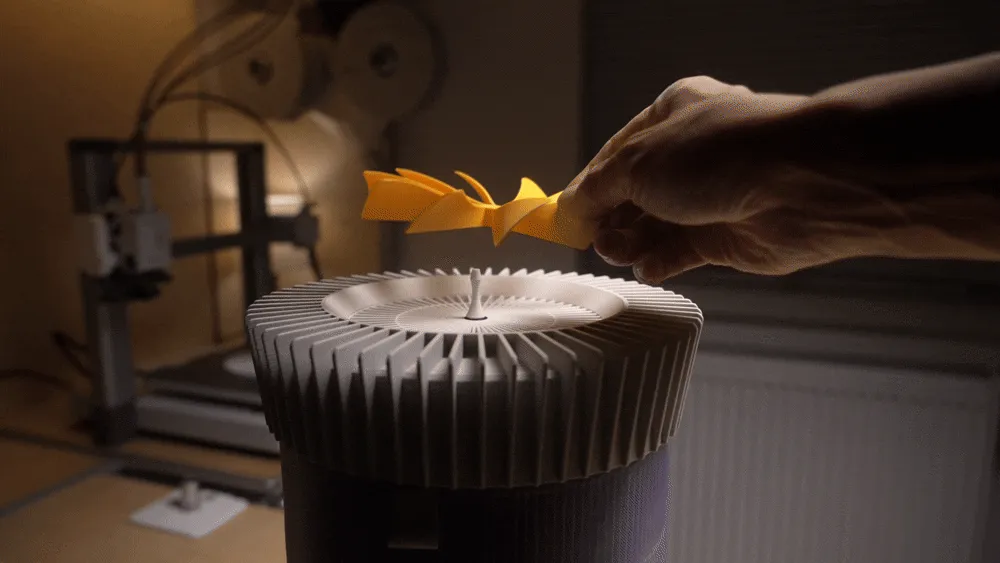

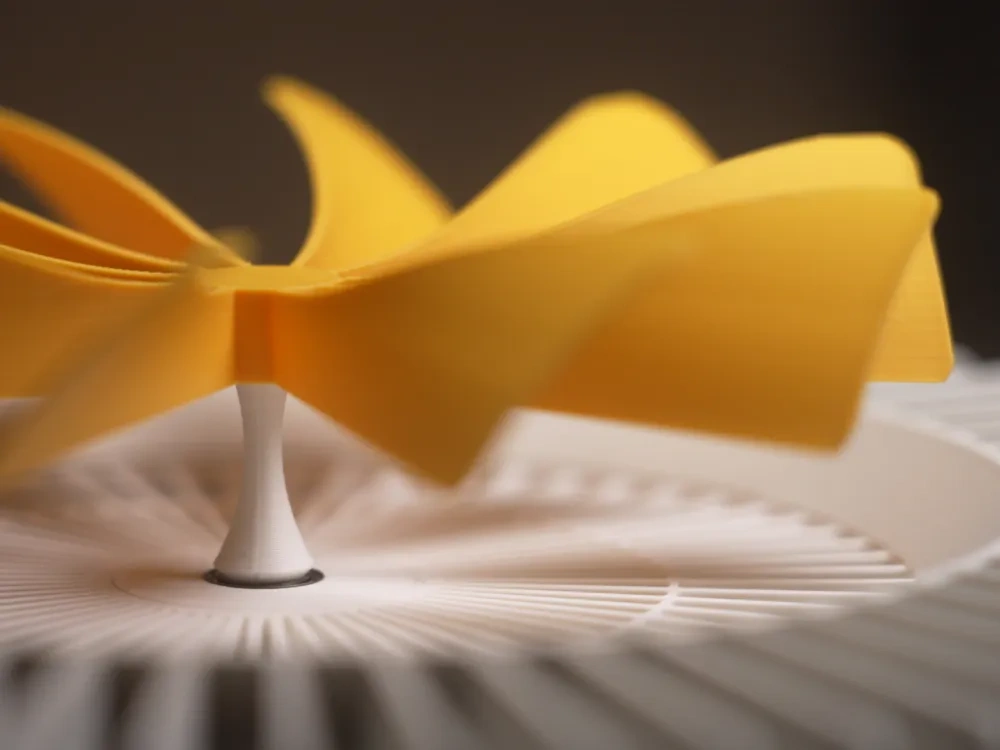

  For both the 14025 One-Click Print Configuration and the 14038 One-Click Print Configuration, I've reserved space in the center of the standard air outlet for decorative elements. My design is a small windmill that rotates with the airflow from the outlet, providing a touch of beauty while the air purifier quietly cleans the air!
  Note: The rotating part requires a single MR128 miniature bearing, easily available at the TuZhu store.

  I may continue developing several interchangeable small decorative elements to rotate on the device, feel free to print and place them as you like.
  However, I hope this inspires your own creativity and ingenuity to design various small decorations for your air purifier!
  And, you absolutely must share them with everyone!!!

Happy printing everyone! Have fun!

If you have printed this and think it is good, please support me! Your support is very important to us! 🙏


If there are any issues with the model or printing settings, please leave a comment below and we will check and fix it as soon as possible!
