Description

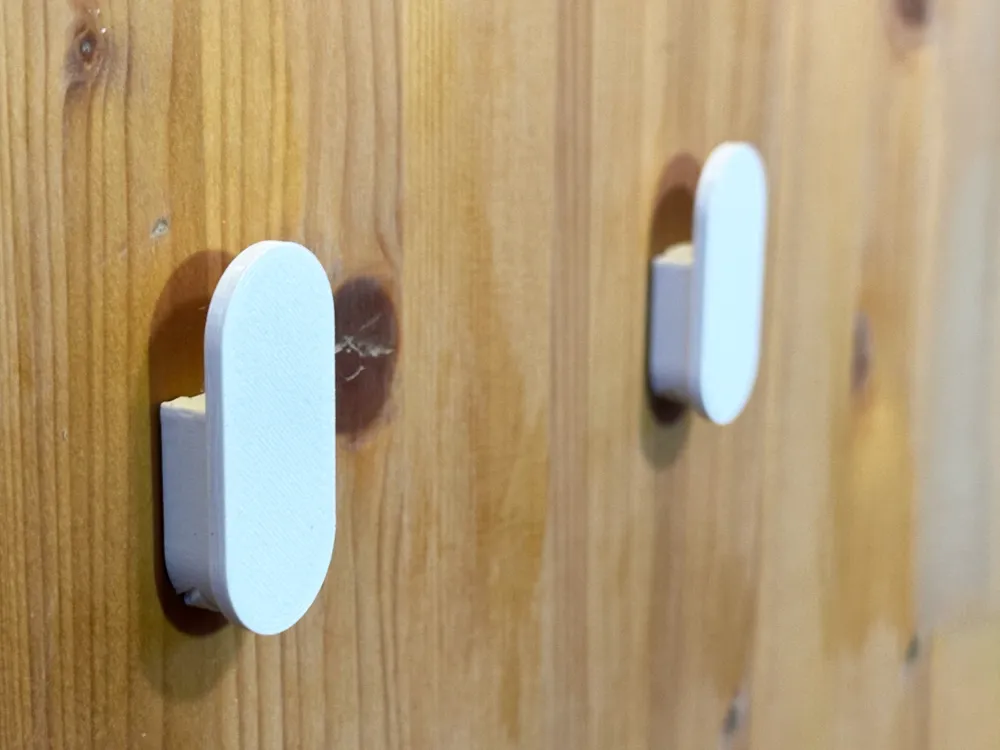

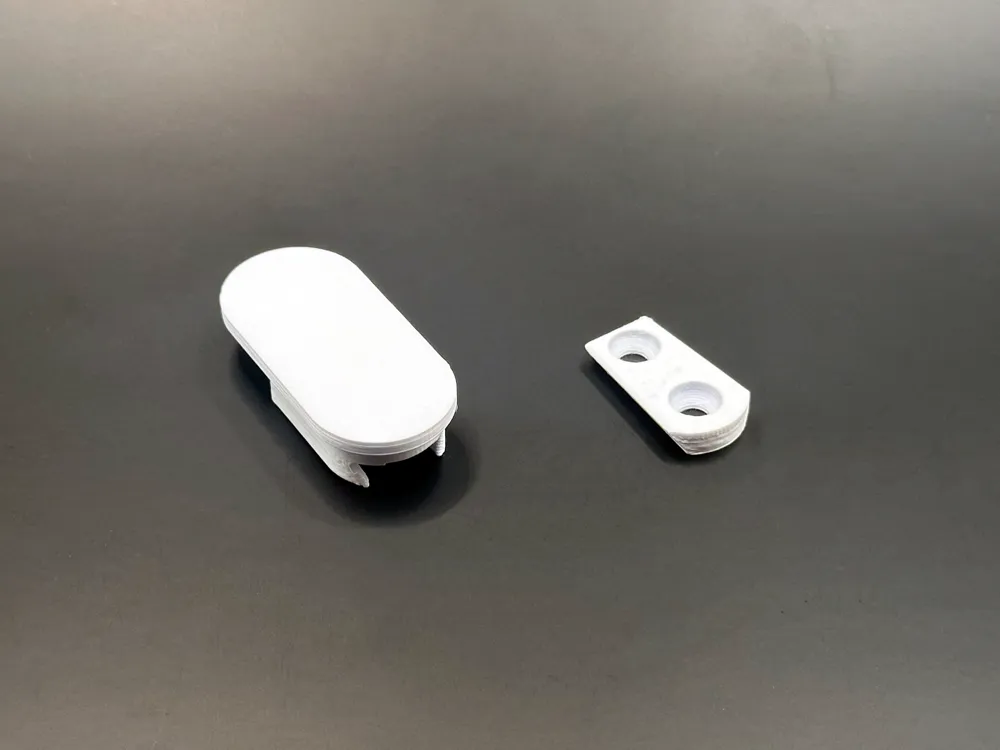

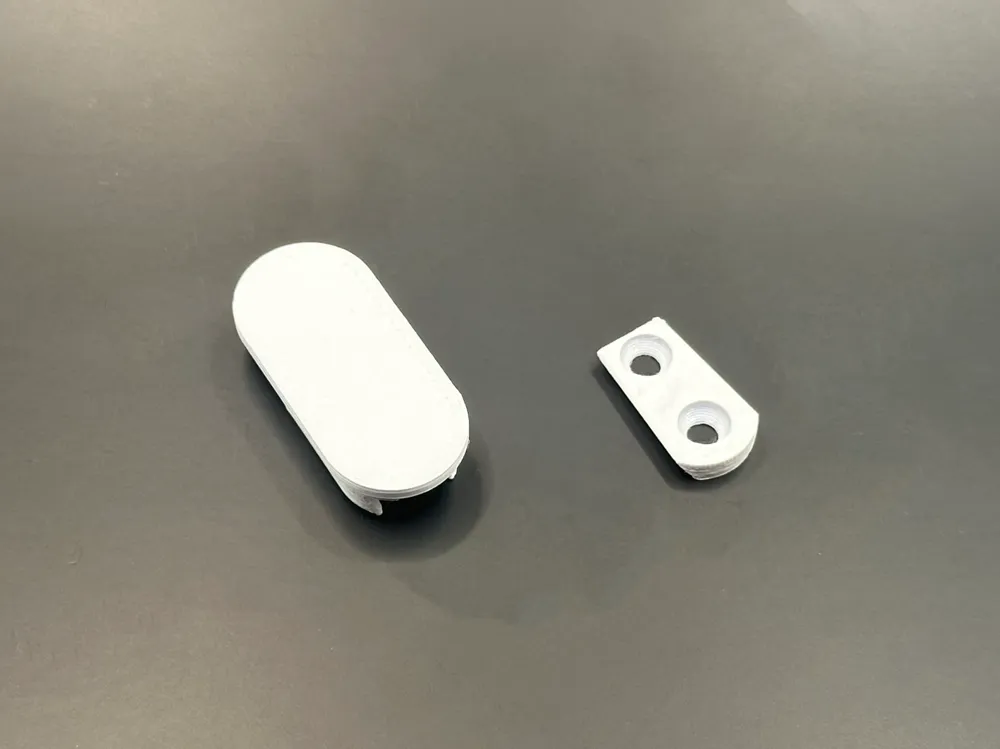

Simple Wall Hook

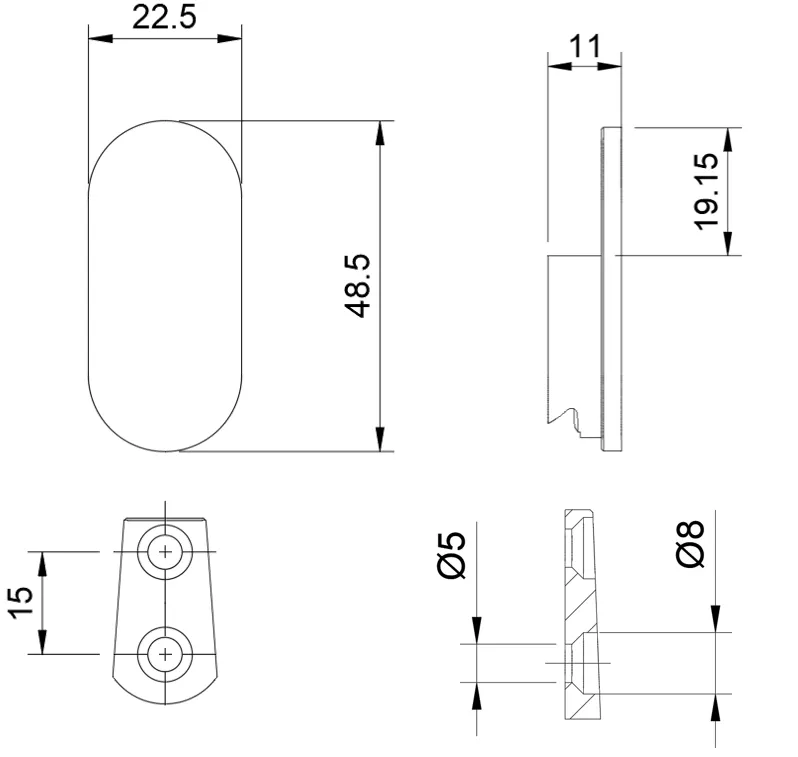

Dimensions: 22.5 x 48.5 mm
This wall hook can be mounted using two countersunk screws.

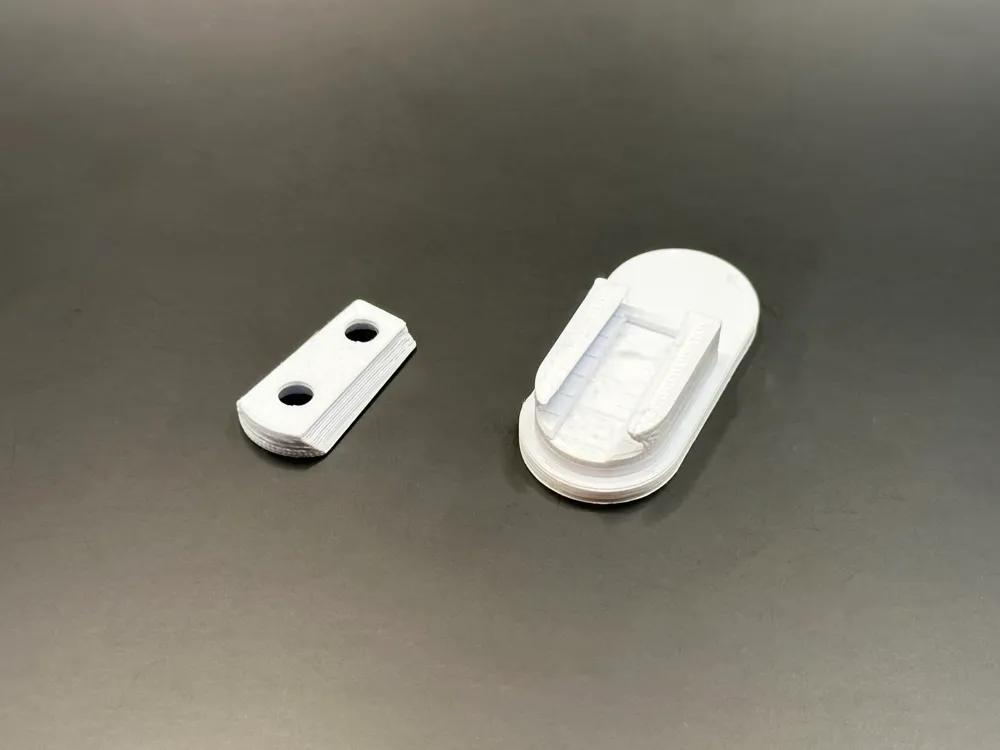

The mounting plate has a conical shape to ensure a tight fit with no play once the hook is attached.
Note:
- The screw head should not exceed a diameter of ø8 mm and a height of 3.5 mm.
Printing Recommendations:
To increase the load capacity of the hook, I recommend using a material with higher strength, such as PETG.
Assembly Instructions:

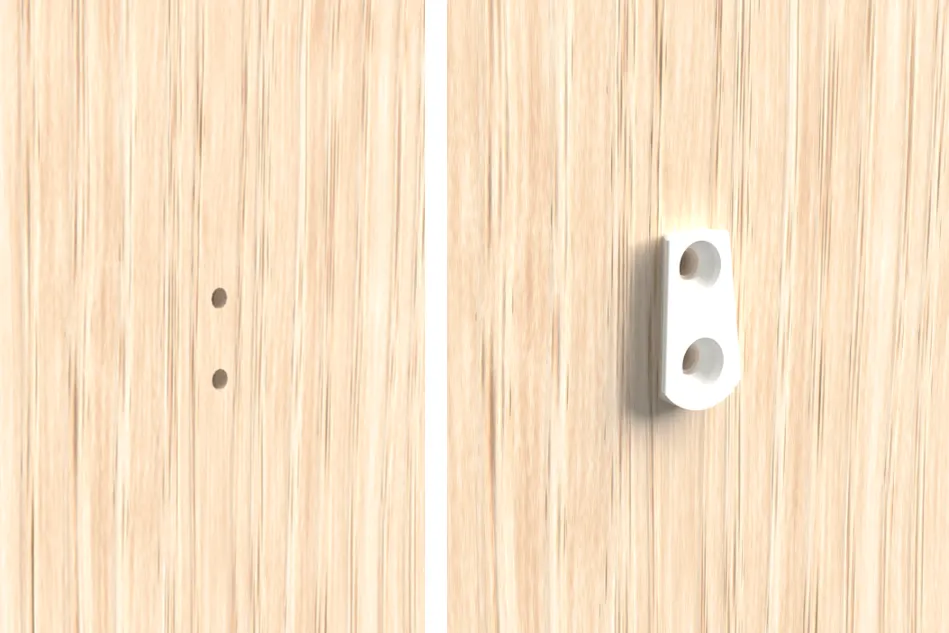

Mark the drilling holes and drill pilot holes.

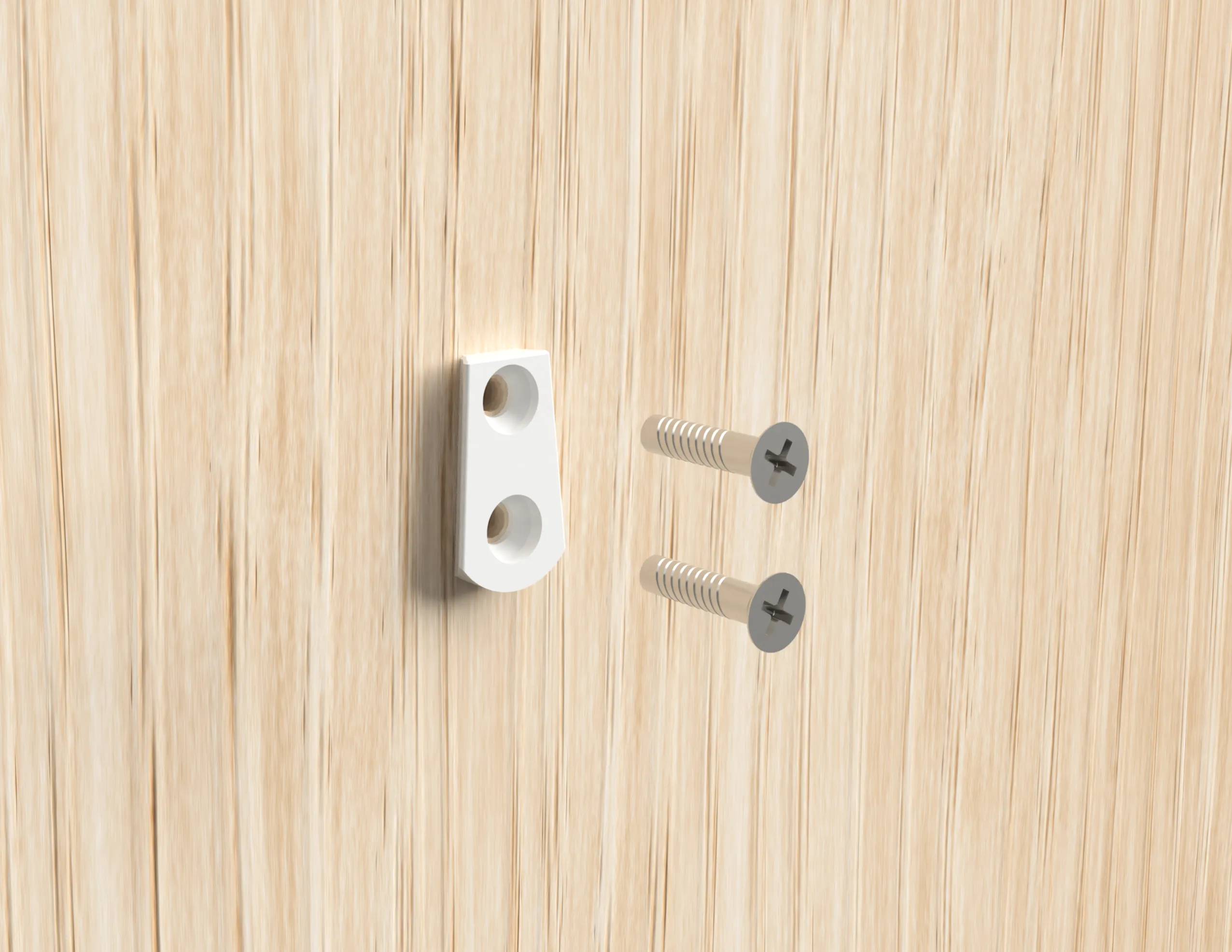

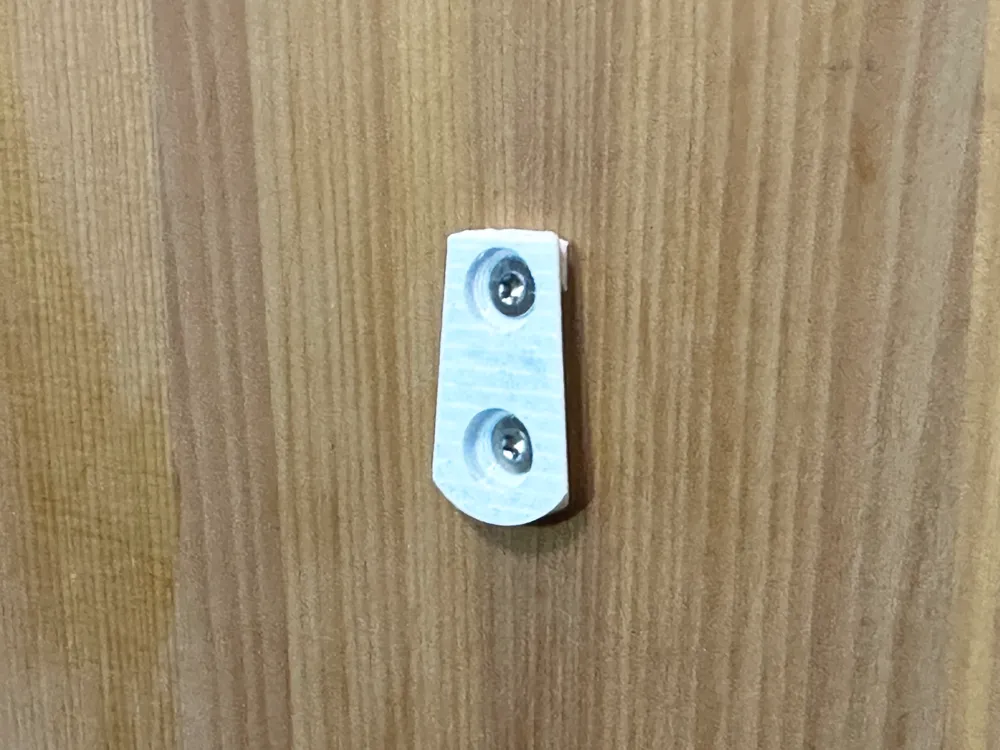

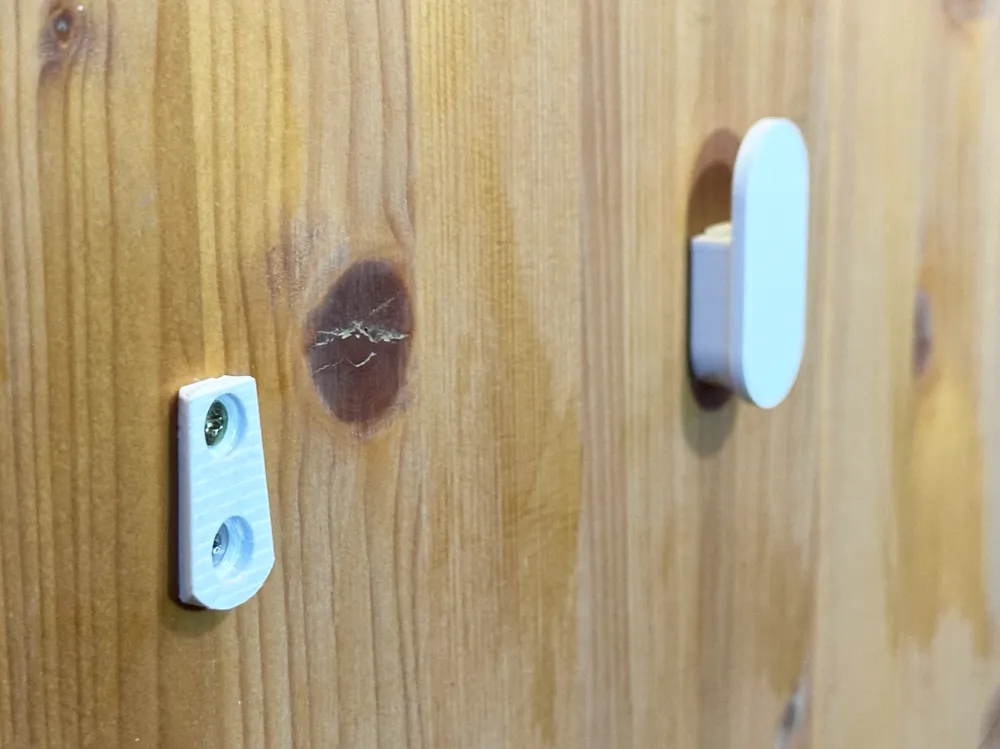

Attach the mounting plate to the wall using two countersunk screws.

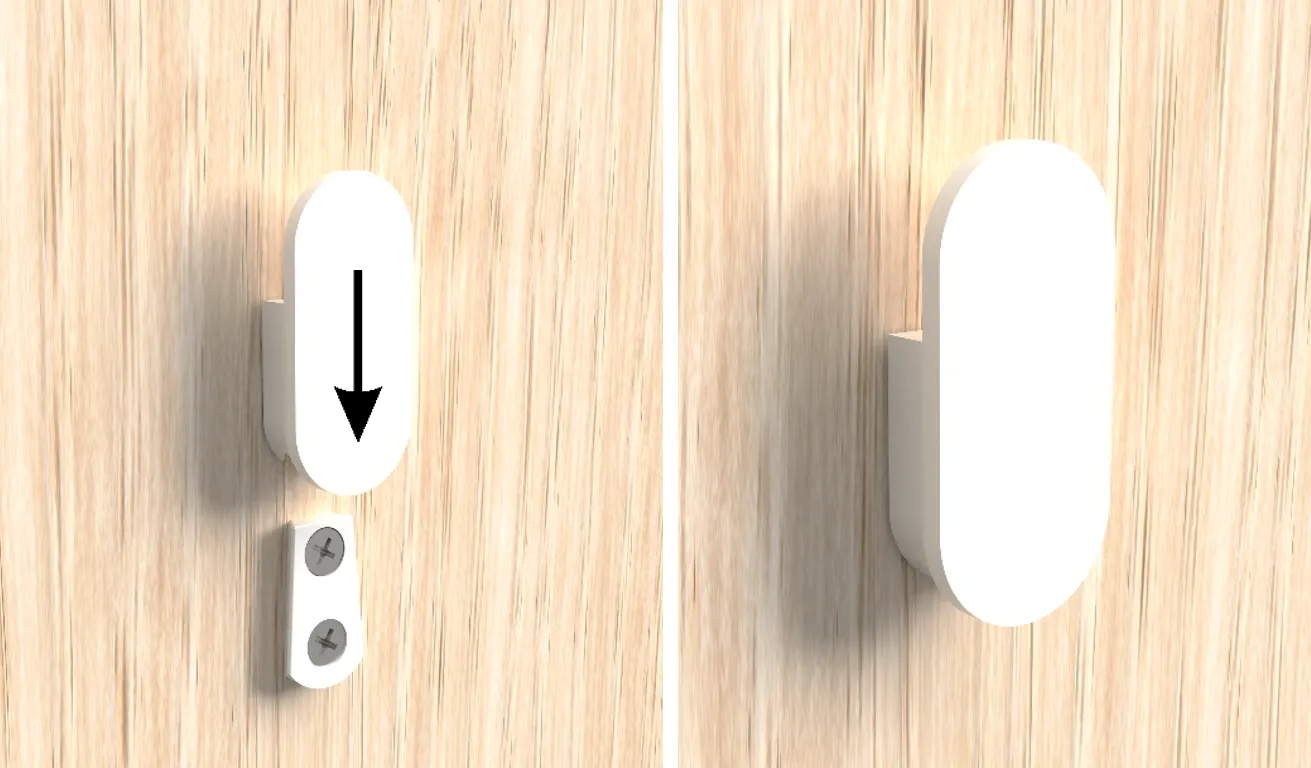

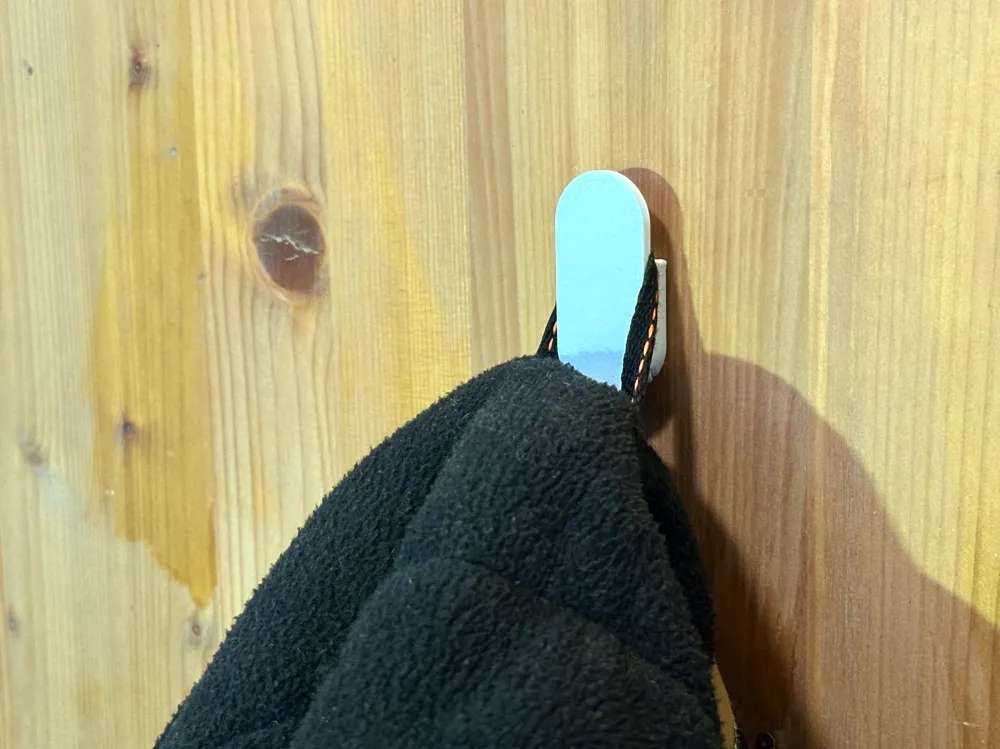

Slide the hook onto the mounting plate from above until it sits flush. The conical shape creates a self-locking effect.
- Some force may be required during assembly, but this will ensure a secure fit.
- To remove the hook, it can be knocked upwards from below using a hammer or similar tool.
