Flashlight Holder For Bike (TPU)
IP Report
Print Profile(1)
0.6mm nozzle, 0.3mm layer, 5 walls, 25% infill
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
71
173
1
3
90
20
Released
Description
Boost Me (for free)
🚀

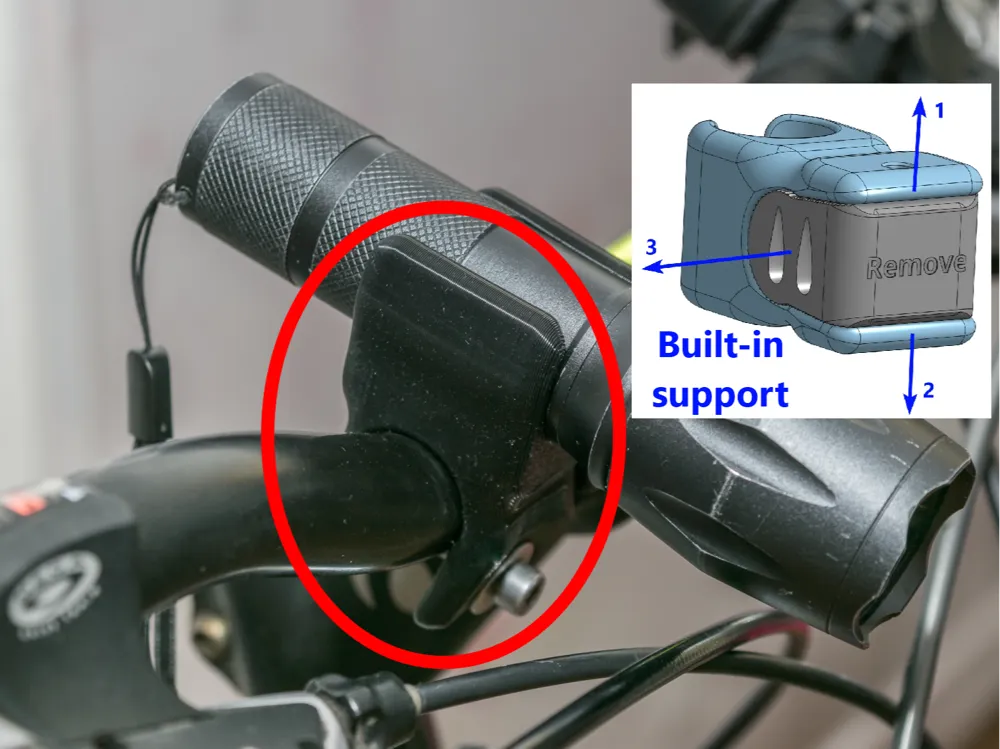

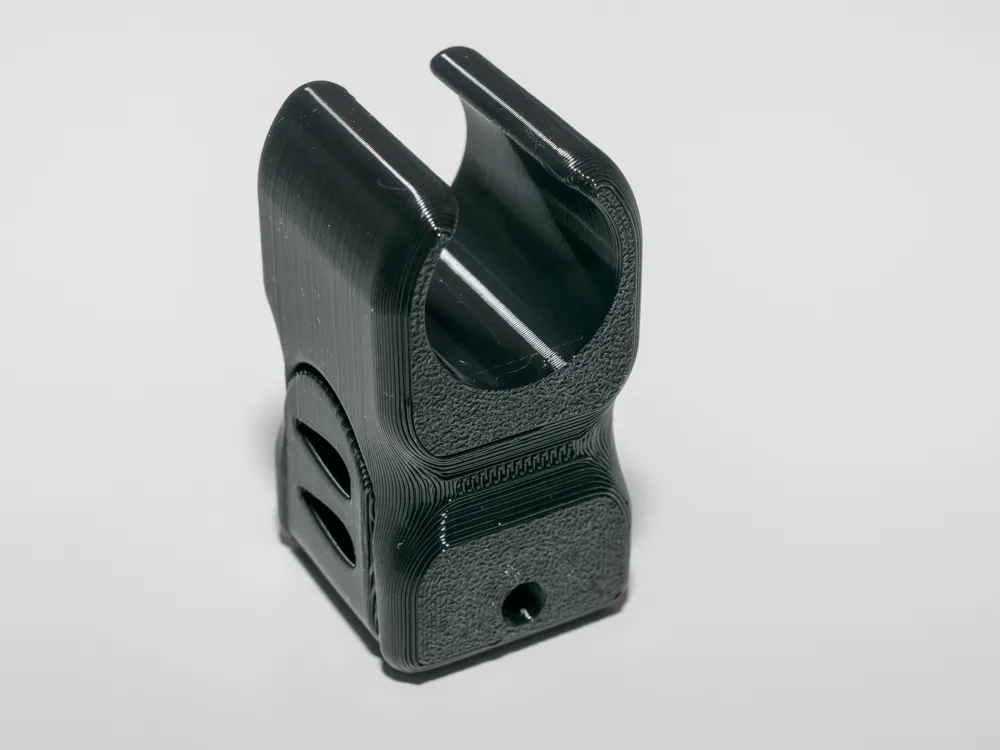

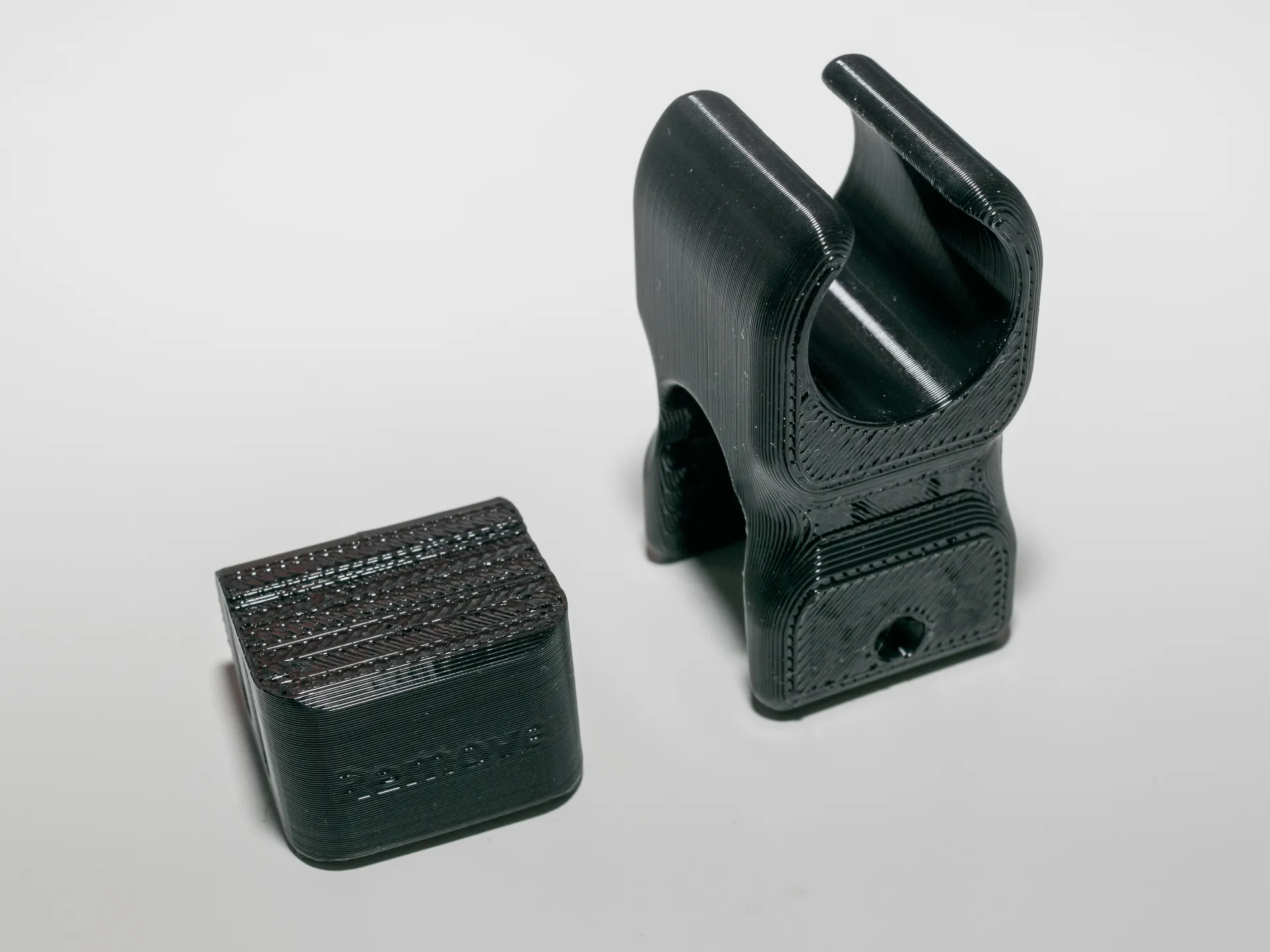

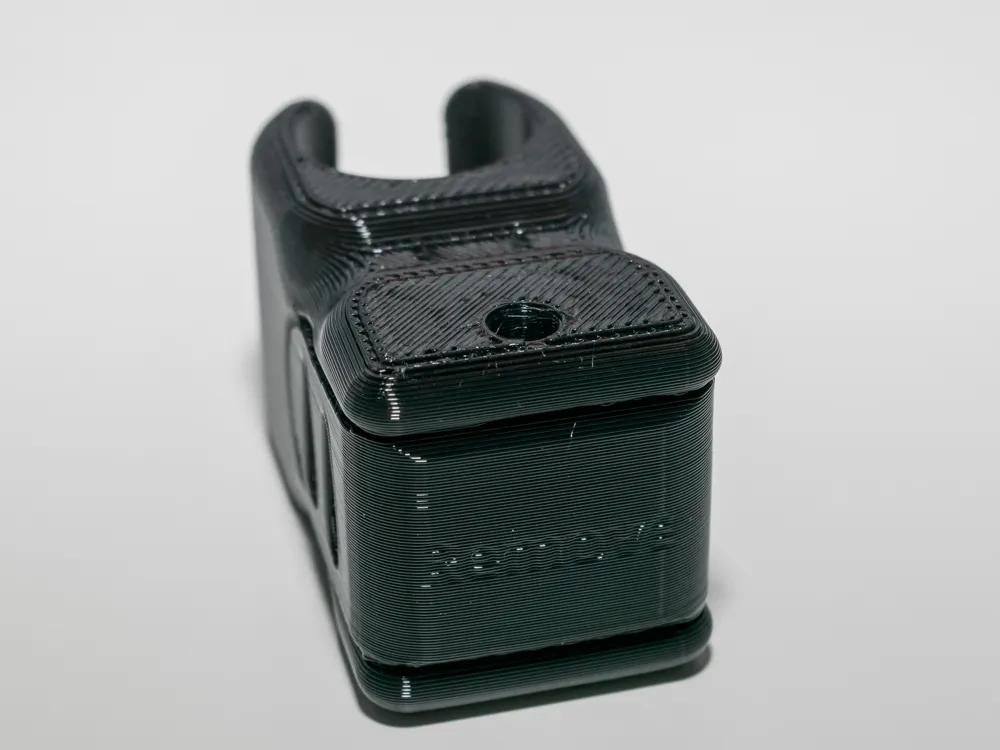

Flashlight holder for bike with pre-designed supports for high-quality printing and easy support removal.
Handlebar diameter: 22 mm
Flashlight diameter: around 27 mm (18650/3xAAA battery flashlight)
M5x45 screw required to mount
Let me know if you need different dimensions.
Instructions:
- Print the profile.

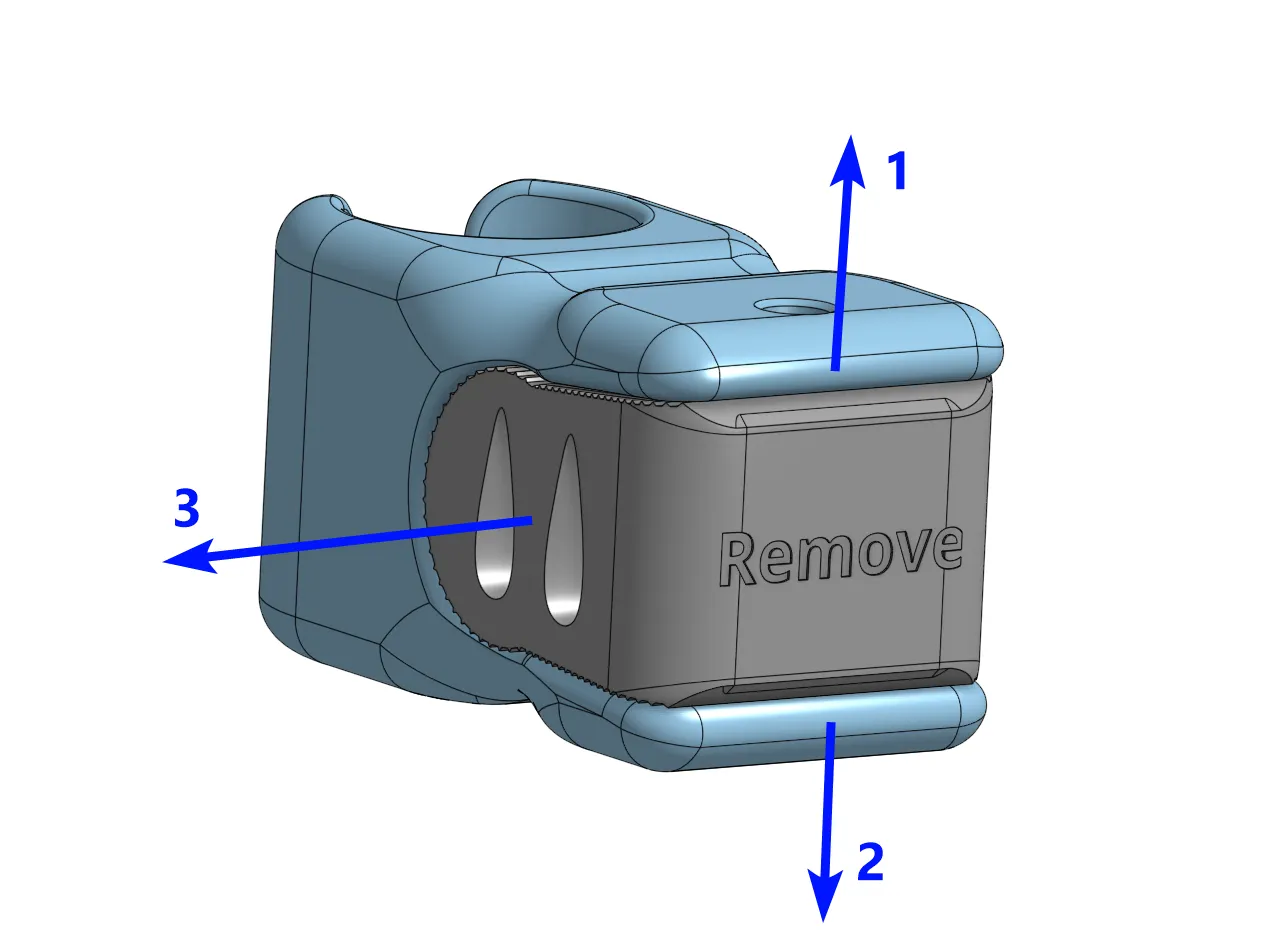

- Use your hands to bend handlebar hugger parts (arrows 1 and 2).

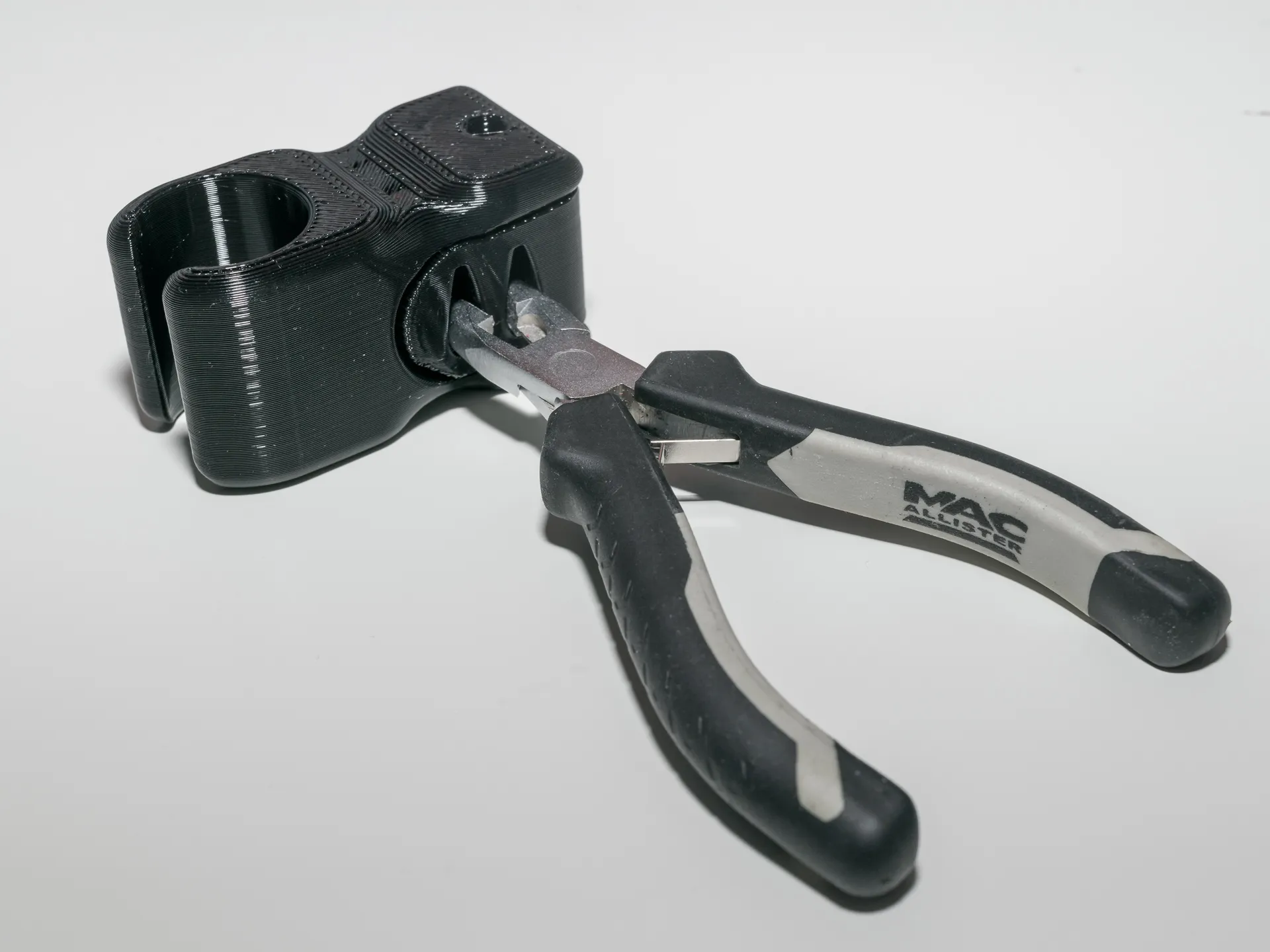

- Use pliers to extract the support (arrow 3). There are two holes in the support for inserting the plier tips.
