12038 High-Performance Fan Kit (+Multiple Adapters)

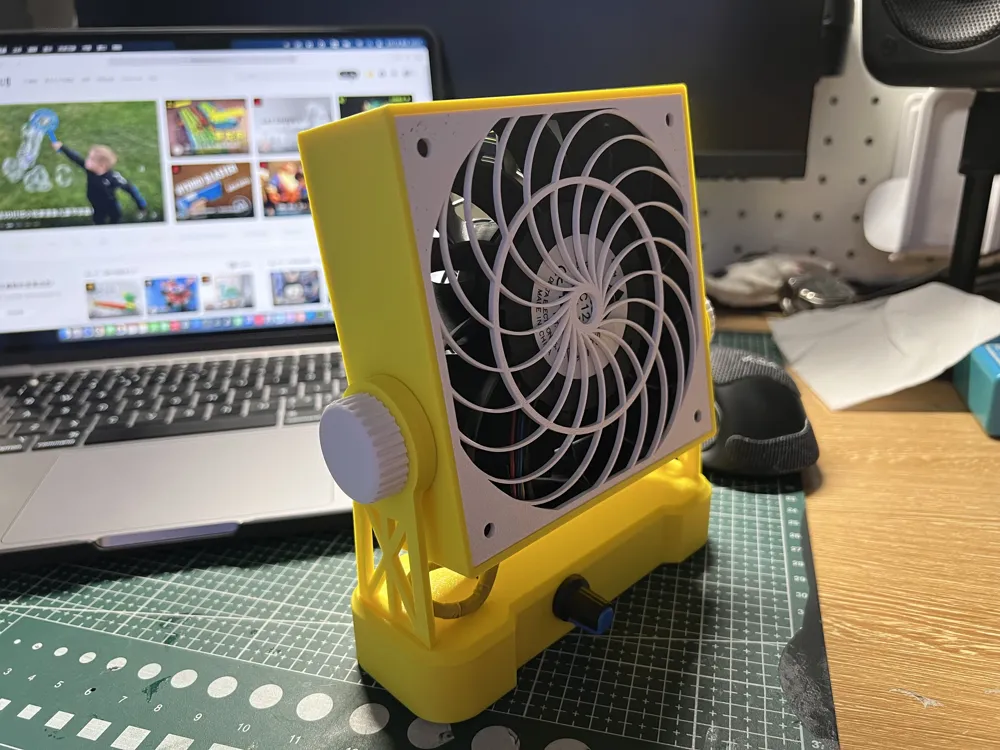

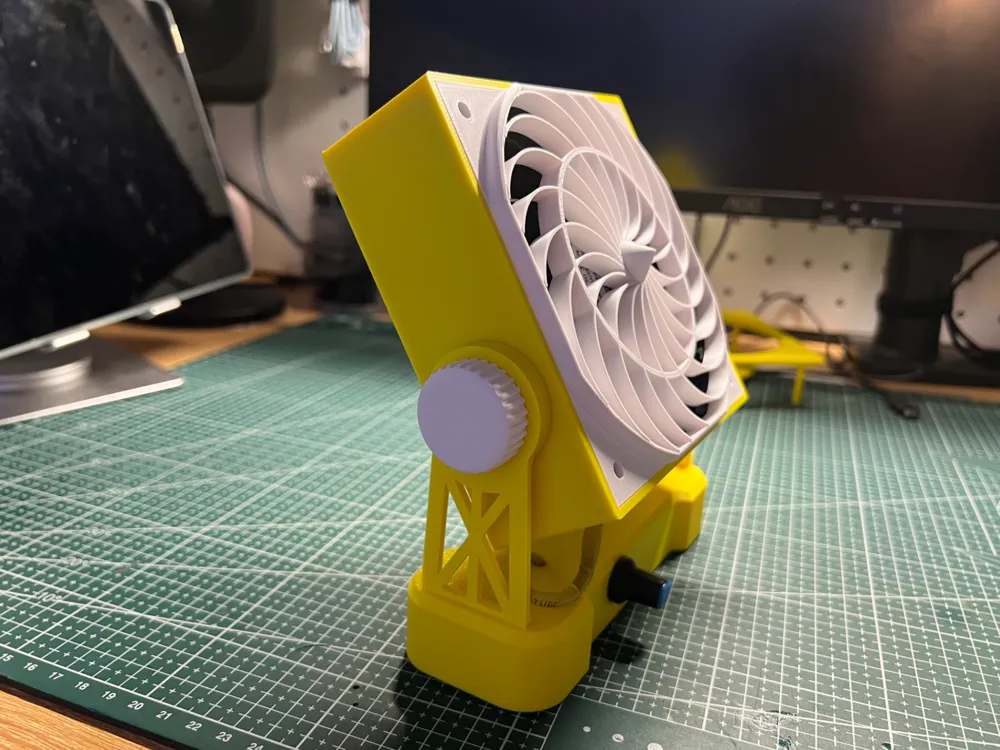

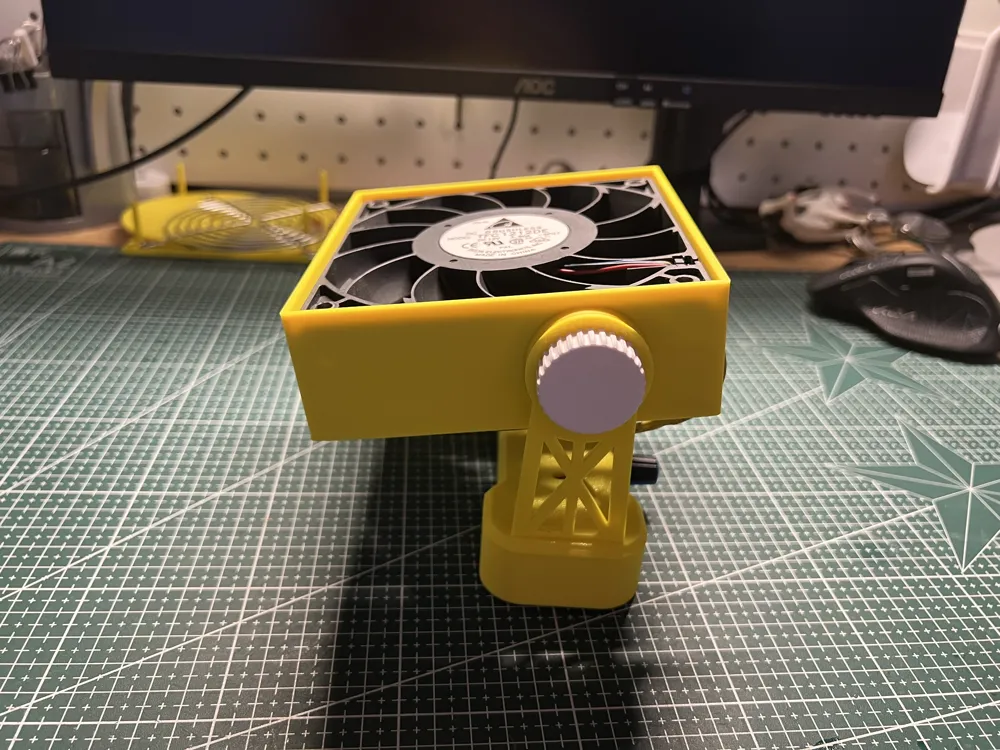

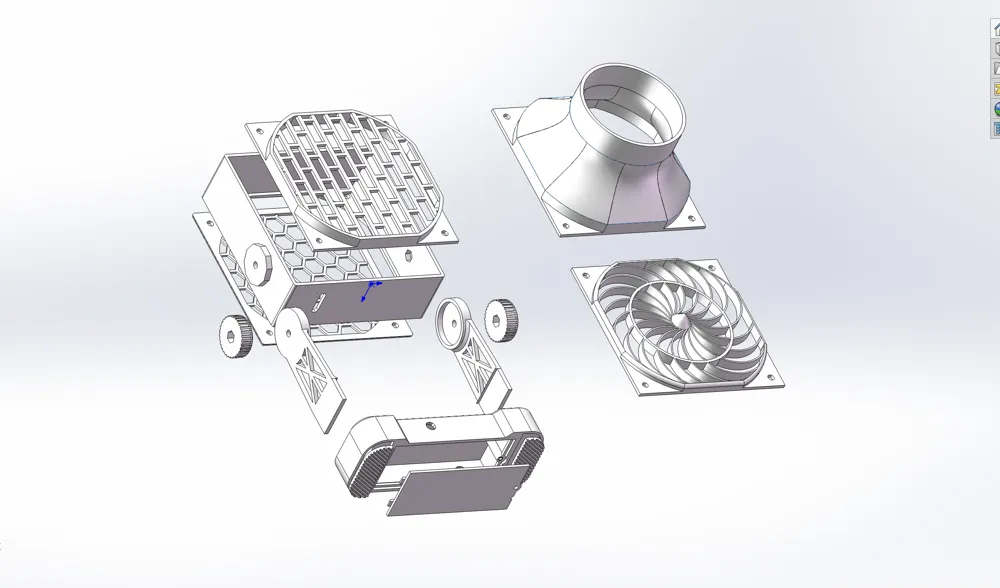

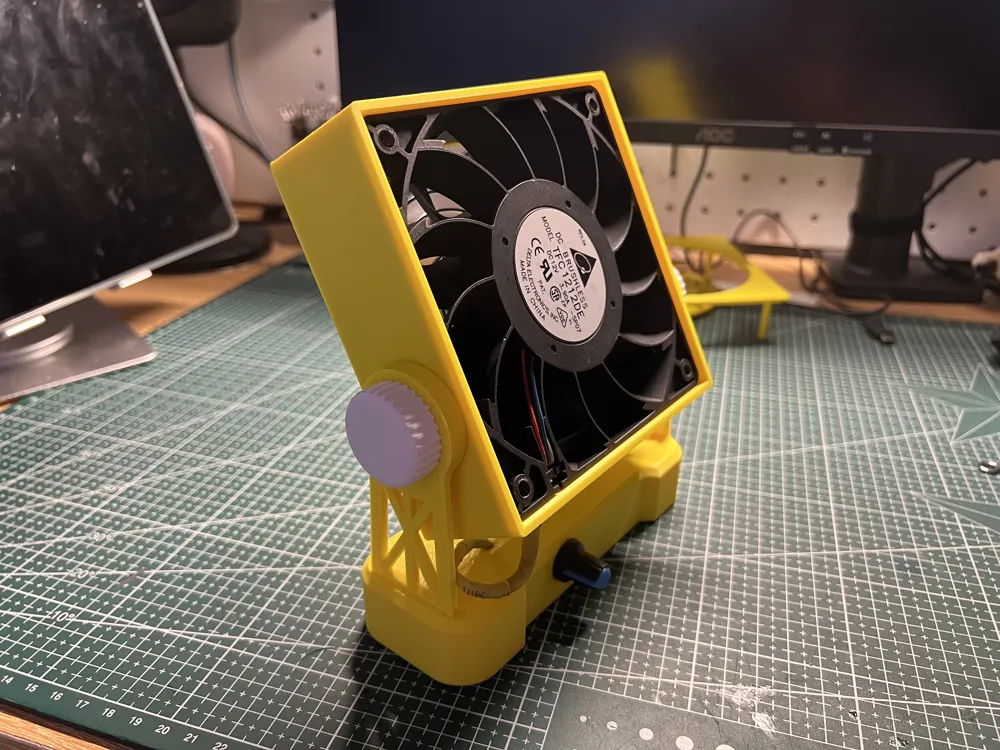

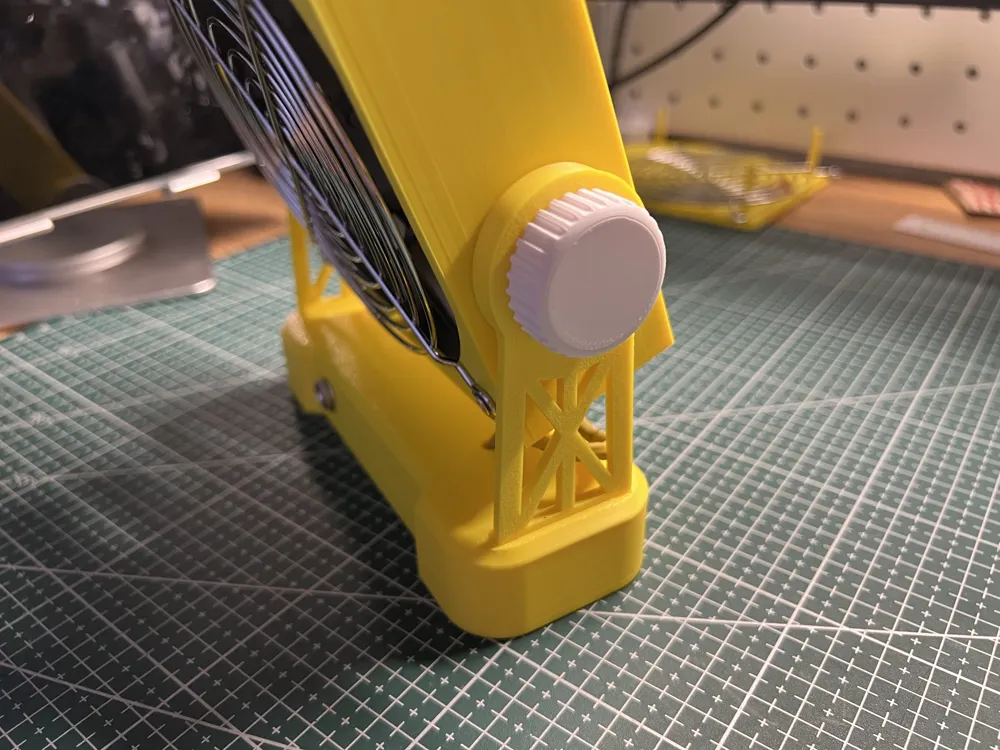

12038 High-Performance Fan assembly, with a wide adjustable angle. Dual-side locking mechanism prevents tilting or wobbling.

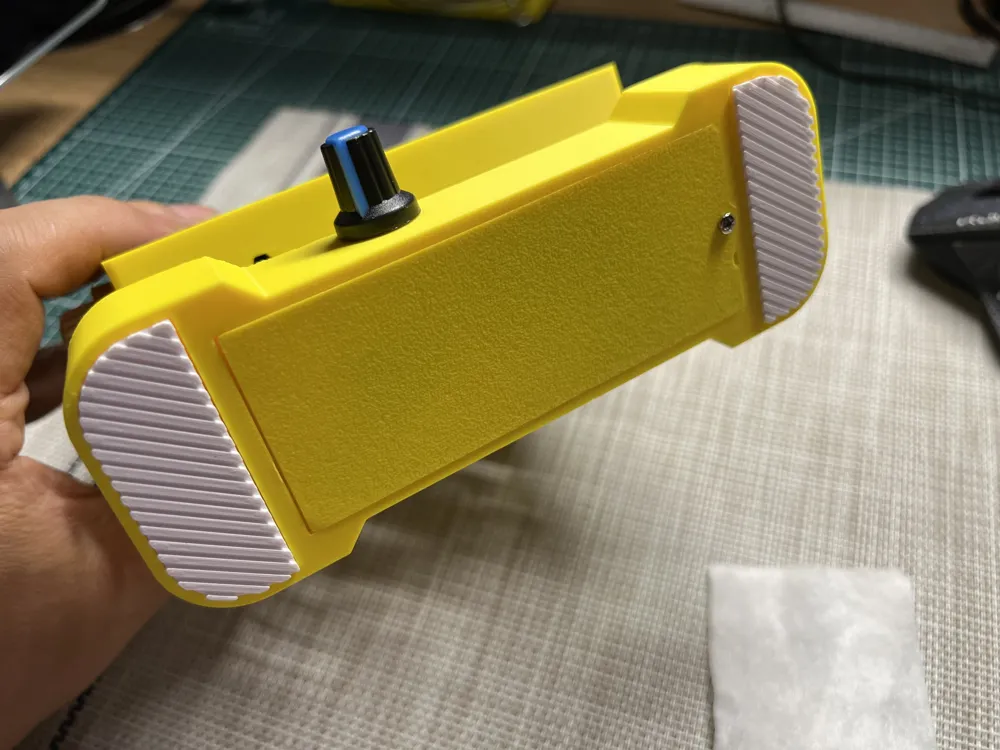

The base pads can be 3D printed using TPU for enhanced non-slip properties.

Requires an M5*12 screw pair + nuts (8MM hex).

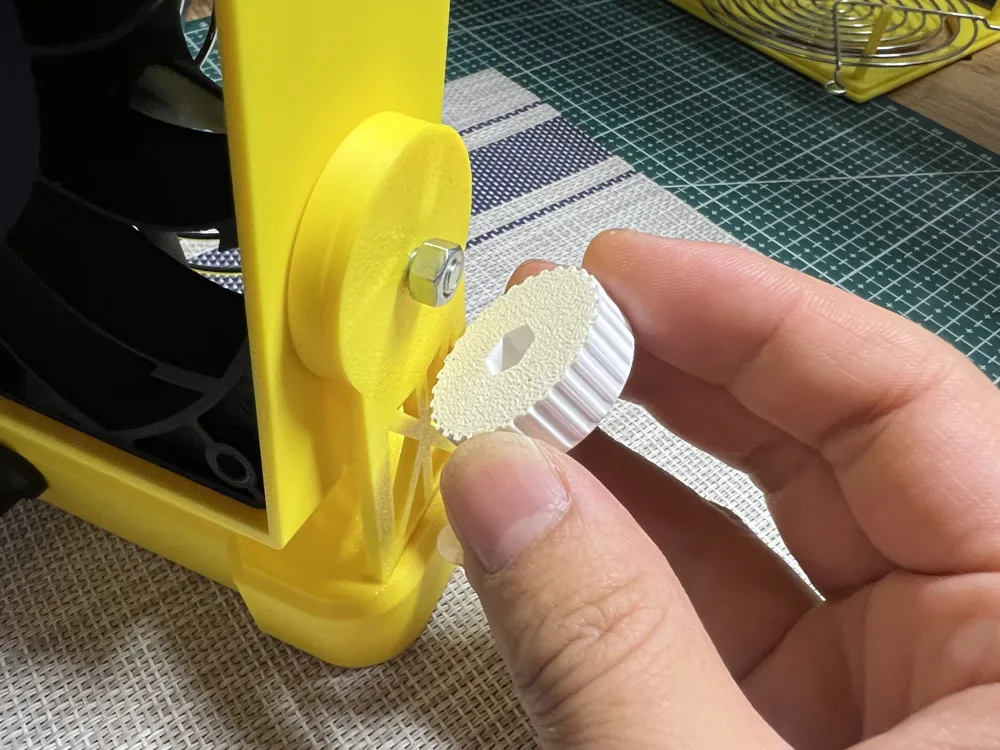

Insert the nuts and rotate to secure!

The bottom cover uses M3 self-tapping screws or any suitable self-tapping screws.

The potentiometer opening is 7.2mm, and the DC opening is 8.2mm. Enlarge manually if necessary!

Internal circuit compartment dimensions are 100*45*16mm, suitable for a four-wire PWM speed control board. If unsure, purchase individual components and solder them yourself.

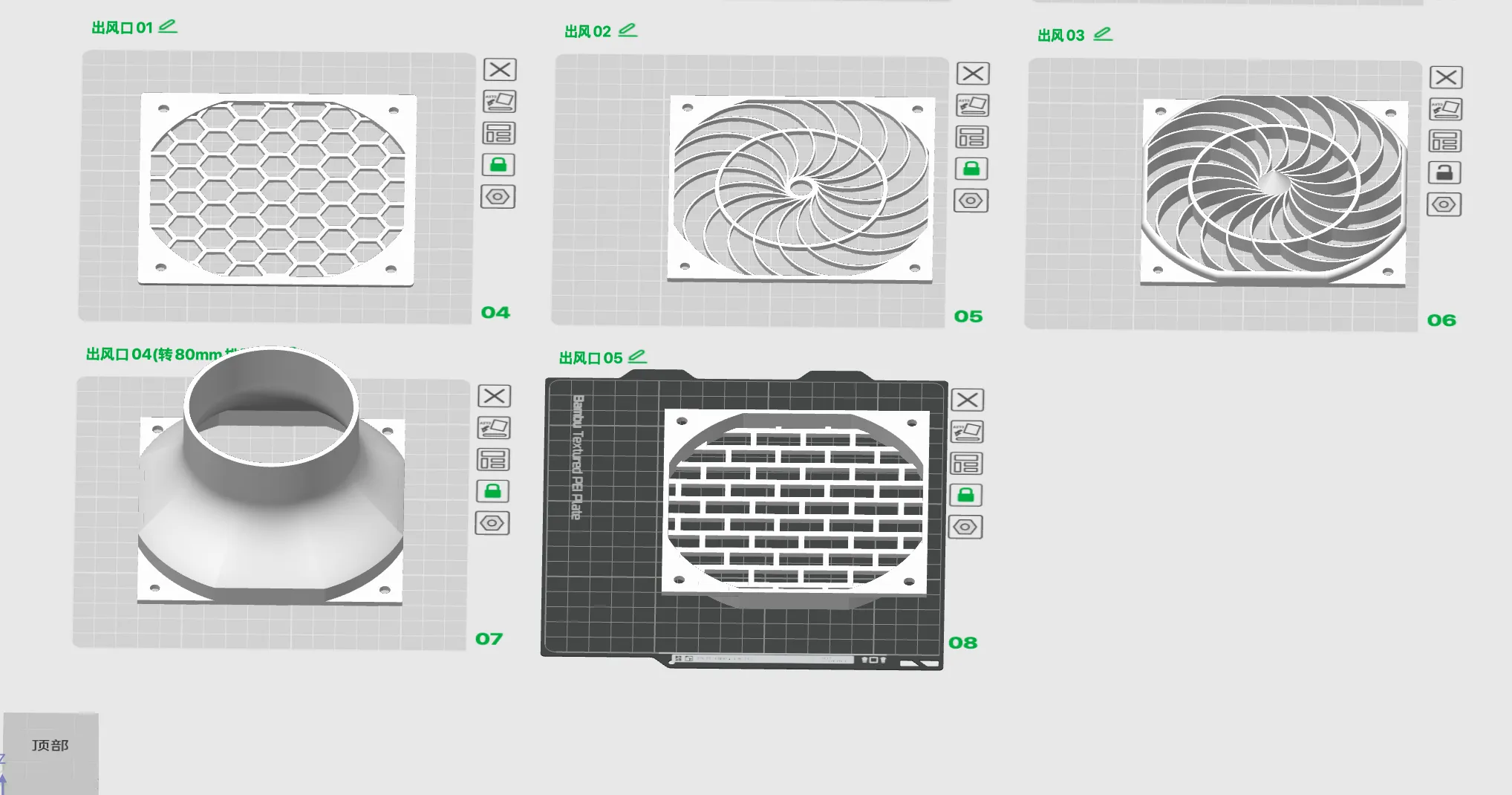

It is recommended to use the fan's built-in metal mesh for the air intake to reduce wind resistance. Several options are provided for your choice! Several outlet designs are included to suit different uses and preferences, with further updates to come. In short, this is a versatile platform-style fan offering substantial airflow and powerful performance! The casing is extremely robust!!
