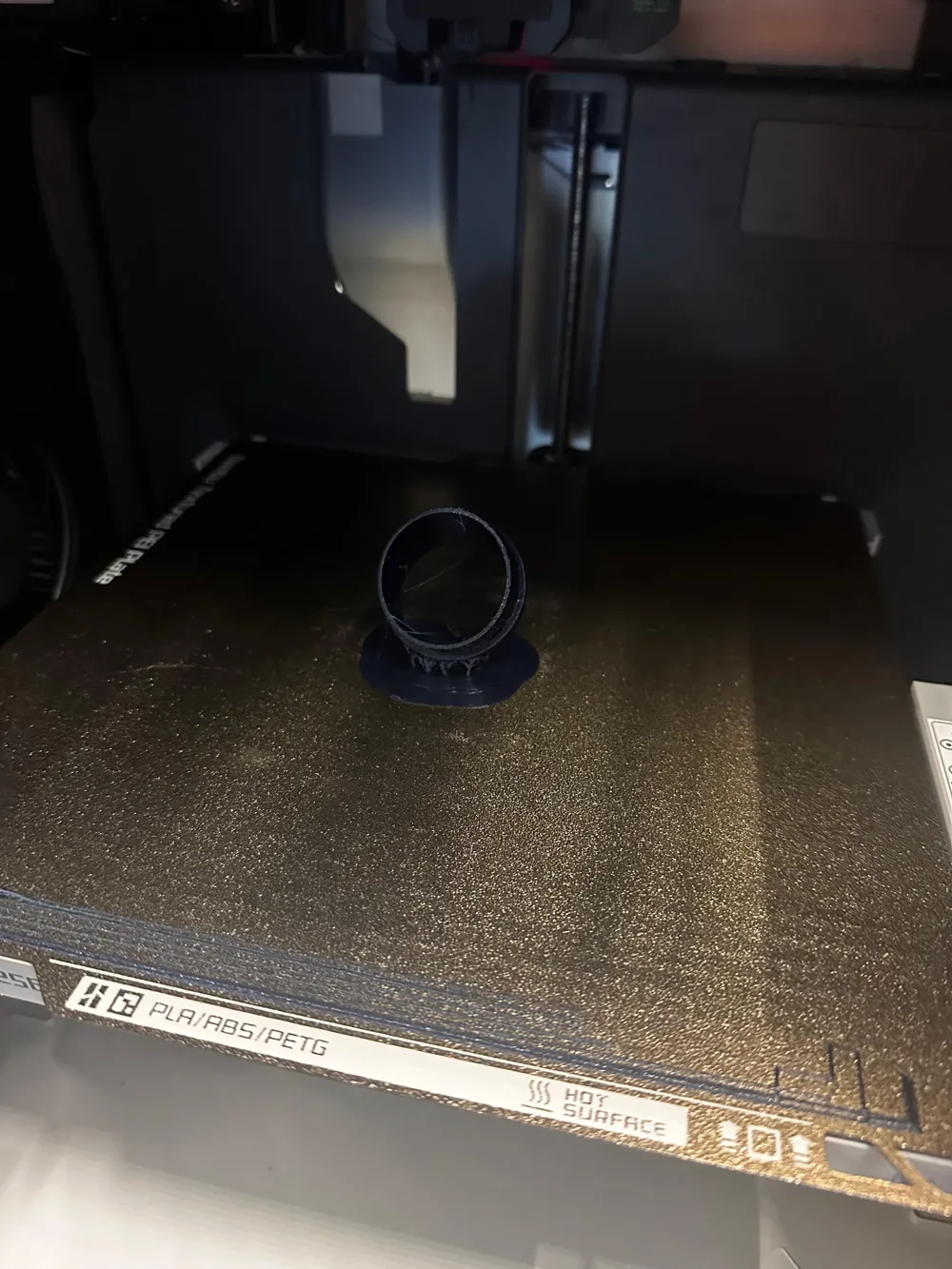

0.12mm layer, 2 walls, 100% infill

Designer

1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

Content has been automatically translated.

Show original

🛠️ English – Technical Description

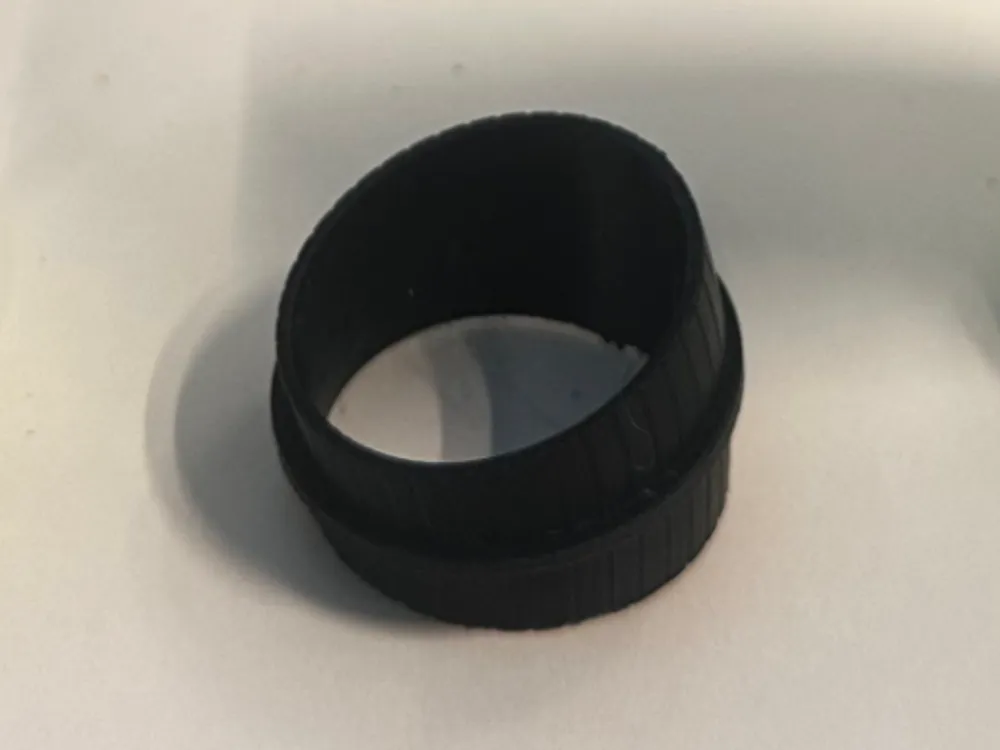

Ribbed Coupling for Ø40 mm Pipe Connection

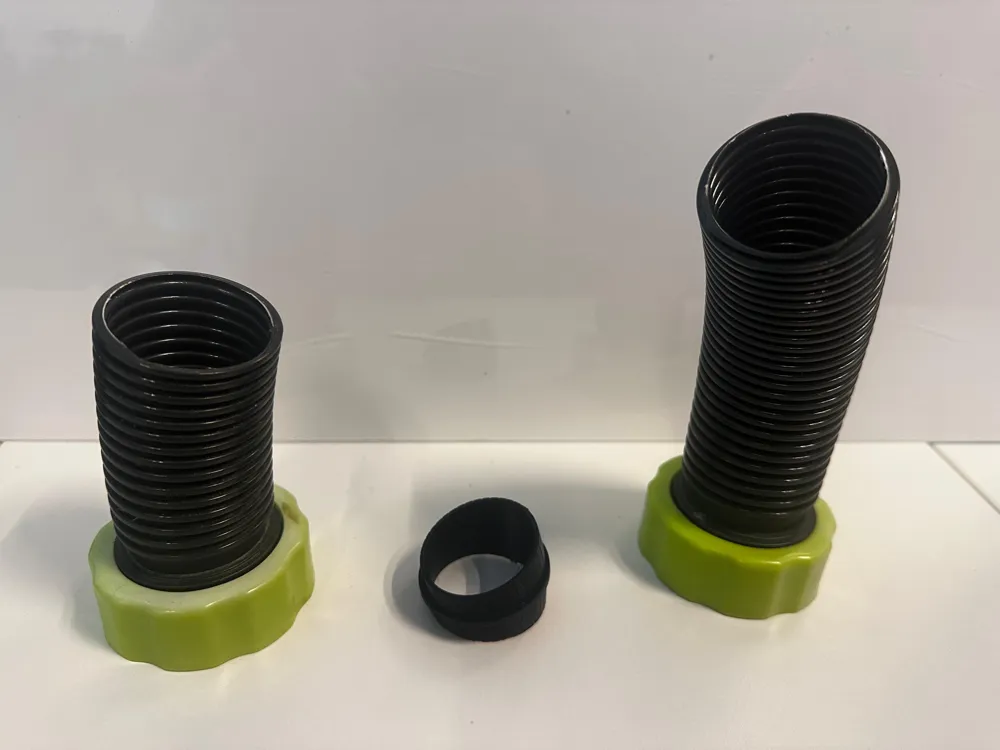

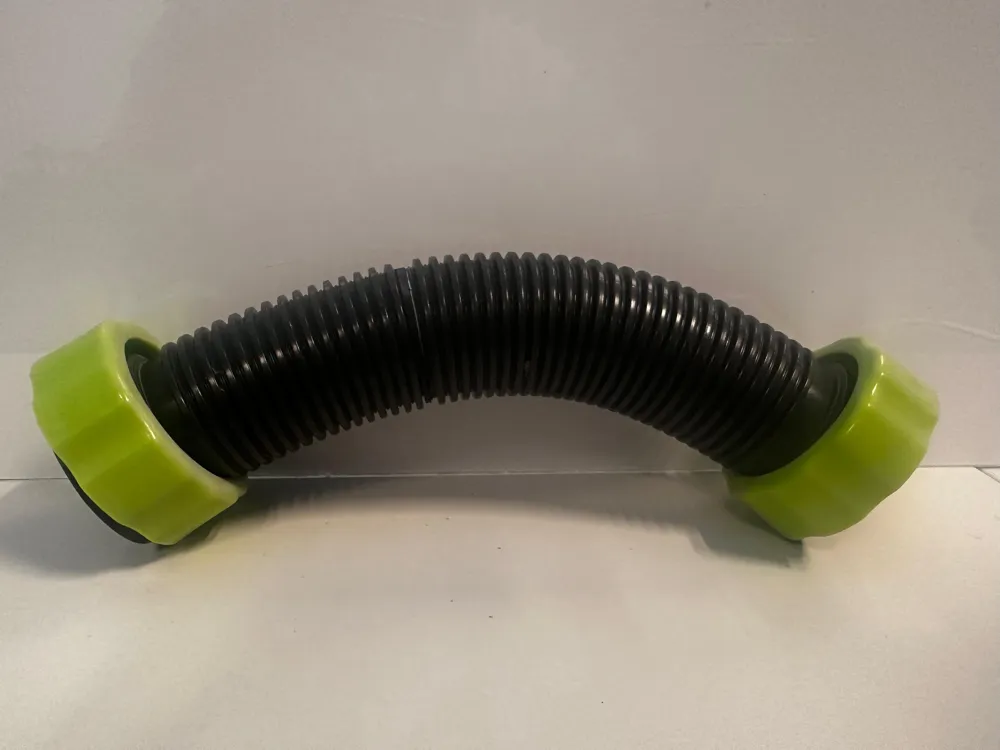

This coupling was engineered to mend a fractured pipe on a Yzaki sand pump

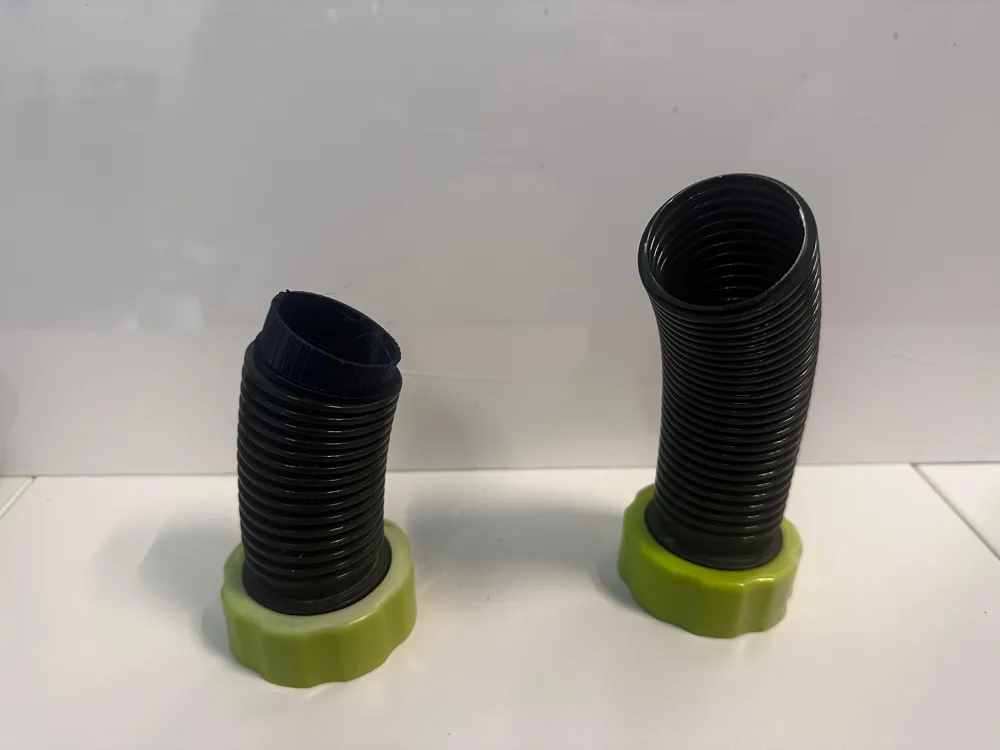

It joins two PVC pipes with a 40 mm outer diameter
The internal surface boasts circumferential ribs to enhance adhesion when employing PVC adhesive
Assembly may be achieved via adhesive bonding or with the use of hose clamps

🔧 French – Technical Description

Manchon rainuré pour raccordement de tuyaux Ø40 mm
Ce manchon a été conçu pour réparer un tuyau cassé sur une pompe à sable de la marque Yzaki.
Il permet de raccorder deux tuyaux en PVC de diamètre extérieur 40 mm.
L’intérieur du manchon présente des nervures circulaires sur le pourtour afin de faciliter l’adhérence de la colle PVC.
L’assemblage peut être réalisé par collage ou à l’aide de colliers de serrage.

repair and maintenance
