Tilta Nucleus M II - Gears
Print Profile(1)
Description

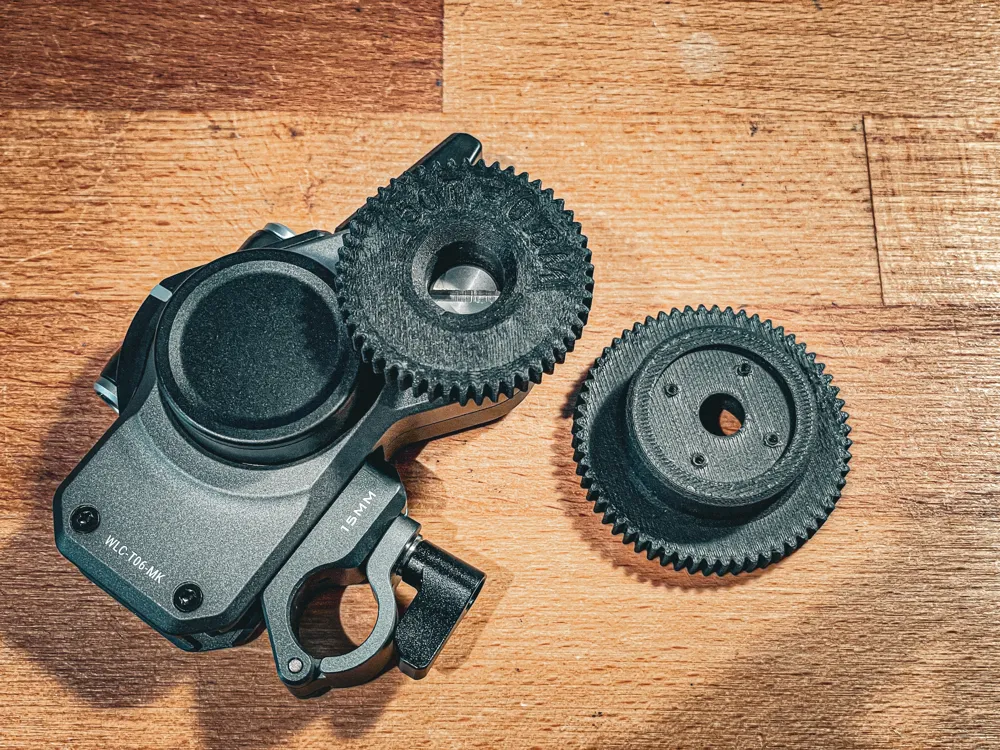

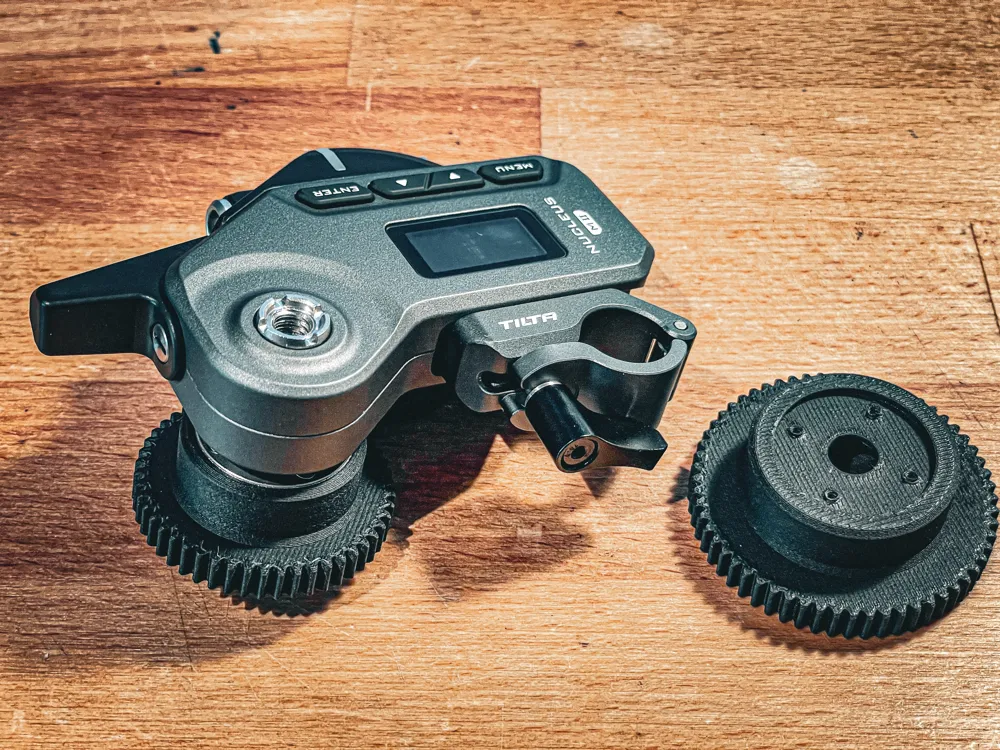

Different Gears for the Tilta Nucleus M II Motors.
Especially to get a bit more distance to the lens.
I recommend printing them out of PLA-CF or even better ASA-CF.

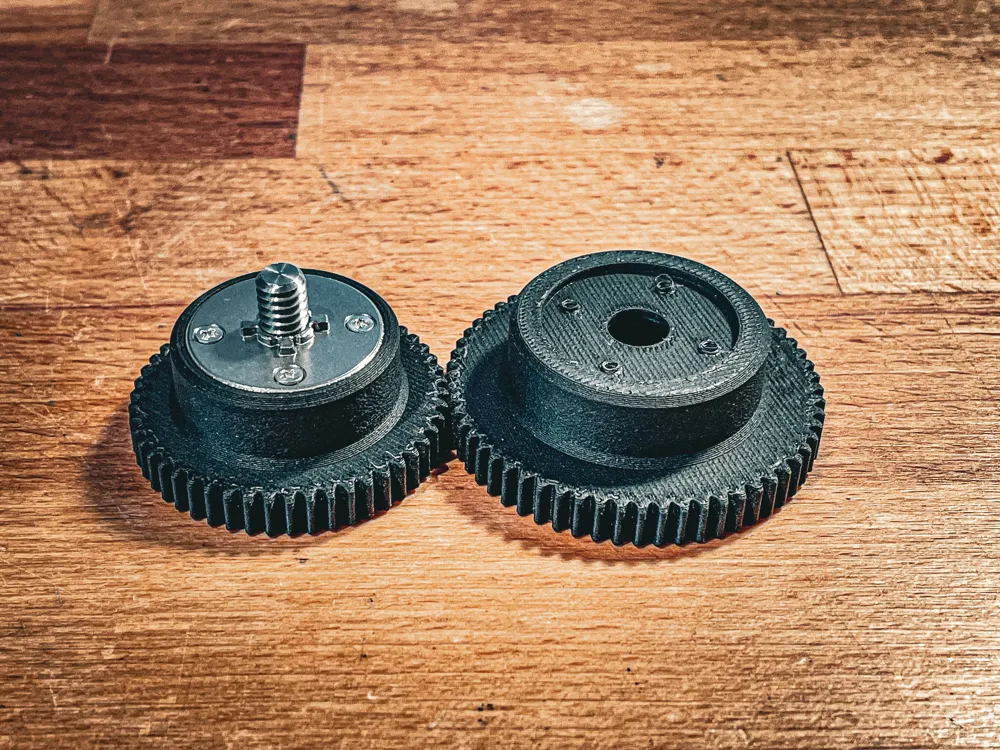

Just unscrew the metal plate from the original gear and screw it onto the printed ones.

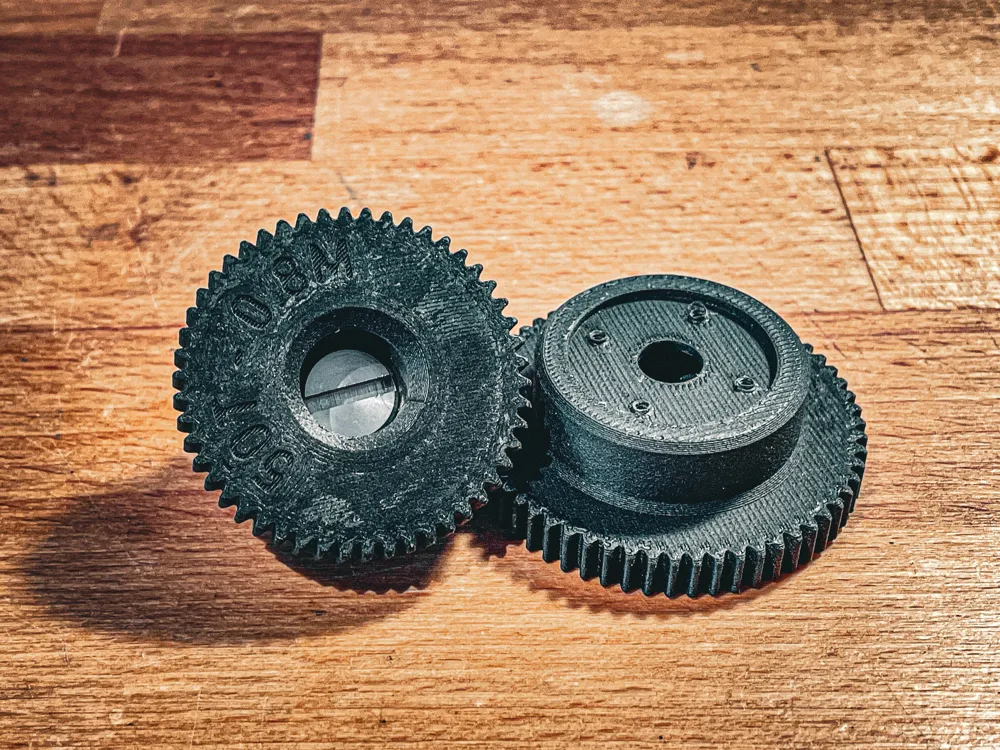

There are 10 different gears available:
Description | File Name |
| Original size | Standard 39T - 0.8M |
| Original size but fat | Fat 39T - 0.8M |
| |
| Medium size | Standard 50T - 0.8M |
| Medium size but fat | Fat 50T - 0.8M |

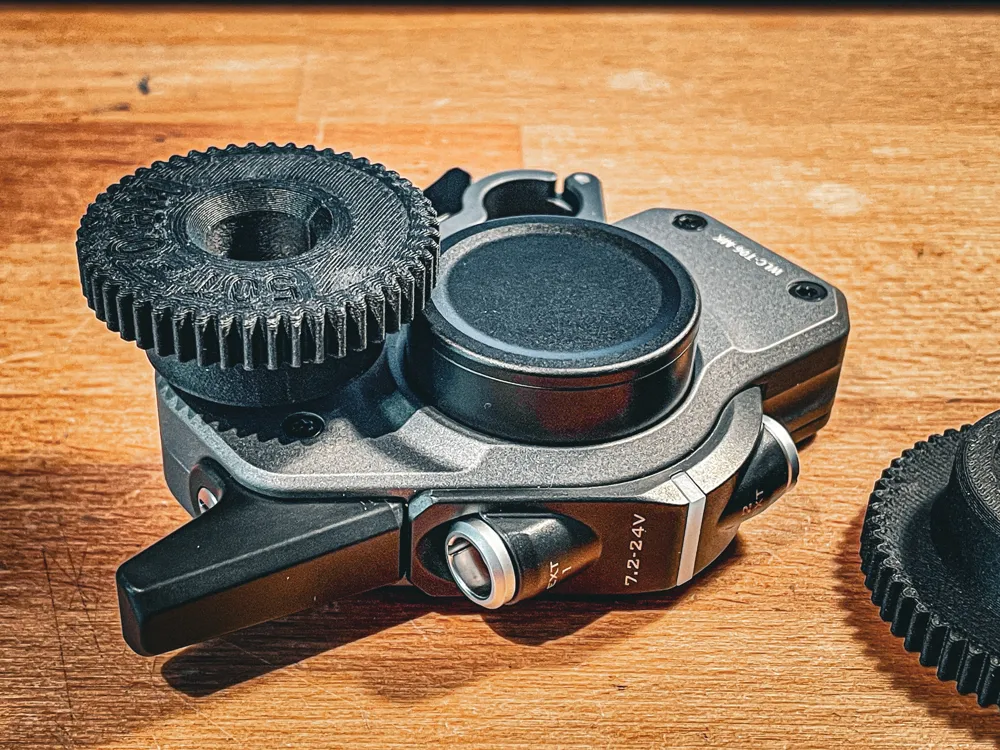

| Medium size high to clear the motor: | High Standard 50T - 0.8M |
| Medium size high and fat: | High Fat 50T - 0.8M |
| Large size | Standard 60T - 0.8M |
| Large size but fat | Fat 60T - 0.8M |
| Large size high to clear the motor | High Standard 60T - 0.8M |
| Large size high and fat | High Fat 60T - 0.8M |
Have fun printing and respect the model license. You cannot sell them!
