10" Rack Mount Universal, 15cm deep, 214mm internal
Print Profile(2)
Bill of Materials
Description

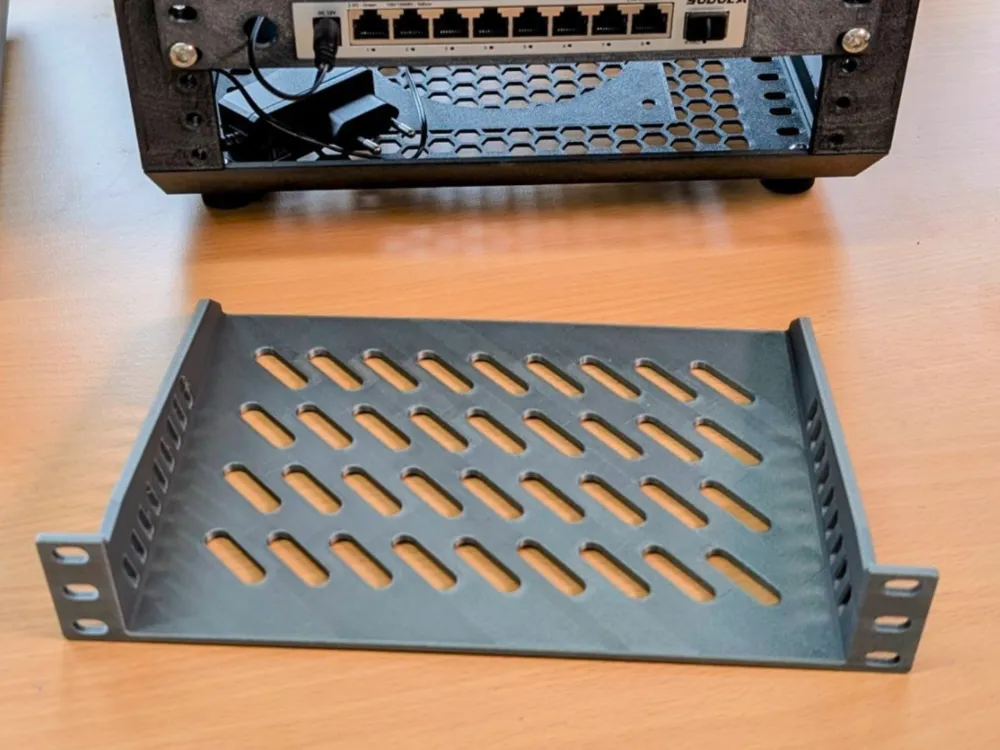

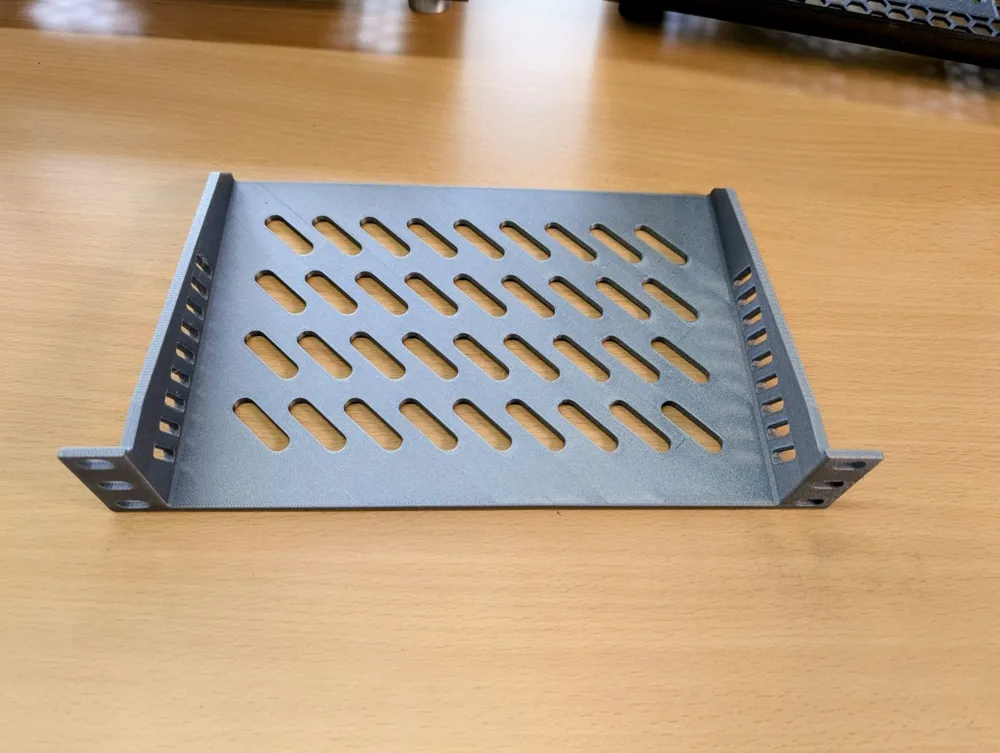

Universal device carrier / Rack insert for 10" racks

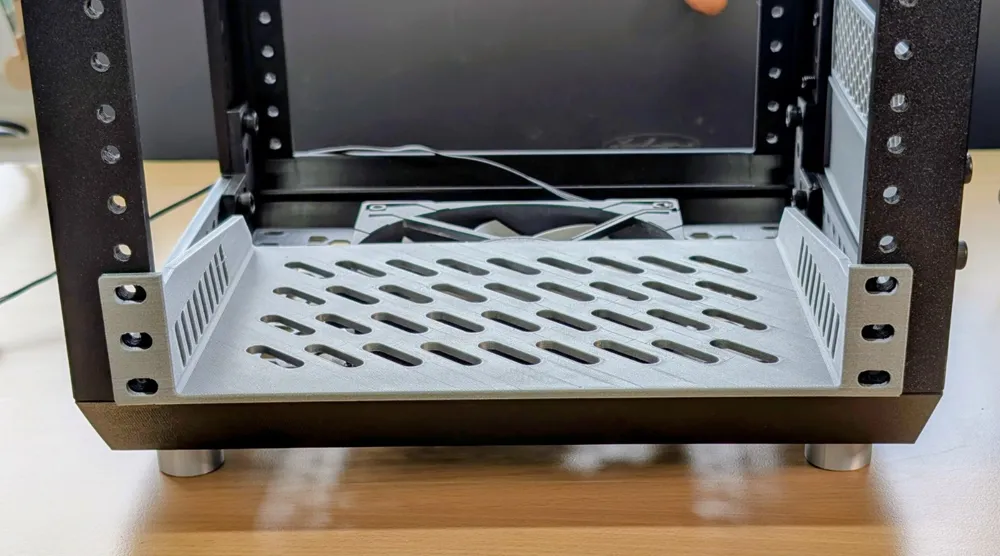

Should fit all 10" racks
Specially designed for my own 10" enclosure:
https://makerworld.com/en/models/1601846-10-rack-enclosure-10-per-side-3-4-5u-high#profileId-1688552
Ventilation openings at the bottom and sides
10" format
Inner width = 214mm
Insert width = necessary clear width of the rack = 222mm
Measure your rack before printing! Alternative version with 218mm available, alternative widths on request!
Depth 150mm
1U
Overall width at the outer bezel 254mm
Hole to hole distance: 235mm (10" standard dimension)
Distance between the 3 holes vertically: 15.88mm
Distance from the outer hole to the bottom / top edge: 6.35mm
PLA also works, but I recommend PETG. Especially PETG-HF or PETG-CF

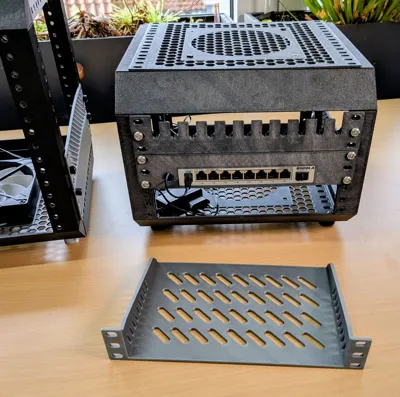

The device in the photo is printed in PETG-CF with carbon fiber content.
Looks extremely good in reality!
Profile settings can be adopted 1:1, simply change the filament from PLA to PETG-CF / HF.
PS.: here is a rack carrier variant with an adaptable front bezel:
https://makerworld.com/en/models/1647806-10-universal-rack-mount-13cm-depth-interchangeable#profileId-1741804
13cm deep, including bezel and fixture for a switch (or other devices)
