XDJ-AZ/RX3, CDJ2000/3000 nxs /x Screen Sunshade

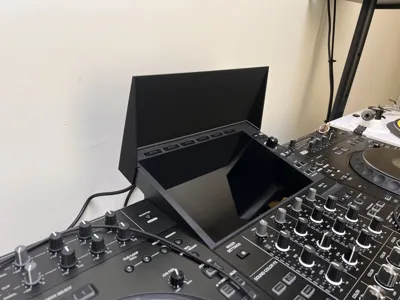

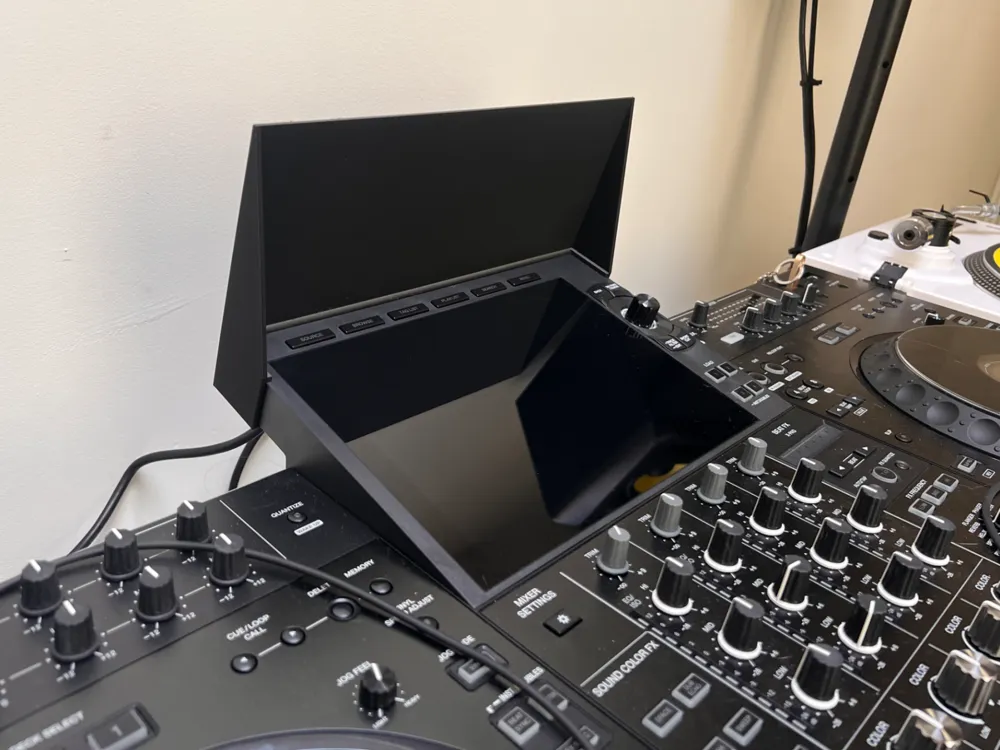

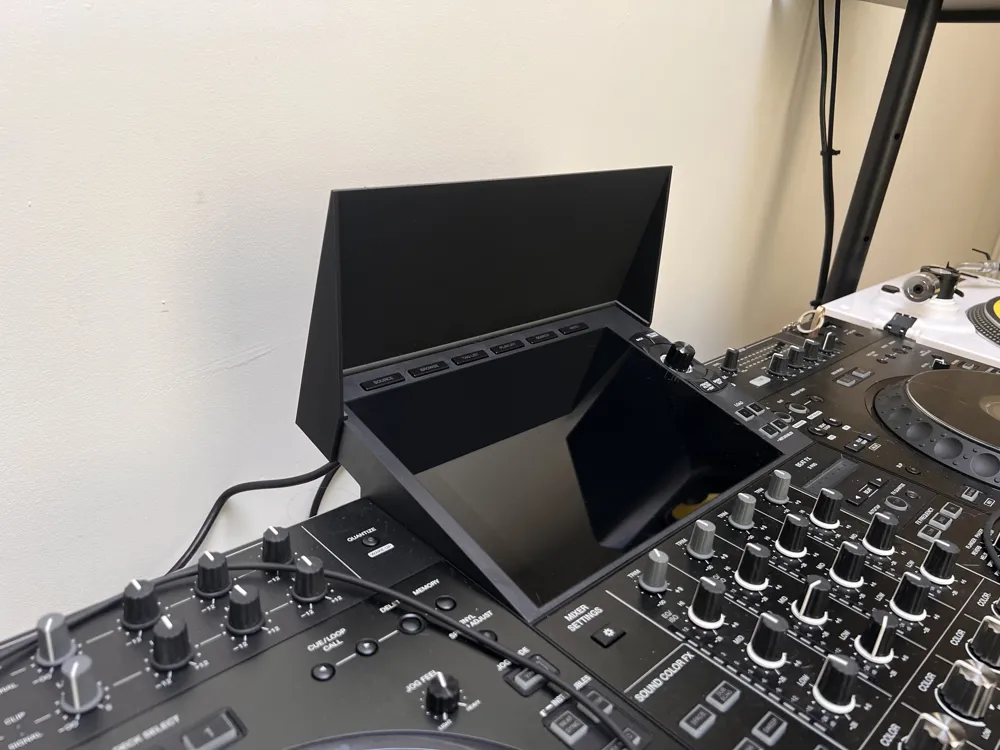

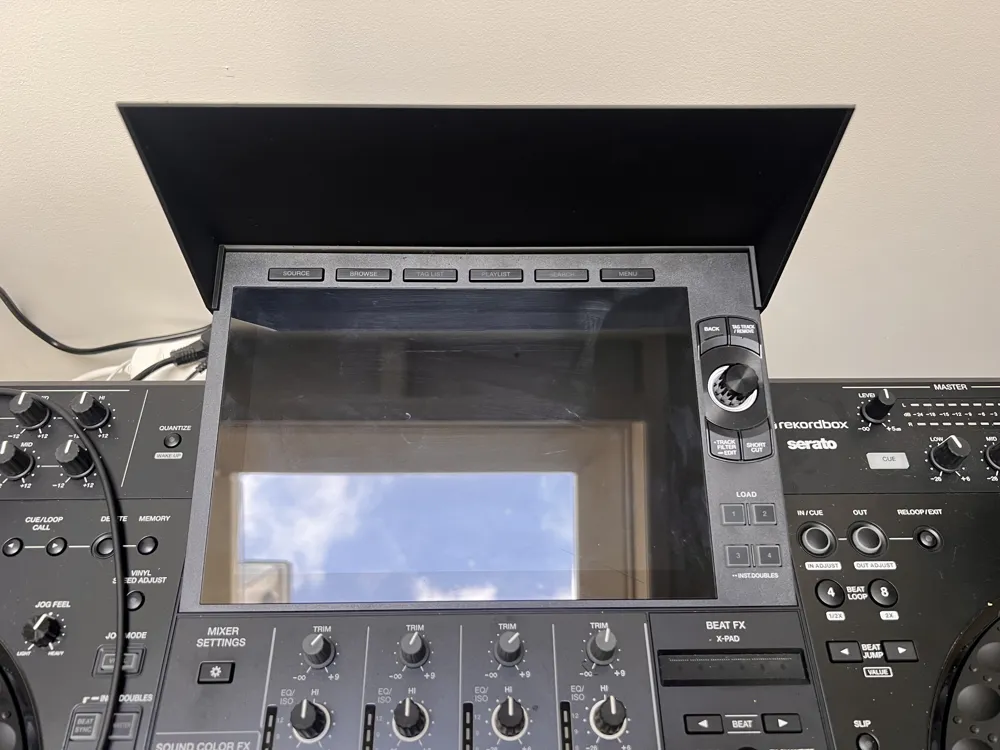

This is a 3D printable sunshade designed for AlphaTheta / Pioneer DJ standalone DJ units. It effectively blocks ambient and direct sunlight to improve screen visibility during outdoor or high-glare use.

Compatible Devices

• AlphaTheta XDJ-AZ
• AlphaTheta CDJ-3000X
• AlphaTheta CDJ-1500X (uses same model as 3000x, needs validation)
• Pioneer DJ XDJ-RX3
• Pioneer DJ CDJ-2000NXS
• Pioneer DJ CDJ-3000

(Check the model files/variants for your specific device — each sunshade is sized to fit that unit.)

Print Orientation

• XDJ-AZ, CDJ-3000X, CDJ-1500X (10.1" screen models): model is optimized for diagonal orientation on standard-sized print beds, ensuring compatibility with typical FDM printers. For users with larger print beds (e.g., H2D or similar), printing in a different orientation can further reduce total print time by enabling more optimal slicing.
• Other supported devices (XDJ-RX3, CDJ-2000NXS, CDJ-3000): printed in standard orientation, no special bed size considerations

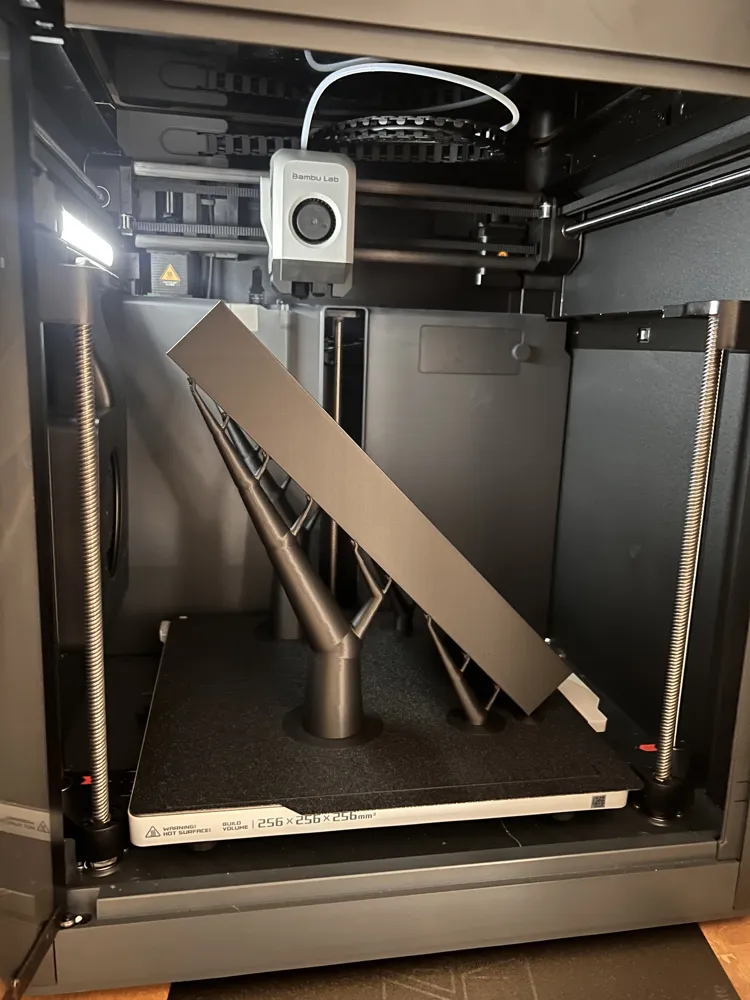

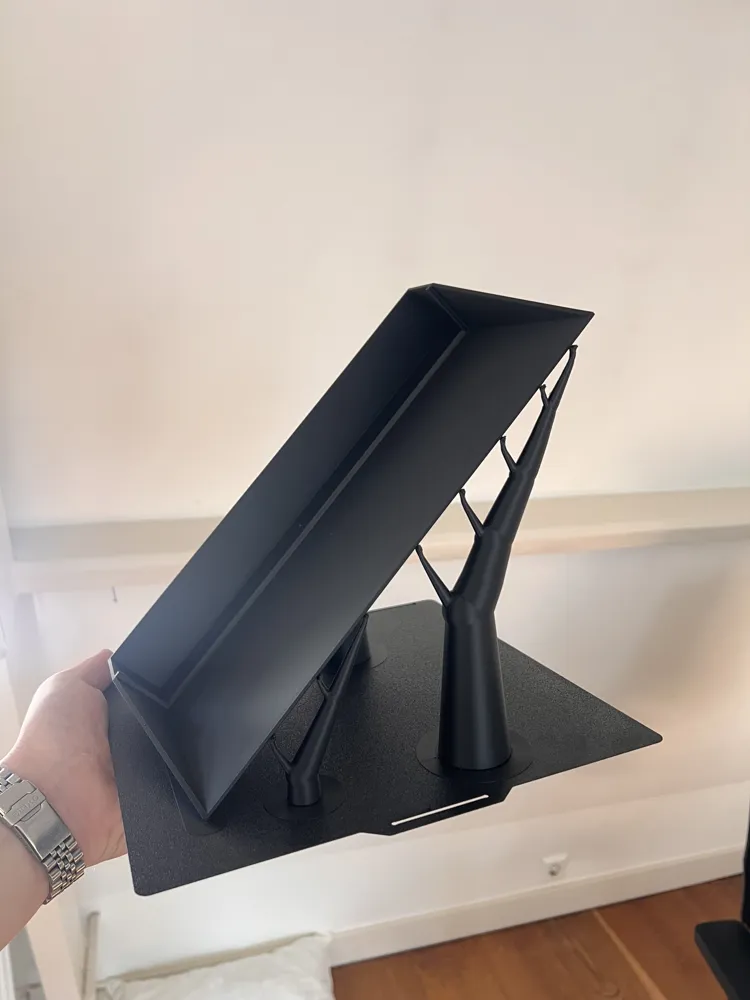

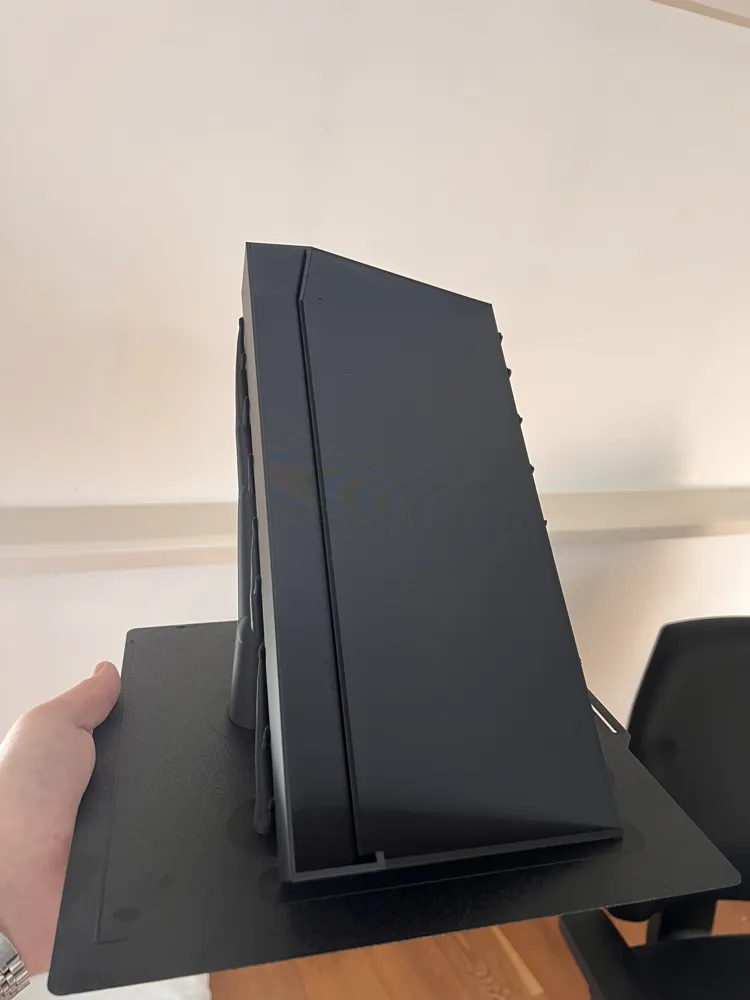

Manual tree supports are integrated into the design to reduce surface artifacts and ensure cleaner overhangs. Suggested materials are ABS, ASA, or PETG to withstand elevated temperatures encountered during outdoor use.

Are you missing a model? You can provide me the measurements (width and thickness of the screen) and i will create a new print profile!

Example of measurements needed:
