Thermoworks RFX Temp Probe and Gateway Insert

IP Report

Print Profile(1)

All
H2D
H2D Pro

0.2mm layer, 2 walls, 15% infill; 2 4 6 probe configurations
0.2mm layer, 2 walls, 15% infill; 2 4 6 probe configurations
Designer
29.6 h
3 plates
4.0(1)

Open in Bambu Studio
Boost
11
33
11
6
37
18
Released

Description

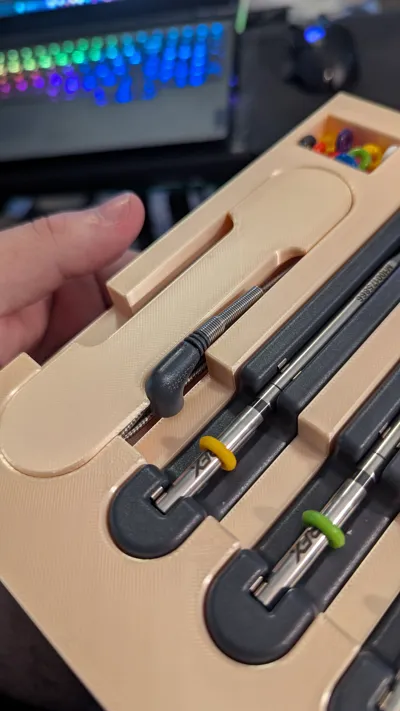

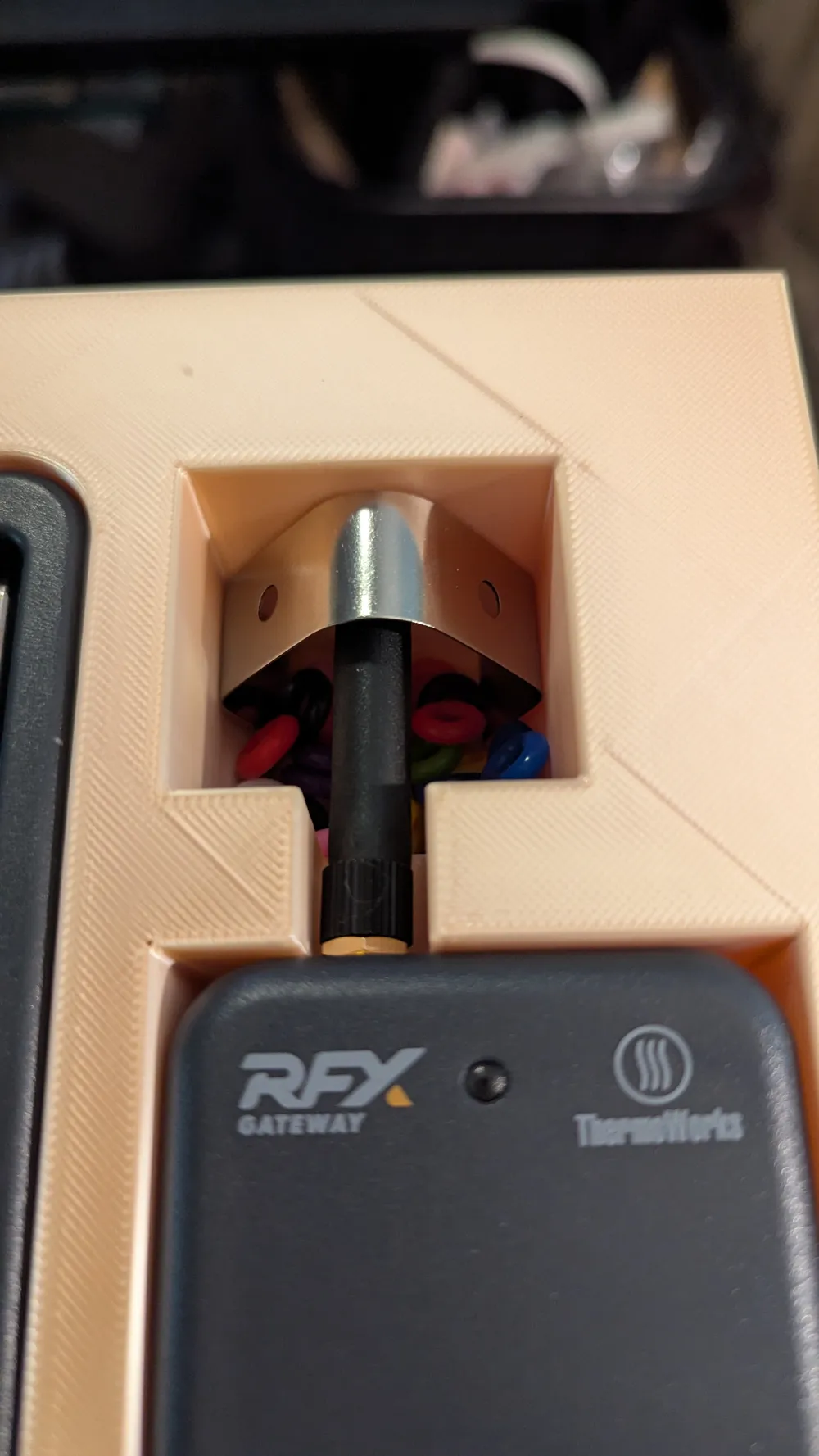

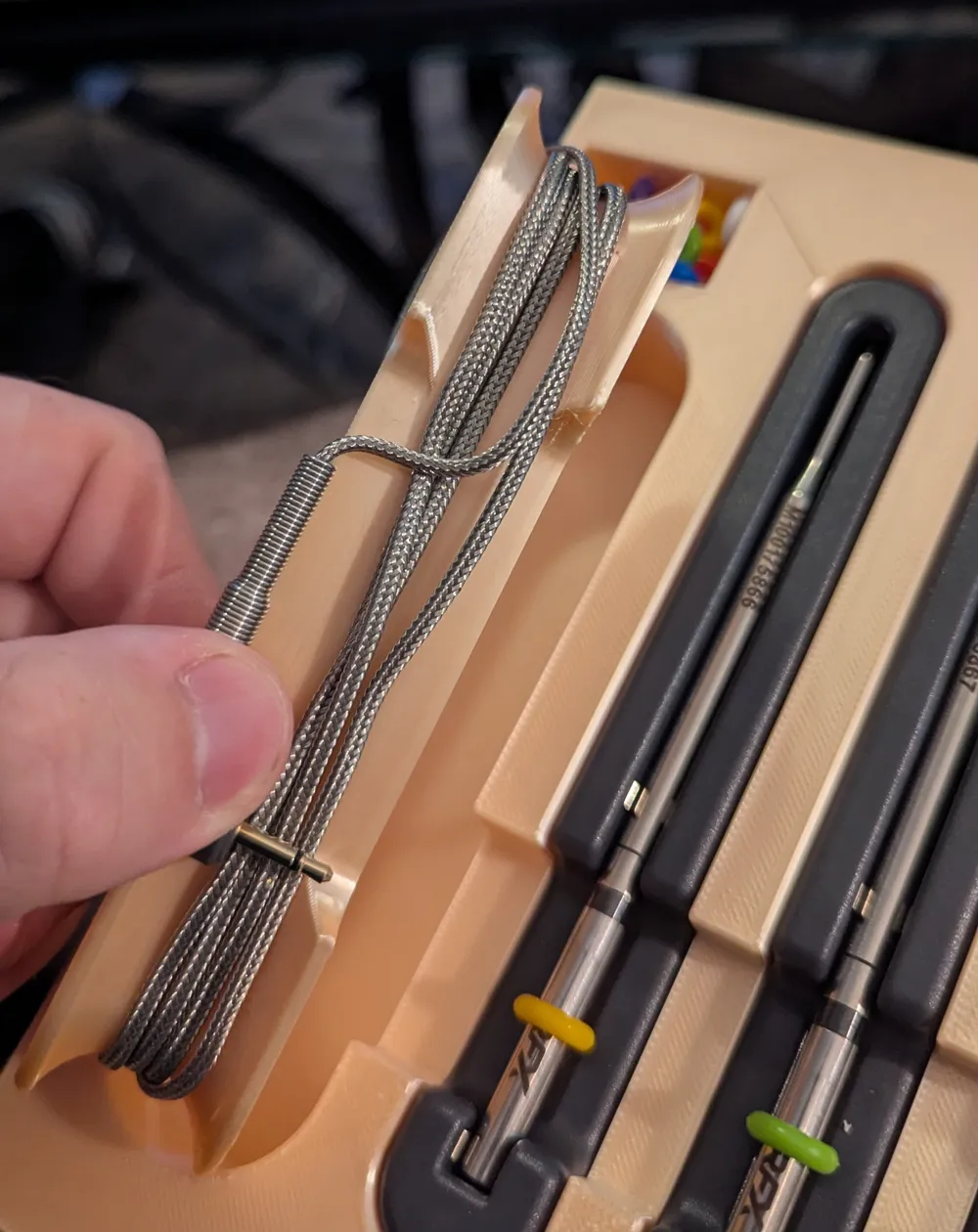

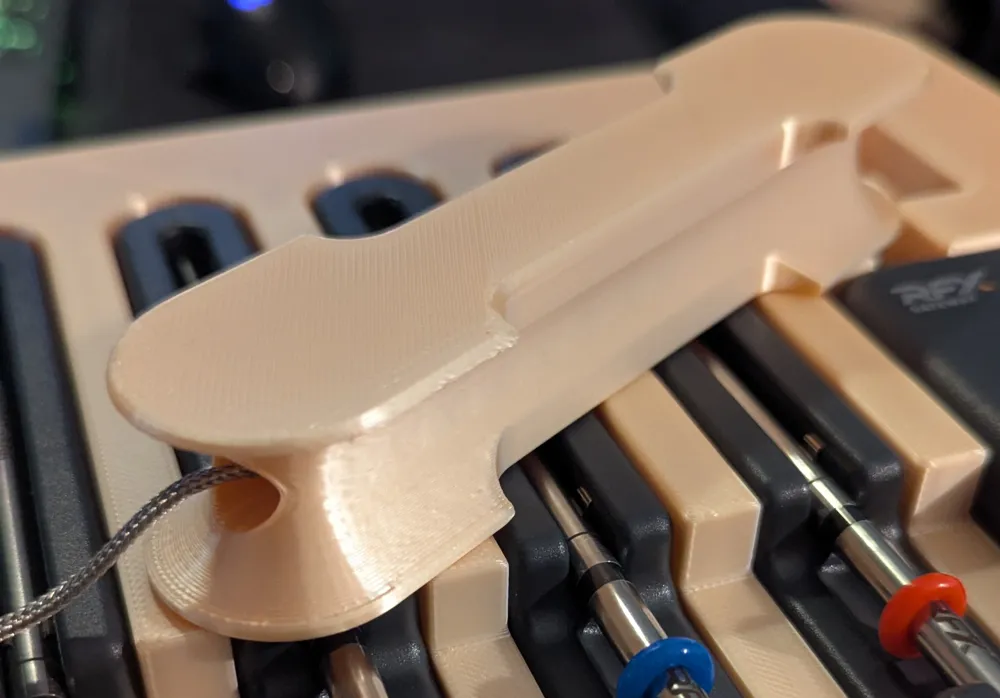

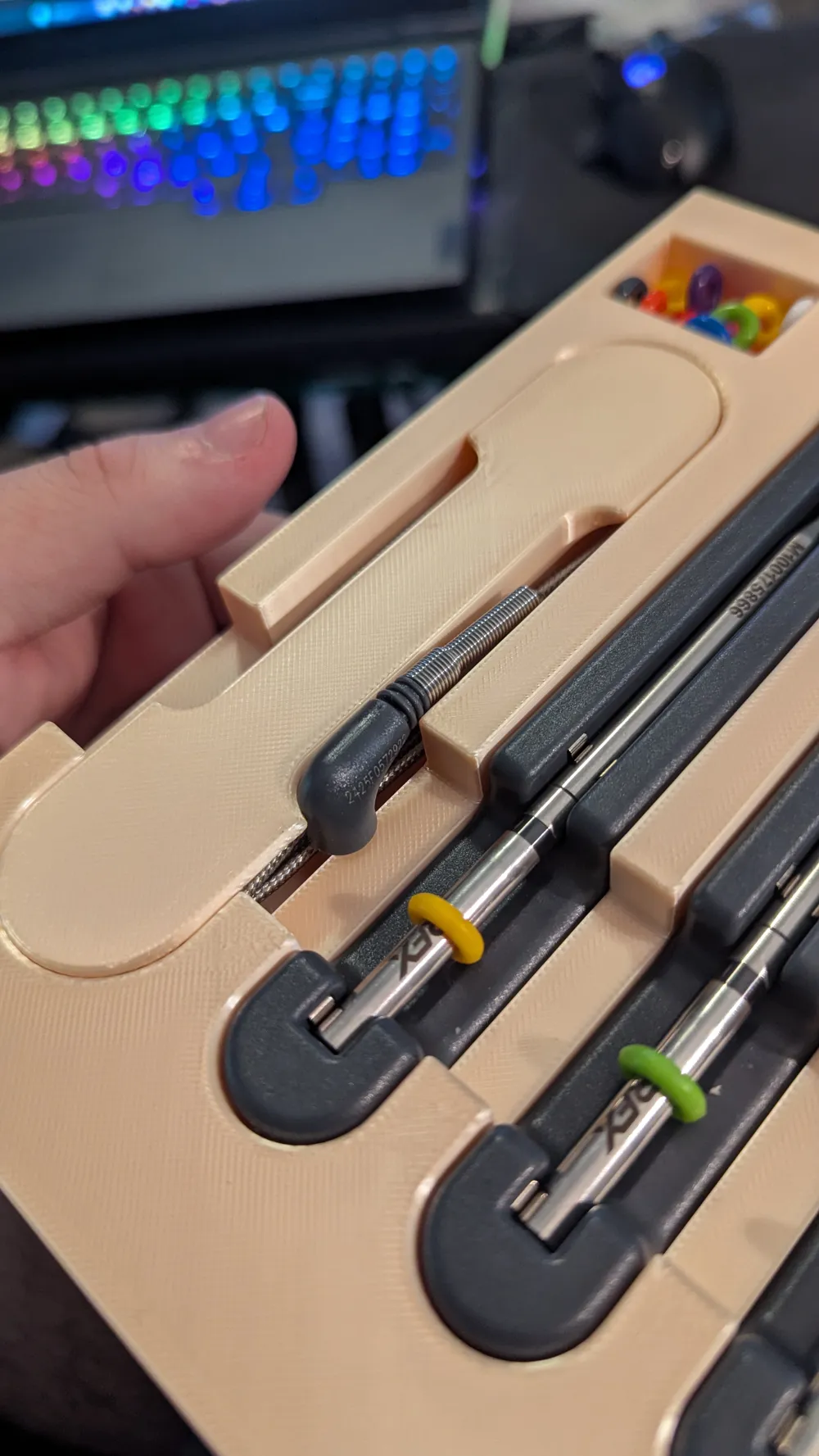

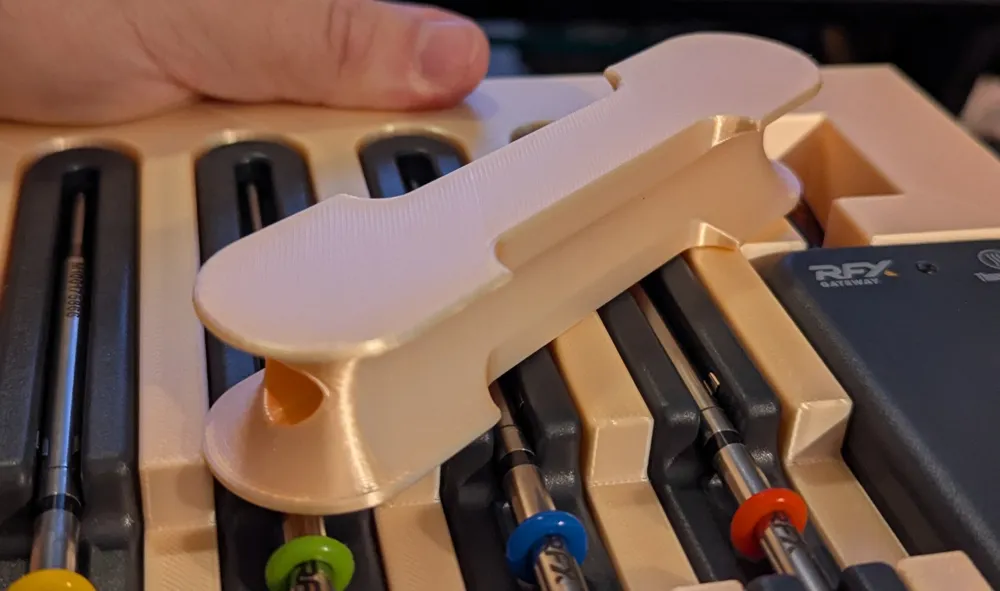

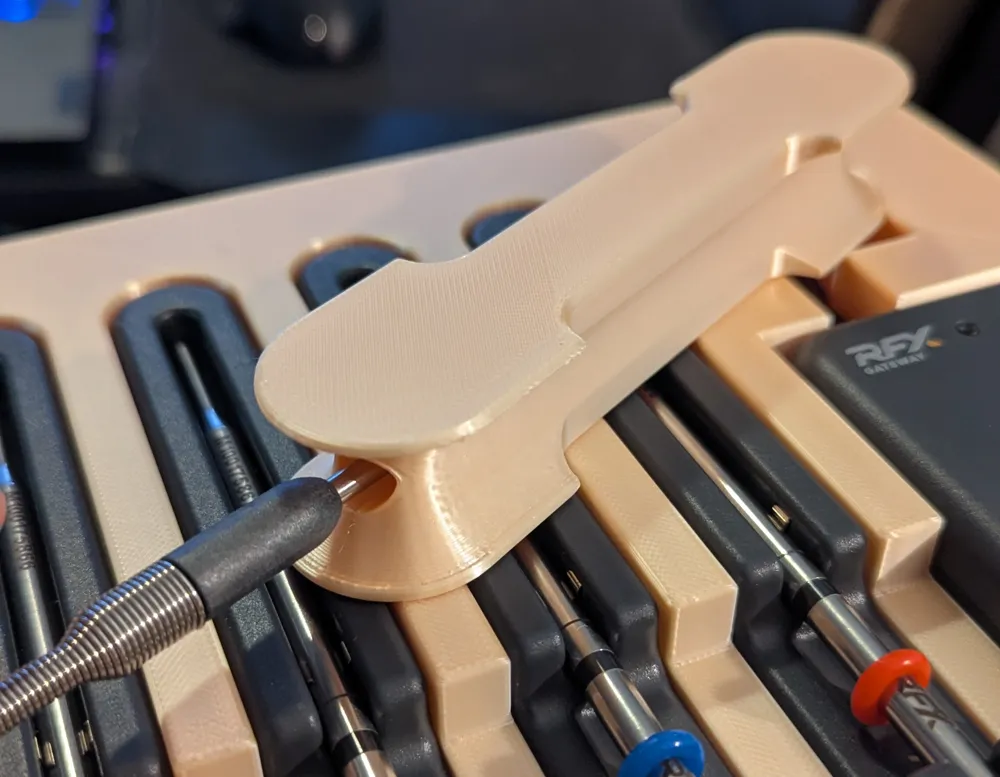

I recently purchased the 4 pack of the Thermoworks RFX 4 probe gateway combo, but was disappointed that the included insert required me to put the ambient temperature sensor underneath the insert, along with it's grate holder. Well this print changes all that!

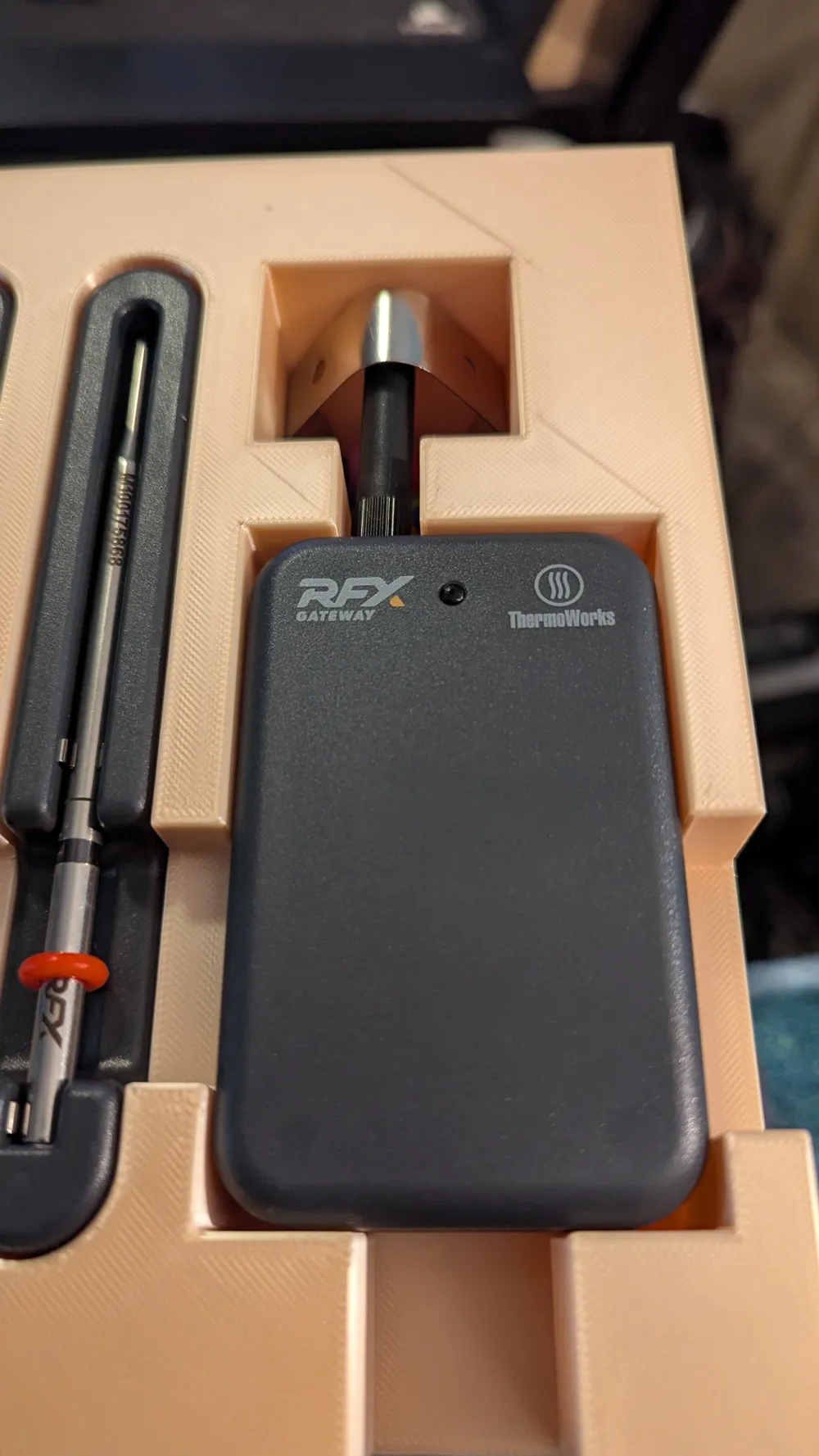

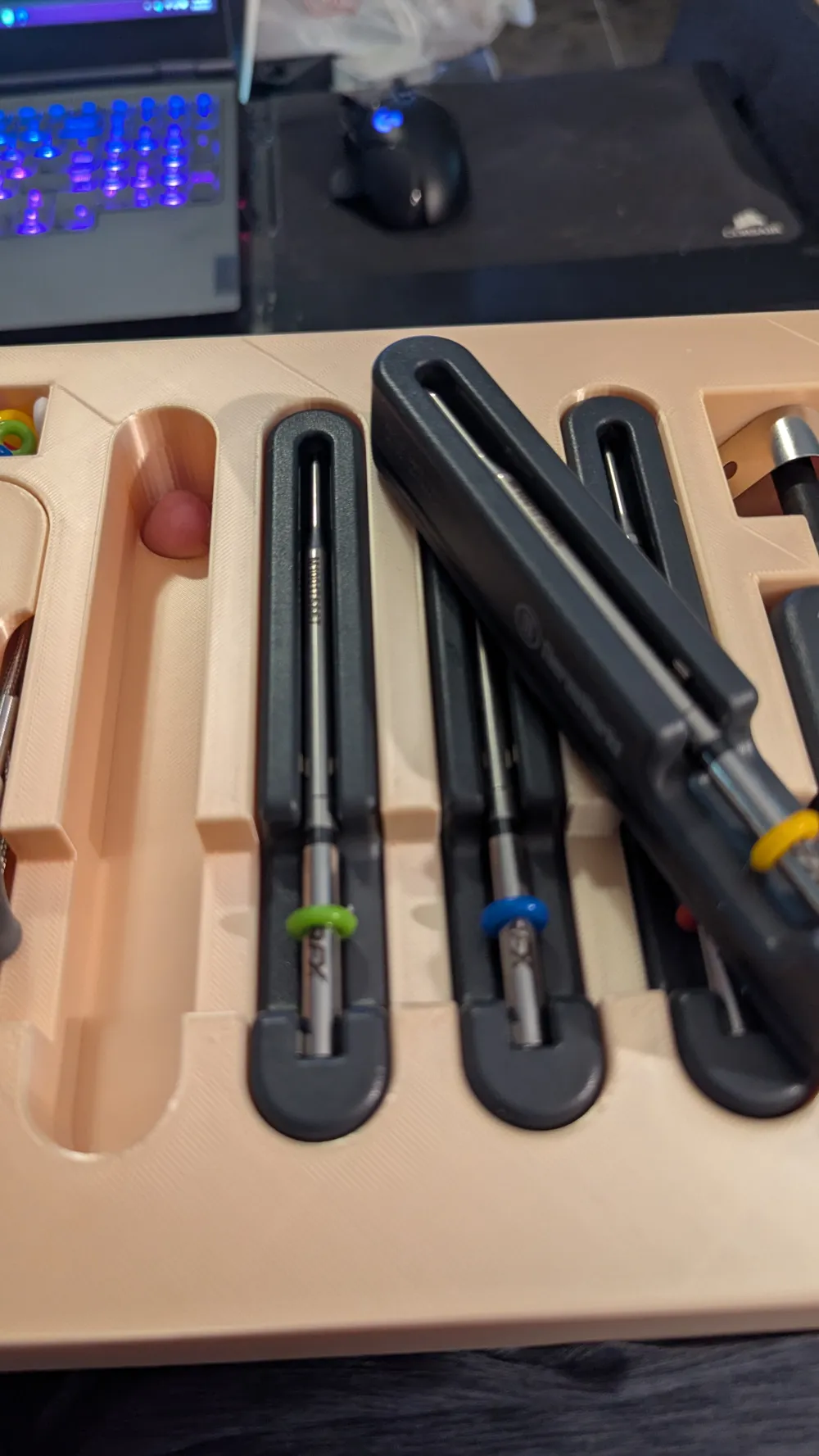

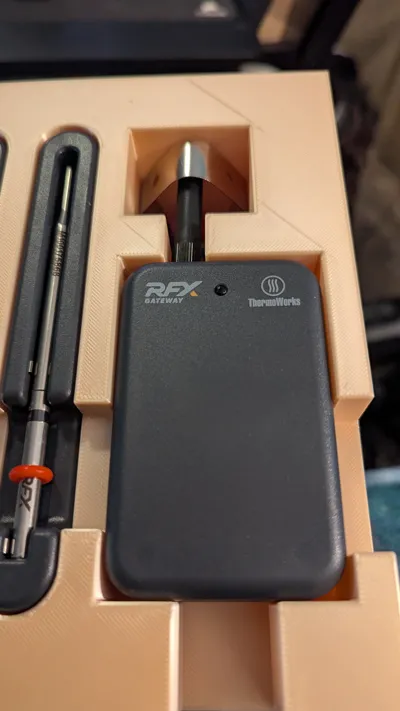

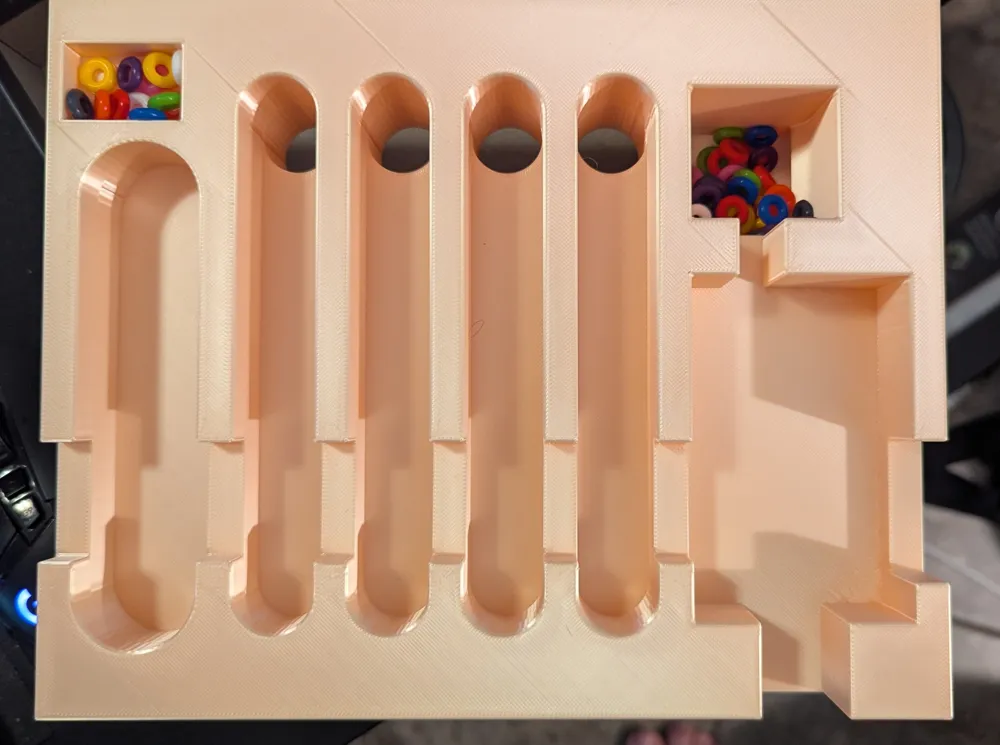

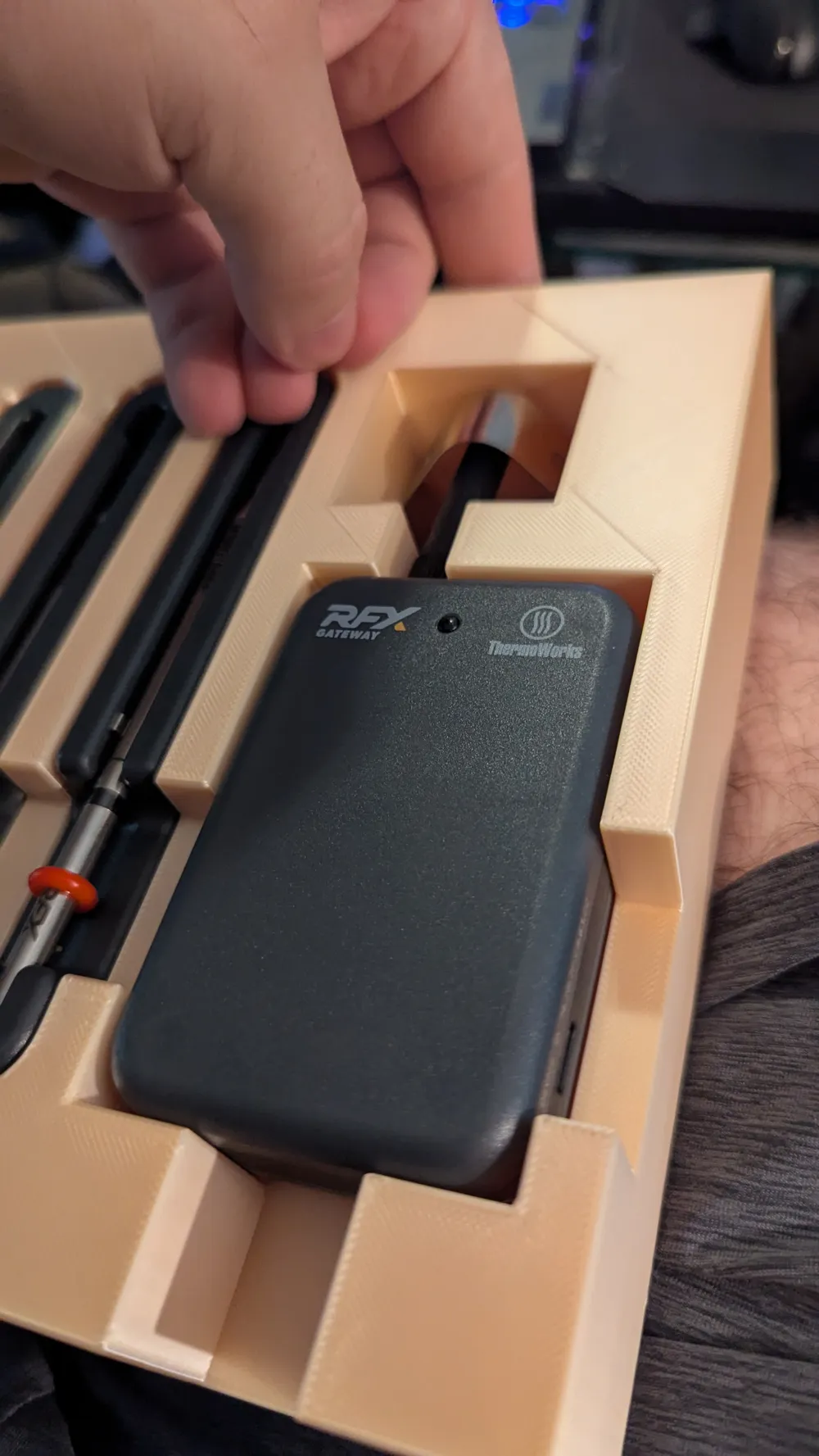

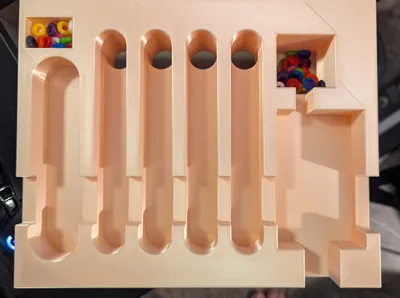

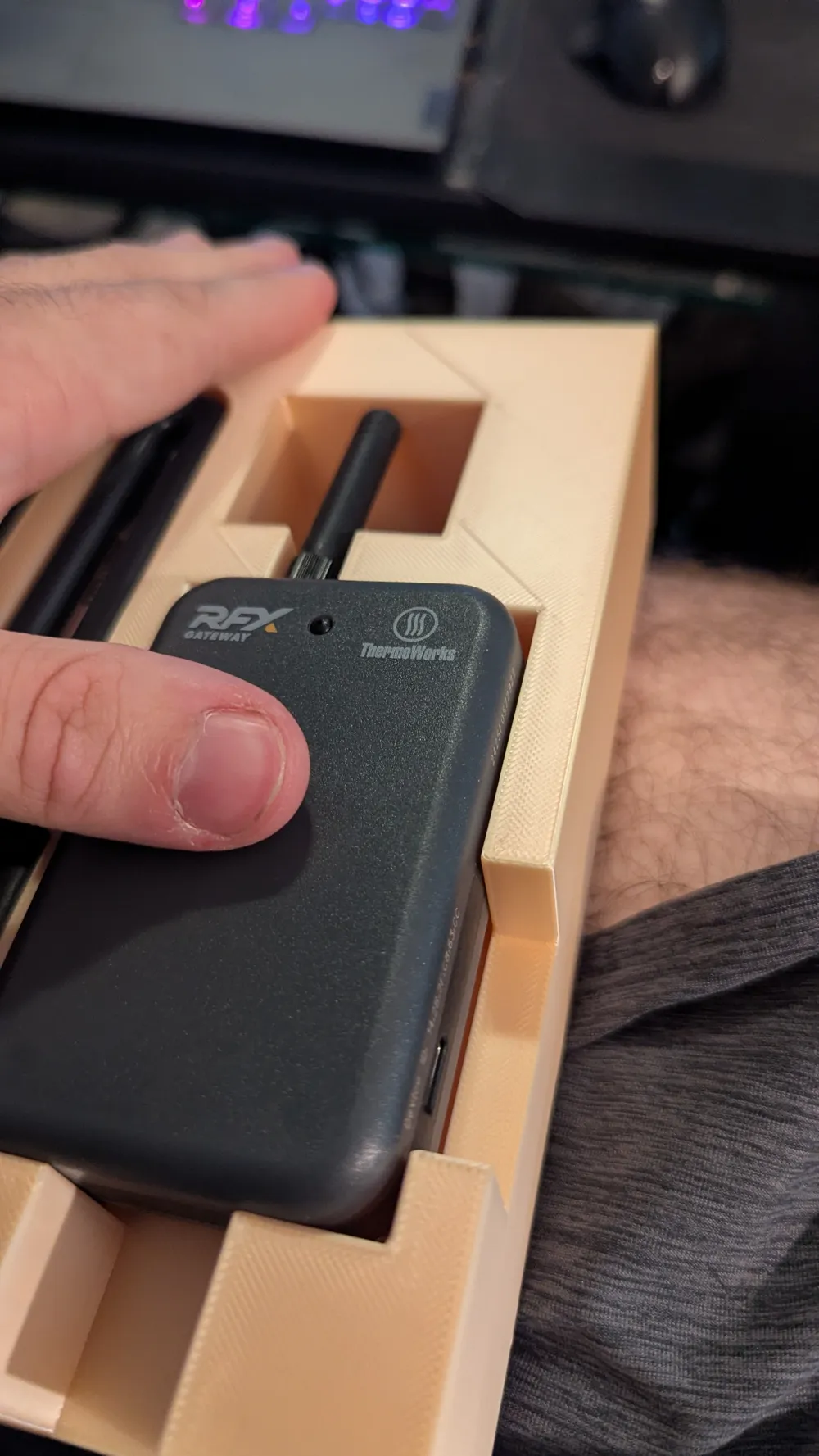

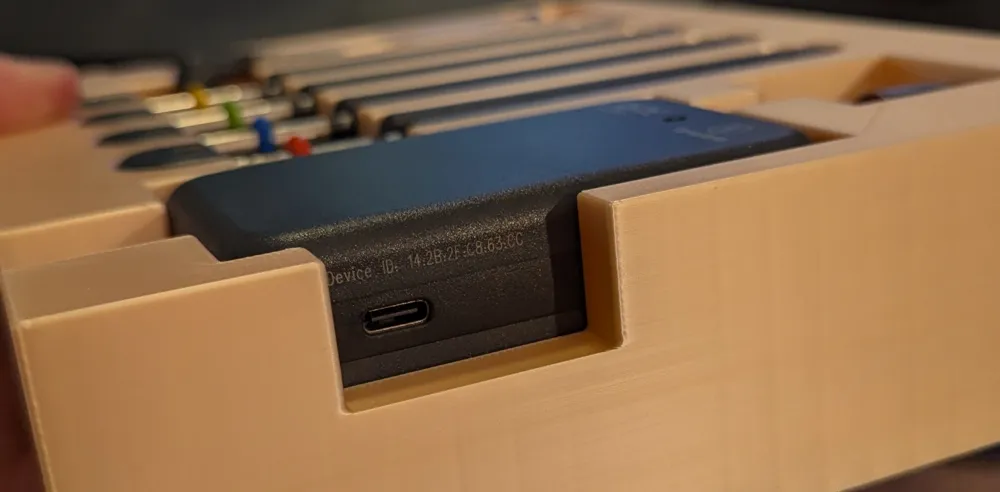

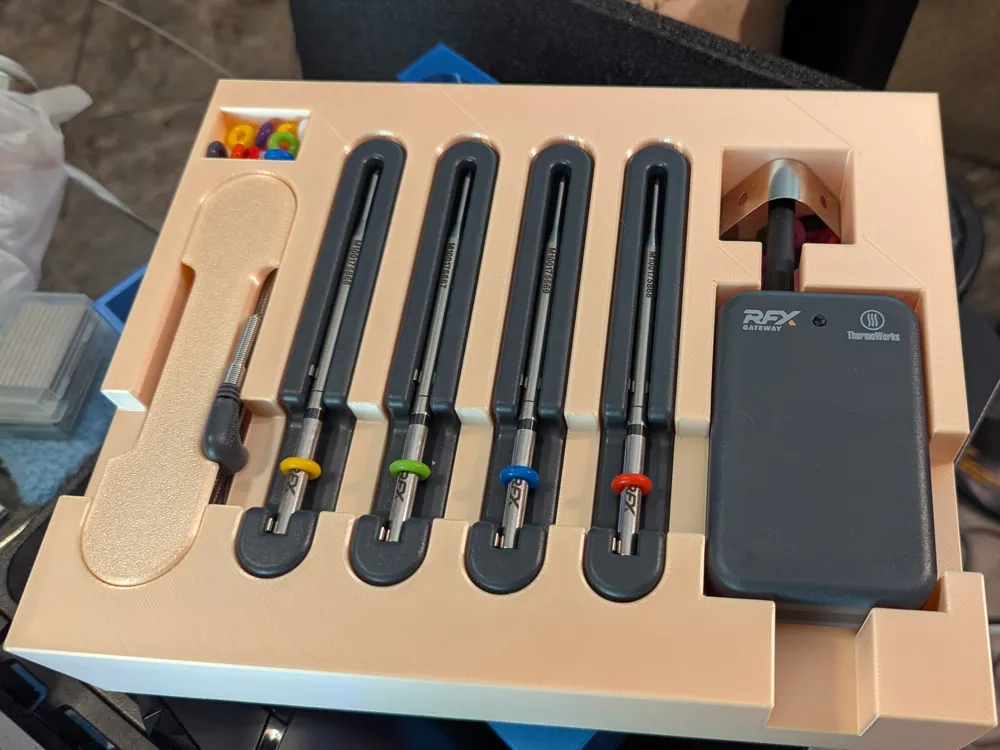

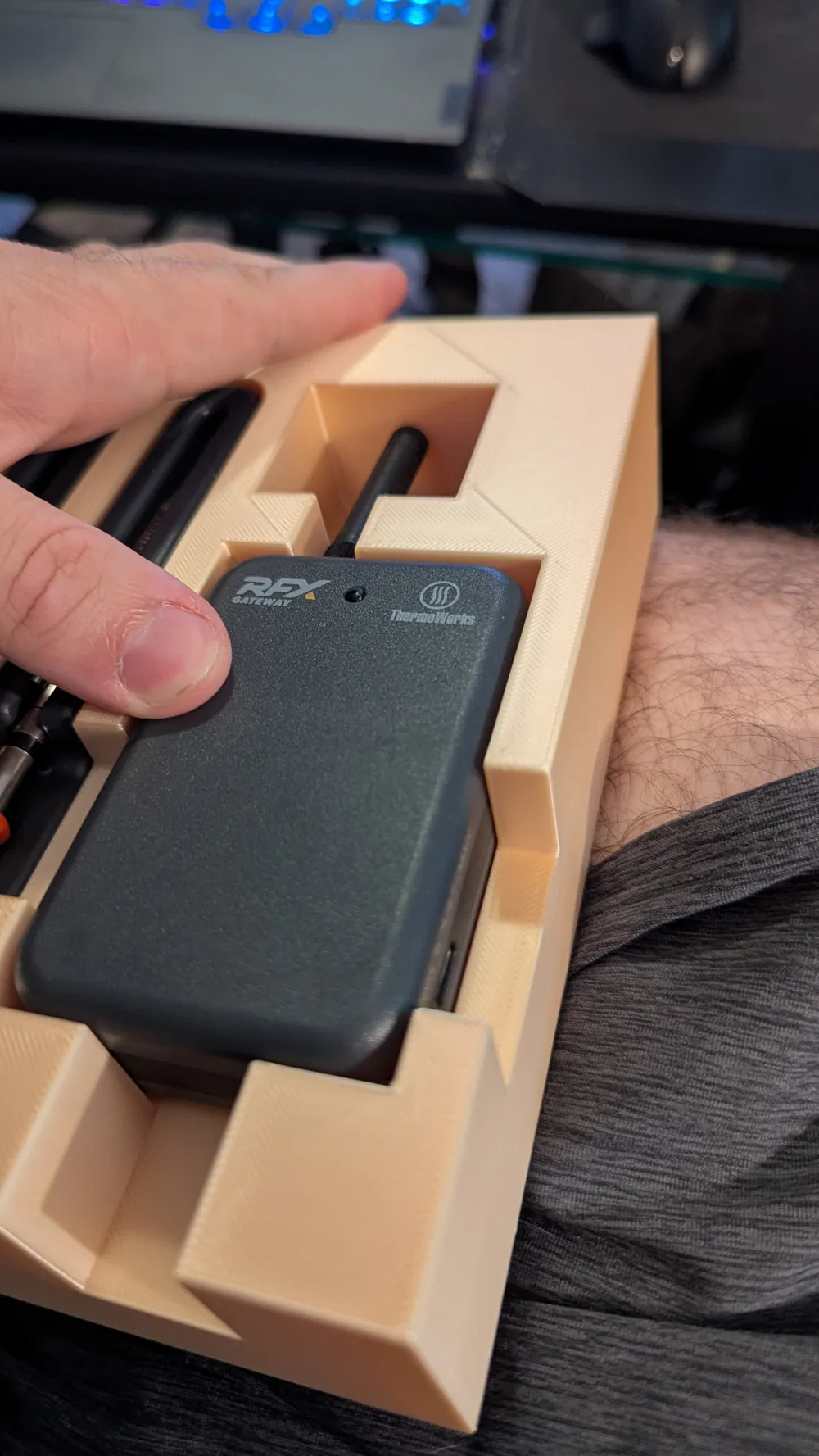

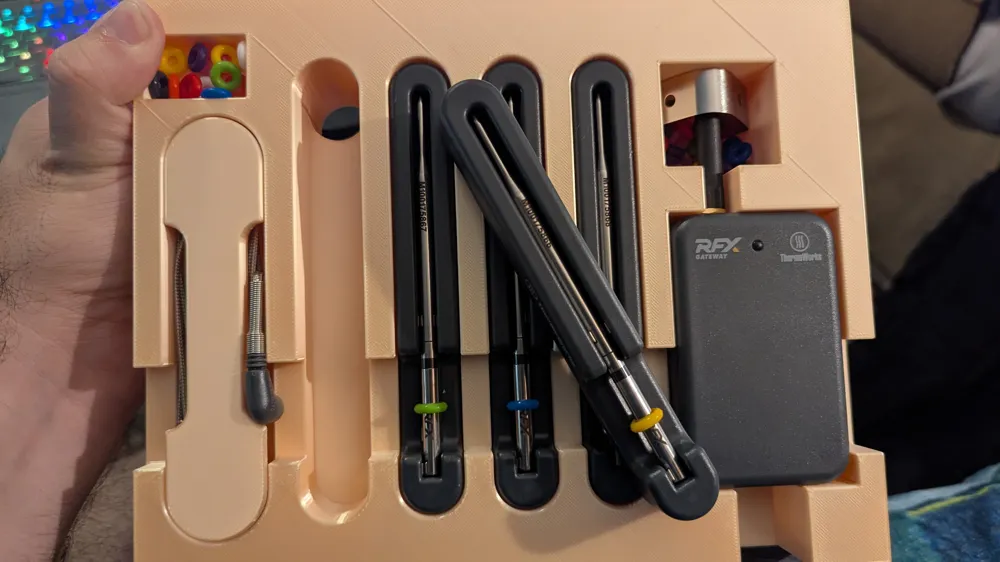

This is designed to fit in the original box of the 4 probe combo, and provides set places for each of you probe chargers, the Wireless Gateway, and allows you to charge it via it's USB port while it's stored! It requires no additional tools, or magnets, and is all press-fit. to make it easier to remove the probe chargers, I added holes in the slots so you can push them out from below.


Basically, It solves all my problems, and I wanted to share my first design.



I made this model parametric, so you can specify the number of probes you want the insert to hold from 1-6.
