Drain Strainer, Kitchen sink drain particle filter

Corner Sink Strainer Filter (Square Sink Compatible)

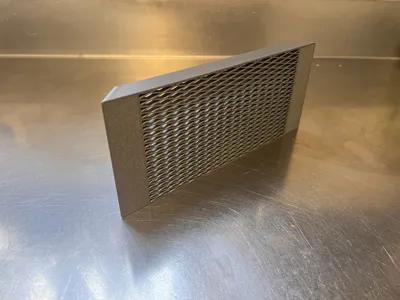

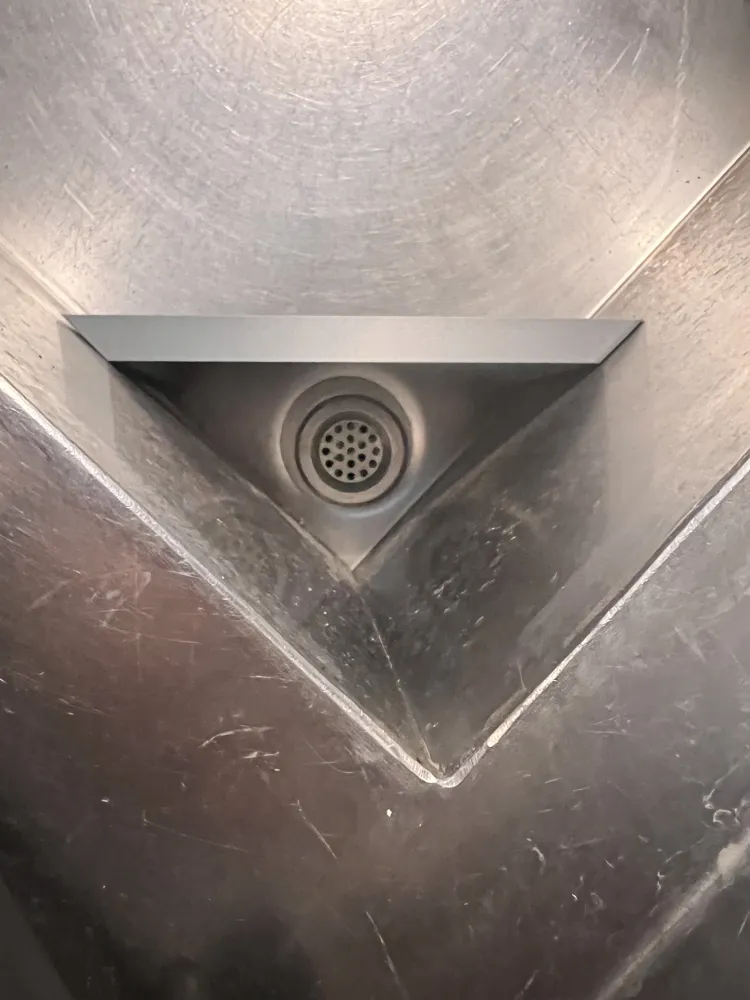

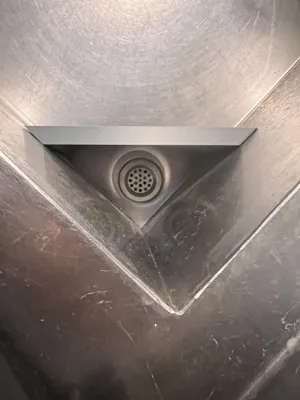

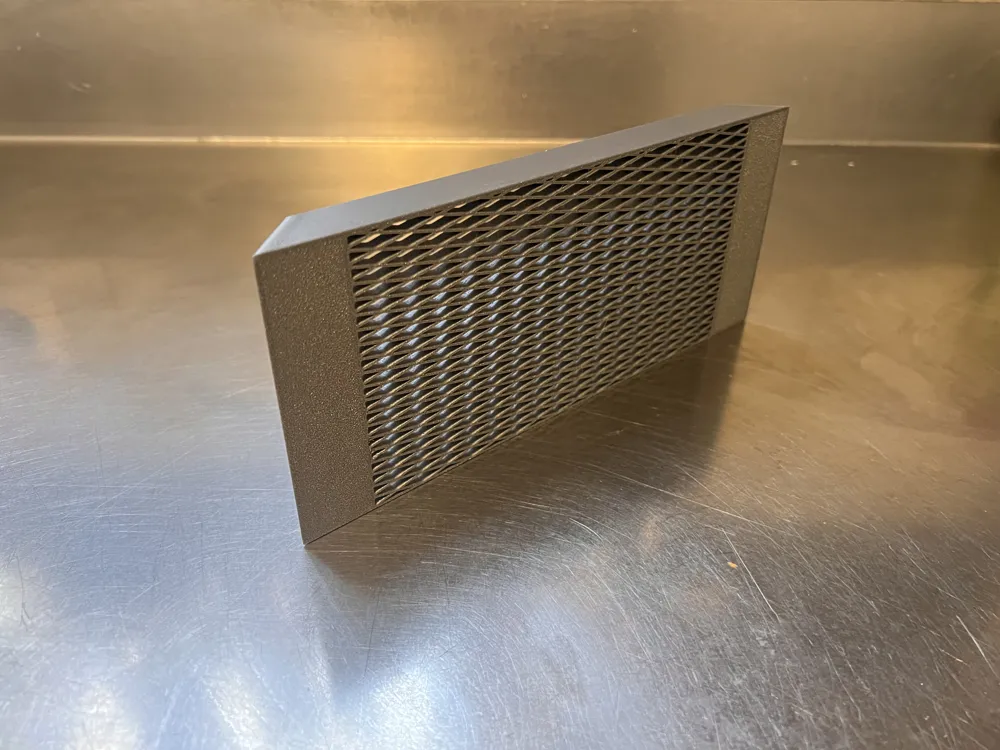

This 3D model is a strainer-type filter designed specifically for placement in front of a kitchen sink drain located in a corner setup. The sink must be square-shaped to ensure correct fit and functionality. The filter collects food scraps and debris before they reach the drain, helping to prevent blockages.

Design Features:

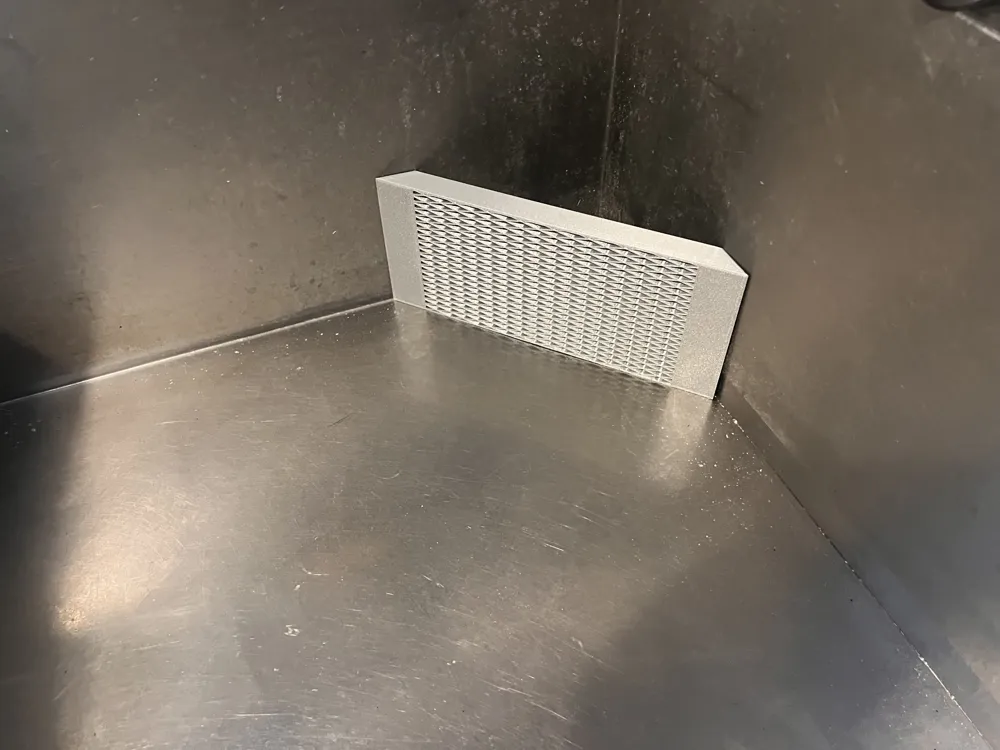

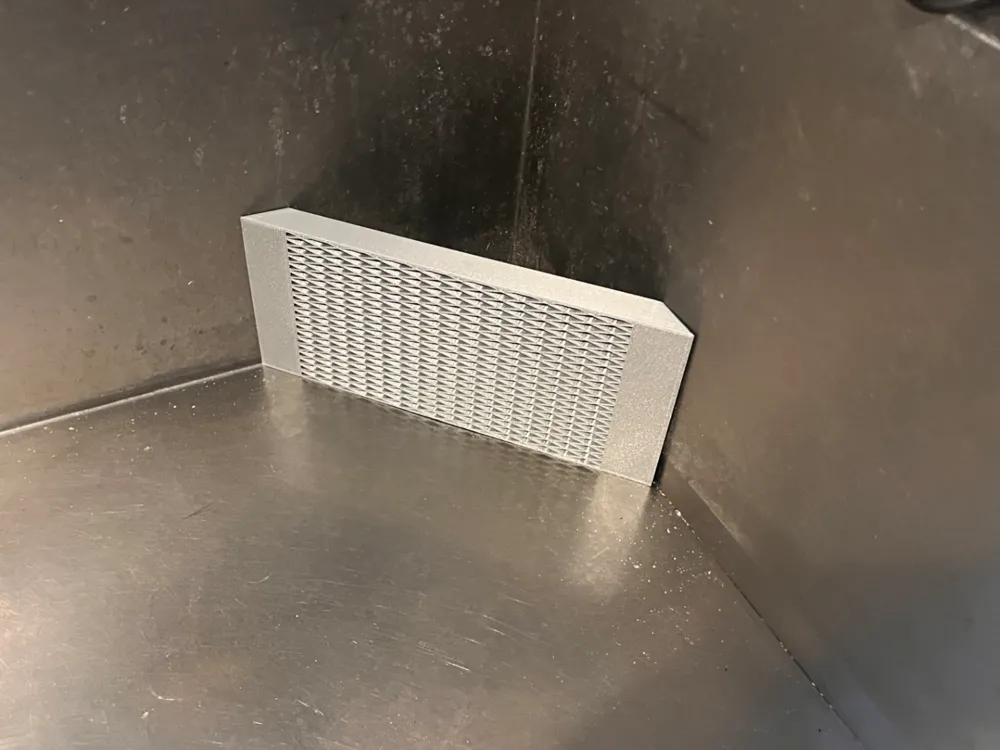

• Corner Placement: Geometry optimized to fit tightly in the corner of square kitchen sinks.

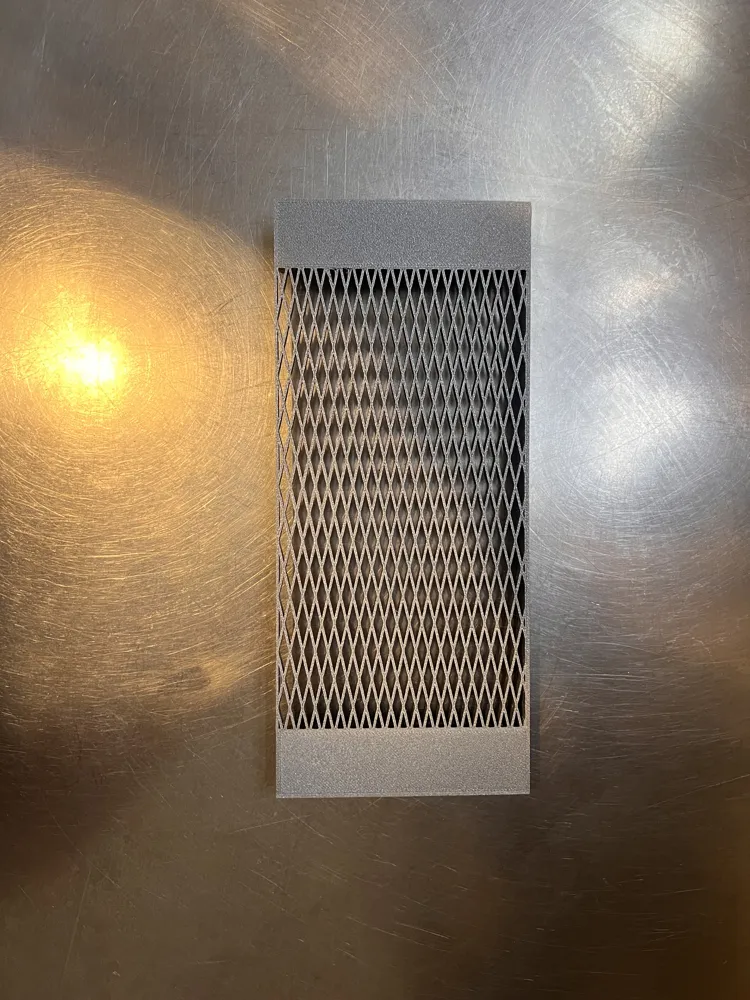

• Open Grid Filter Surface: Allows water to pass through while capturing solid particles.
• Low Profile Rim: Ensures stable positioning without interfering with normal sink use.

Materials:

• Recommended: ABS or ASA for durability and high-temperature resistance (e.g. exposure to hot dishwater).
• Acceptable but less ideal: PETG (lower temperature tolerance may lead to deformation over time).

Printing Specifications:

• Nozzle Diameter: 0.4mm
• Layer Height: 0.2mm
• Provided Print Profiles:

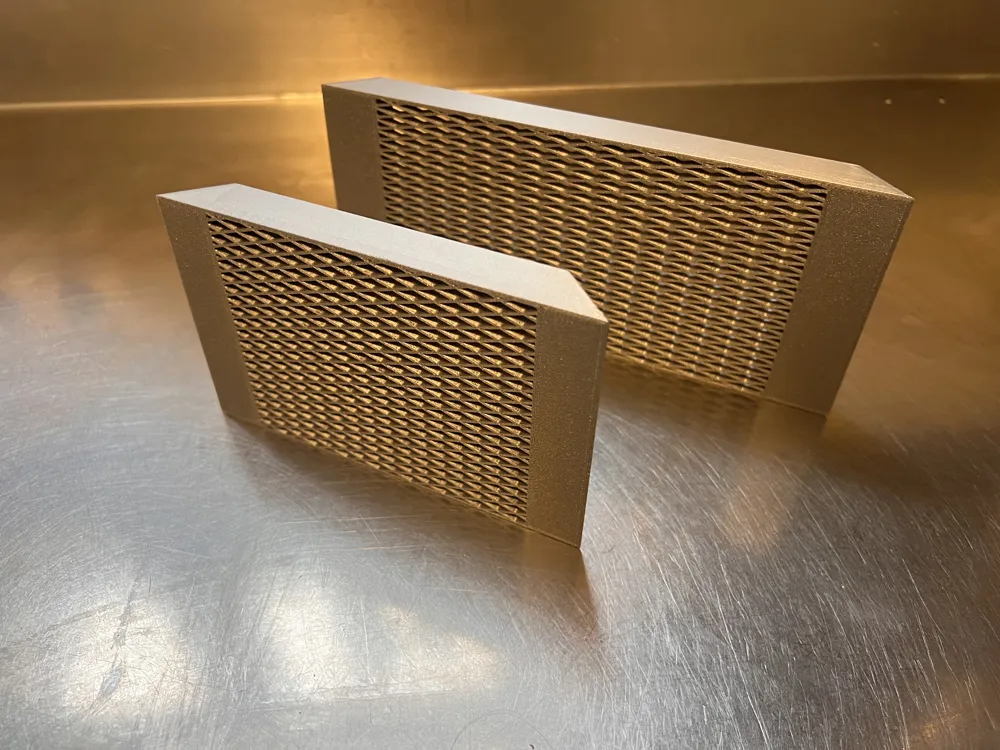

  • Small Version: Space-efficient, suitable for compact sinks or limited print volume.
  • Large Version: Increased filter surface and holding capacity.

Model includes tolerances for warp-resistant ABS printing. Support-free design. Bridging optimized. No additional hardware required.
