FERRARI F1 SF90 - MONZA 2019 - NOSE AND WING

Ferrari SF90 2019 Monza – 3D Model Scale 1:2

Project Description

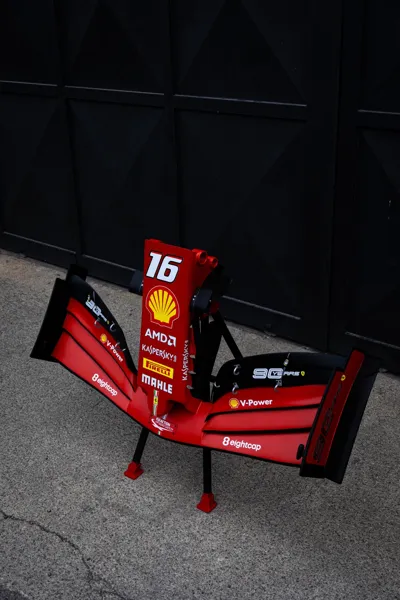

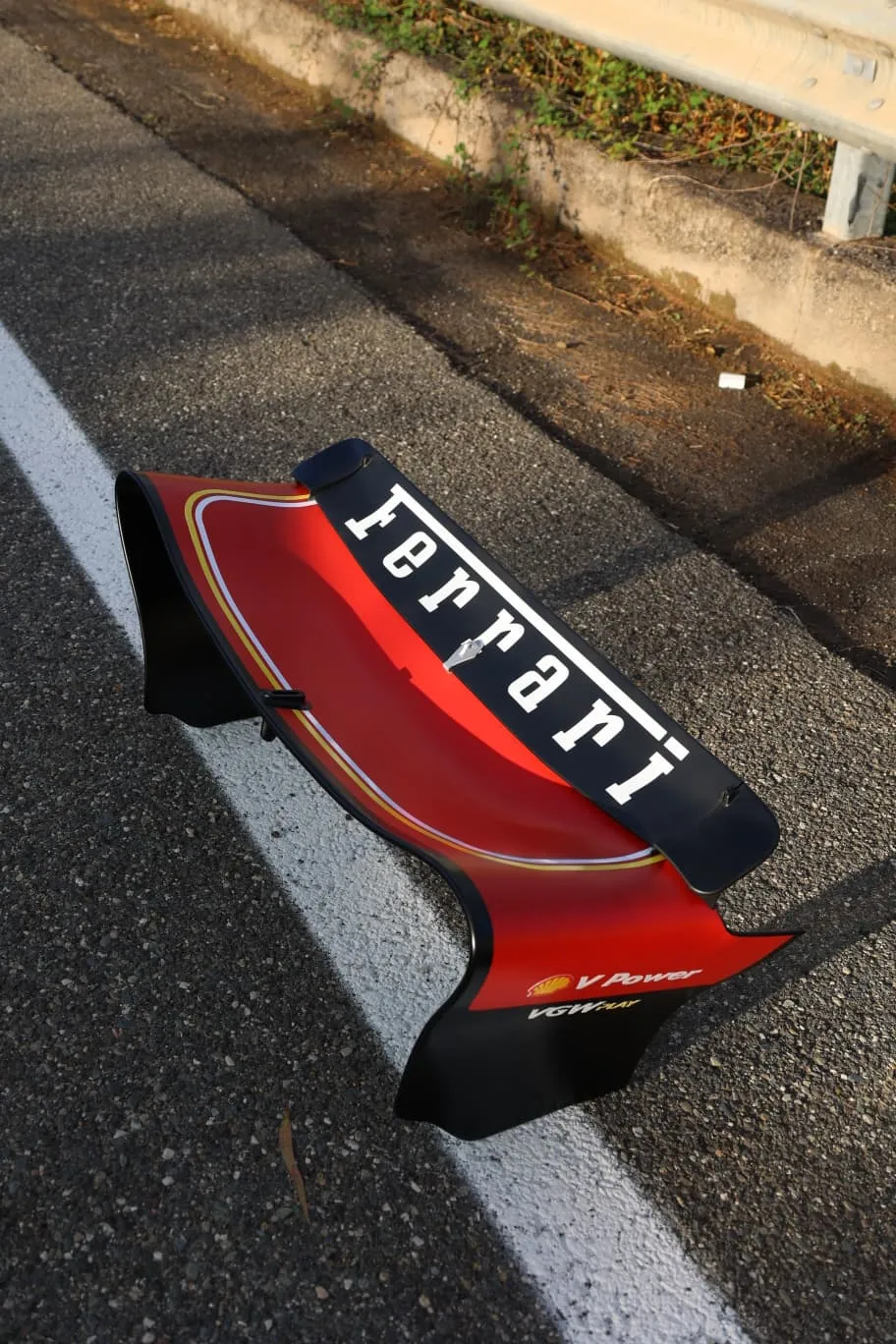

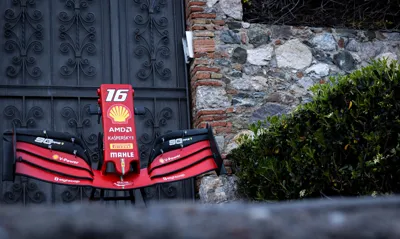

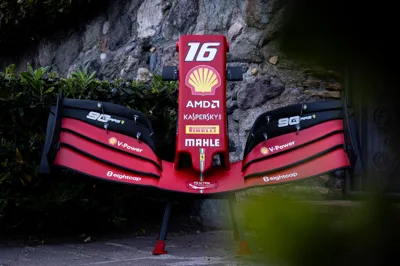

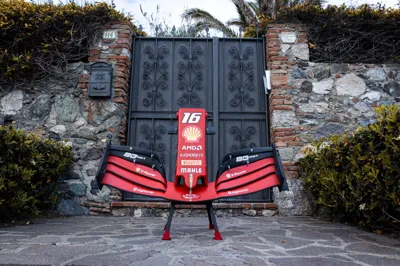

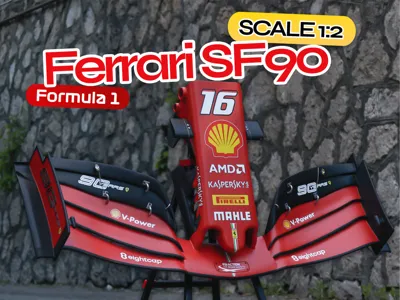

This 3D model of the Ferrari SF90 2019 Monza was started in June 2024, and the creation process took approximately 4-5 months between prototyping, printing, and post-production. The model is definitively finished and ready to be presented, with all final details and finishes completed. The central nose and front wing are among the most complex sections of the project, characterized by high-precision assembly details

3D Model Details

• Materials used:
  The model was printed using PETG and ABS, with a print precision of 0.12 mm and a 0.4 mm nozzle
• Project status:
  The model is completely finished, with all components assembled and refined

Model Dimensions

• Width: 1.20 m
• Length: 60 cm
• Height: > 30 cm
• Weight: < 6 kg

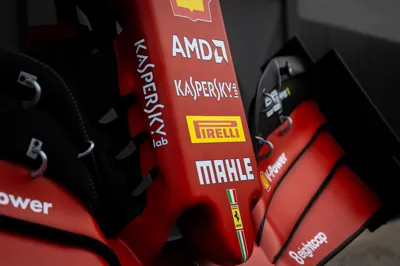

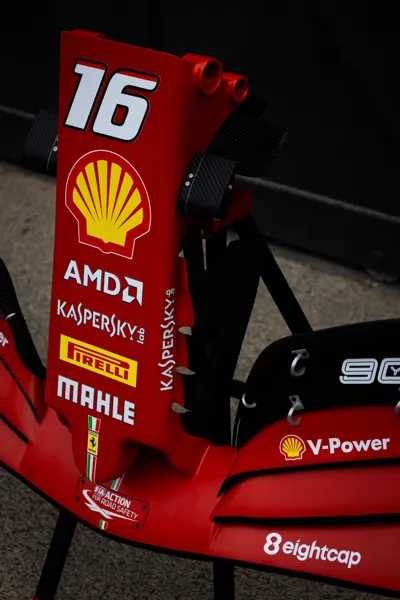

Central Nose Assembly

The assembly process begins with the central part, which consists of 2 large pieces. These pieces are joined together by a perforated joint that allows for the insertion of a two-component adhesive for sealing. Subsequently, everything is secured with 5 bolts and corresponding M6x3 nuts to ensure stability

Central Wing Assembly

After assembling the central part, proceed with the 2 central wings, which are connected with an interposed support between the two. The wing breakdown requires that they are already mirrored on the print bed, with distinct markings between left and right. The 10 fins have precise interlocking joints, but even if the print tolerance is perfect, they might require a slight filing on the male joint and a bit of glue to ensure a solid hold. For this, I recommend using Nayrmaer, available on Amazon, which offers small nozzles to avoid unnecessary drips and leaves no white marks on the 3D parts

Deflectors and Final Assembly

At the ends of the 10 fins, there are 2 deflectors, which need to be assembled together and then joined to the fins. 0.12 mm printing allows for simplified sanding, making it easier to prepare the parts before gluing for a perfect result. After assembling the components, it is recommended to use 400-grit sandpaper to remove impurities and any glue that might seep out of the joint gaps

Final Treatment and Painting

The next step is to blow and wash the pieces with a cloth to prepare them for the primer. For the primer, I recommend entrusting it to a good car painter or proceeding home-made with an airbrush. After applying the primer, it should be sanded with 400 and 500 grit for a smooth surface. Two coats of primer are recommended for a solid base

Regarding the paint job, I used PPG Rosso Scuderia 2023 (matte), with which the model acquires an authentic look. I can also provide the paint code for those who wish to reproduce it perfectly

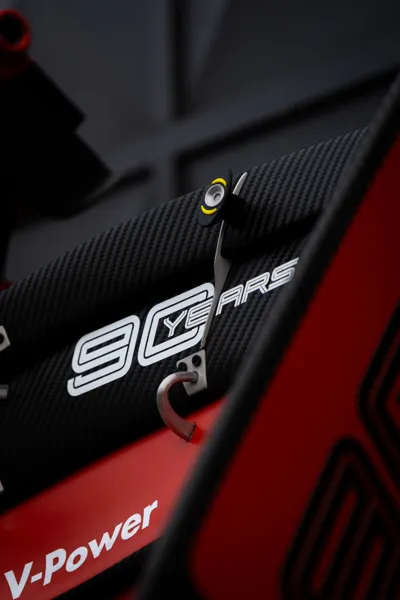

Final Details and Decals

Finally, for the details, colors like silver gray and yellow are used, printed with a 0.2 mm nozzle. The decal profile to complete the model will also be available soon

Conclusion

Thank you for following this project. I invite you to enjoy the printing and assembly process, and to contact me with any questions or for further details on the components. Happy working and happy printing!
