Race Face AR 30 asymmetric rim Presta valve spacer

Print Profile(1)

All
P1S
A1
X1 Carbon
X1
A1 mini
P1P
H2D
X1E
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.08mm layer, 2 walls, 100% infill
0.08mm layer, 2 walls, 100% infill
Designer
27 min
1 plate
4.5(2)

Open in Bambu Studio
Boost
12
41
3
4
68
50
Released

Description

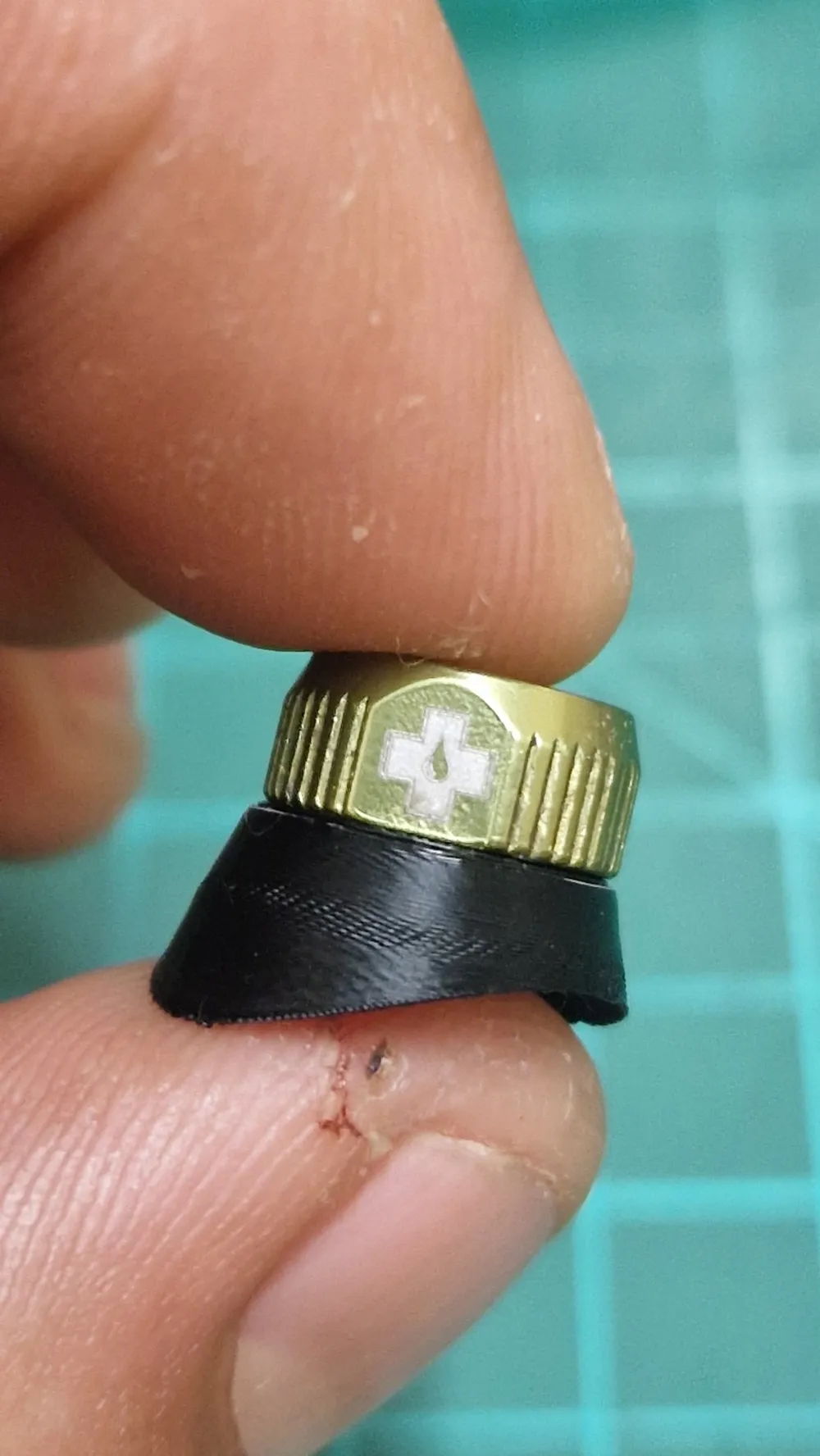

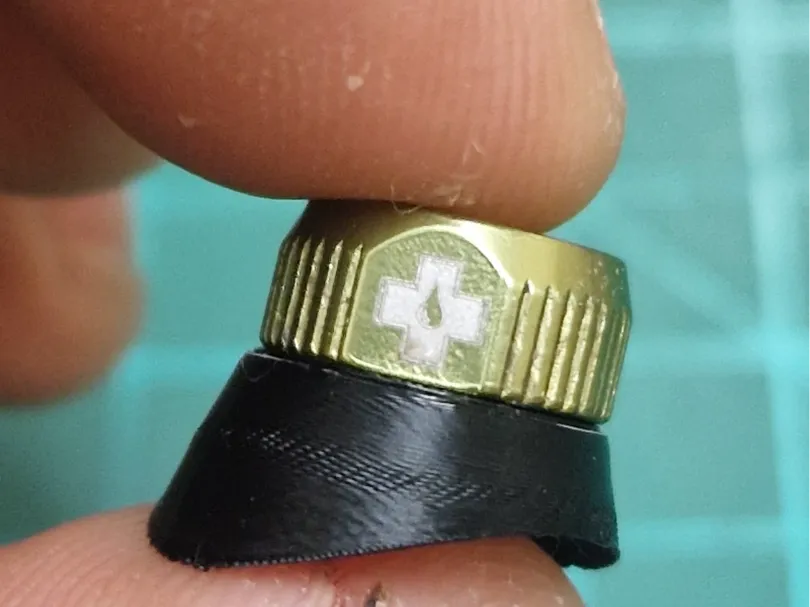

The shape of the rim makes it difficult to seat and seal the tubeless valve properly.
Can also work with non tubeless valves, just for better looks and support, or color coding/customization.

I have printed it in 100% infil ABS 0.08mm and it fits well, but probably PETG and PLA, or anything else will work - just print it in the highest resolution possible.
For 100% perfect fit put some low grit sanding paper on the contact surface of the rim and give the spacer few swipes to remove some of 3d printed steps/high spots.
Other way is to just print in TPU for more compliance.
