Vintage MATX case
Print Profile(1)
Description

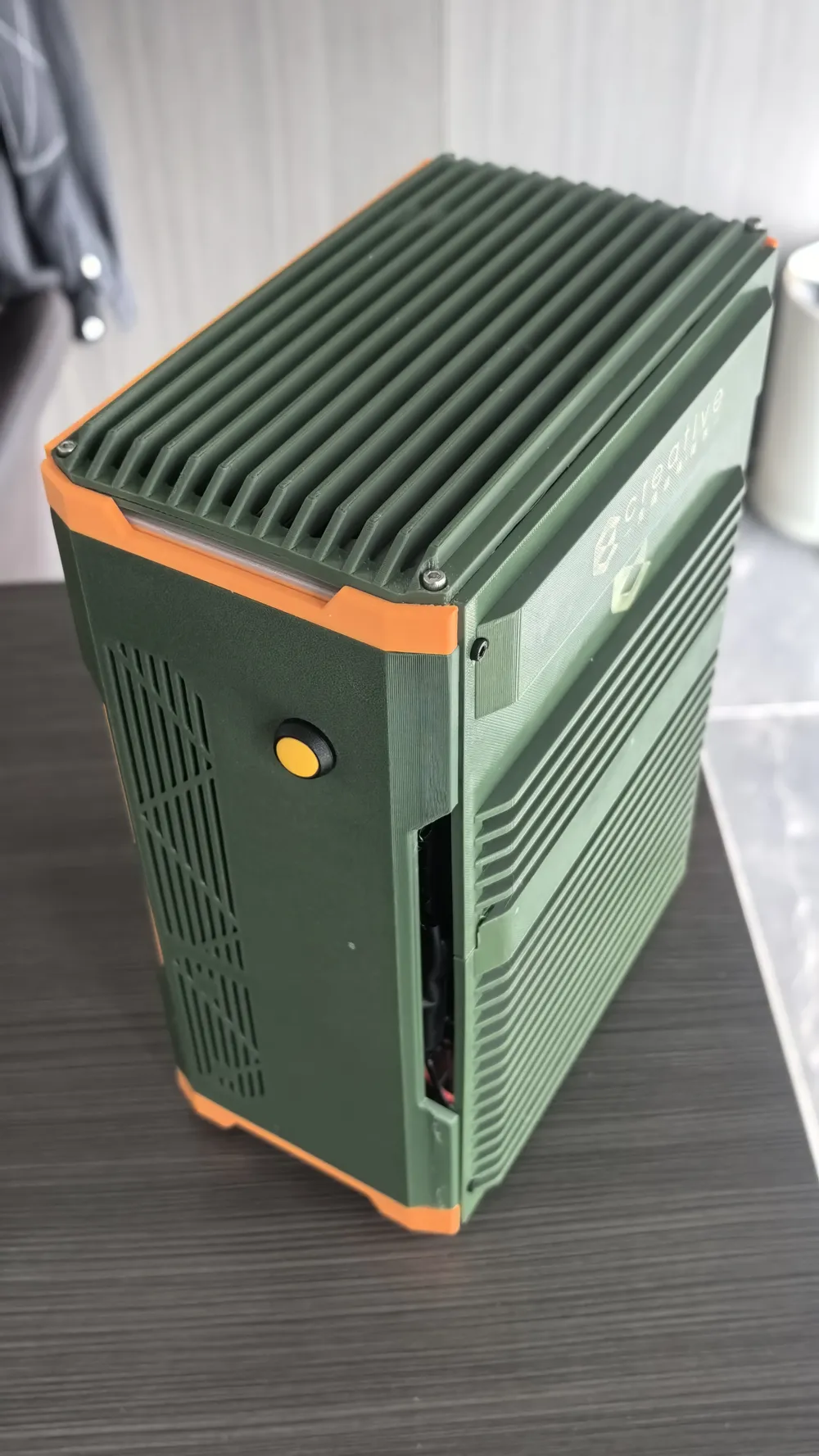

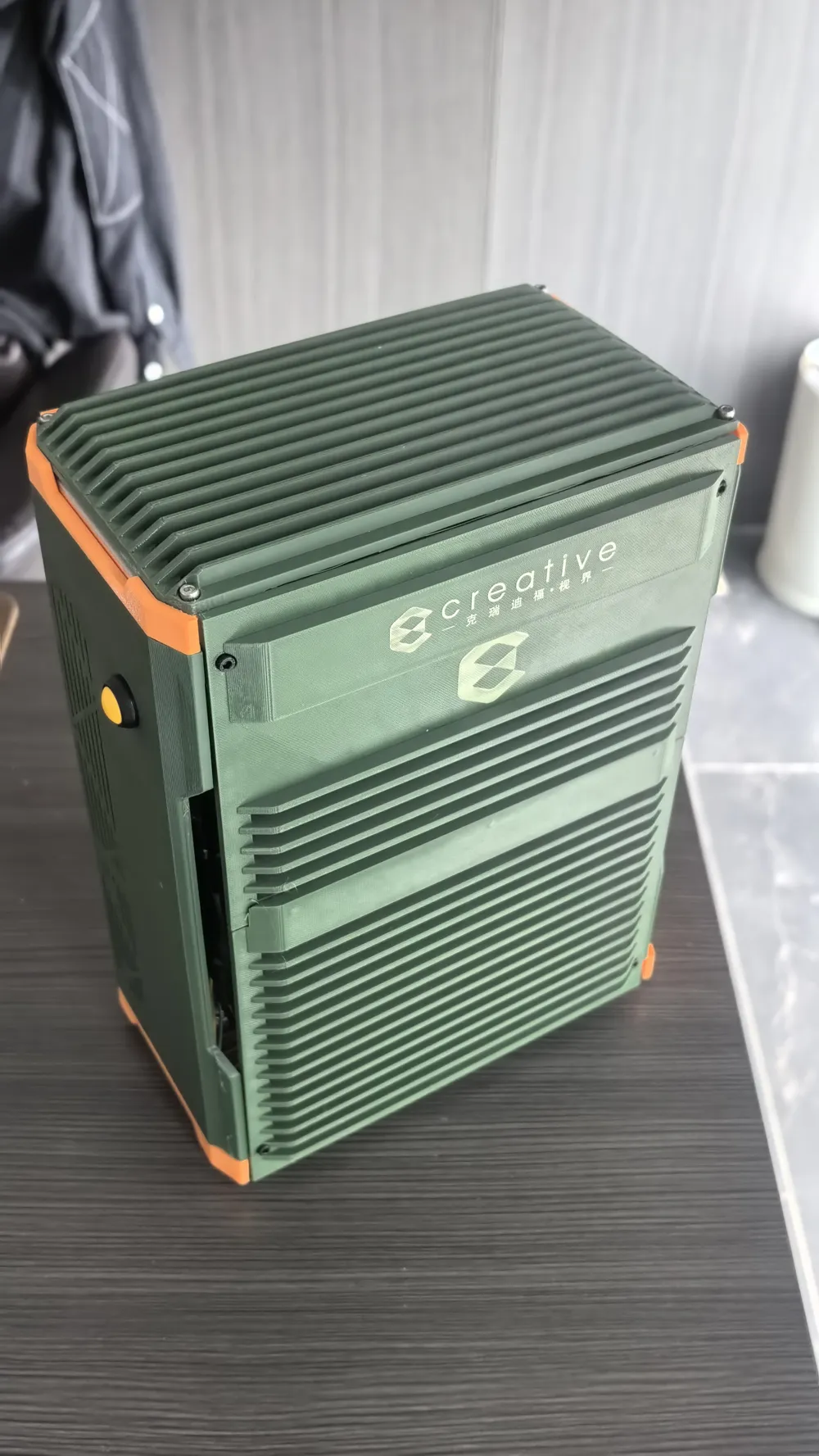

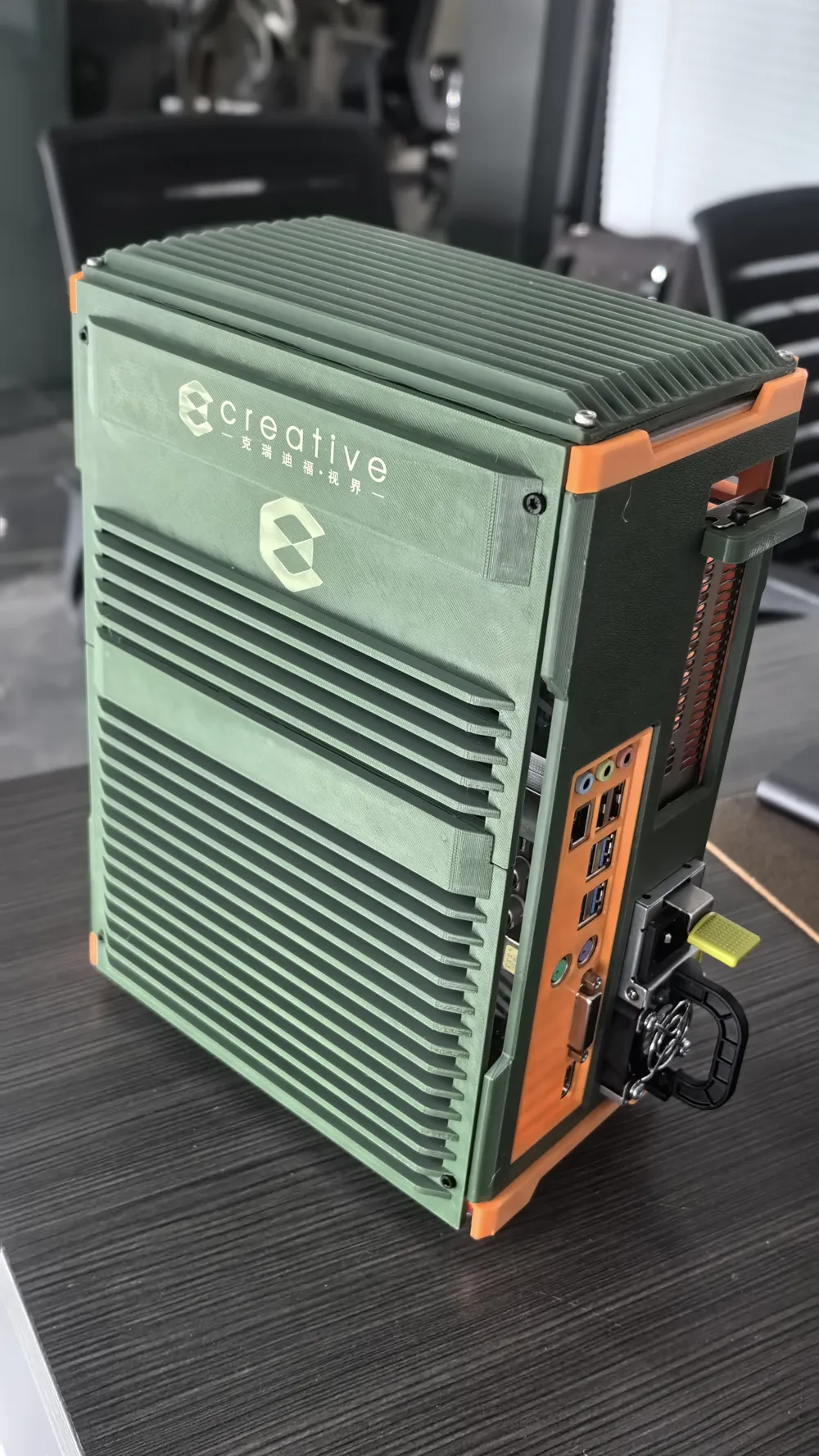

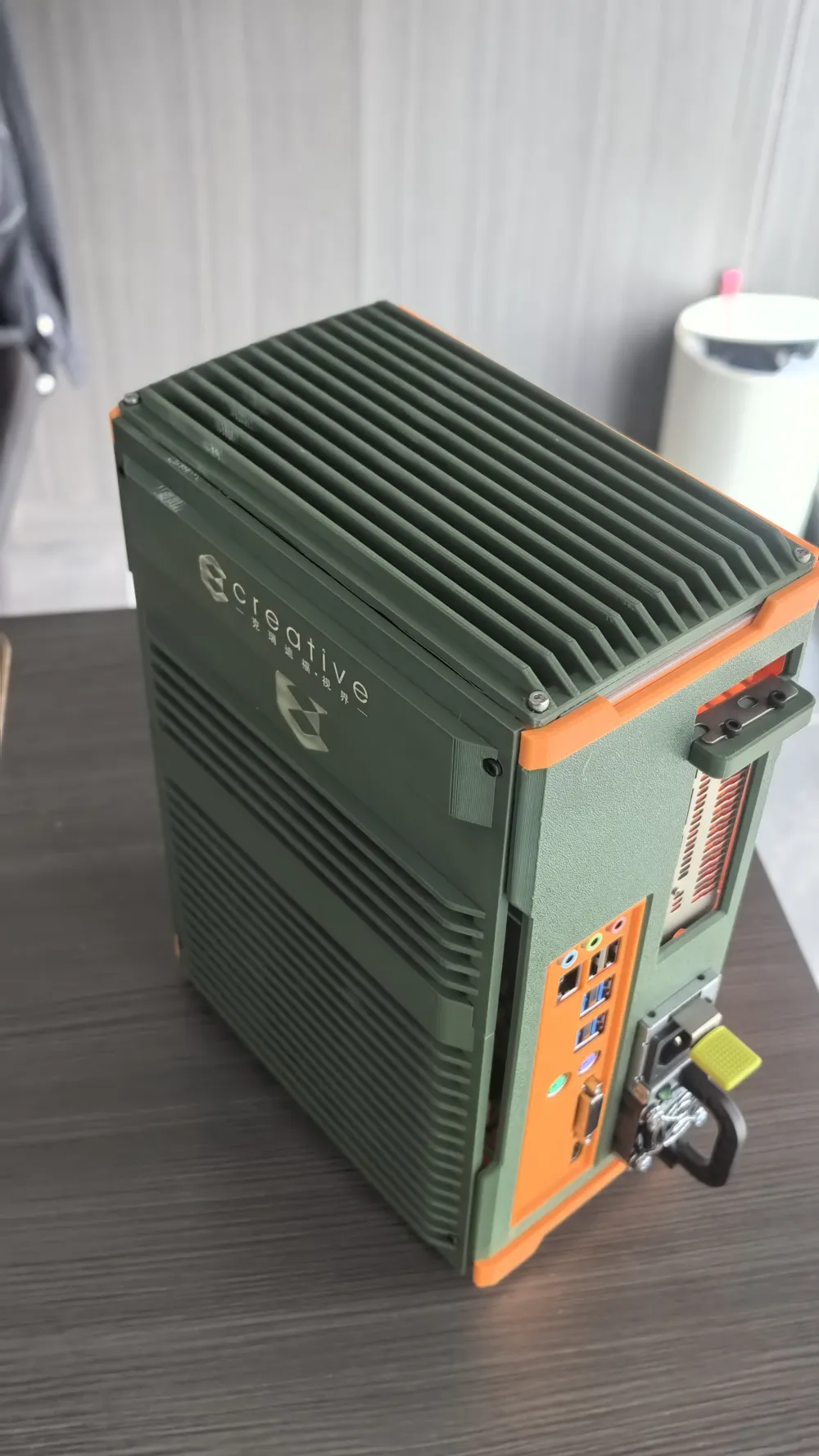

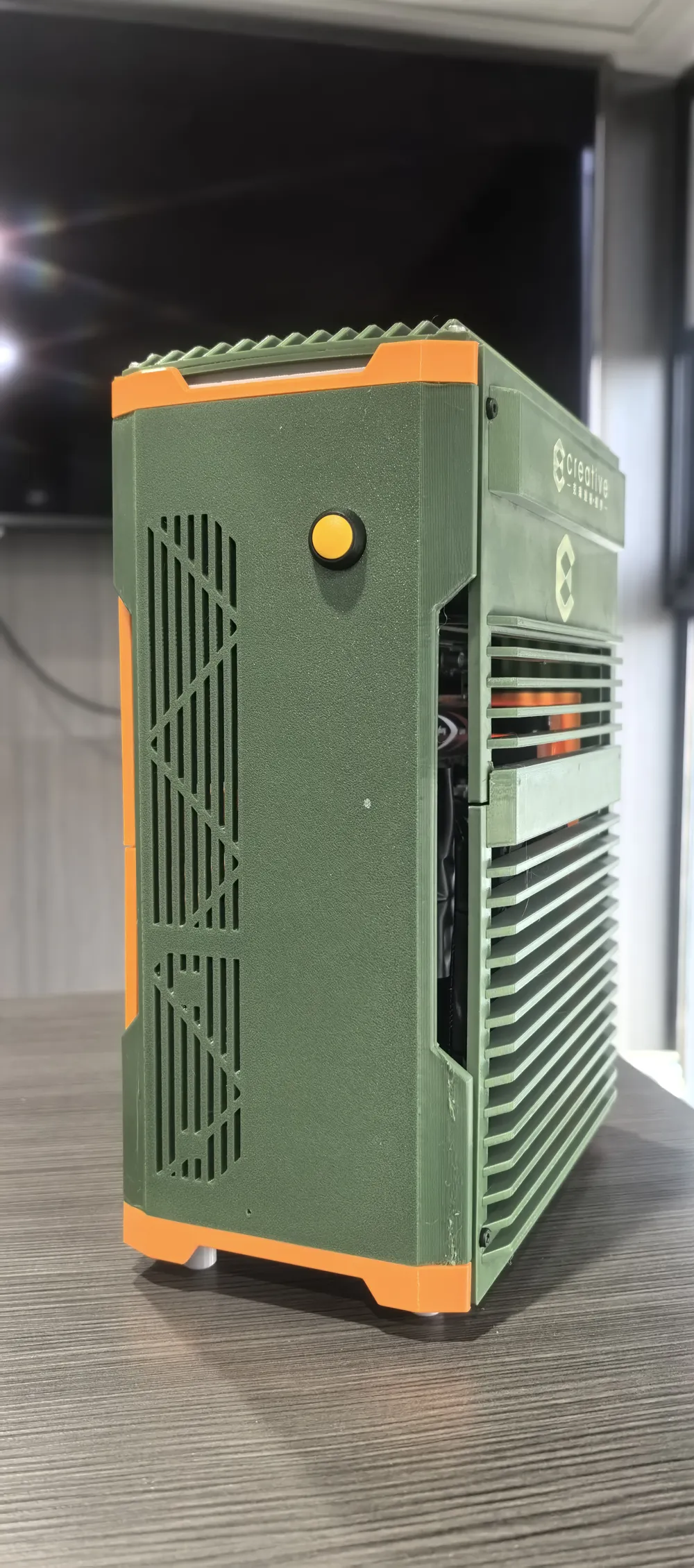

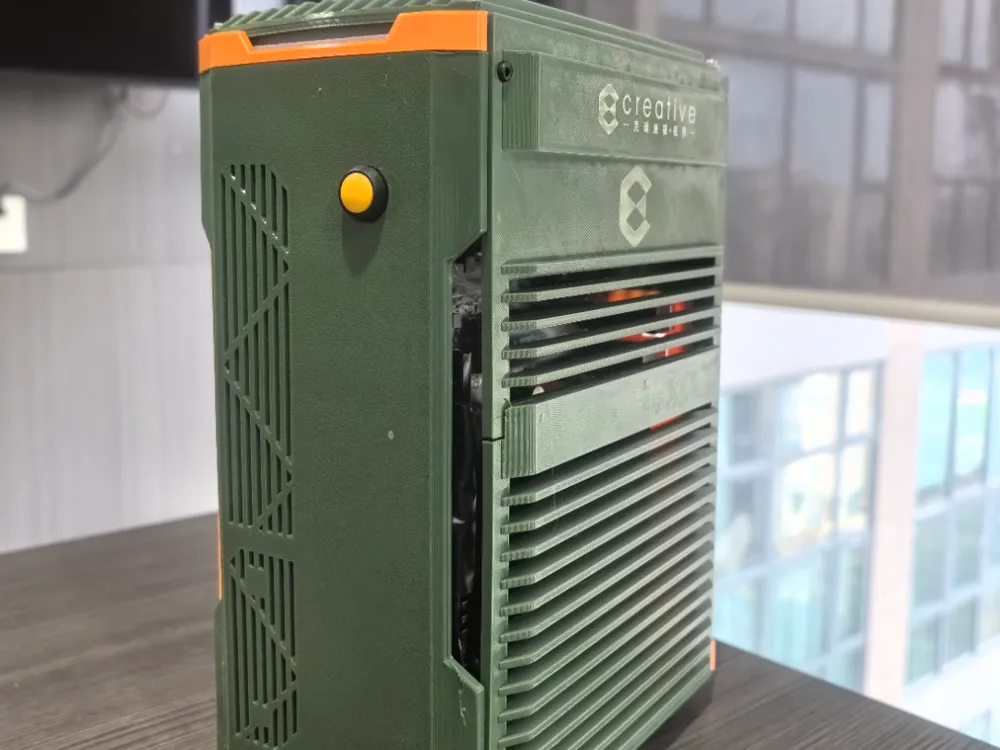

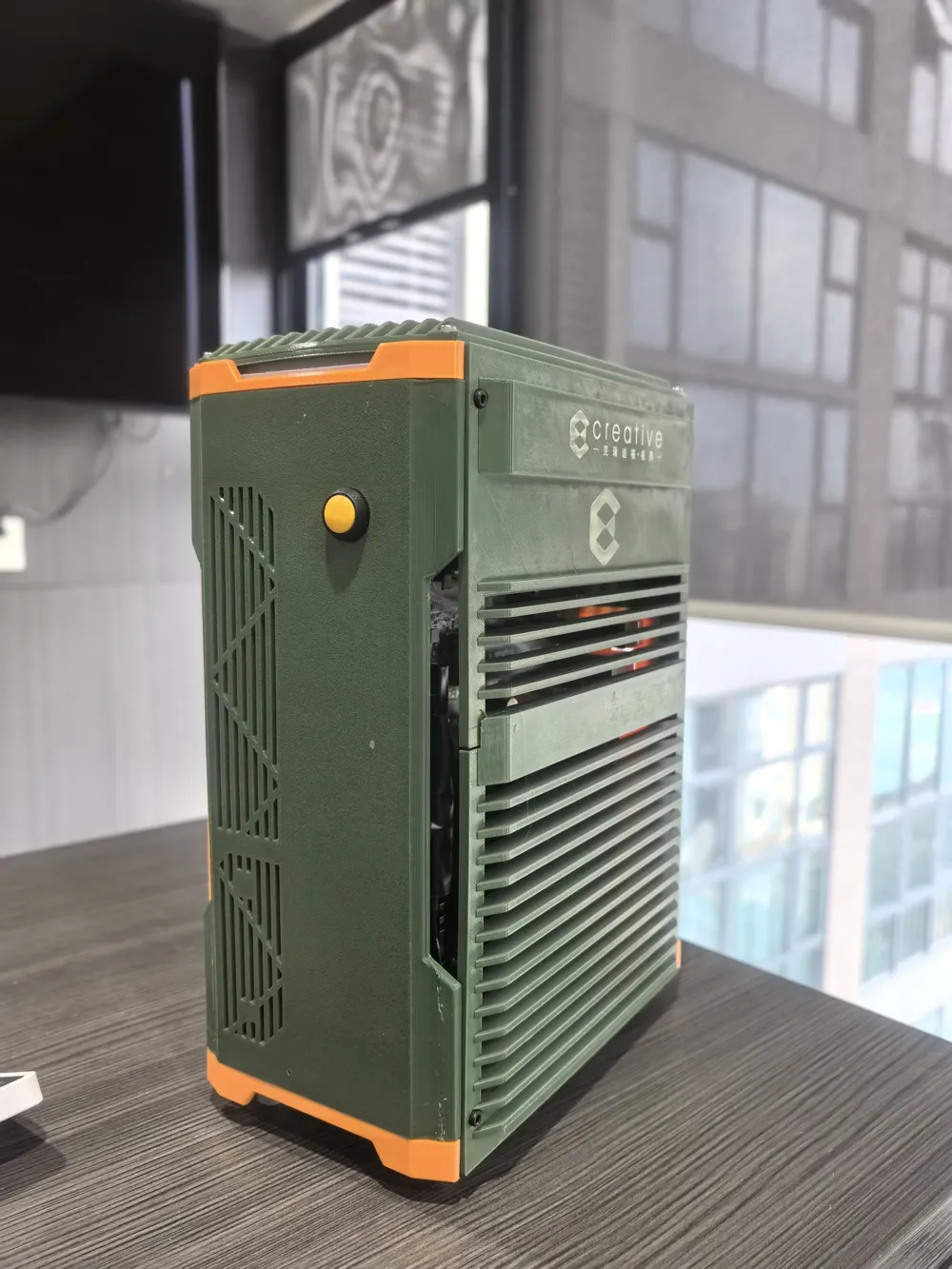

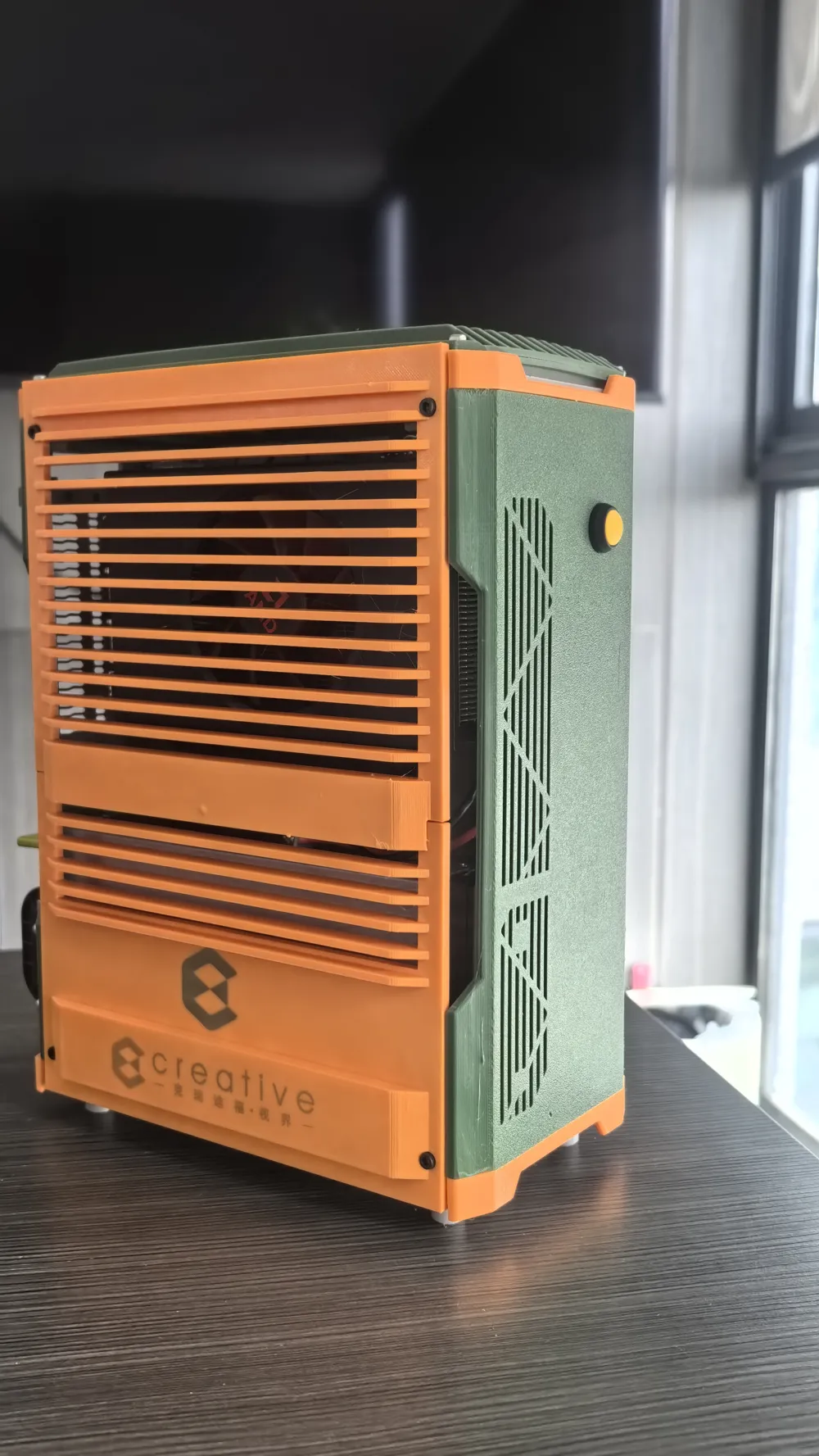

A small case I put together for a colleague using readily available materials. The smallest motherboard we had was an A520 A pro, so that's the biggest board it supports. The power supply is a Huawei server PSU, 750W for only $40. The power input board is more expensive, around $200, but it's still cheaper than a small sfx PSU and thinner! (The dimensions of the power input board are based on the "High-End IT Hardware" store on Taobao.) The graphics card is limited to a length of 20cm.
Dimensions: 280*213*130mm, fits a 170*170mm ITX motherboard, and is also compatible with some 240*200mm matx boards. The cooler height is limited to 45cm. Those with some modeling skills can modify the cover to fit their own cooler. The graphics card is limited to 20cm in length.
Numerous M3*5*5 and 3 M3*3.5*5 knurled nuts (for securing the power input board)
Numerous M3 screws (M3*20, M3*10, M3*8, M3*5….) Feel free to share and support if you like it!
