[Pagani] Pagani Huayra Track Version Racing Car Hardtop Supercar Assembly/Movable Tires
Print Profile(1)
Description
Boost Me (for free)
If you like this model, please boost it! Your support is my motivation for continuous updates!
【Special Notes for F1 Models】
1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!
4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!
【Read Before Printing!!! Warm Tips】
It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.
Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.
---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------
Pagani Huayra: The ultimate interpretation of the art of wind!
The Pagani Huayra is the automotive industry's "aerodynamic poem", not only a symbol of speed and power, but also a perfect blend of art and engineering. From its Carbo-Titanium monocoque to its active aerodynamic system, from its handcrafted interior to the surging power of its AMG V12, every detail reflects Horacio Pagani's ultimate pursuit of perfection. As the successor to the Zonda, the Huayra successfully ushered in a new era for supercars, becoming a legend among collectors and setting the benchmark for "balance between technology and art" for subsequent Hypercars.
Support removal and installation notes:
The rearview mirrors are very thin, please be careful when removing supports and during installation.
Model description

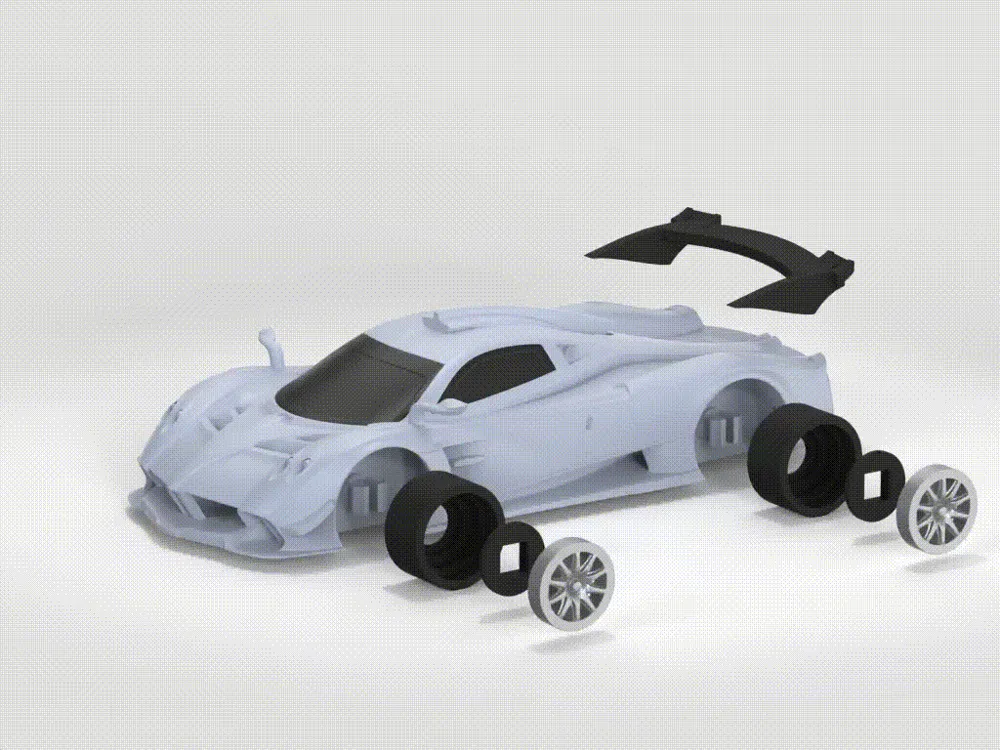

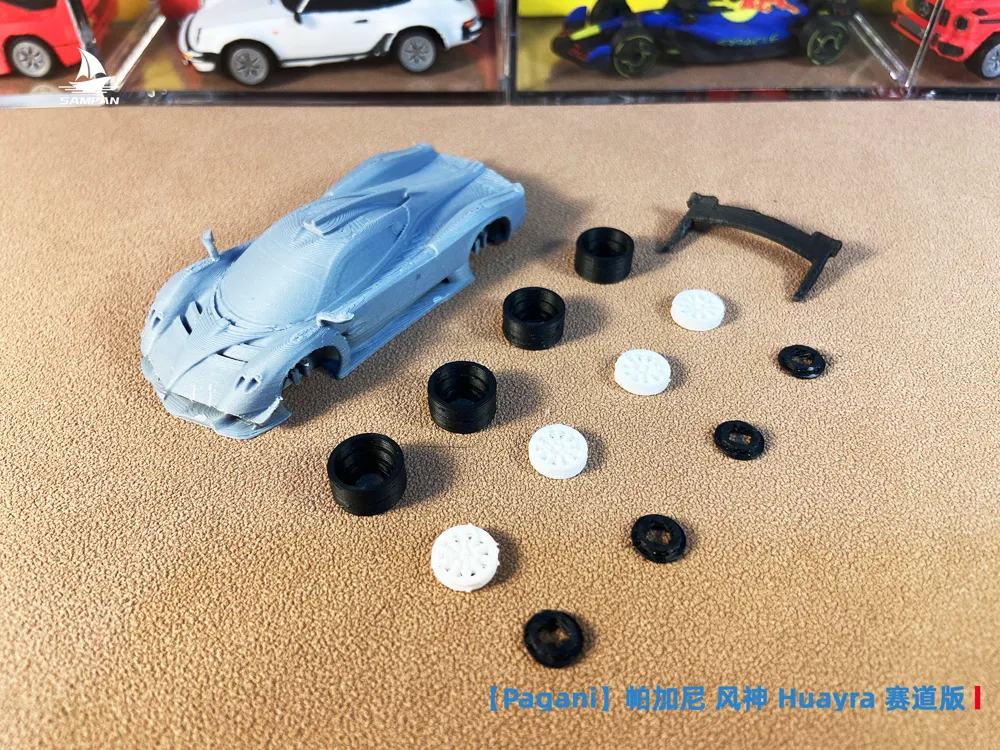

- Movable wheels, no glue required for assembly
- All wheel hubs for 1/64 scale cars under this account are replaceable. Browse the homepage and download your preferred wheel hub styles
Dimensions
- 1/64 scale
- 1/43 scale: simply enlarge by 150%, print with 0.16mm layer height
- Sliced files use minimum printer size settings. You can adjust the number of models printed at one time based on your printer size to save time and filament
FDM printing settings

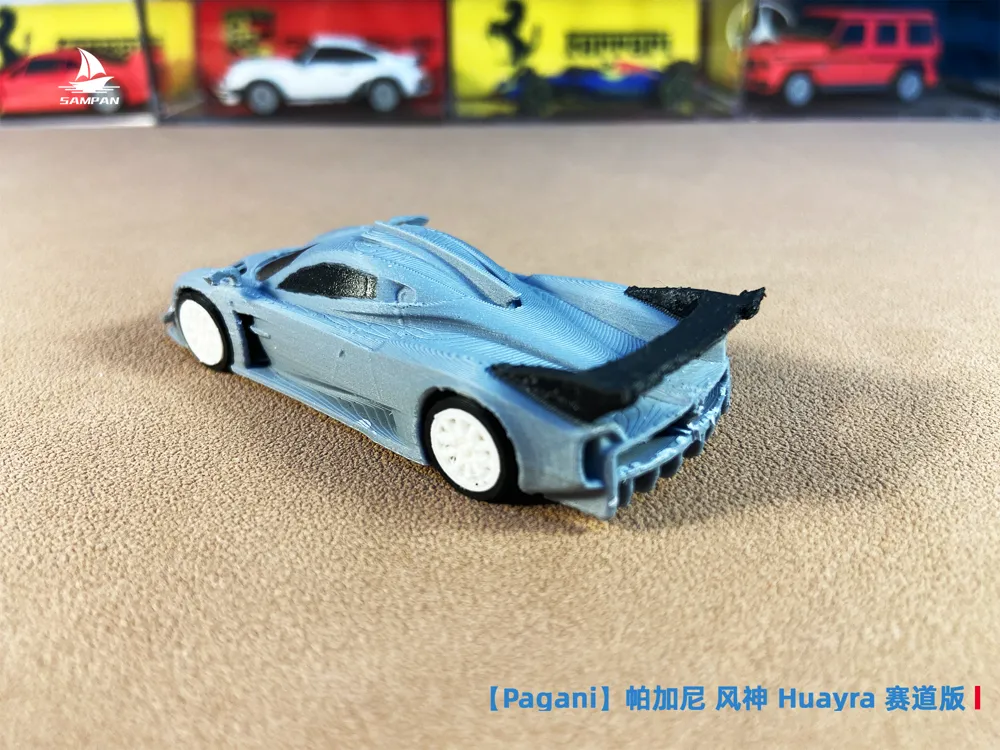

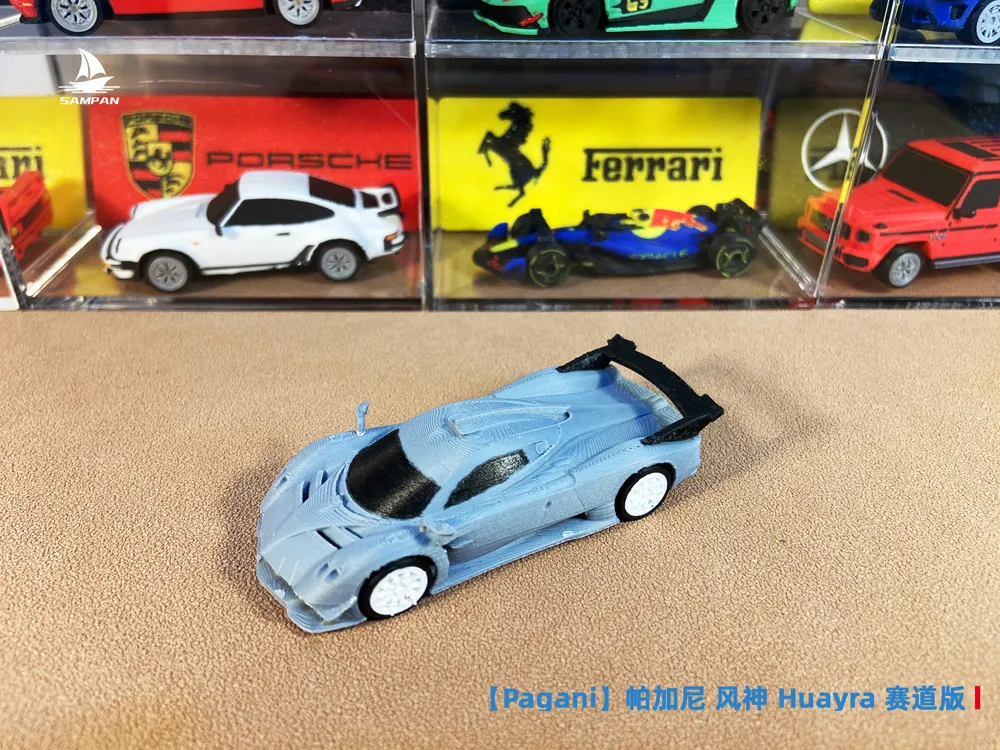

- The actual model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (assembly might be too tight or too loose; this can be compensated by adjusting the XY outer contour dimensions of the assembly, or by using sanding tools and 409 super glue for processing and connection).
- Infill density: 15%. To increase the model's weighty feel, the infill density can be adjusted to 100%.
- Supports: A combination of normal and tree supports was used.
- Various livery versions will be released later. Follow the account to stay updated on new releases.
- You can also adjust printing parameters based on your own printing experience.
Support removal instructions

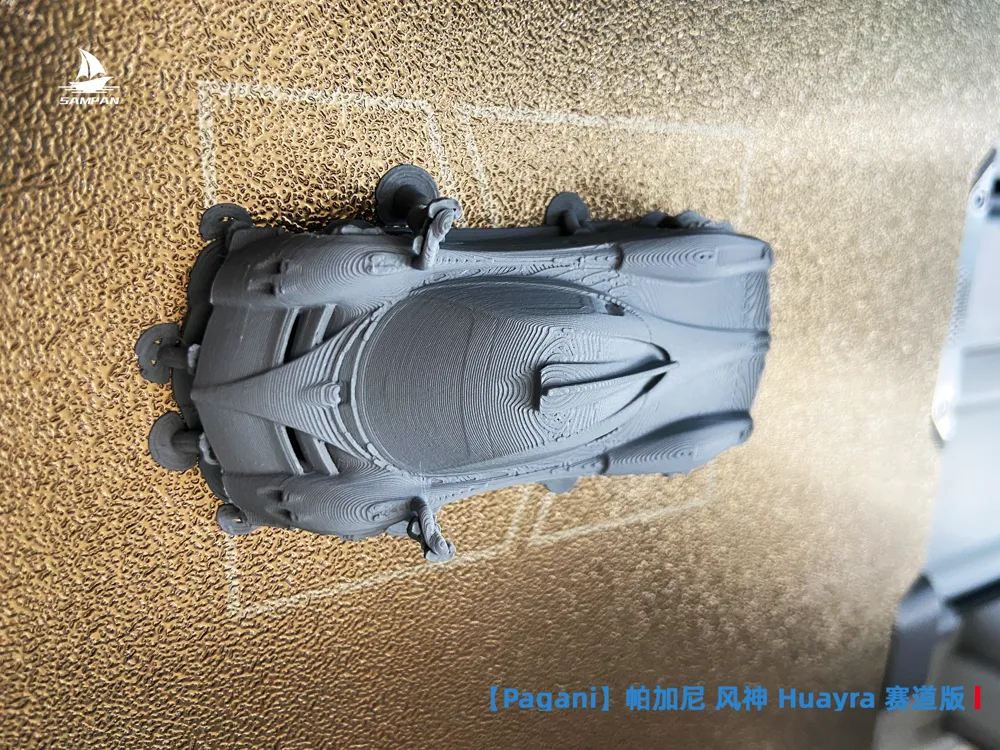

- The model is small, and supports have been added in critical locations. Removing supports requires the use of sprue cutters and tweezers. Breaking them by hand is highly likely to cause structural breakage, especially for the rearview mirrors and rear wing sections.
- Tip: To ensure successful removal of supports for multi-color models and avoid breakage, you can first print a single-color model for support removal practice to understand the model and support structure, then remove supports for the multi-color model (if breakage occurs, 409 super glue can be used for connection).
Monochromatic painting reference (printed with white filament)
- Sanding: (Optional) Sand in the order of 400-600-800 grit.
- Painting: Use acrylic paints and brushes (for issues with paint bleeding into layer lines at edges, you can first apply the main color over a large area, then paint the edges).
- Polishing: Polish with a soft cloth to give acrylic paints a glossy finish.
Assembly instructions
- For long-term stability of the wheels, installation requires moderate force, and the first rotation will be relatively tight. After playing with it a few times, it will become more flexible. See GIF for wheel installation.
- To facilitate the installation of wheel calipers, a wheel caliper installation tool has been specially designed and manufactured. Link: 64 scale wheel caliper installation tool from SAMPAN Replica - MakerWorld
Visit the author's homepage to see all vehicle models, welcome to like and follow!
Hope to see more friends share your printing photos, I'm curious what kind of works you will print!
We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
