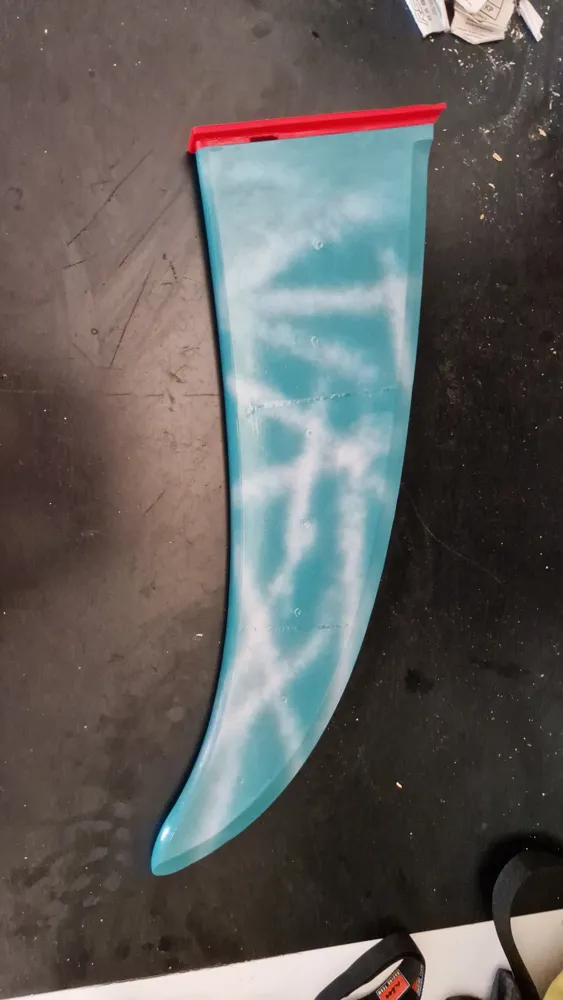

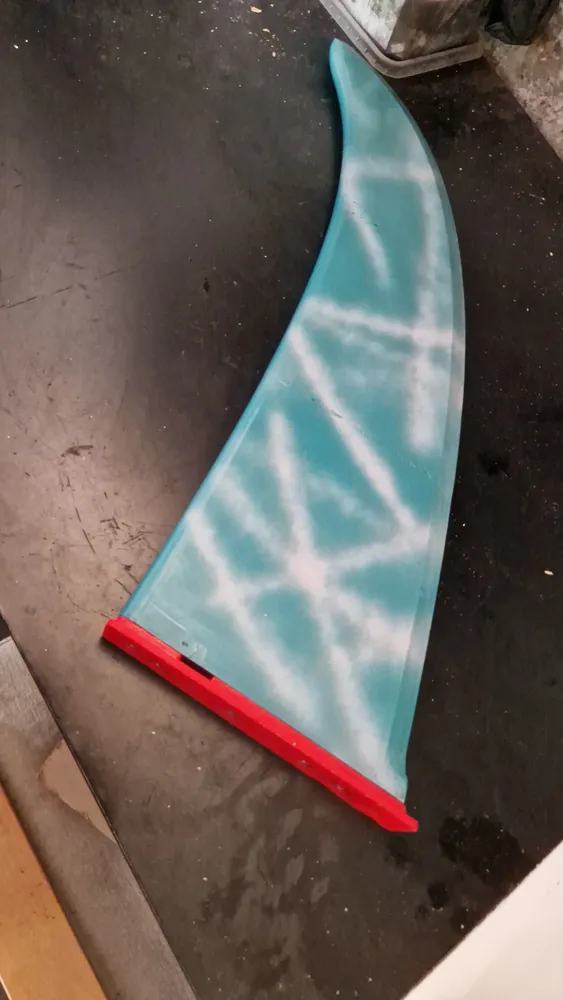

Experimental static daggerboard for wind surf paddle boards.
The fin is made of 6 pieces glued together, with two M8 threaded rods inside as an reinforcement. Three M5x16 DIN912 screws are used to mount the fin to the base. You will also need three M5 heat-set thread inserts. Eight M3x10 DIN912 can be added to clamp the pieces together after gluing it.
