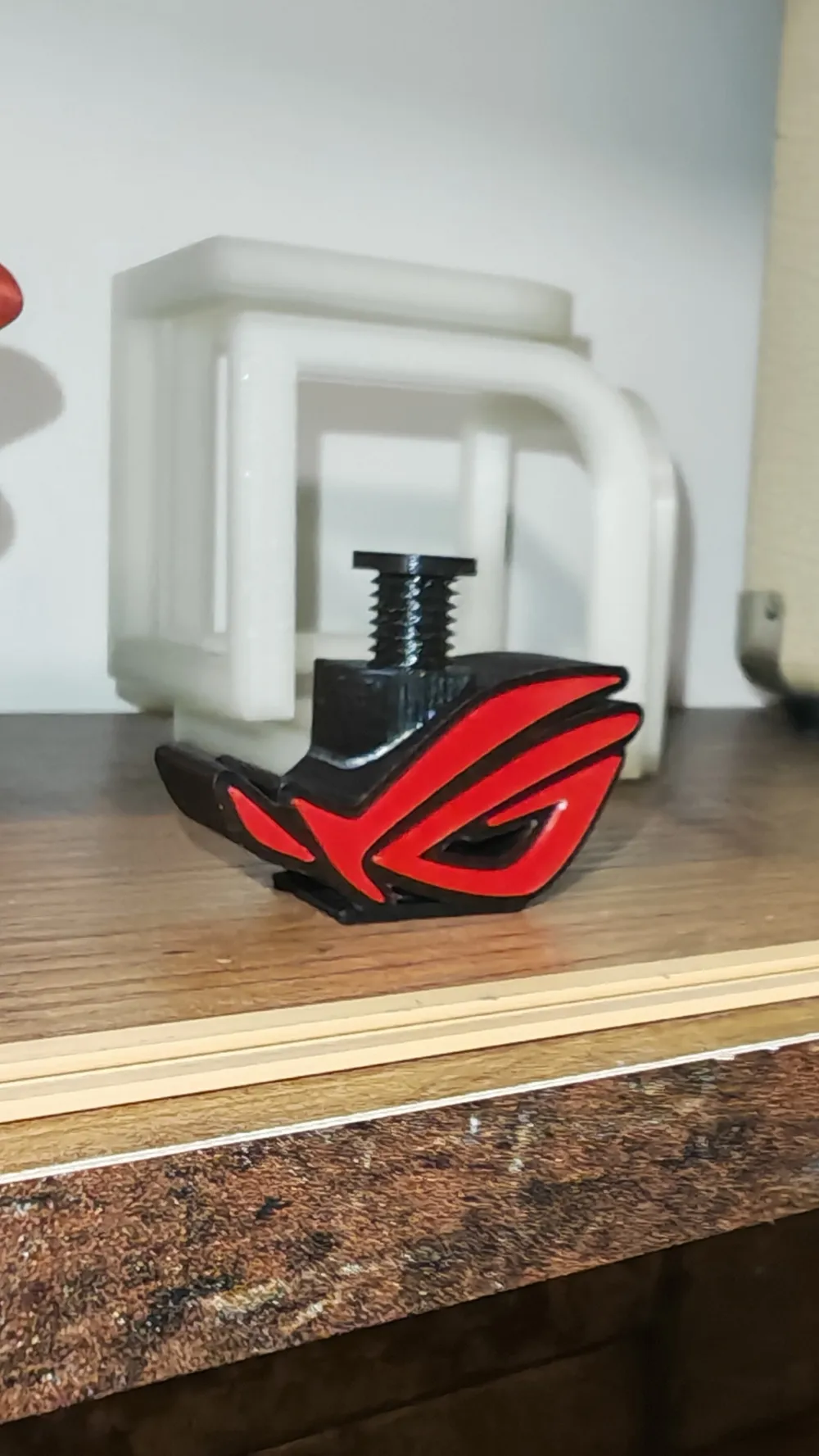

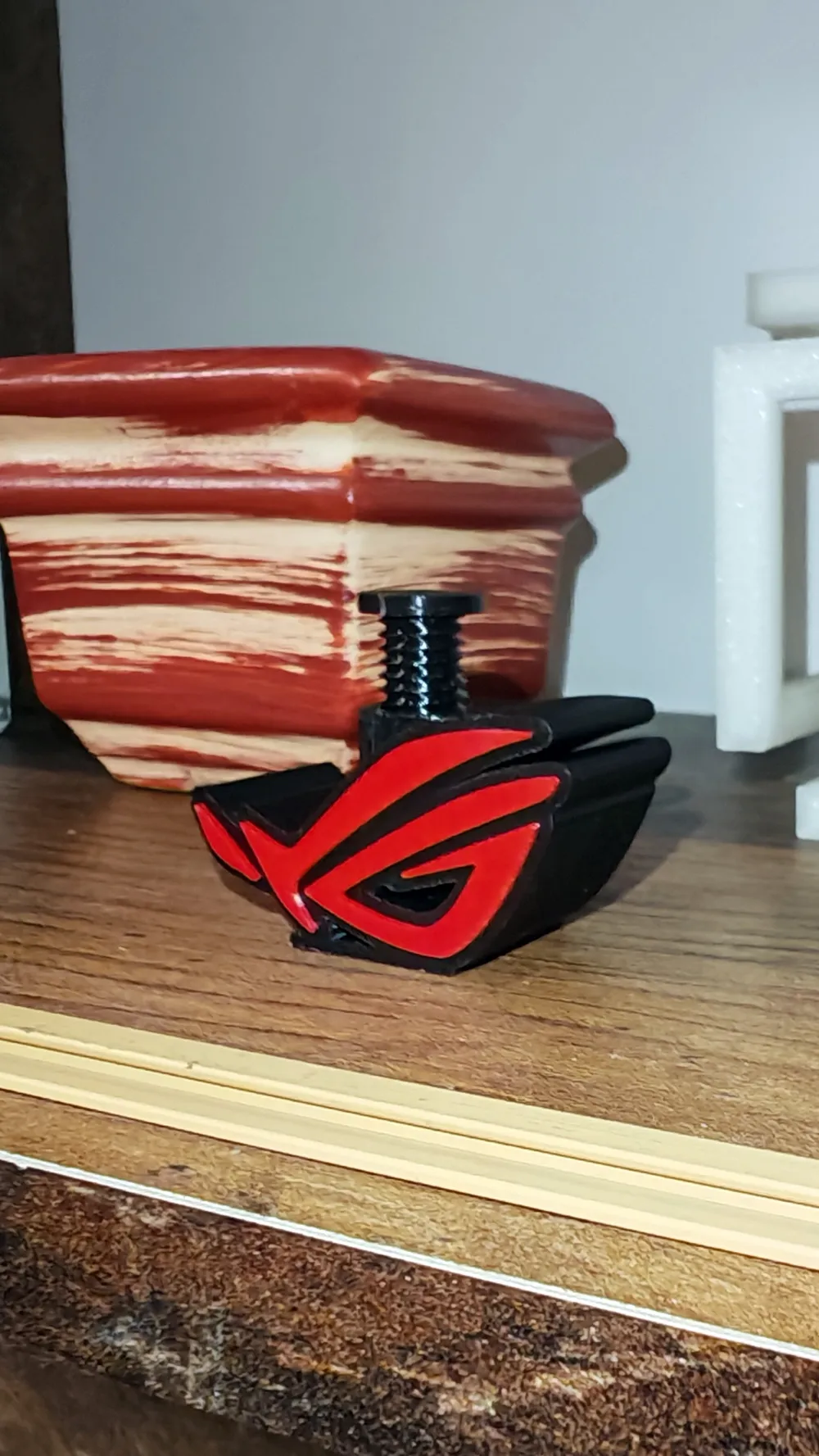

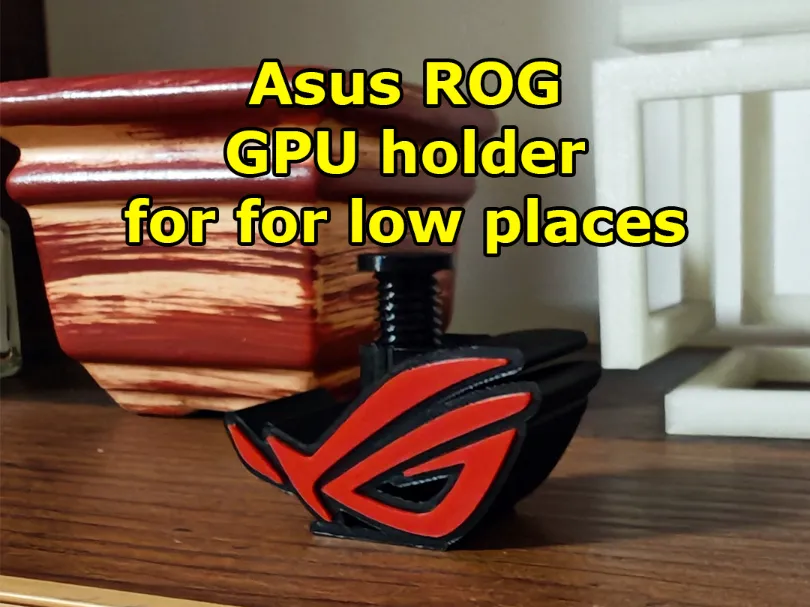

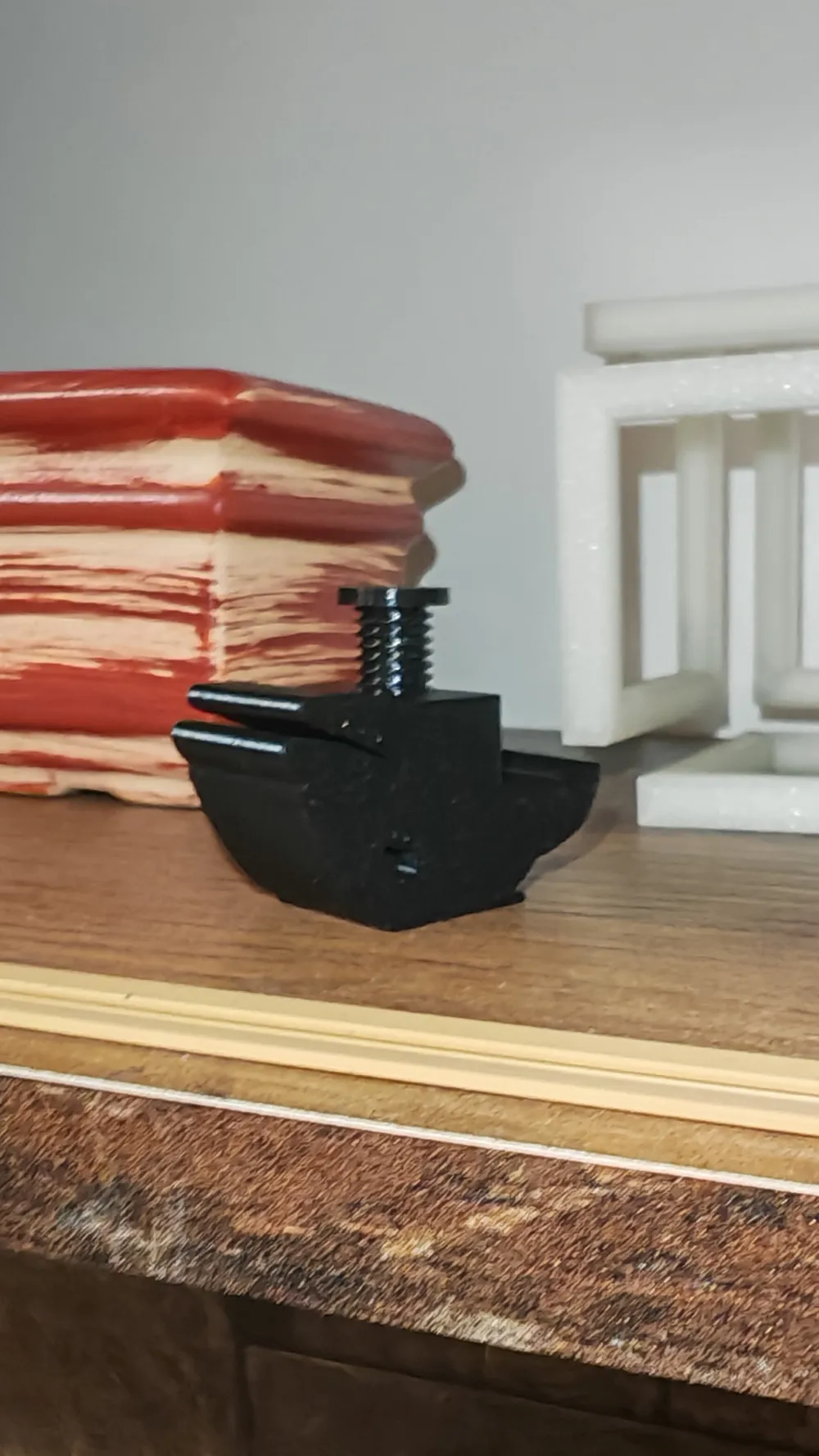

Adjustable graphic card holder - Asus ROG (low)
Print Profile(1)
Description
Description
Min. height 30 mm
Max height 48 mm
No support required.
Boost Me (for free)
If you like it! Thank you!
Instructions:
Print by object method because different layer heights and ironing.
Main item (bulid plate 1)
0,2 mm layer height
Ironing on top surfaces (I set 35mm/s and 35% (I think the correct setting depends on the printer and the type of filament)
Inner rod (build plate 2)
0,12 mm layer height
no ironing
An 8x2 mm magnet can be placed in the bottom.
On a flat surface, push the magnet in to make it nice and flat. Minimal superglue can go into the hole.
If you spray a little PTFE or similar lubricant inside the thread, the rod will rotate much better.
High-speed printing is not recommended due to fine details, acceleration speed decelerated.
It probably won't work if resized.
Check out my other uploads and download and print them. ROG, Nvidia, Aorus, AMD, TUF, Sapphire, Intel, Inno 3D, Ryzen and many more.
https://makerworld.com/en/collections/6487987-gpu-holders
If you've printed or downloaded this holder, it's also for you, so you can have your favourite brand on your desk and keep your desk spotless: https://makerworld.com/en/models/1448224-asus-rog-coaster#profileId-1508315
!!! Make sure the print speed and temperature and cooling are set correctly for your printer and the filament you are using. And the build plate should be clean. !!!
