Retevis RT95 Cooling - 120 mm Fan Mount

📄 Description

Does your Retevis RT95 get quite warm while transmitting?

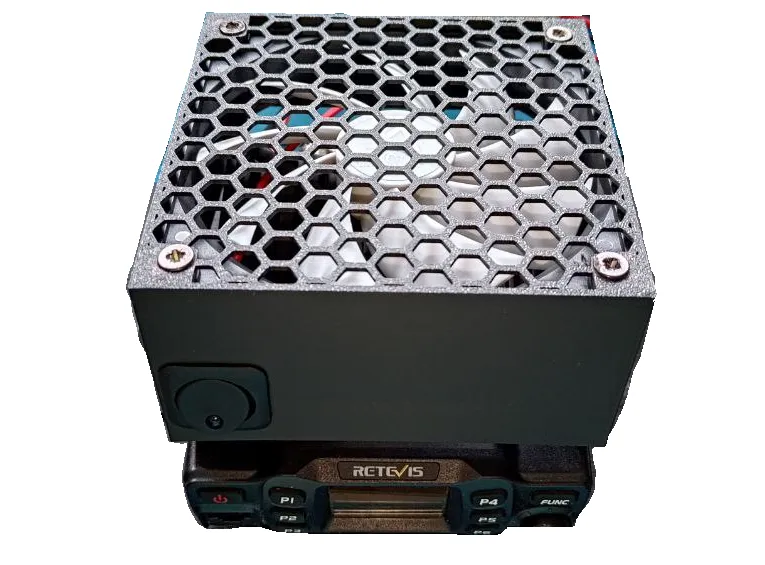

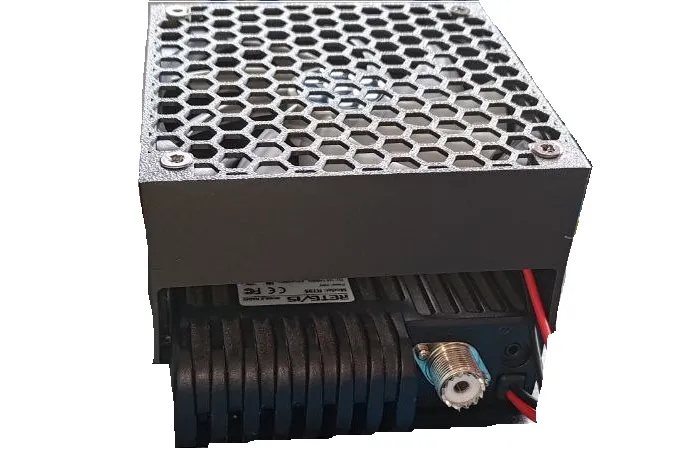

Then this mount is the perfect solution: It provides active cooling directly from above – with a quiet, standard 120-mm PC fan.

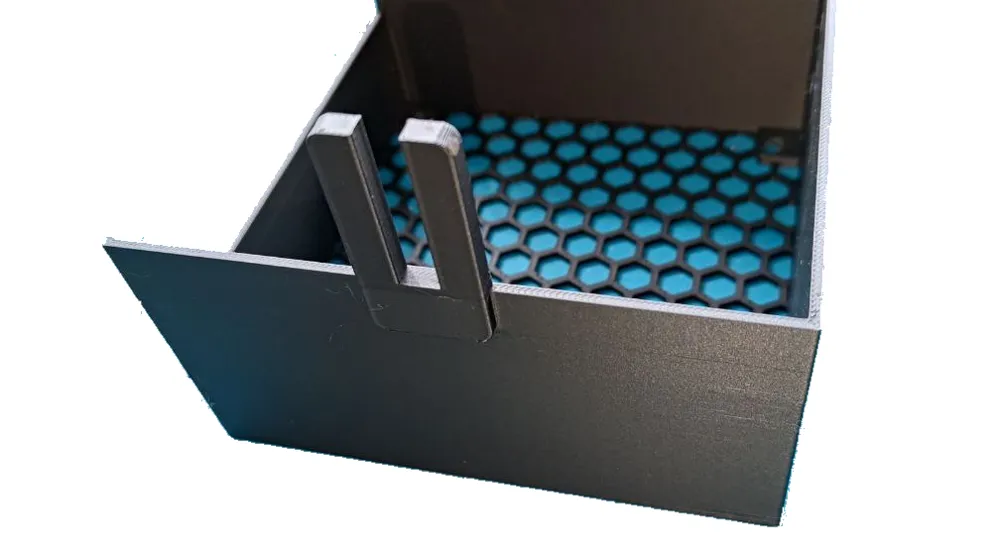

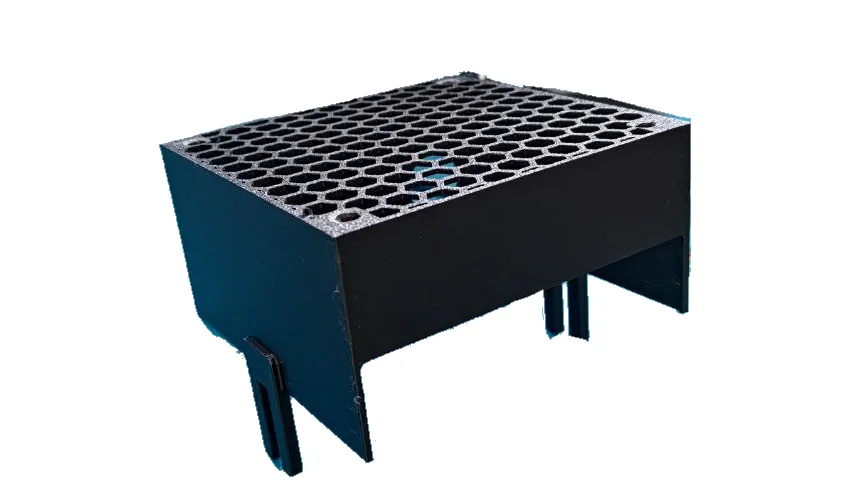

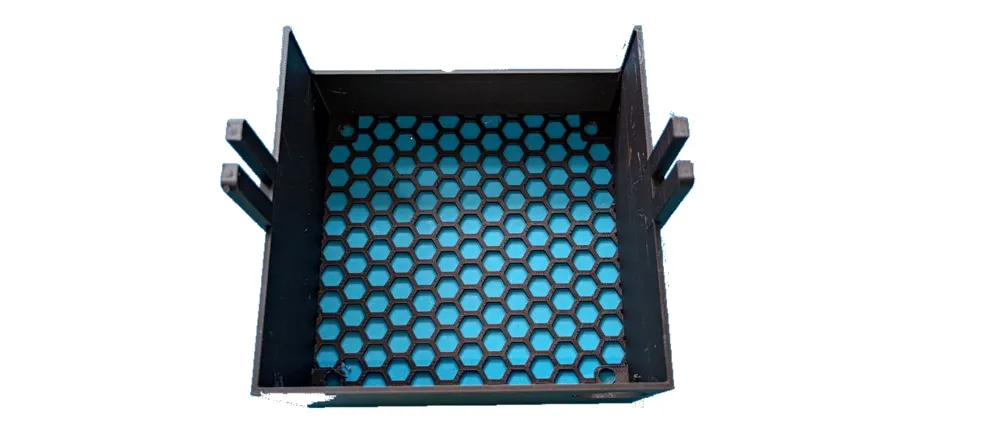

Installation is straightforward: Two mounting arms attach to the original RT95 mount. An integrated honeycomb grid protects against contact and prevents objects from entering the fan.

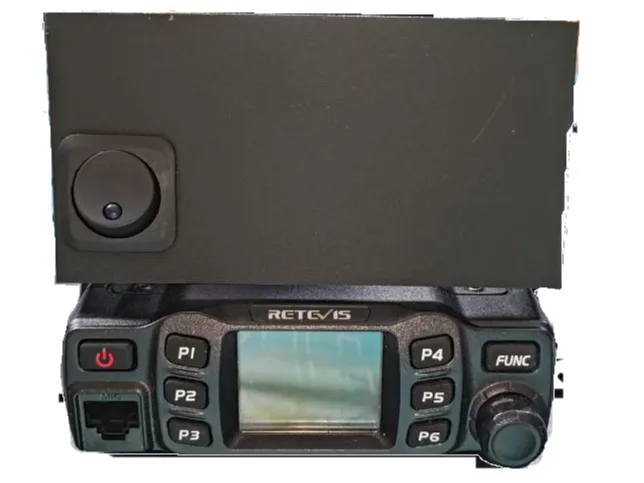

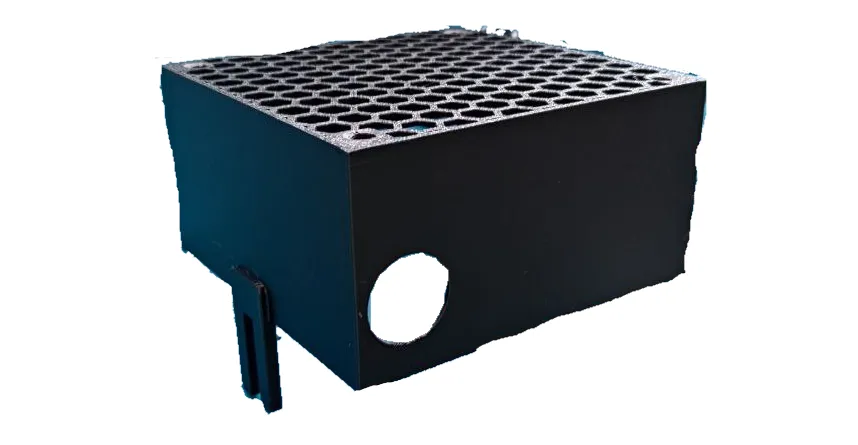

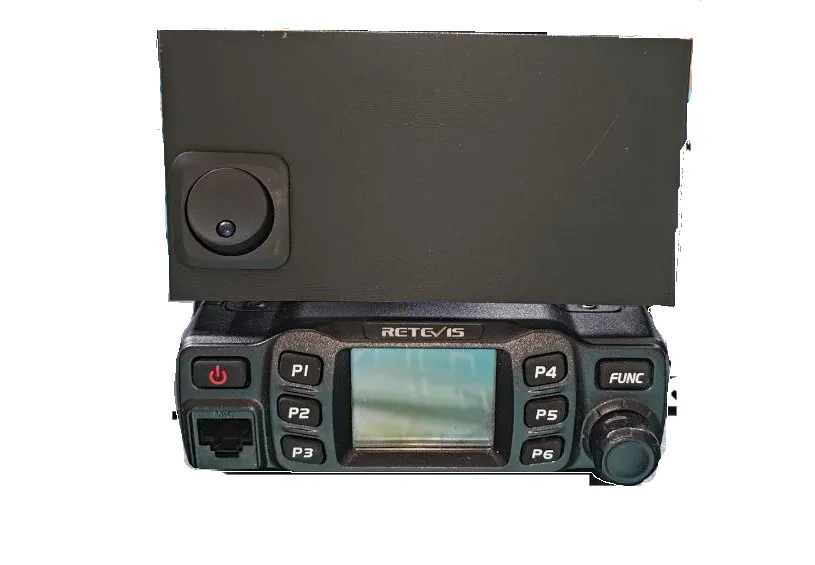

An opening for a 25 mm round switch (12 V) is also provided, allowing convenient on/off control of the fan.

📌 Note

Specifically designed for the Retevis RT95.
May also be compatible with similar devices – please check dimensions.

This is my first MakerWorld project and my first model in FreeCAD!

Therefore, apologies if the model is not perfect, I am still learning.

🔧 Features

• Active cooling for the Retevis RT95 via a standard 120-mm fan
• Attachment to the existing radio mount
• Honeycomb protective grid against foreign objects
• Opening for an optional 12V switch (25 mm round)
• Two mounting arms for assembly
• Lightweight, robust and practical (approx. 85 g)

🛠️ Changelog

V3:

• Screw holes repositioned → now fit precisely
• Mounting arms reinforced by 2 mm → for increased stability
• Honeycomb grid was previously a few millimeters too high → resulting in an unclean print, now corrected

V2:

• Honeycomb grid not connected on the right → fixed
• Screw holes realigned
• Mounting arms reinforced by 0.5 mm
• Wall thickness increased by 0.5 mm

V1:

• 120-mm fan for top-down cooling
• Attachment via two mounting arms to the RT95 mount
• Top fastening with four screws
• Integrated opening for a 12V switch (25 mm)
• Honeycomb protective grid

💬 Feedback welcome

This project thrives on community feedback!
