Robust ozone generator housing / box

Robust ozone generator housing / box

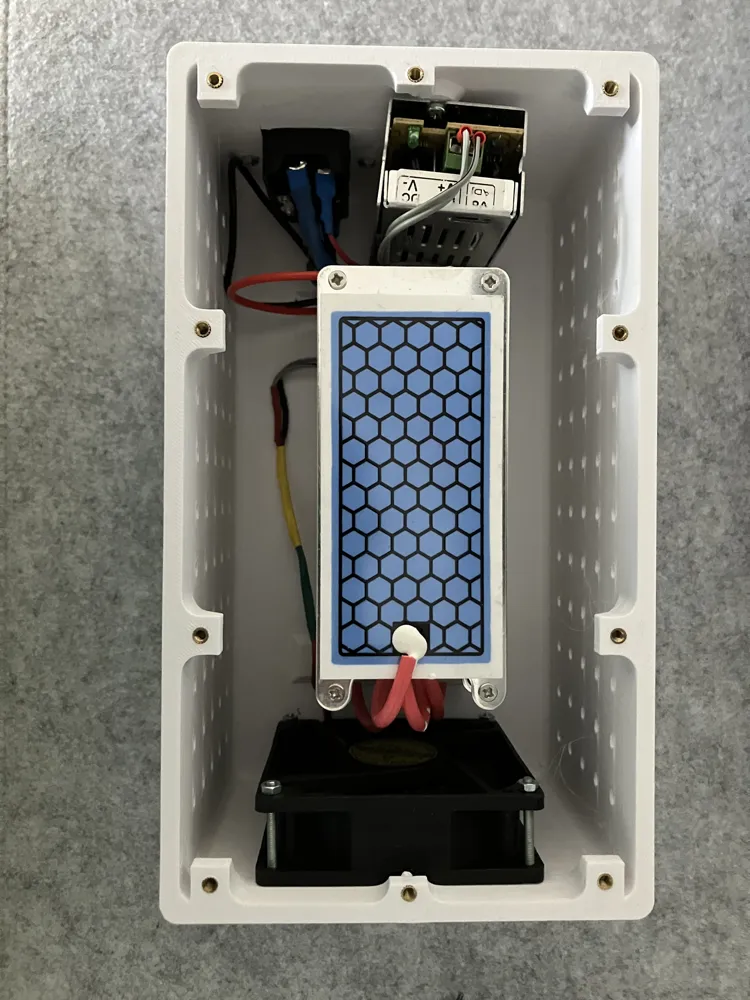

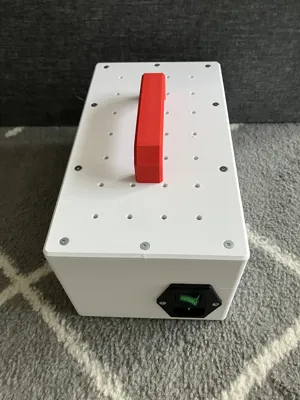

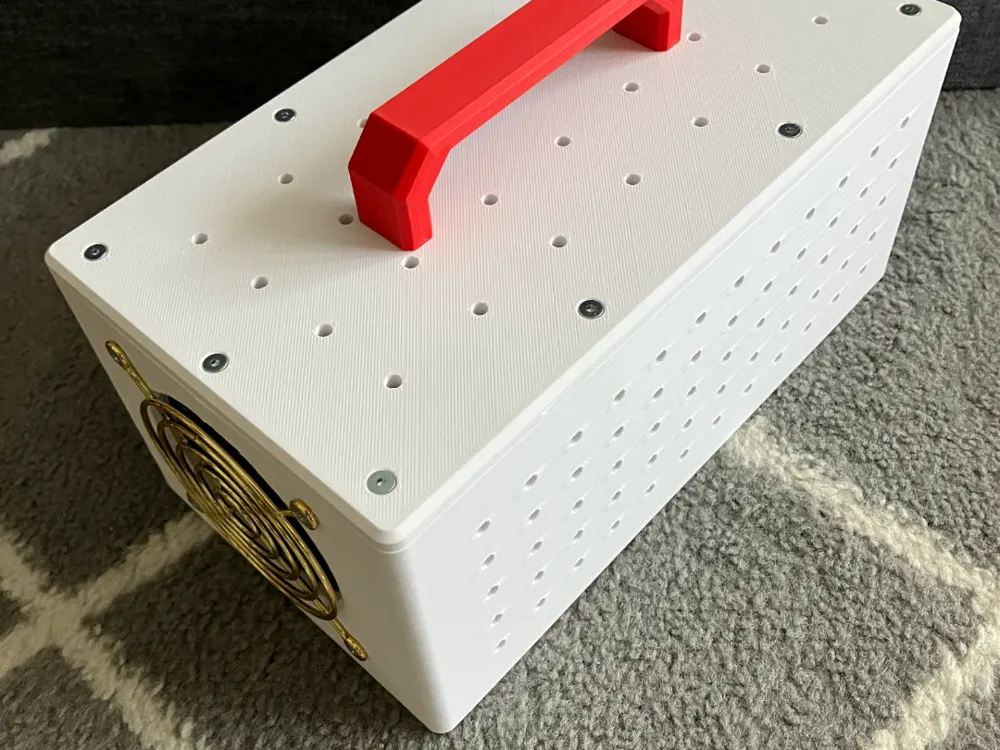

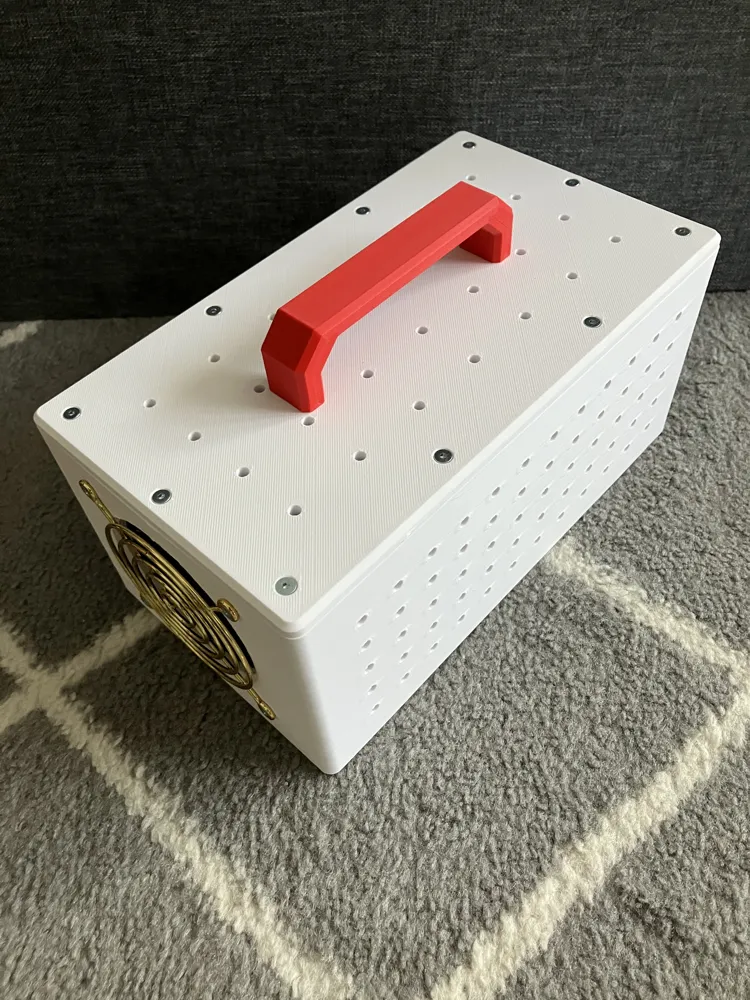

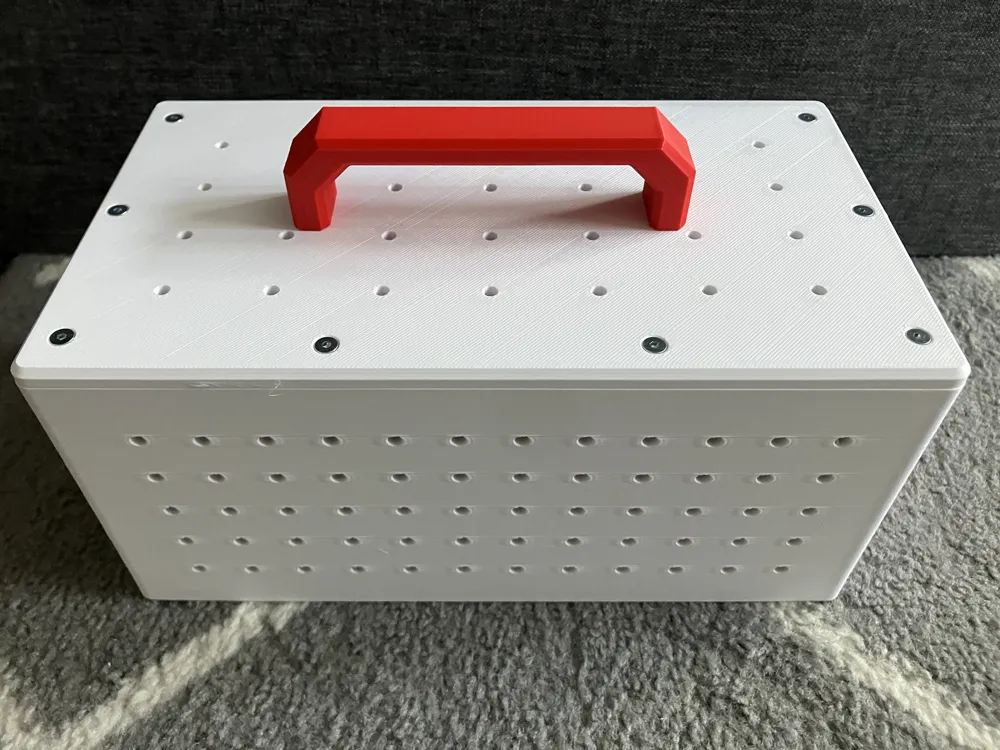

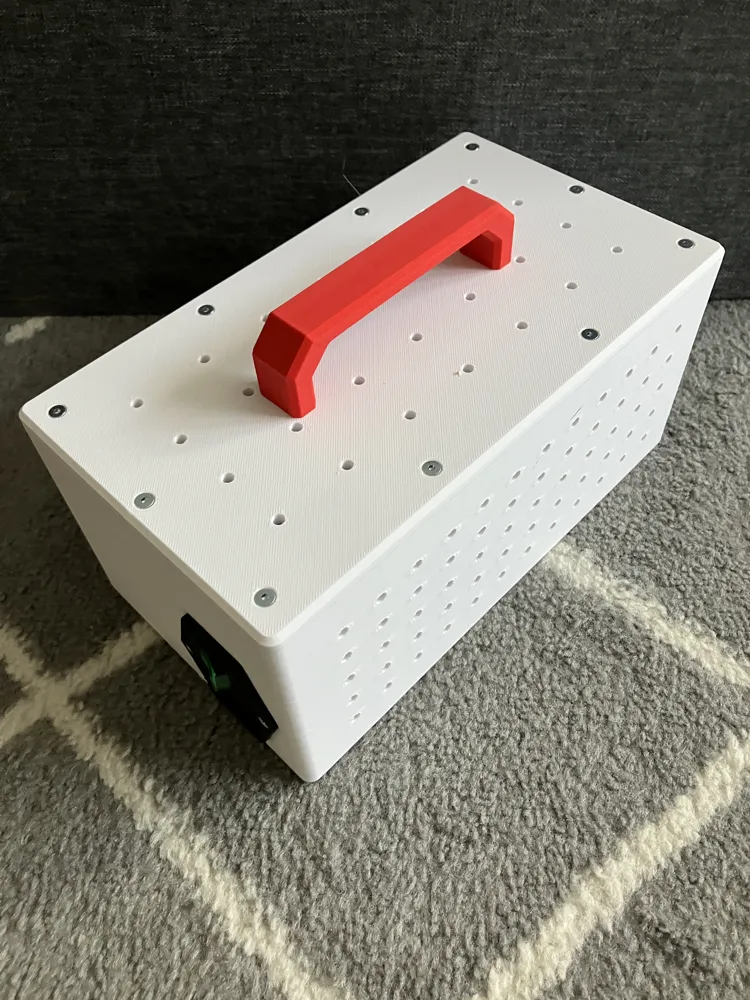

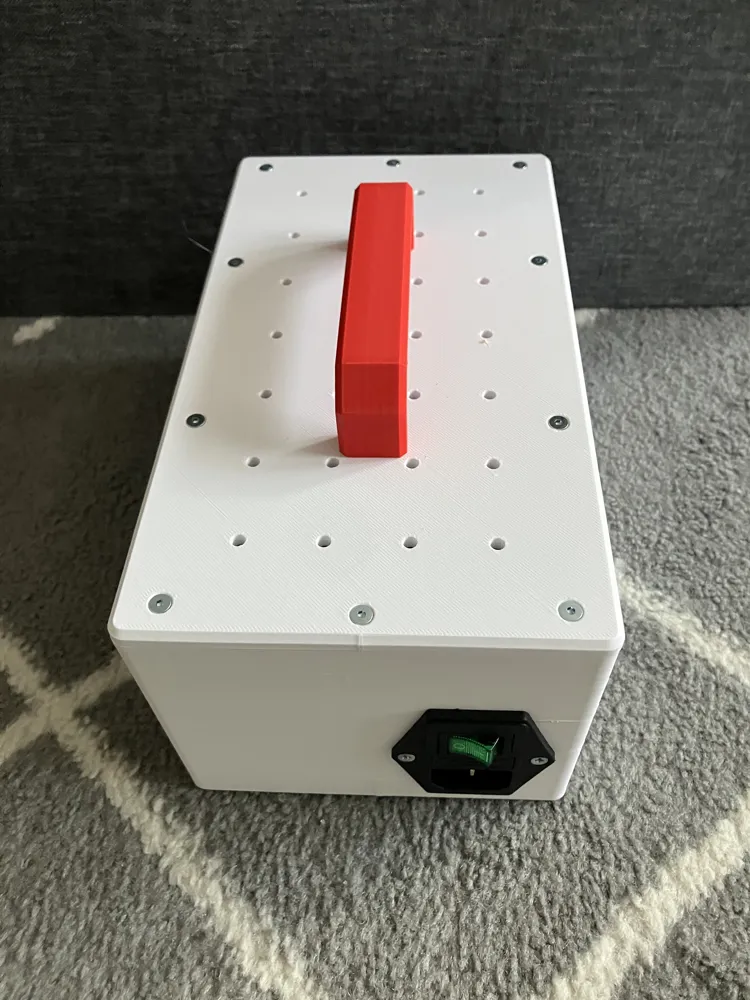

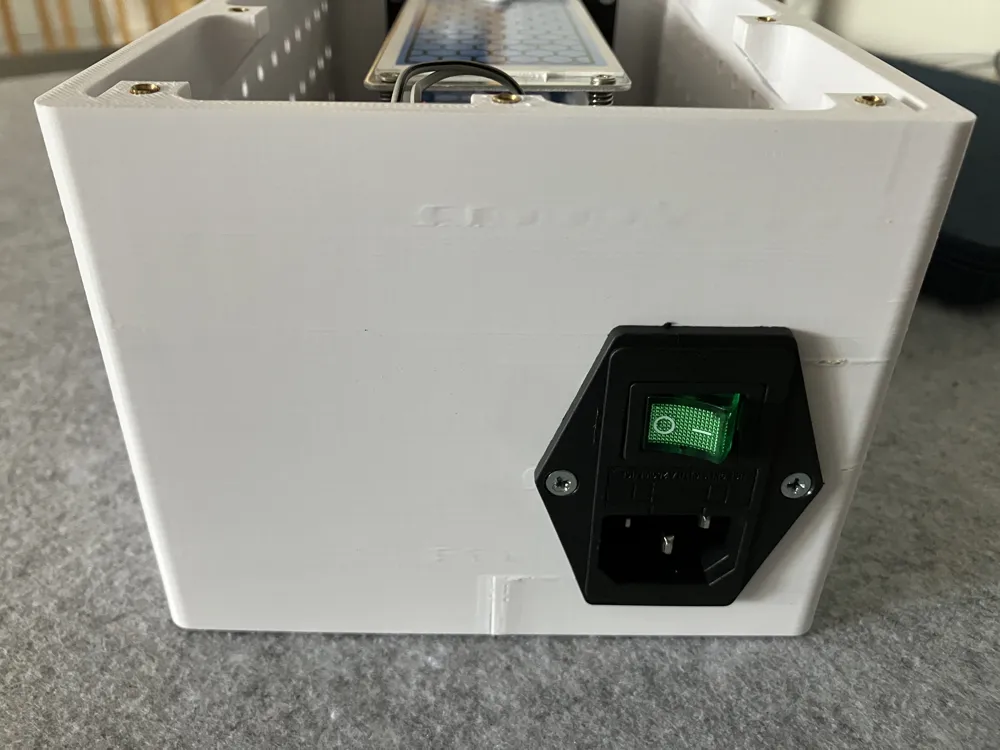

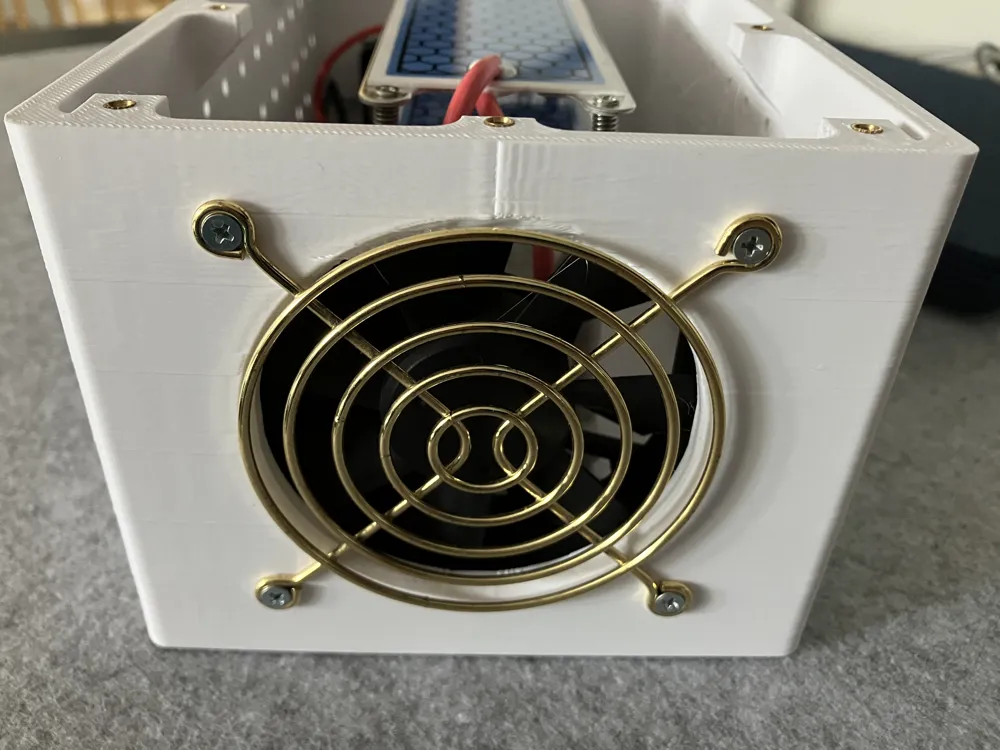

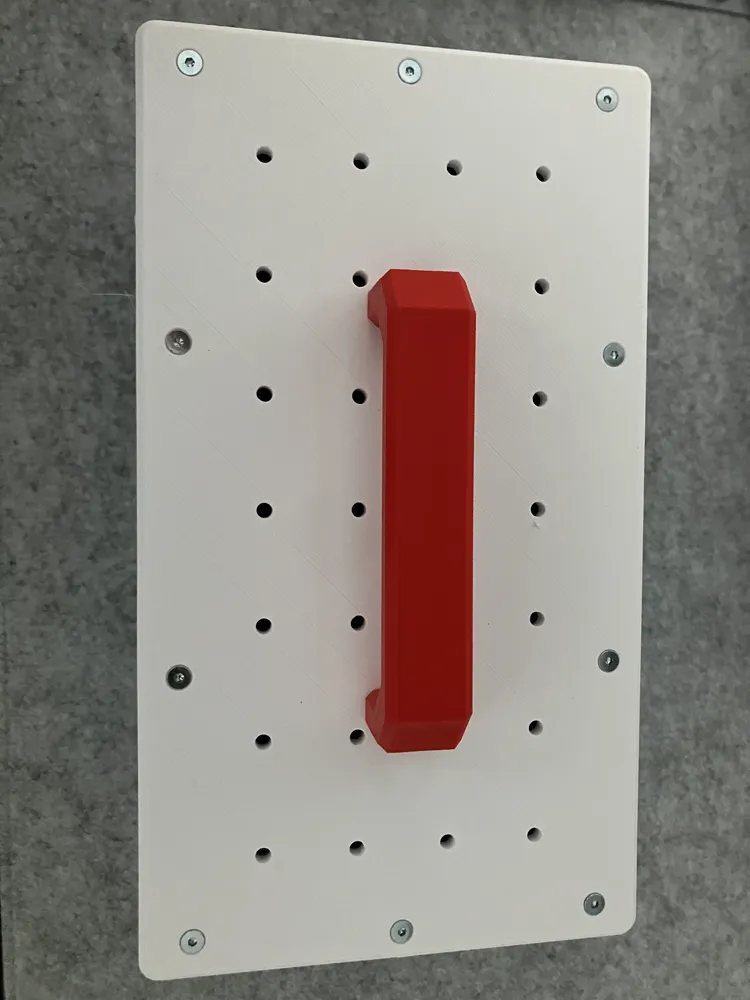

You can put an ozone generator unit in this box. The air flow is provided by an 80mm fan. The 230 V connector is located on the side of the box. There is also space for a 230 V / 12V power supply in the box. I mounted the top of the box with M3 x 6mm inserts, a handle is attached to the top of the box, which can be parameterized, and can be found among my models. The screws of the ozone generator and the power supply must be driven into the plastic.

BOM:

• Ozone generator 2 plates
• Power socket with fuse holder, with switch
• 12 V power supply (max 1 A)
• 80 mm 12 V FAN
• M3 srews
• M3 x 6 mm inserts

WARNING! Be careful due to the mains voltage.

If you are using it for high voltage, use a fireproof material.

Use a very clean plate because the adhesion will not be adequate and I recommend using a plate with good adhesion such as textured PEI or PEI plate.

My modells: my modells.

If you are satisfied with my work, please, in addition to downloading the model, printing and evaluating it, you can also support it with boost.

Print, use and enjoy!
