0.2mm layer, 4 walls, 50% infill

Designer

5.9 h

2 plates

5.0(10)

Open in Bambu Studio

Boost

145

263

142

Released

Bill of Materials

Bambu Filaments

Select all

Black (45101) / Filament with spool / 1kg

ASA

Description

Boost Me (for free)

If this model earned a spot on your build plate, please consider giving it a Boost 🚀! It helps me keep the designs coming. ❤

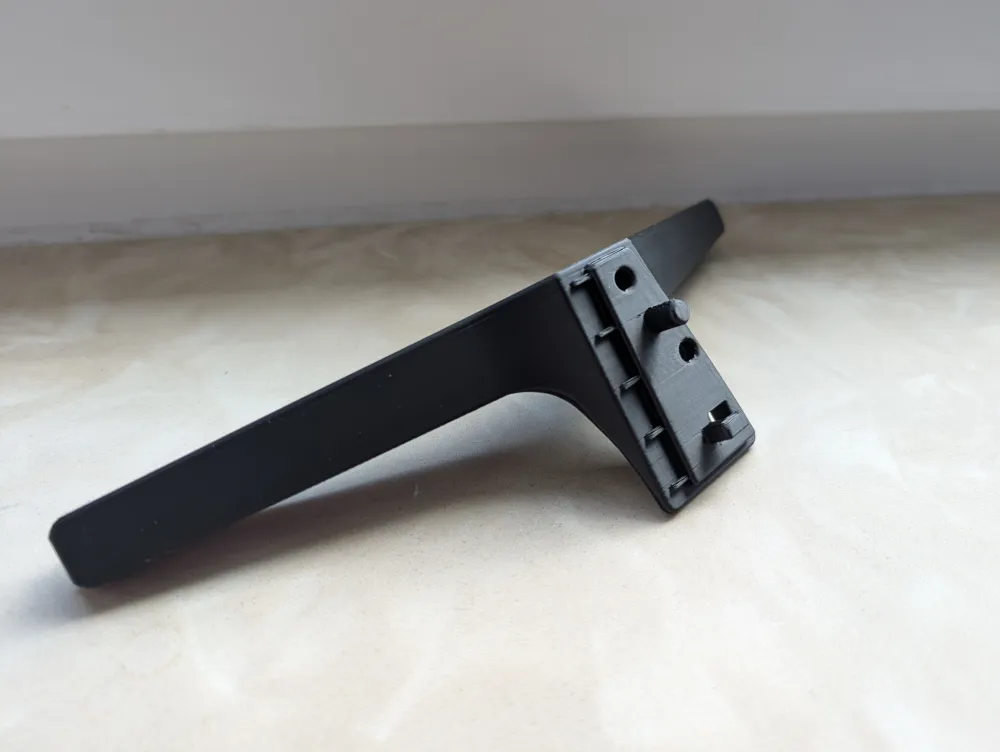

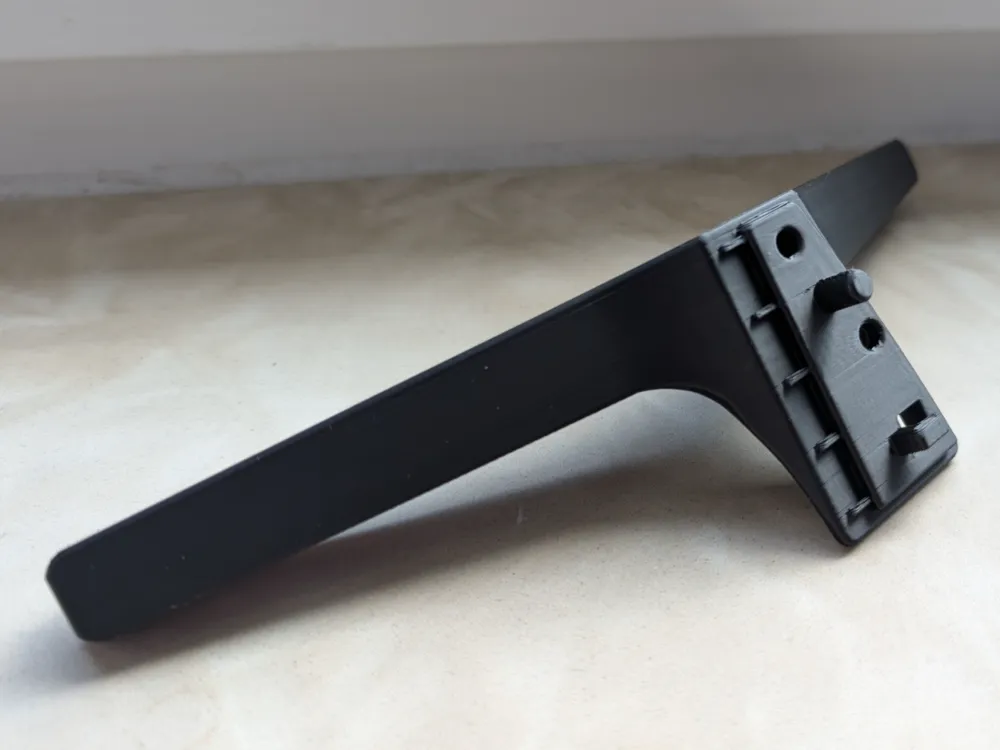

This model is a replacement feet for the LG 55UJ6309 but it might work for other models too.

Please let me know if this feet does fit other models and I will add them to the list.

So far known compatible models:

55UJ6309
UJ6560 (according to comments)
55UP7550PVG (according to comments)
50UQ75006LF (according to comments)
55UJ6307 (according to comments)

NOT COMPATIBLE ACCORDING TO COMMENTS:

32LH604V

I highly recommend a high wall count,infill percentage and use of materials like ABS/ASA rather than PLA. PETG might work but I wouldn't give any guarantees if this model is under load in the sun.

You will need the original provided screws!

Boost Me (for free)

If you are happy with this model feel free to express your appreciation by boosting it.

Comment & Rating (24)

@oxygen454

Boosted

Print Profile

0.2mm layer, 4 walls, 50% infill

This print helped big time, much appreciated! I thought there was something wrong with the print at first but it was words which didn't come out too legible. This is a very helpful print though!

The profile uploader has replied

@jonge

Thanks for the review! Happy to help Yeah, the text was my attempt at a signature if people try to reupload it to other platforms. I hope on that side it shouldn't be an eyesore to you.

@oxygen454

Boosted

Replying to @jonge :

Ah I figured. Good placement, I can't see it and doesn't bother me at all. Nice work on the overall design.

@vrtk1200

Works on LG 55UP7550PVG Didn't have the original screws so I used M4*16 hex screws. Printed with PETG.

(Edited)

@leon.0

Confirmed fit on LG 50UQ75006LF Printed a quick test foot in PLA to check the geometry first. It fit exactly as expected, so I went ahead and made a small modification for my setup. To have the TV sit neatly inside a 20 cm-deep IKEA shelf, without any additional support, I reduced the overall length by about 2 cm by cutting the model horizontally slightly above the base. The final version was printed in white ABS. With white shelving and a white wall, the feet more or less disappear, which is ideal. If anyone is interested in the shortened variant, I’m happy to share it — I’m still getting familiar with MakerWorld uploads, but feel free to ask.

@user_2074687767

Boosted

Works with LG 55UJ6307. I use screws M5x20. Thanx for that model! Question: How did you create it? Did you scan the original legs?

The designer has replied

@jonge

Hi, I don't have access to a 3D scanner. I used multiple photos and calipers and tried to get as close as possible(had to flatten the outside to make it printable) Happy that it works on so many models. A friend of mine asked me to fix his and I didn't even have access to the original TV 😃

(Edited)

@user_2074687767

Boosted

Replying to @jonge :

You are the man! :) Thanx

@jonge

Replying to @user_2074687767 :

You are welcome. Just trying to add something back to this ecosystem 🙌 and as always likes and boosts appreciated 😏😬

@user_2793455557

Print Profile

0.2mm layer, 4 walls, 50% infill

thank you so much. this print is MUCH more solid than the crappy feet that came with our tv.

The profile uploader has replied

@jonge

thank you for the rating! it is apparently a piece that brakes often. it's mostly the same footprint except the outer curvature that I flattened to be used as print surface

(Edited)
