Doogee U11 phone holder

Do you own a Doogee U11 tablet that you'd like to utilize as a smart home hub? This specially designed 3D-printed wall mount offers a perfect, clean, and functional solution!

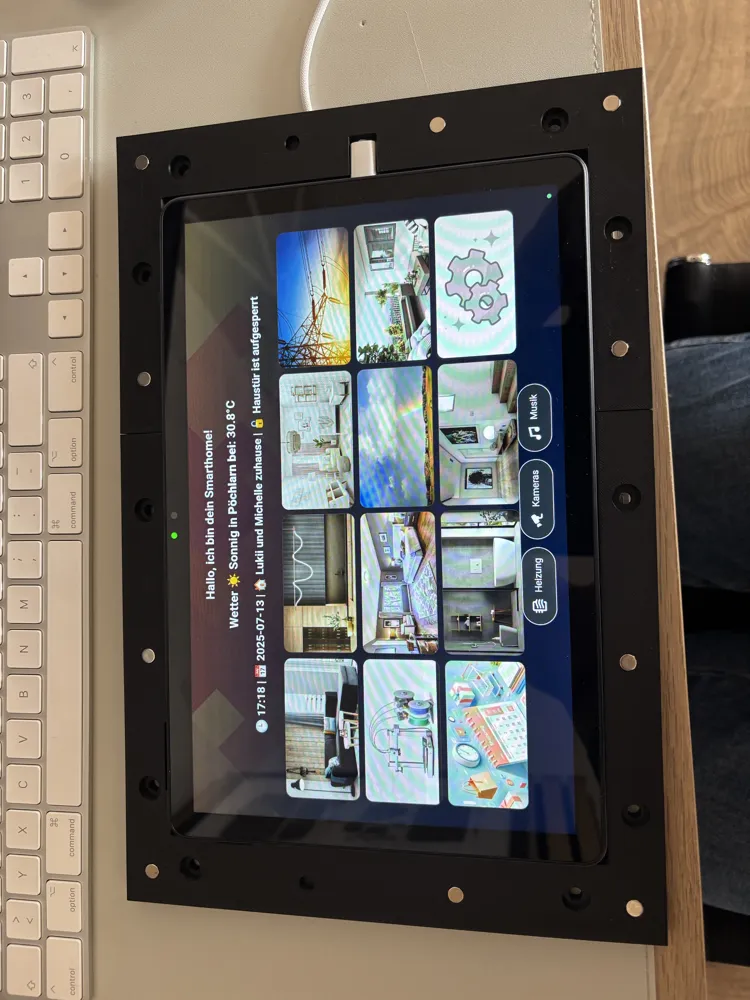

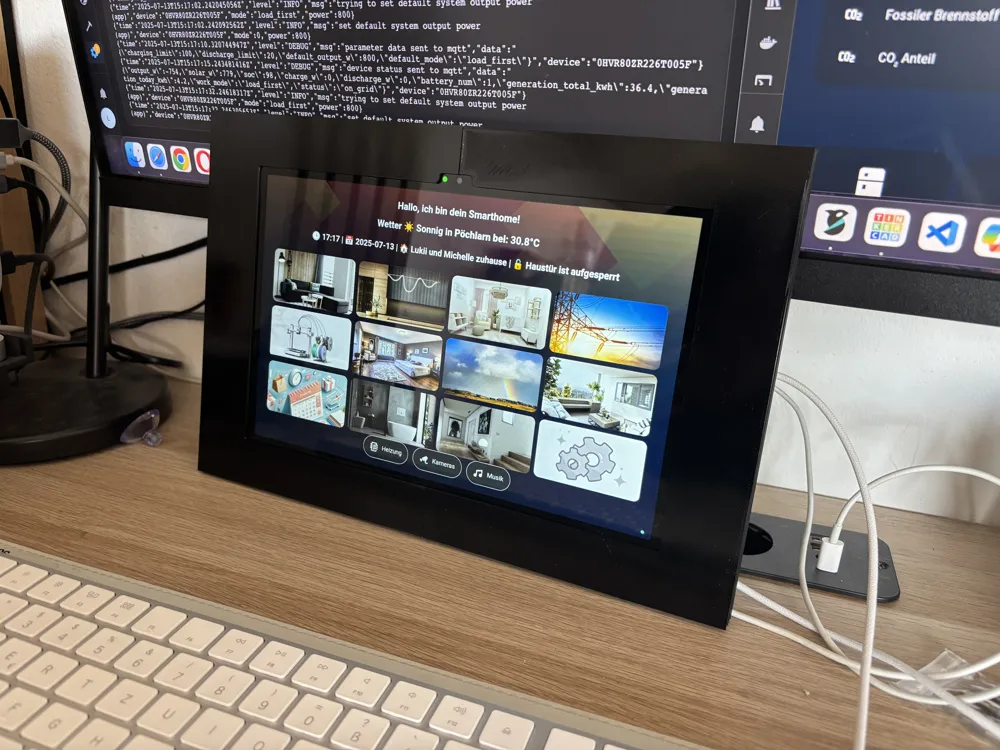

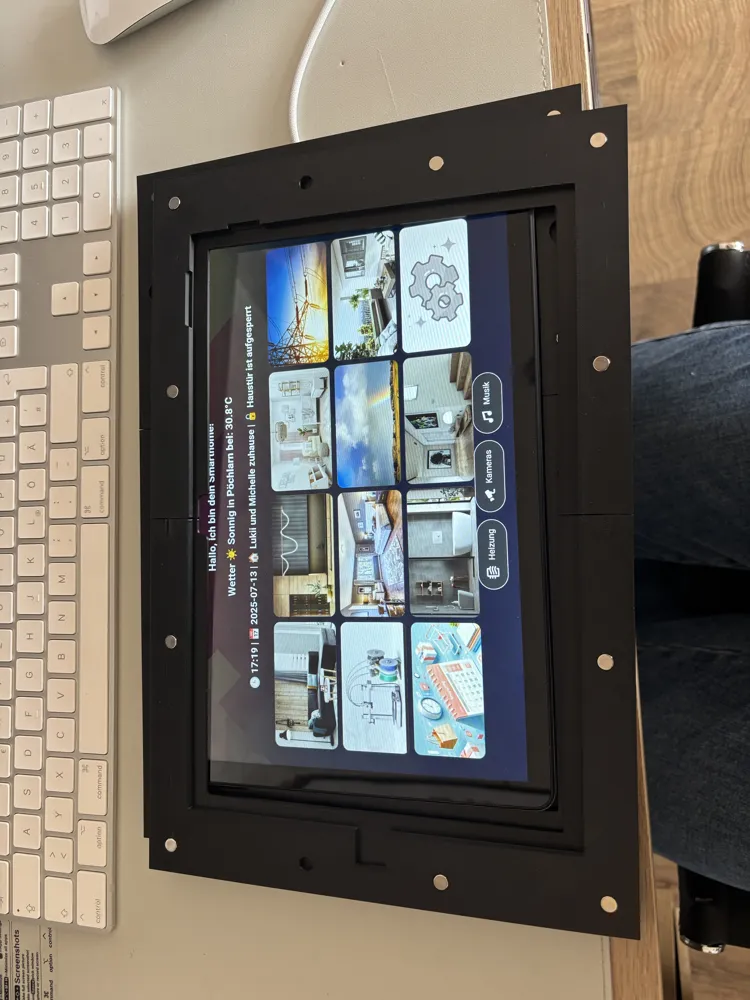

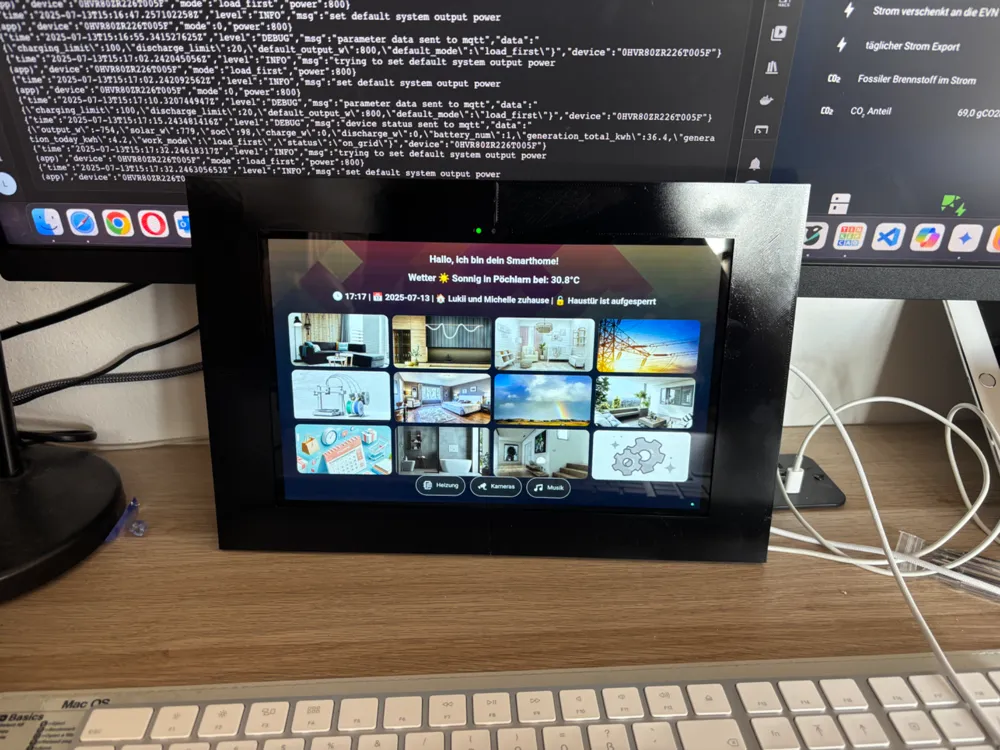

I designed this mount to seamlessly integrate my Doogee U11 tablet into my Home Assistant setup. It consists of a robust base that is securely screwed to the wall and an elegant faceplate that is magnetically attached. The result is a high-quality, flush-mounted look that makes your tablet a true eye-catcher.

Key Features:

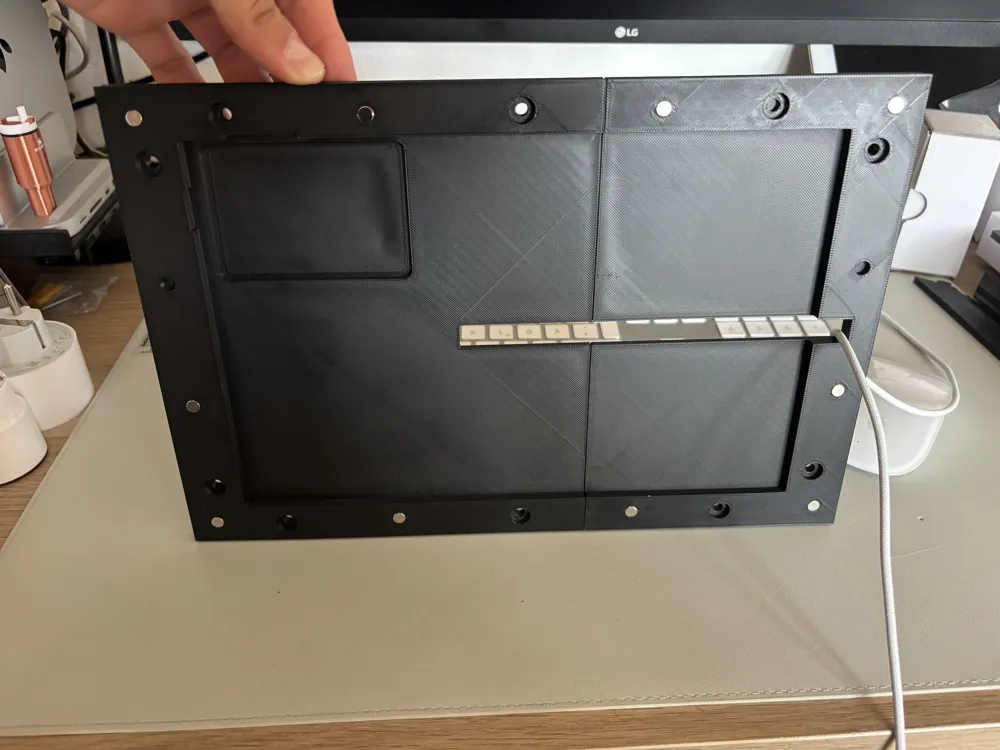

• Magnetic Attachment: The faceplate is held in place with 24 round neodymium magnets (6x3 mm), allowing easy access to the tablet while ensuring a secure hold.

  Pay close attention to the polarity when inserting the magnets! The magnets should hold without adhesive; if not, a drop of superglue is sufficient for fixing.

• Modular Design: The mount consists of a total of 4 printed parts (2 for the base, 2 for the faceplate) that can be easily assembled and optionally glued together. This allows printing even on smaller 3D printers.

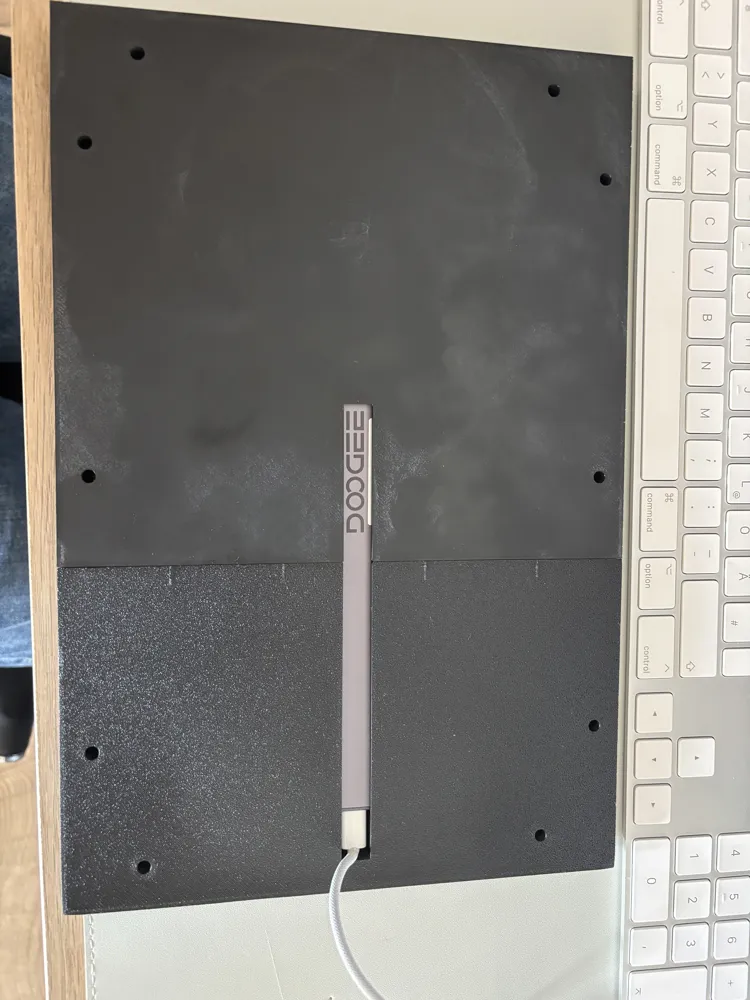

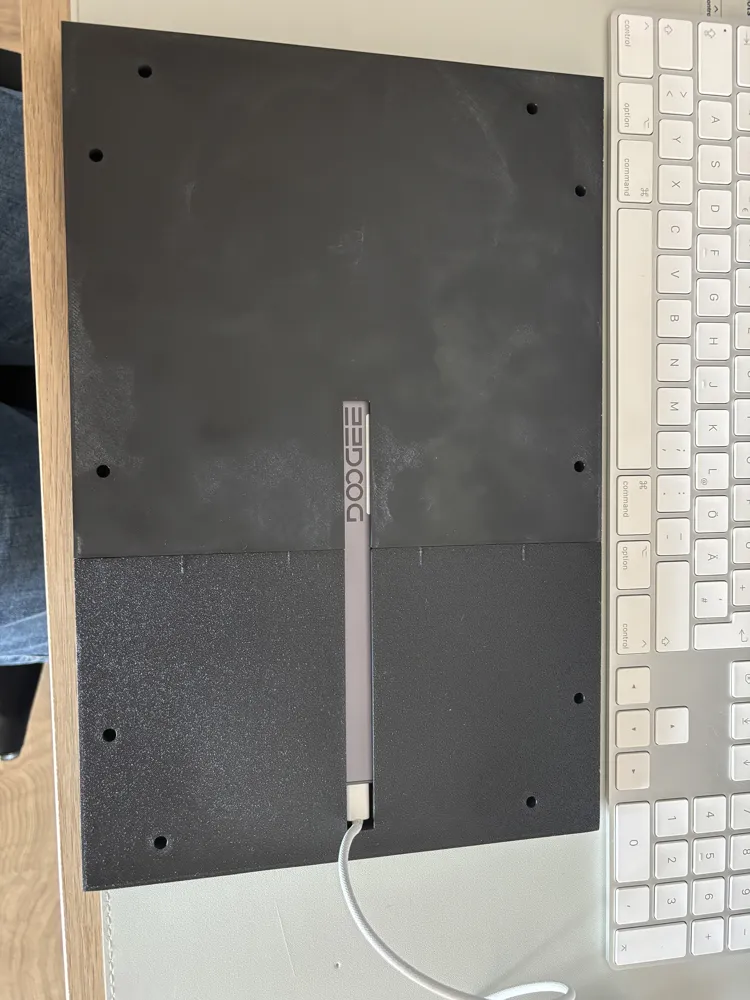

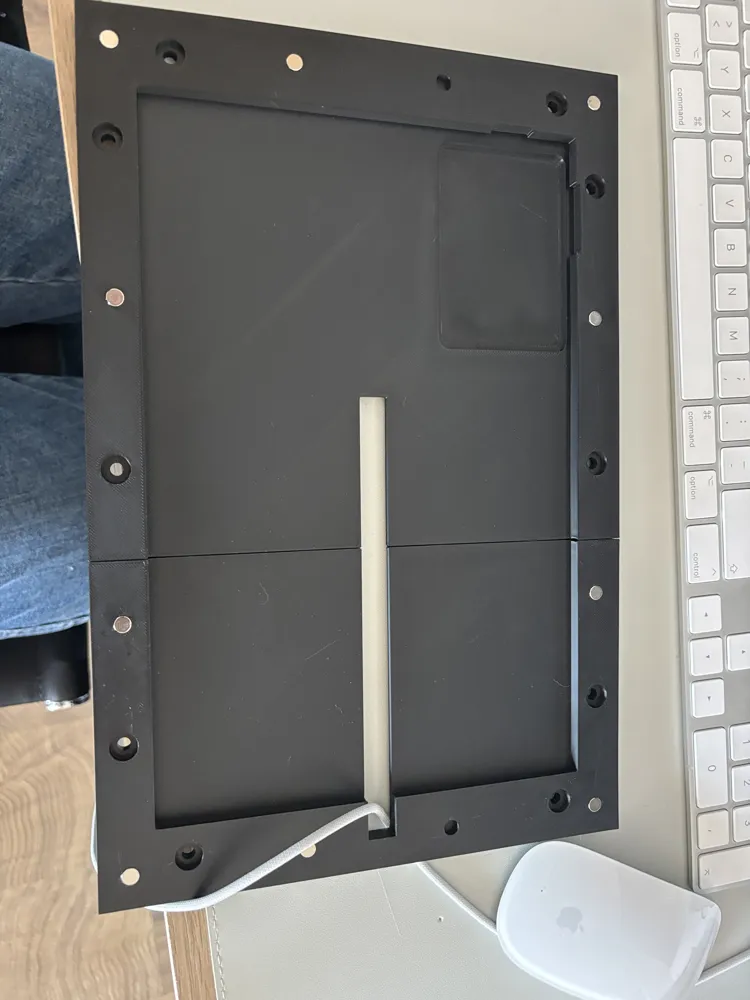

• Cable Management: A recess on the back and a side cable channel ensure that the tablet's charging cable remains completely invisible once the mount is installed.
• Home Assistant & Fully Kiosk: Ideal for use as a permanently installed screen to control your smart home with the Fully Kiosk Browser app.

Printing Material & Recommendations:

• I successfully printed the mount with PLA, which is perfectly sufficient for this purpose.
• Alternatively, PETG can also be used to achieve even higher temperature resistance and robustness (not tested, but should work without problems).

What you need:

• A Doogee U11 Tablet
• Suitable USB C cable for the recess (I use a USB C cable from iPhone)
• 24 x round neodymium magnets (6mm diameter, 3mm thick)
• Standard screws and wall plugs for wall mounting
• Optional: Superglue or plastic glue for gluing the mount parts together, if desired.

Transform your Doogee U11 into a stylish smart home control center!
