ESP32S3 Camera Dev Board
Print Profile(1)
Description
I created 2 cases so far for the ESP32S3 Camera Dev Board. I am using the long board and not the compact version.
The two version that I am aware of this board are: “Freenove ESP32-S3-WROOM” and “GOOUUU ESP32 S3 CAM”

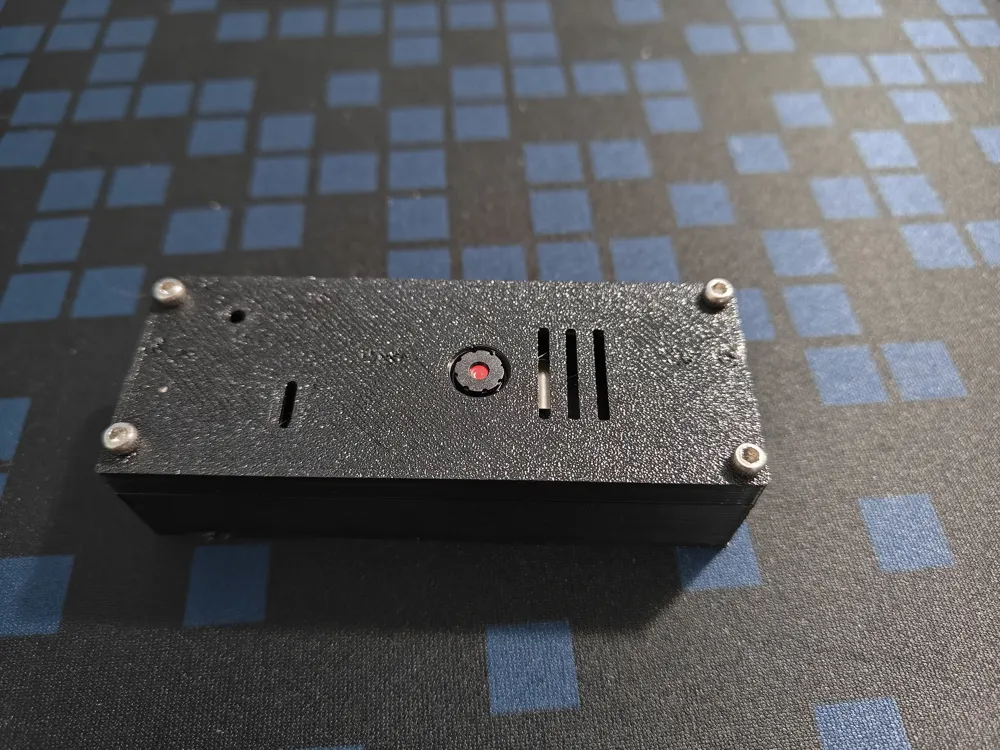

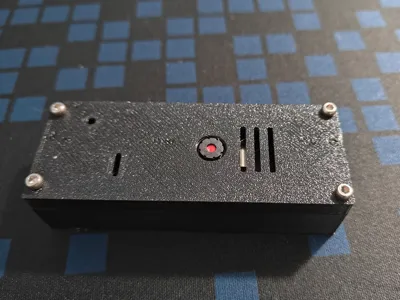

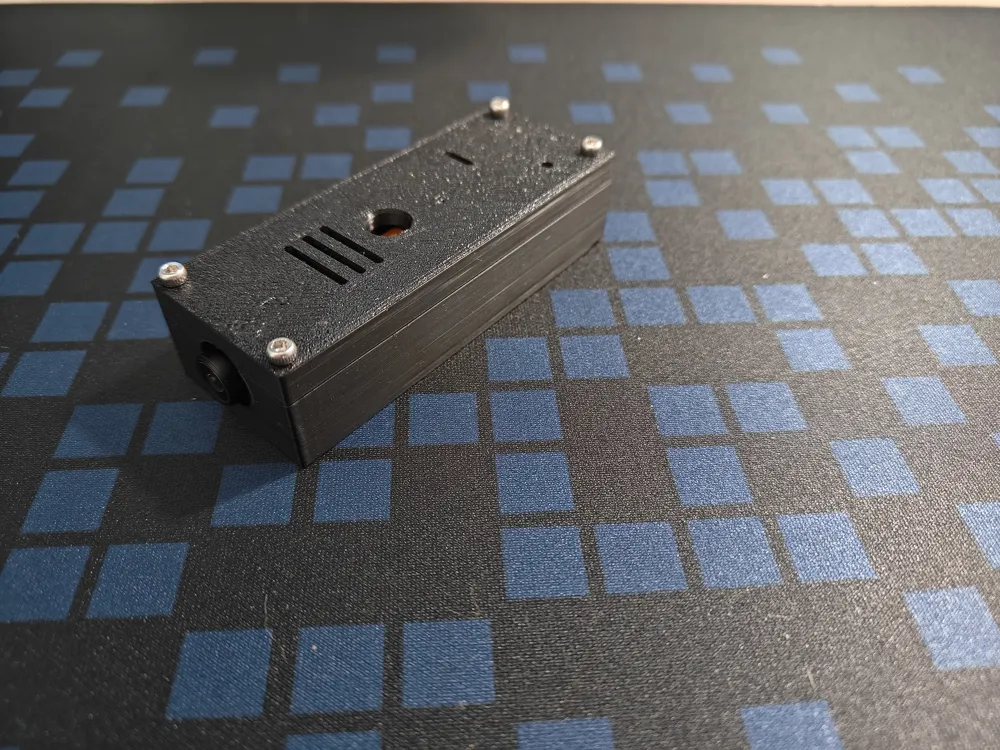

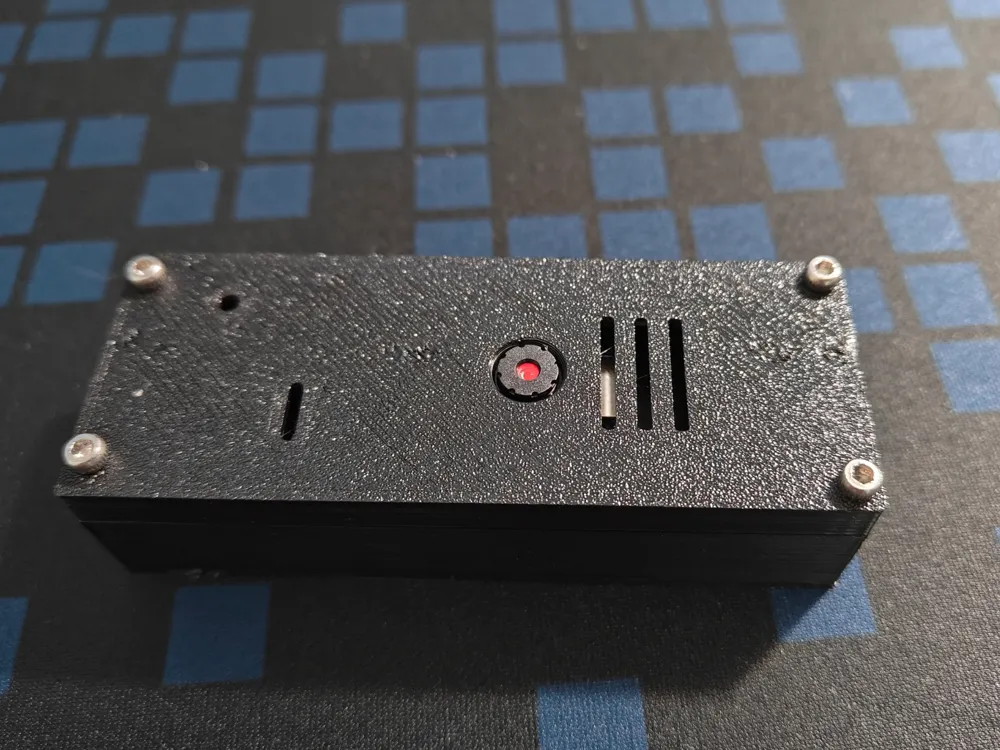

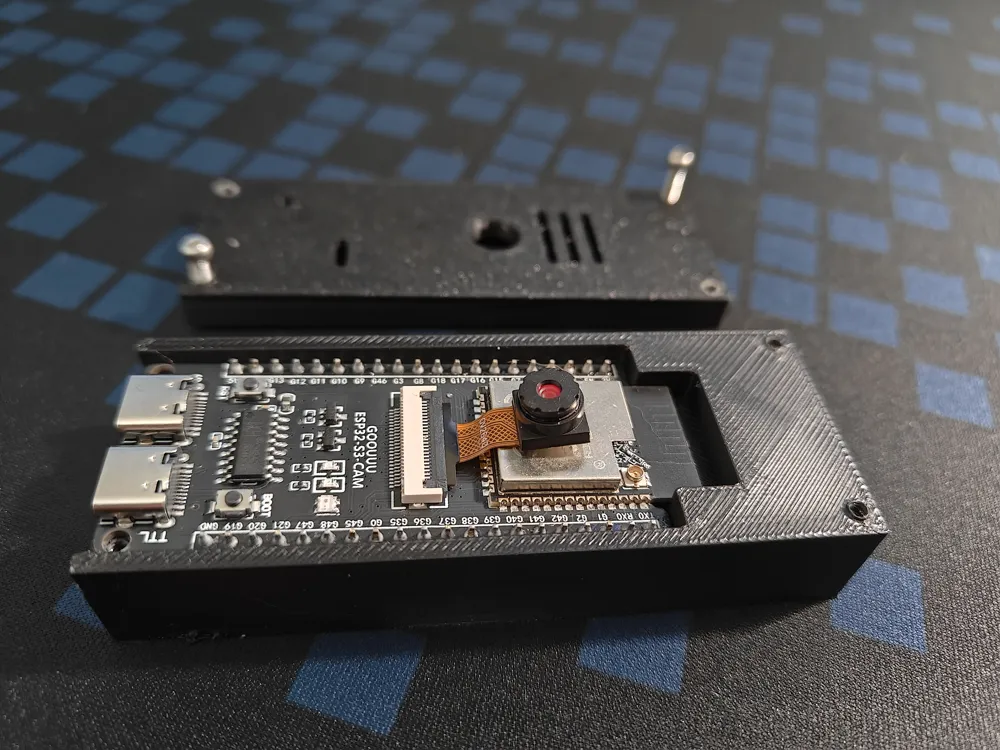

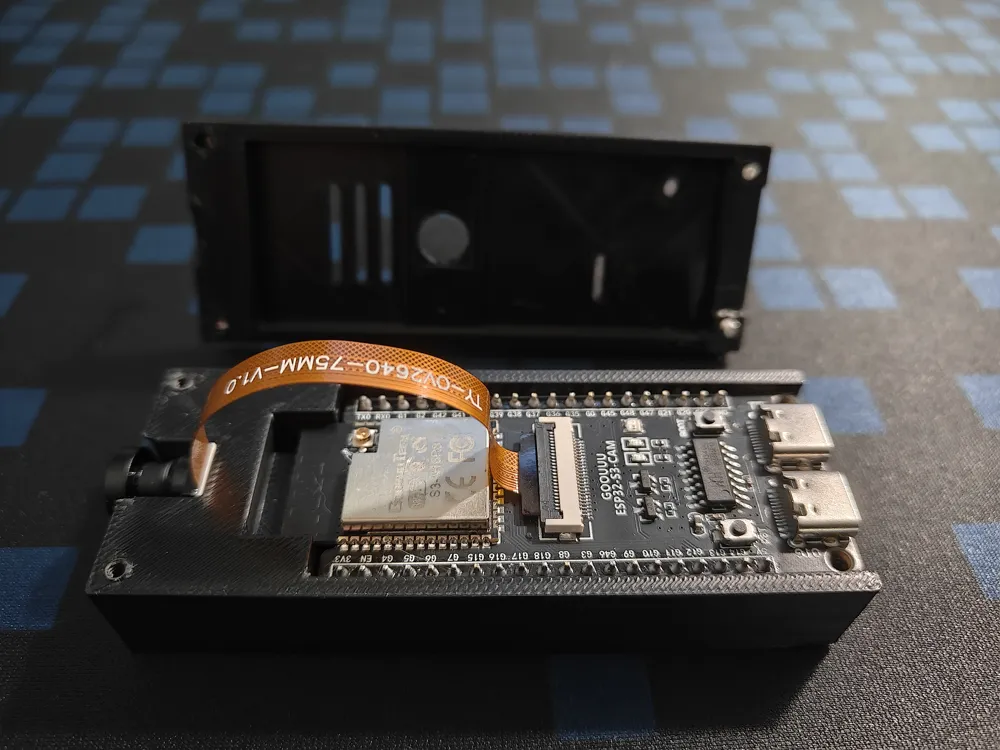

The two versions of the case I created are for the simple and small ov2640 that usually comes with the boards and the longer 75mm ov2640. For the short ov2640, the camera peaks out in the middle of the top case and is very snug. For the 75mm, The camera is clipped in the bottom case and is very secure, that version of the bottom case also has a spot to add a “N35 20mm x 5mm x 2mm” magnet.
The cases are attached by 4 M2.5x12 screws.
A glue on privacy shield for laptops can be used as a lens cap for the small camera.
