FPV Eccentric VTX adapter 30x30 M3 to 20x20 M2

user_3584411417
Hobby & DIY>RC
IP Report

Print Profile(1)

All
X1 Carbon
A1
P1P
H2D
X1
A1 mini
P1S
X1E
H2D Pro
H2S
P2S
H2C
X2D
A2L
0.08mm layer, 2 walls, 15% infill
0.08mm layer, 2 walls, 15% infill
Designer
41 min
1 plate
Open in Bambu Studio
Boost
12
17
0
0
24
11
Released

Description

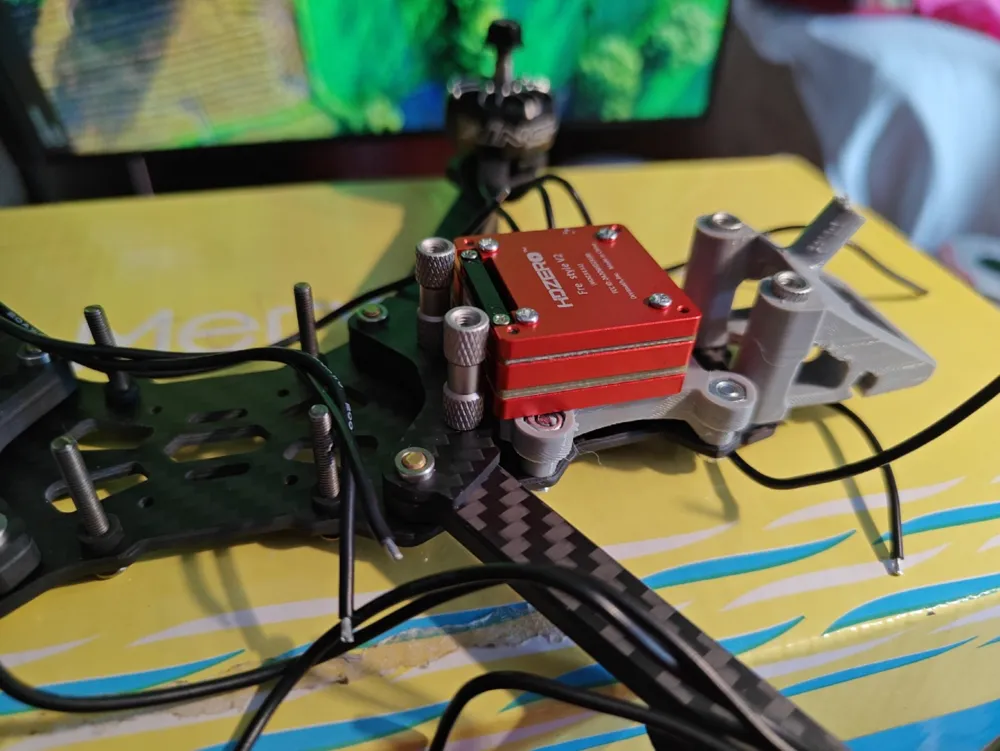

Created it because camera cable of my HDZero Freestyle v2 set was too short.

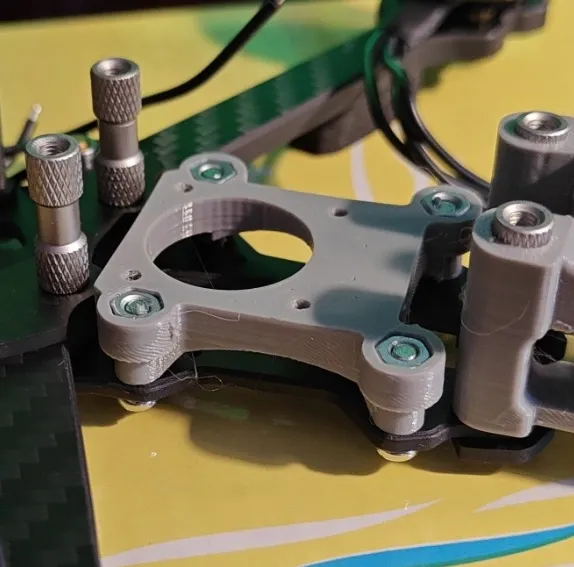

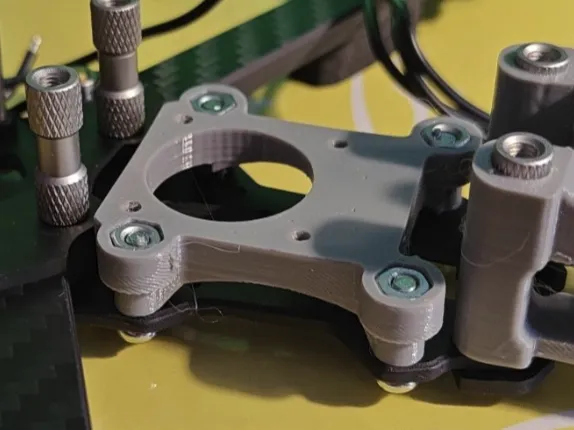

Use M3 nuts and screws to mount to frame with 30x30 mount holes. Use m2 screws and nuts to mount to adapter with 20x20 mount holes.

Use TPU filament for printing.





hdzero
FPV
Adapter
VTX
mount
