🐾 Cat Massage Corner – Grooming & Play Combined!

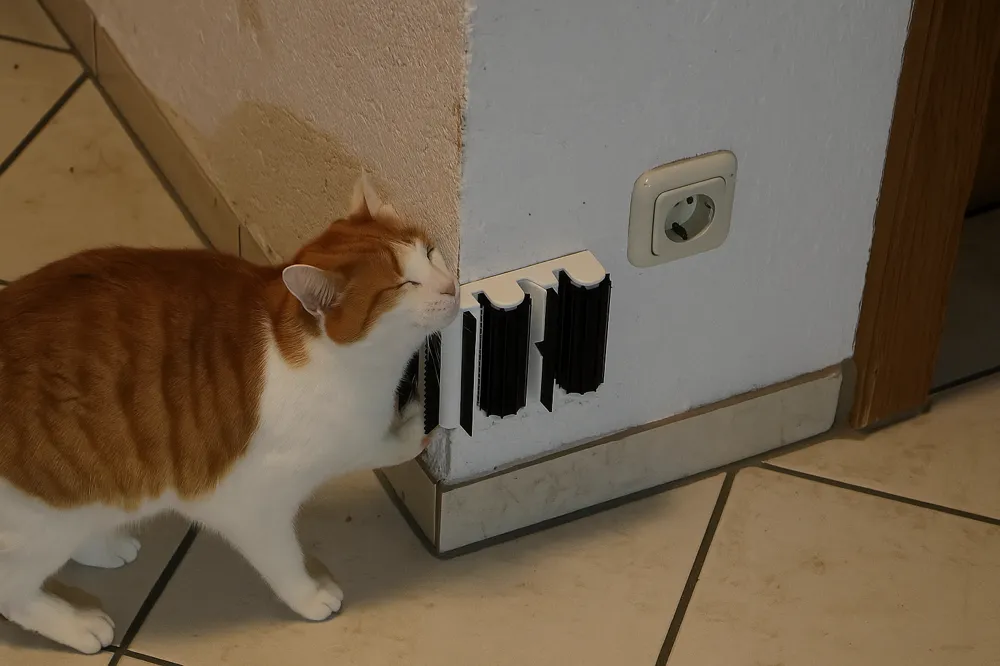

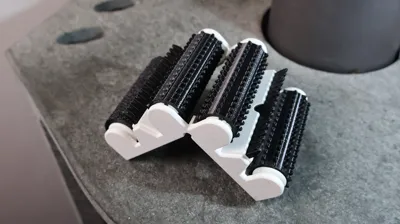

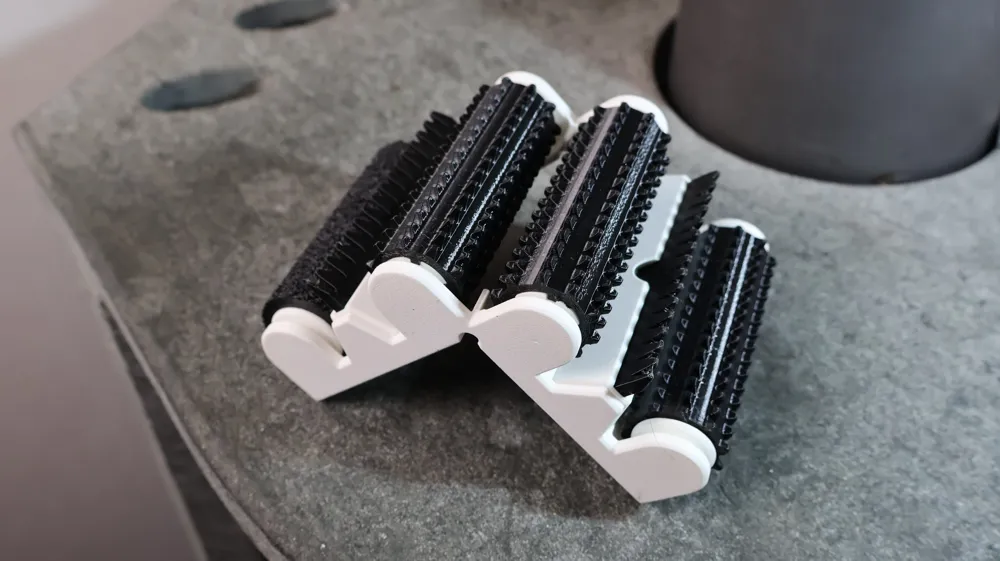

This modular cat massage toy mounts to a wall or 90° corner, combining fur grooming, friction, and playful fun.
For added allure, the rollers can be filled with catnip.

✨ Highlights:

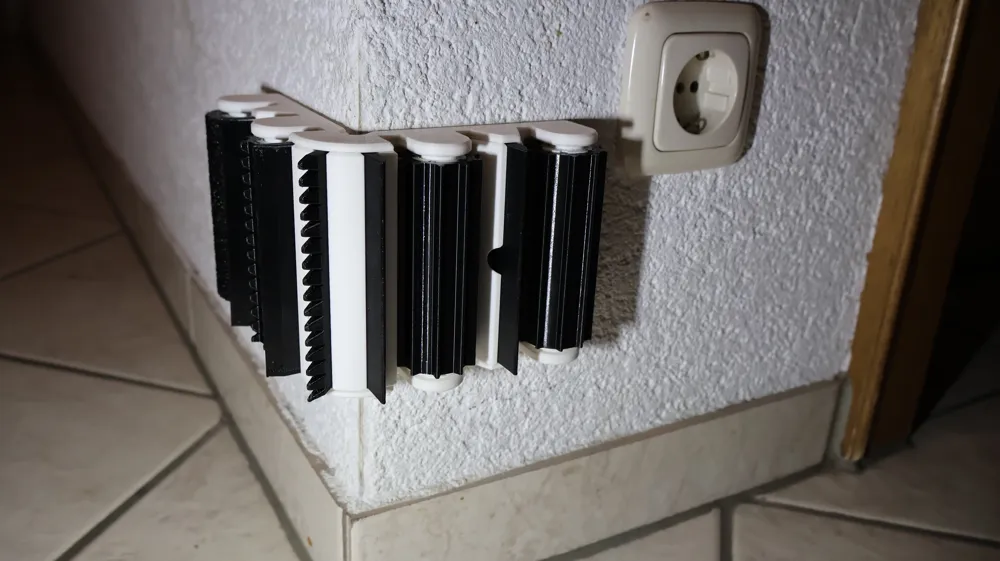

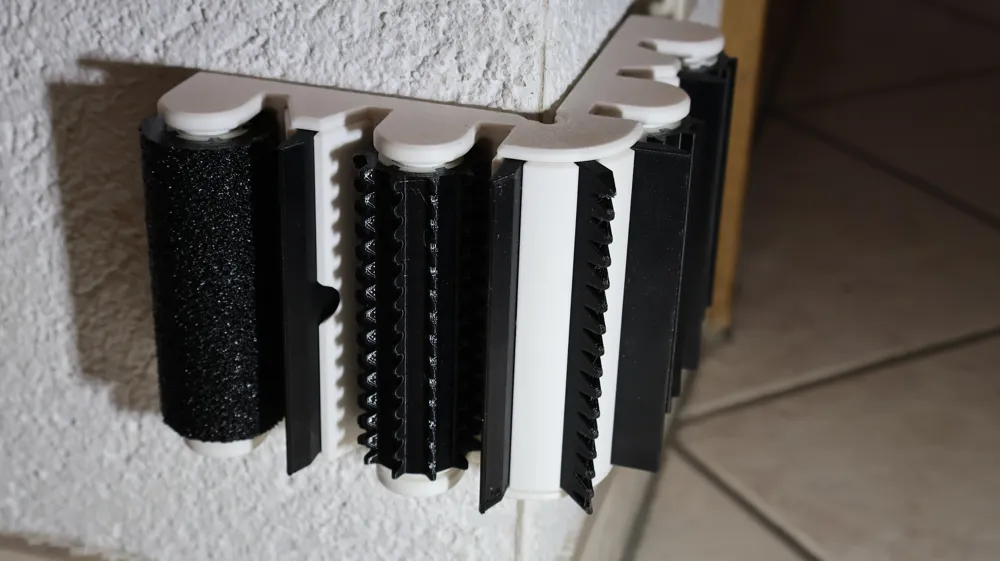

Wall or corner mounting (screwed or with double-sided adhesive tape)

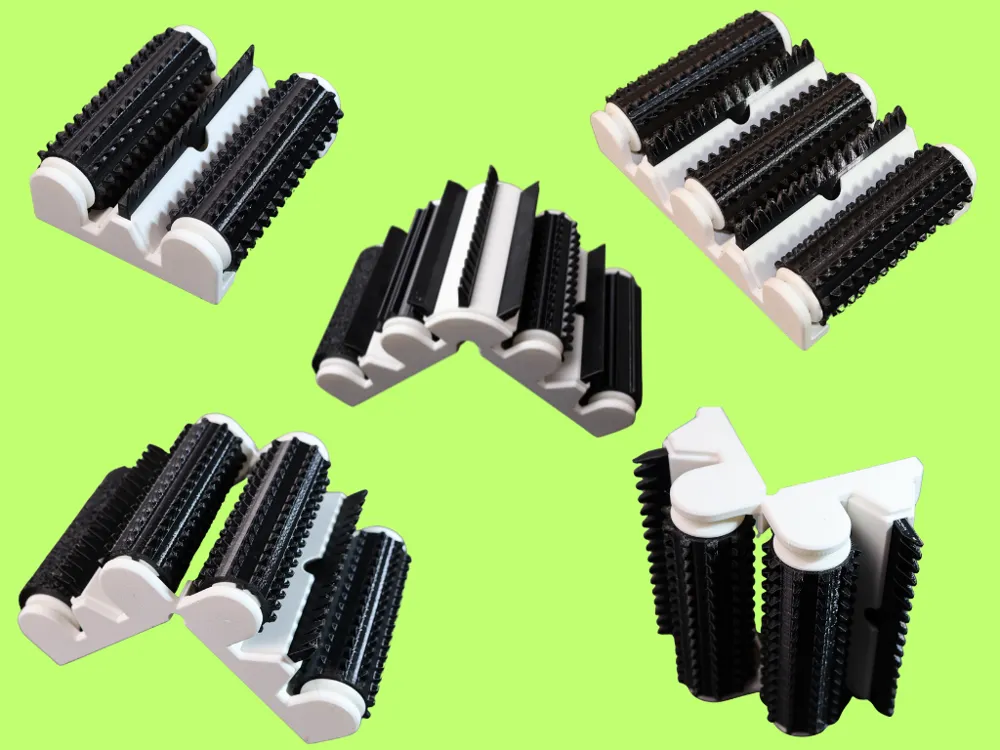

2, 3, or 4 rollers – modularly interchangeable
Removable cover – ideal for cleaning or refilling

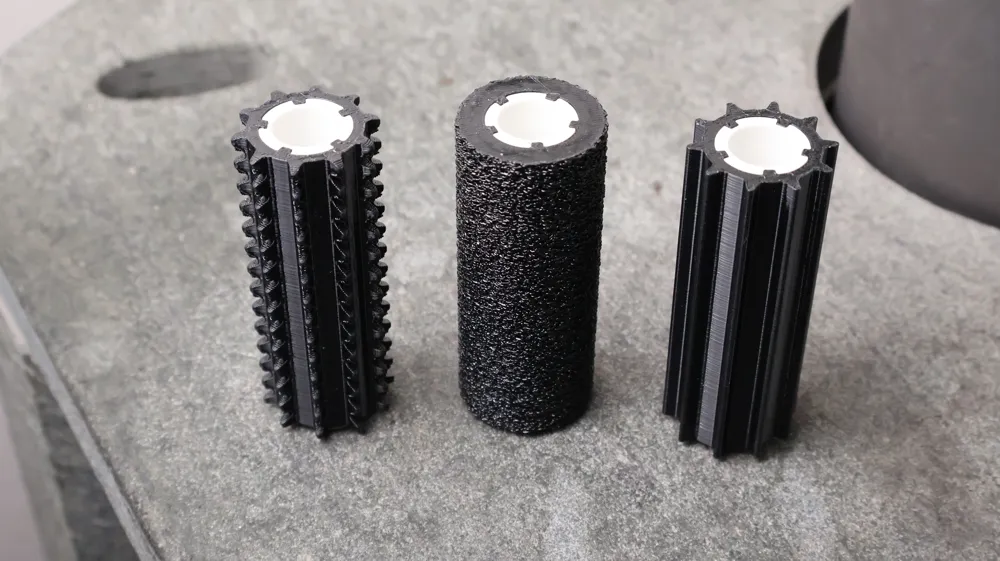

3 different roller types made of TPU (soft & flexible)

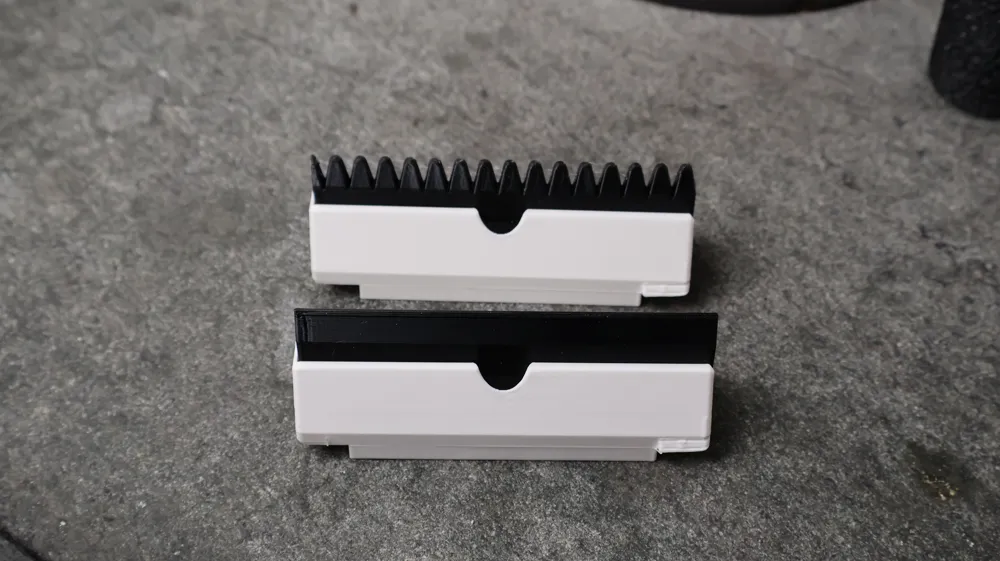

Grooming scraper

💡 The rollers are hollow and provide space for catnip.
The flexible material (TPU) creates a gentle massaging effect.

💡 Tip: Use dried catnip or catnip pillows from a pet store for extra playtime appeal.

💡 Practical in everyday life:
Even if the toy is firmly screwed on, the top element (cover) can be easily removed.
This allows you to exchange the rollers or scrapers or refill the catnip without disassembling everything.

⚠️ Some parts require minimal support, especially the mounts.
This is already considered in the print profiles.

📦 The TPU rollers should be printed individually – this ensures the best surface quality and avoids overextrusion.

🖨️ Printing Recommendations:

Frame & Housing: PLA / PETG / ASA
Rollers & Scrapers: TPU (flexible – Contest-compatible)
Layer height: 0.2 mm
Infill: approx. 20 %
Print TPU slowly & individually

📦 Print profiles included:

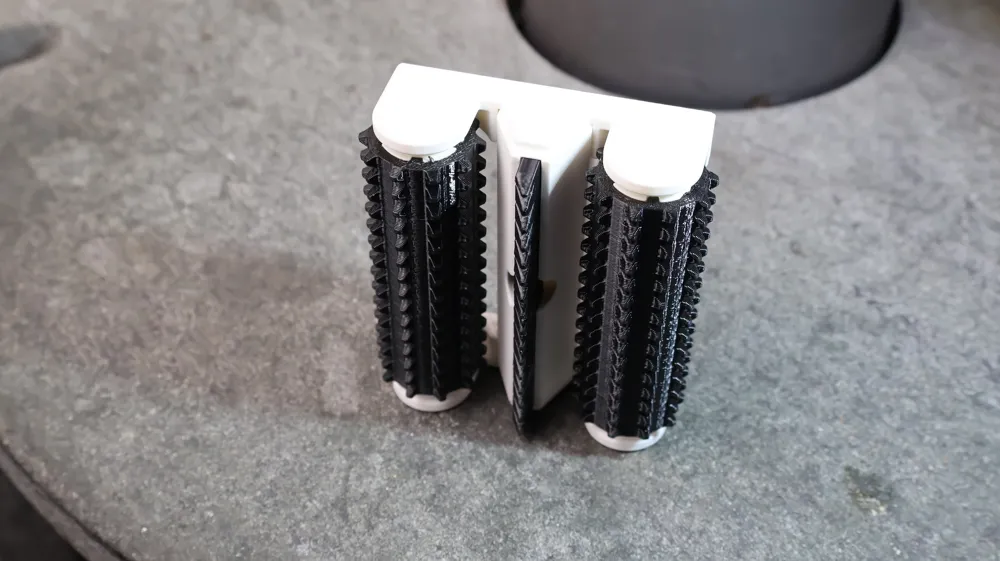

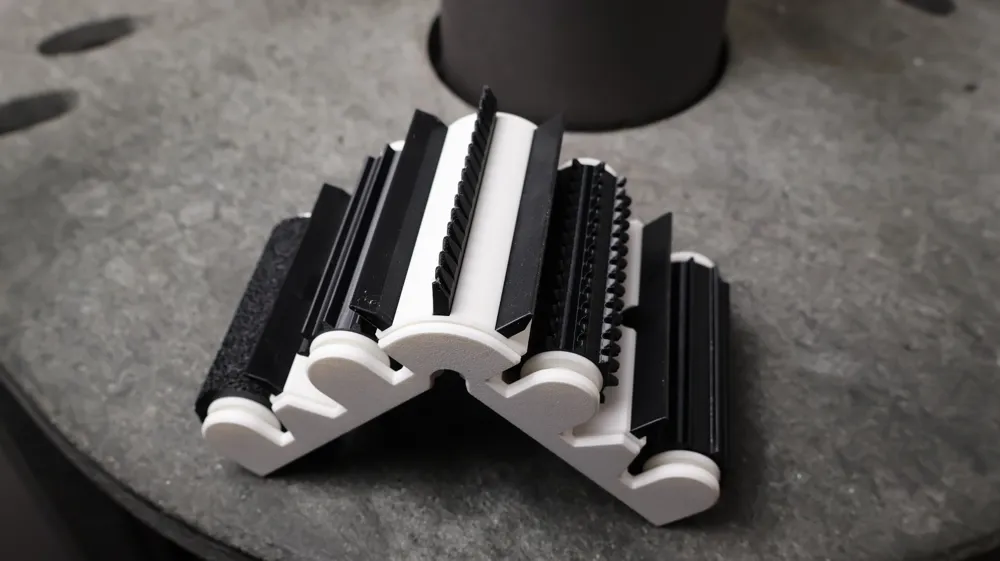

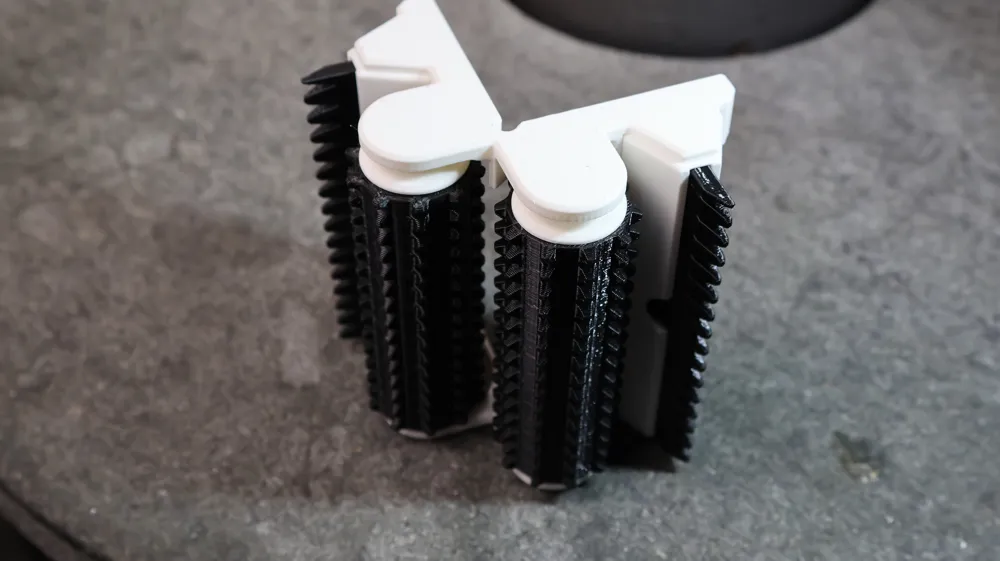

Corner 2 rollers, 2 scrapers
Corner 4 rollers, 2 scrapers + corner connector

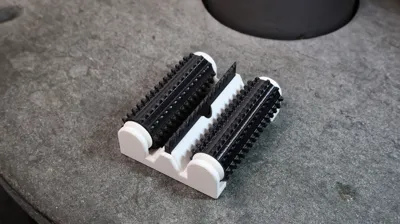

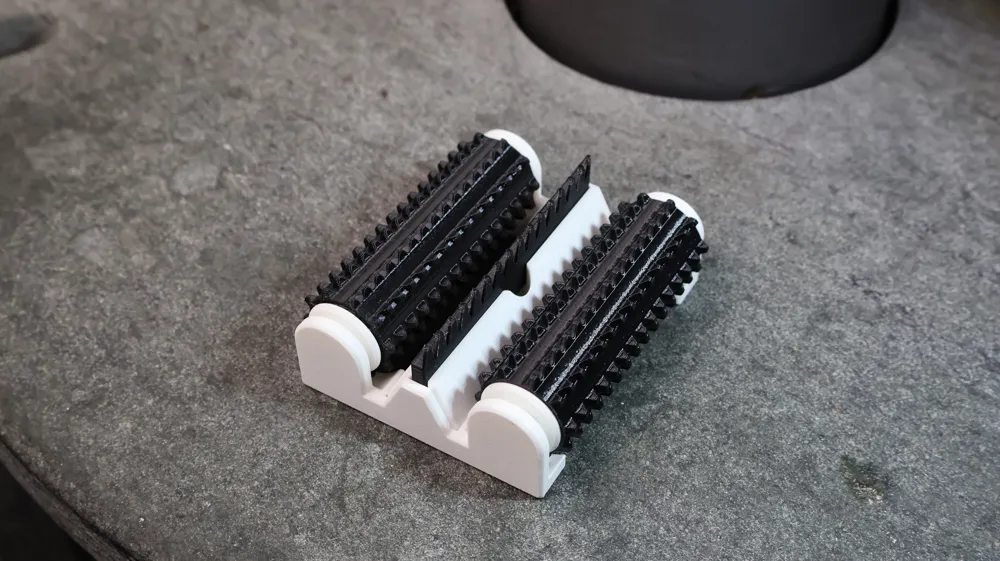

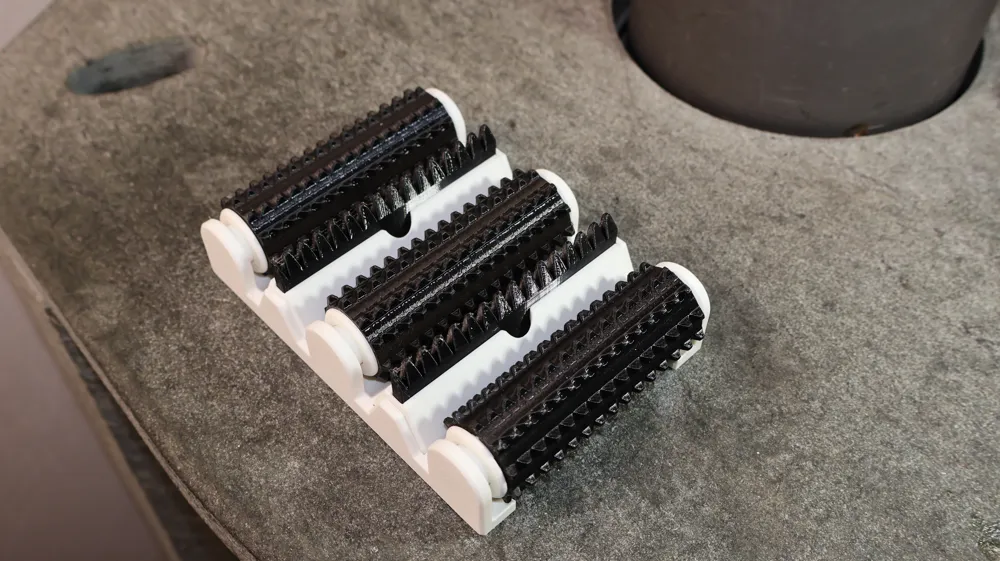

Straight 2 rollers, 1 scraper
Straight 3 rollers, 2 scrapers
TPU rollers & scrapers (each individually for better results)

🐱 Your cat will love it 😉

📸 Feel free to show your results in the Makes!

💬 Do you have questions, feedback, or your own ideas?
I look forward to your message right here on MakerWorld!

👍 If you like the model, feel free to give it a like or save it for later.
👣 Follow me to not miss any new models – new designs are regularly coming!

📸 Show your print result! Upload a picture with the model or share it with the hashtag **#daeneprints**

Boost Me (for free)

💡 Do you want to support my work? Then click on "Boost this model" – this helps me implement new projects and publish even more useful models. Thank you! 🙌
