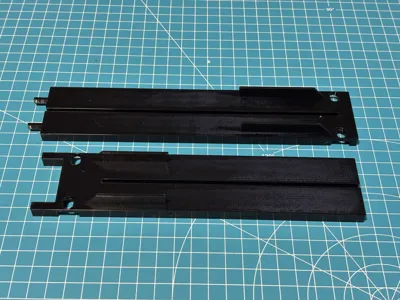

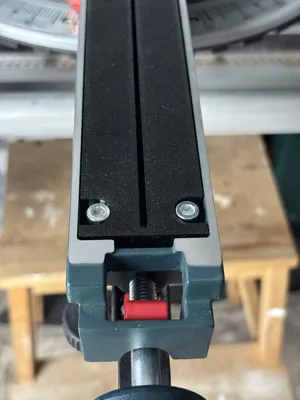

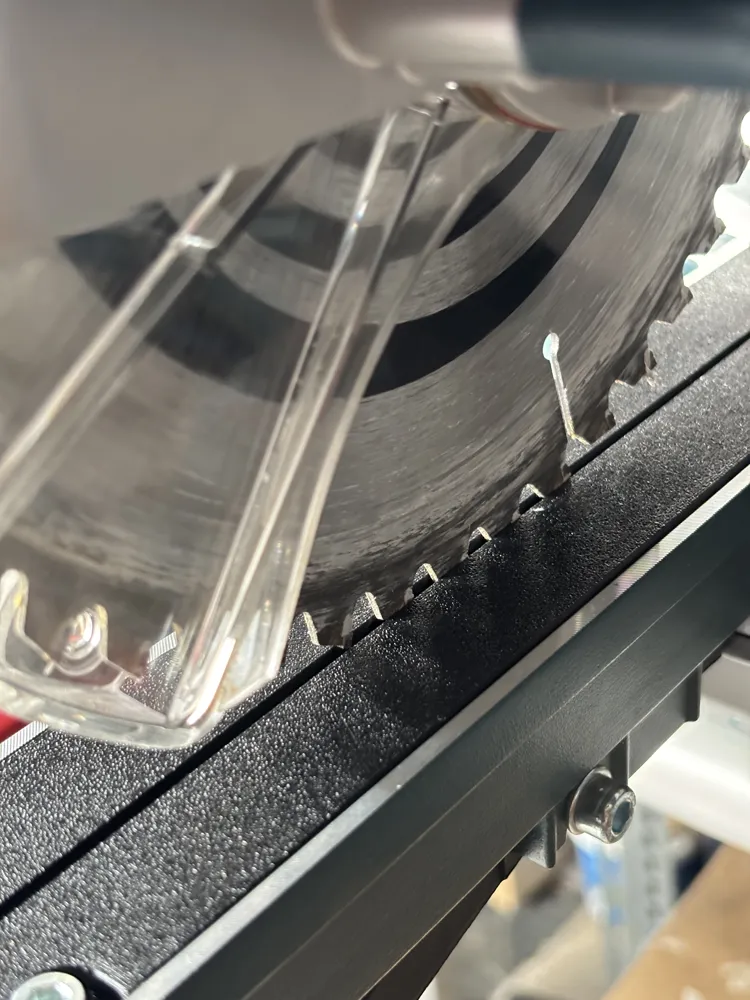

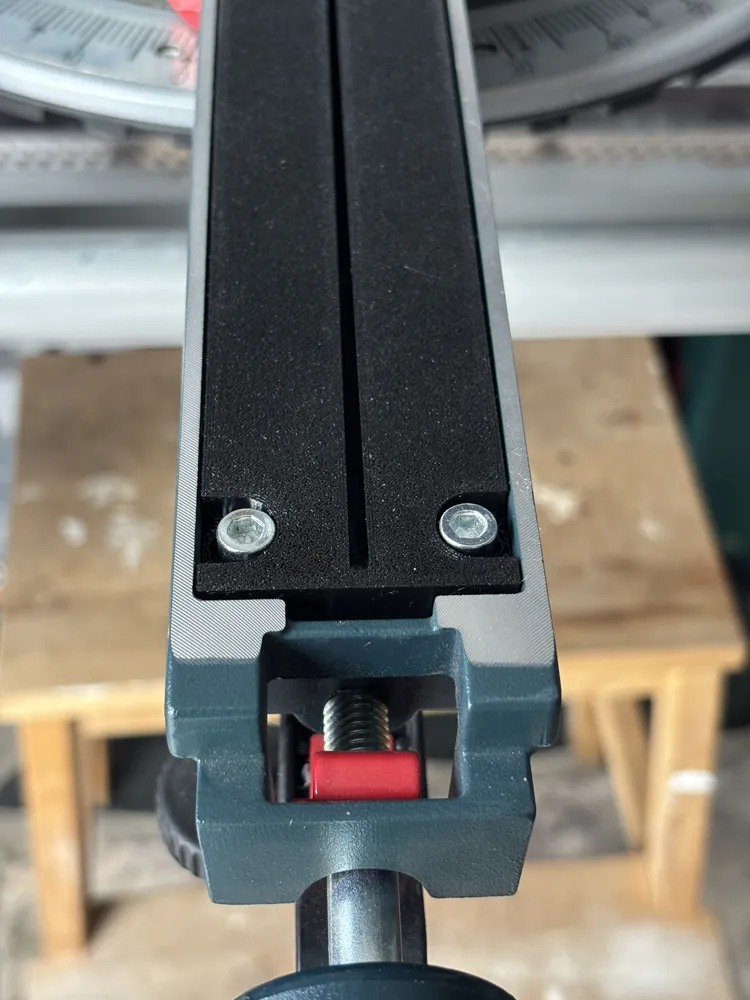

This custom insert is designed specifically for the BOSCH GCM 8 SJL mitre saw to improve cut precision and reduce tear-out. Printed in durable PETG for long-lasting performance.

Recommended Print Settings:

3 wall loops
35% gyroid infill
Normal support

If you find this useful, you might also be interested in my other zero-clearance plates and inserts for:

Boost Me (for free)

If you find this model useful, please consider boosting the design! It's completely free for you and really helps me continue creating practical models. Thank you for your support! 🤗

zero clearance insert
