Flashlight bike mount, arc dovetail, quick removal
Print Profile(1)
Bill of Materials
- Screw M3x12 BN17 x 8: https://www.tme.eu/pl/details/b3x12_bn17/sruby/bossard/5503268/
- Nut M3 BN117 x 8: https://www.tme.eu/pl/details/b3_bn117/nakretki/bossard/1874659/
- Magnet 10x3x2 x 2: https://magnesy.eu/magnes-neodymowy-plytkowy-10x3x2.html
- Cyanoacrylate glue or substitute x 1:
Description
Boost Me (for free)
Thank you for your support

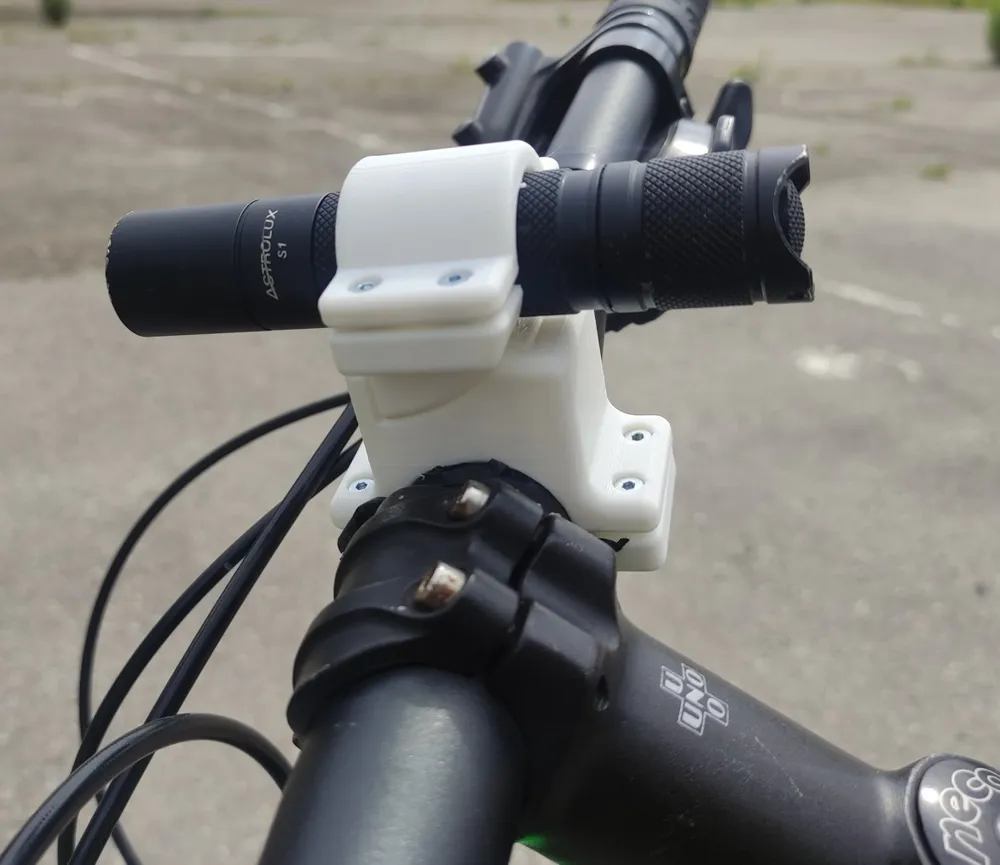

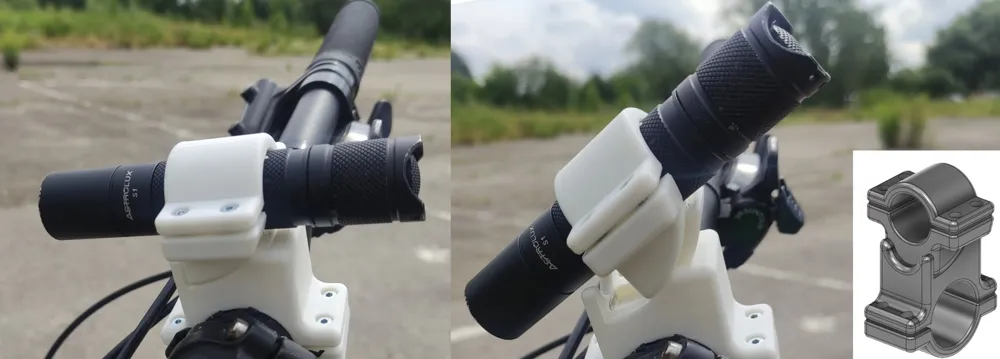

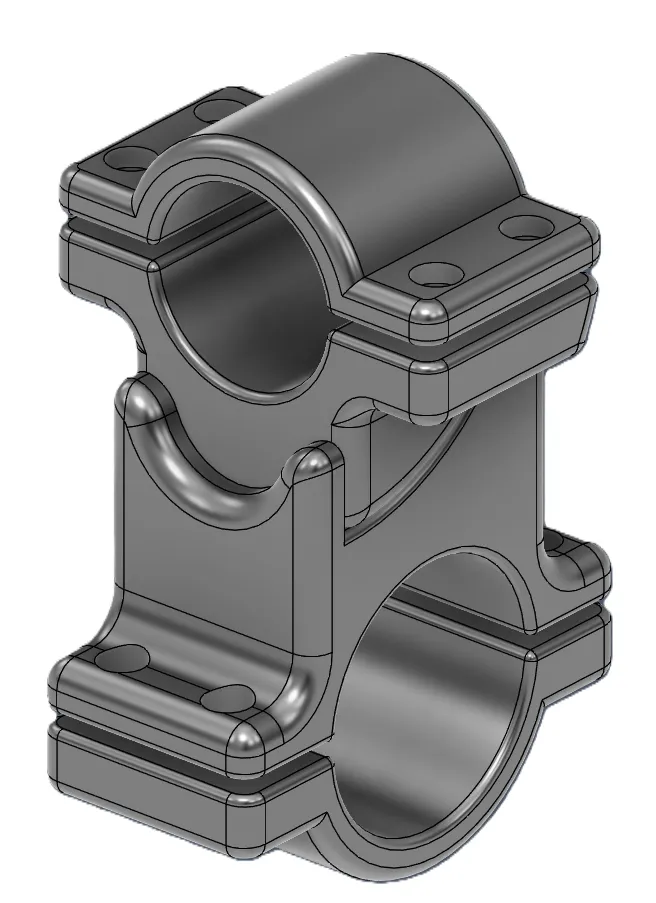

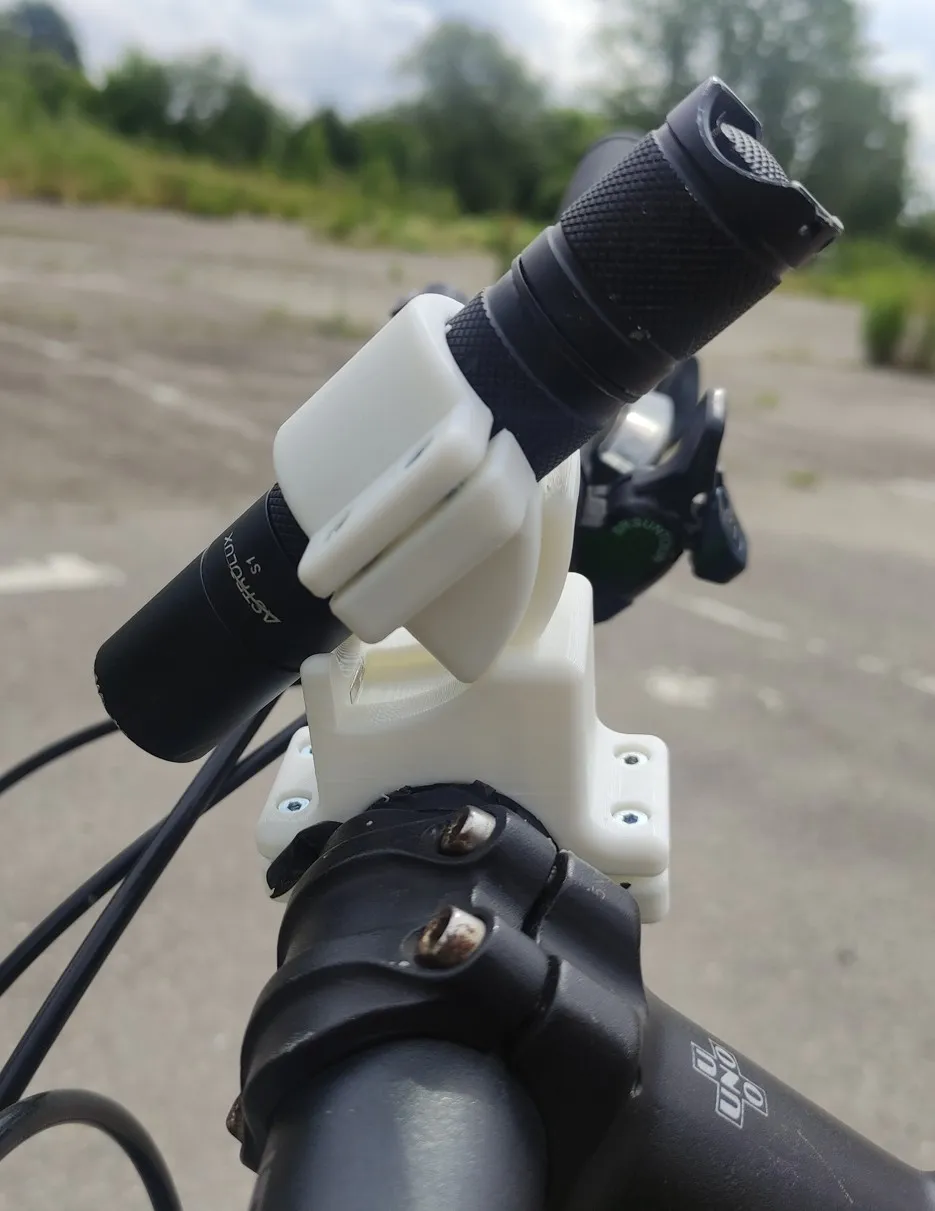

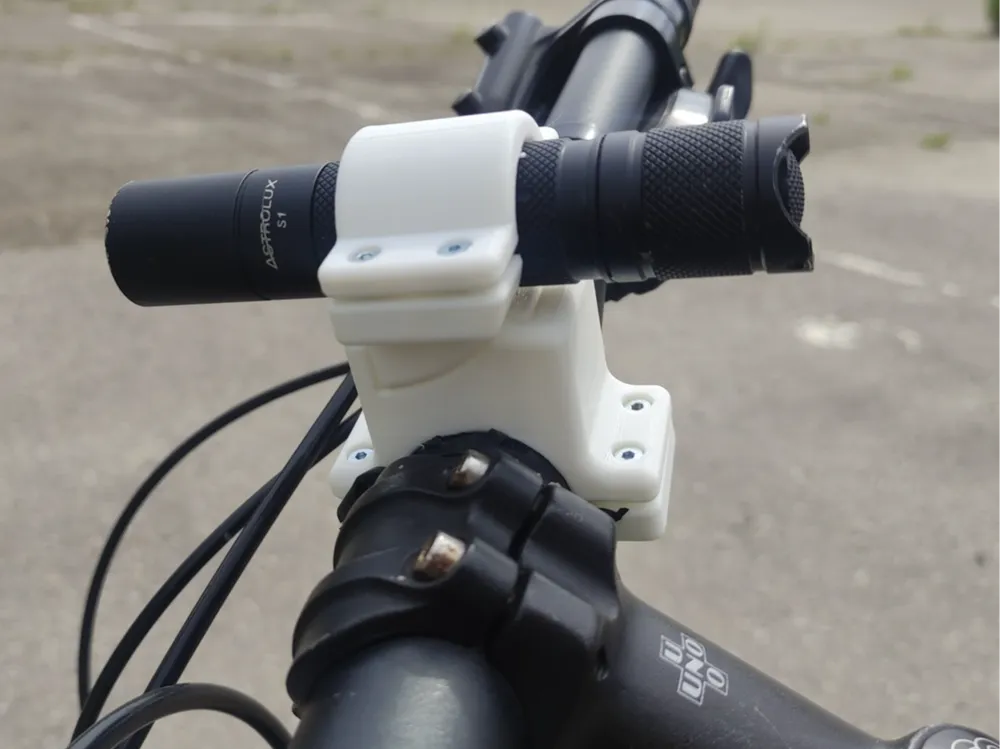

Flashlight bike mount, arc dovetail, quick installation and removal.
Designed for Astrolux s1 flashlight (diameter 24mm) . It should fit other models with a similar diameter powered by an 18650 cell. Handlebar diameter approximately 32 mm.
BOM:
8 x Screw M3x12 BN17
8 x Nut M3 BN117
2 x Magnet 10x3x2
1 x Cyanoacrylate glue (for gluing magnets)
Assembly:

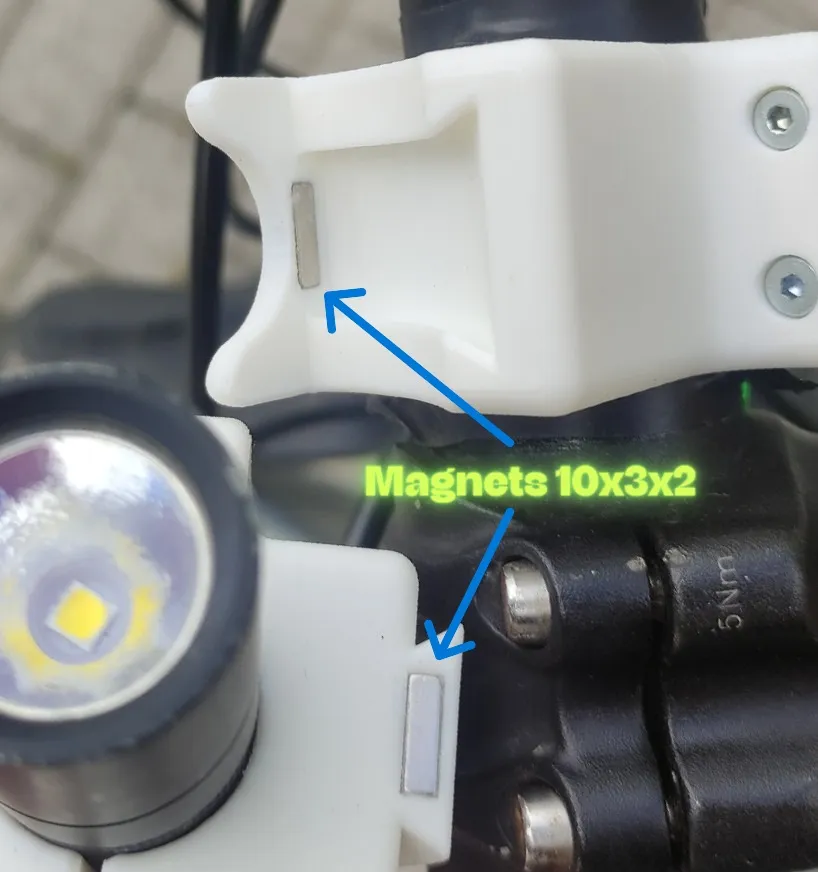

Glue the magnets
- Tighten the screws and nuts to fit the handlebar and flashlight.
